BROTHERS TC-323, 10 ATC, PALLET SHUTTLE, CONVERSATIONAL CONTROL, COOLANT

GENERAL SPECIFICATIONS
MANUFACTURER.................... BROTHER
MODEL........................... TC-323

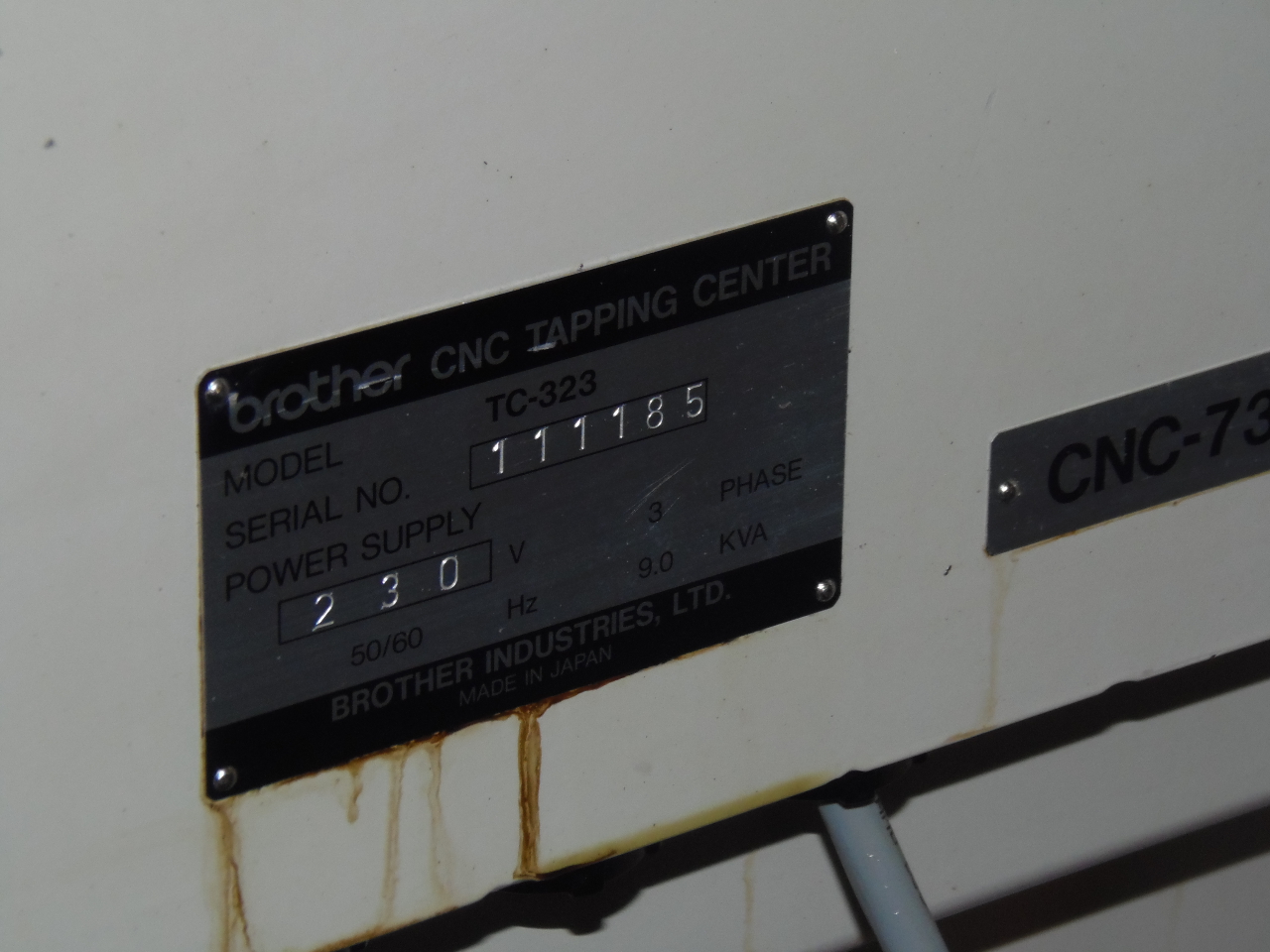

SERIAL NUMBER................... 111185
AGE............................. 1994
TABLE TRAVELS:
             X.................. 16.5"
             Y.................. 11.8"
             Z.................. 9.8"
TABLE SIZE...................... 19.7" x 11.8"
SPINDLE TAPER................... #30
TOOL CHANGER.................... 10
MAX. TOOL DIA., LENGTH, WEIGHT.. 3.14"/7.87"/6.61 LBS
SPINDLE SPEEDS.................. 10,000 RPM
RAPID FEED...................... 1181 IPM
TOOL TO TOOL.................... 1.5 SECONDS
MAIN MOTOR...................... 5.5 HP
MACHINE WEIGHT.................. 6400 LBS
