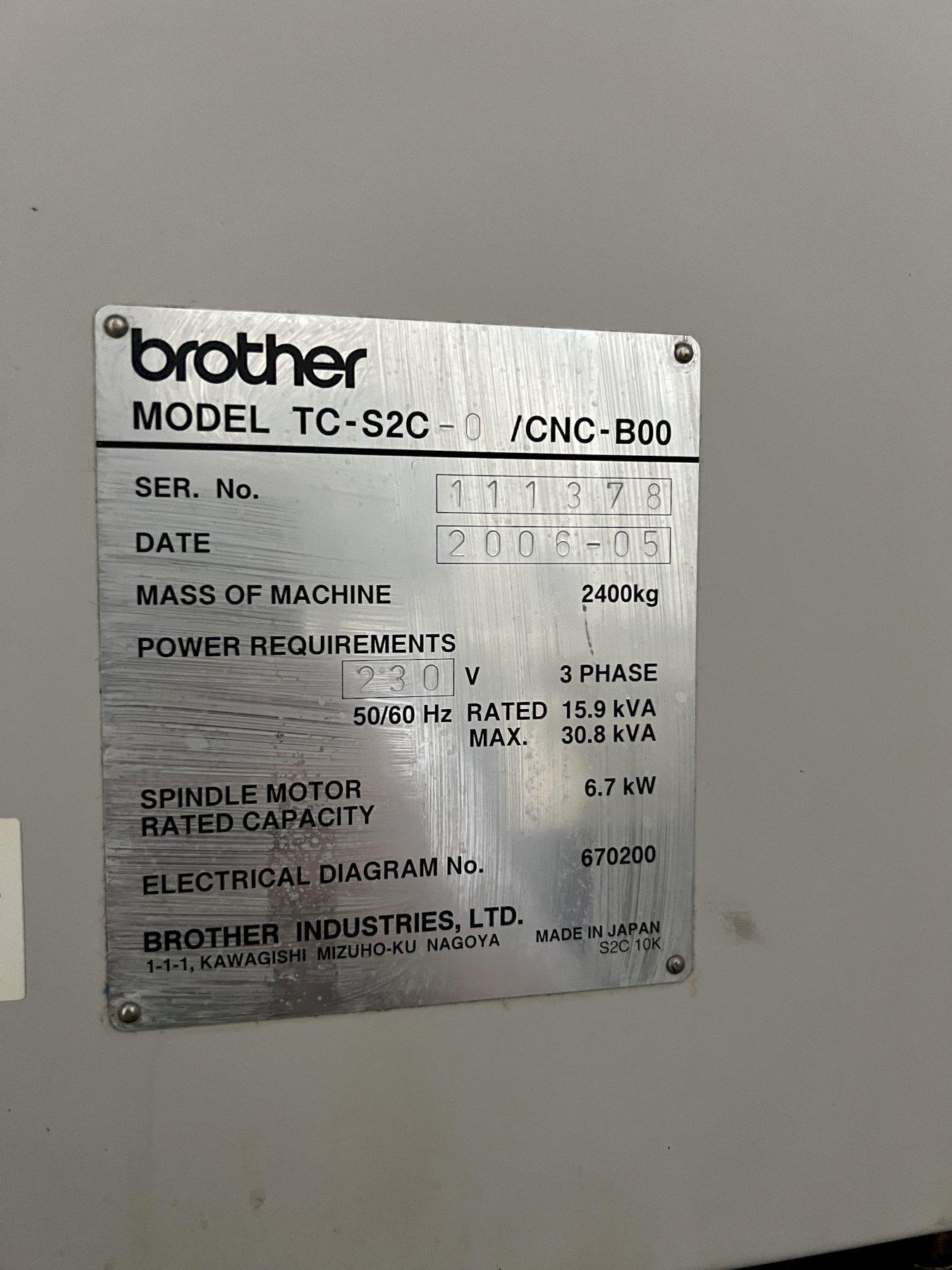

| MANUFACTURER | BROTHER |
| MODEL | TC-S2C-O |
| SERIAL NUMBER | 111375 |
| AGE | 2006 |
| Taper | BT 30 |
| RPM RANGE | 10 - 10,000 RPM |
| Type of CNC Control | CNC-B00 |

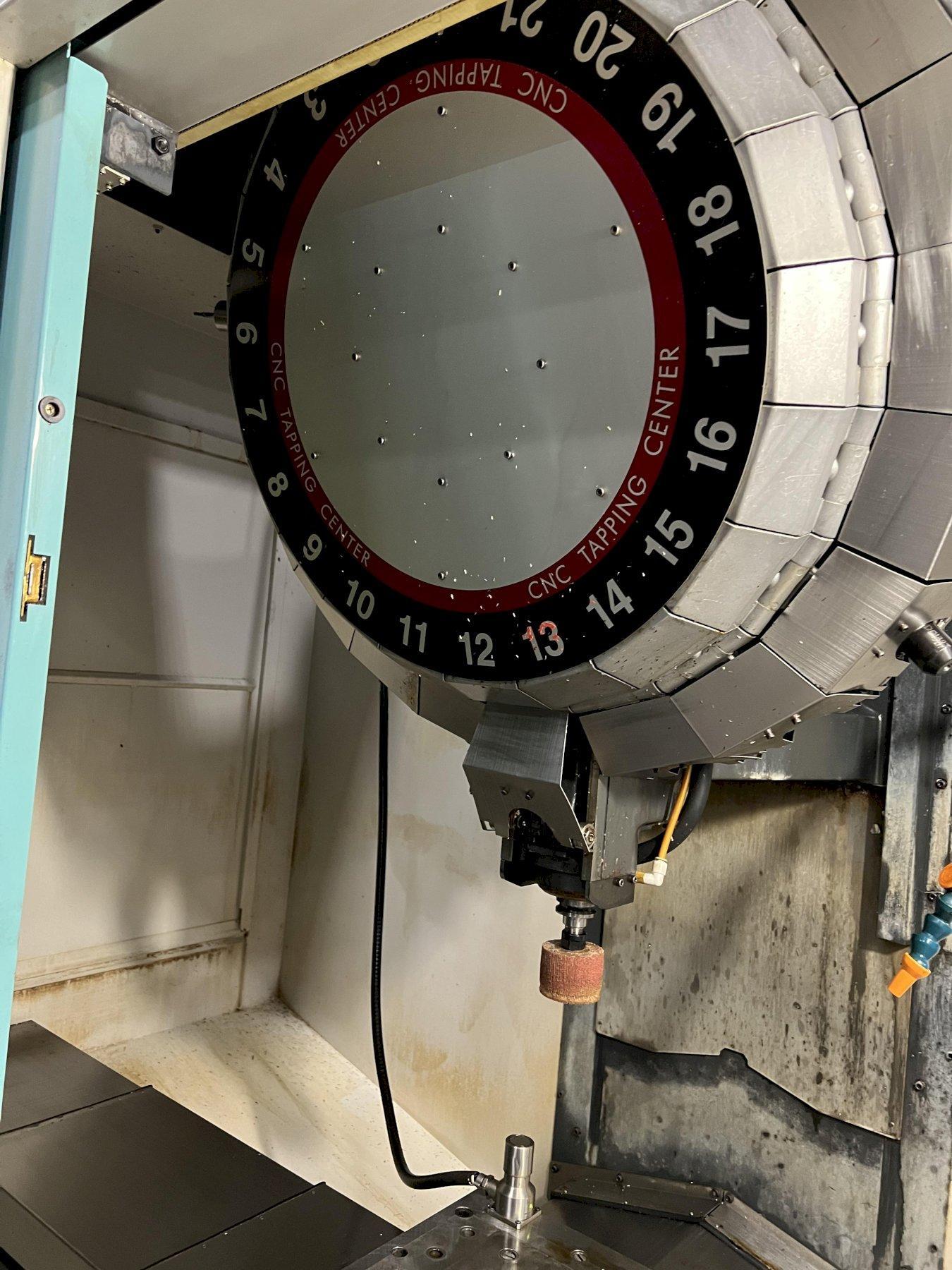

| # ATC | 20.9999 |

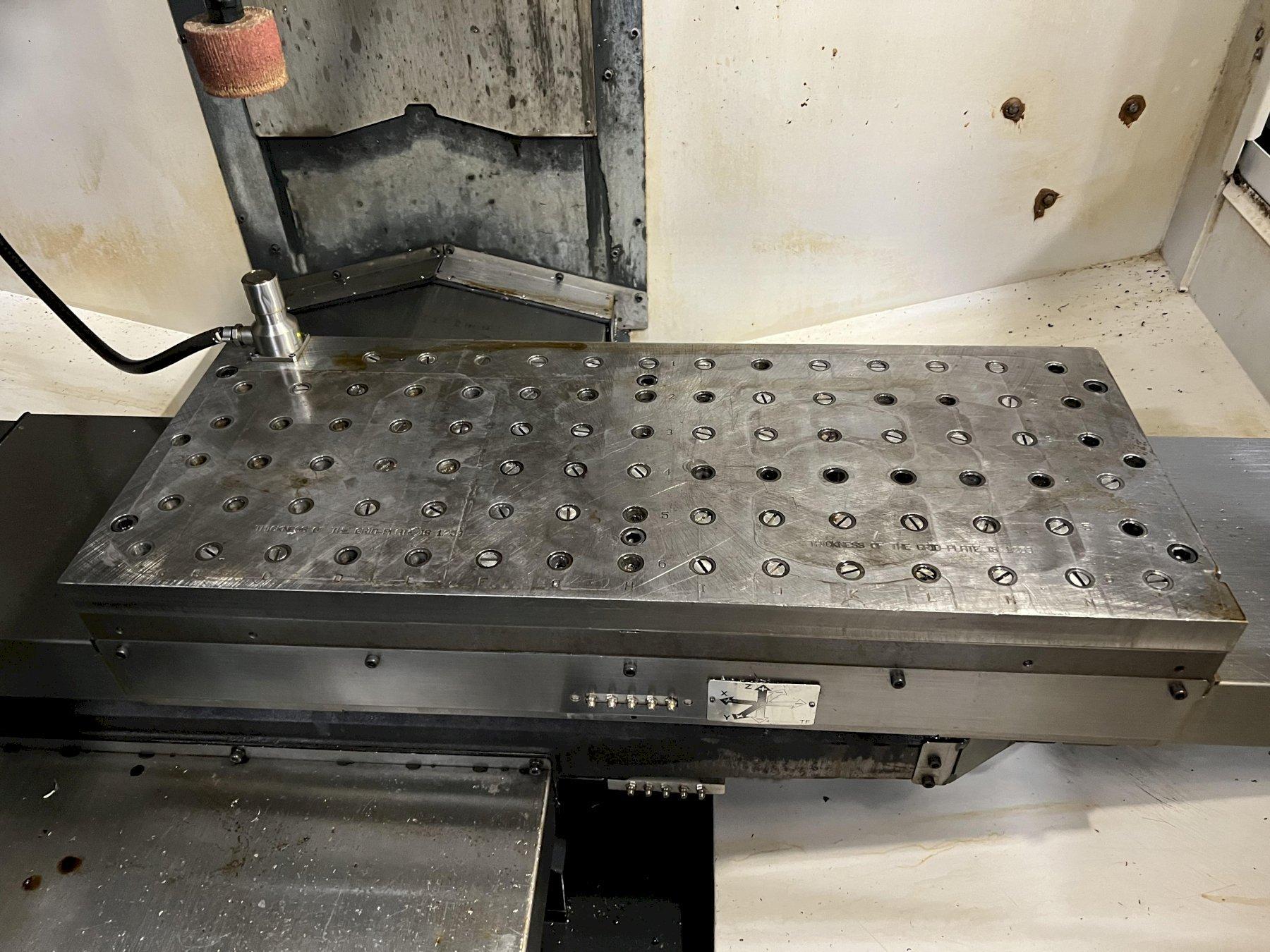

| TABLE SIZE | 12.6 X 31.5 |
| RAPID TRAVERSE RATE | 2000 IPM |
| X Axis Travel | 27.6 inches |
| Y-Axis Travel | 15.7 inches |
| Z-Axis Travel | 11.8 inches |
| Dimensions | 83 X 111 X 102 |
| Weight | 5300 pounds |
EQUIPPED WITH:

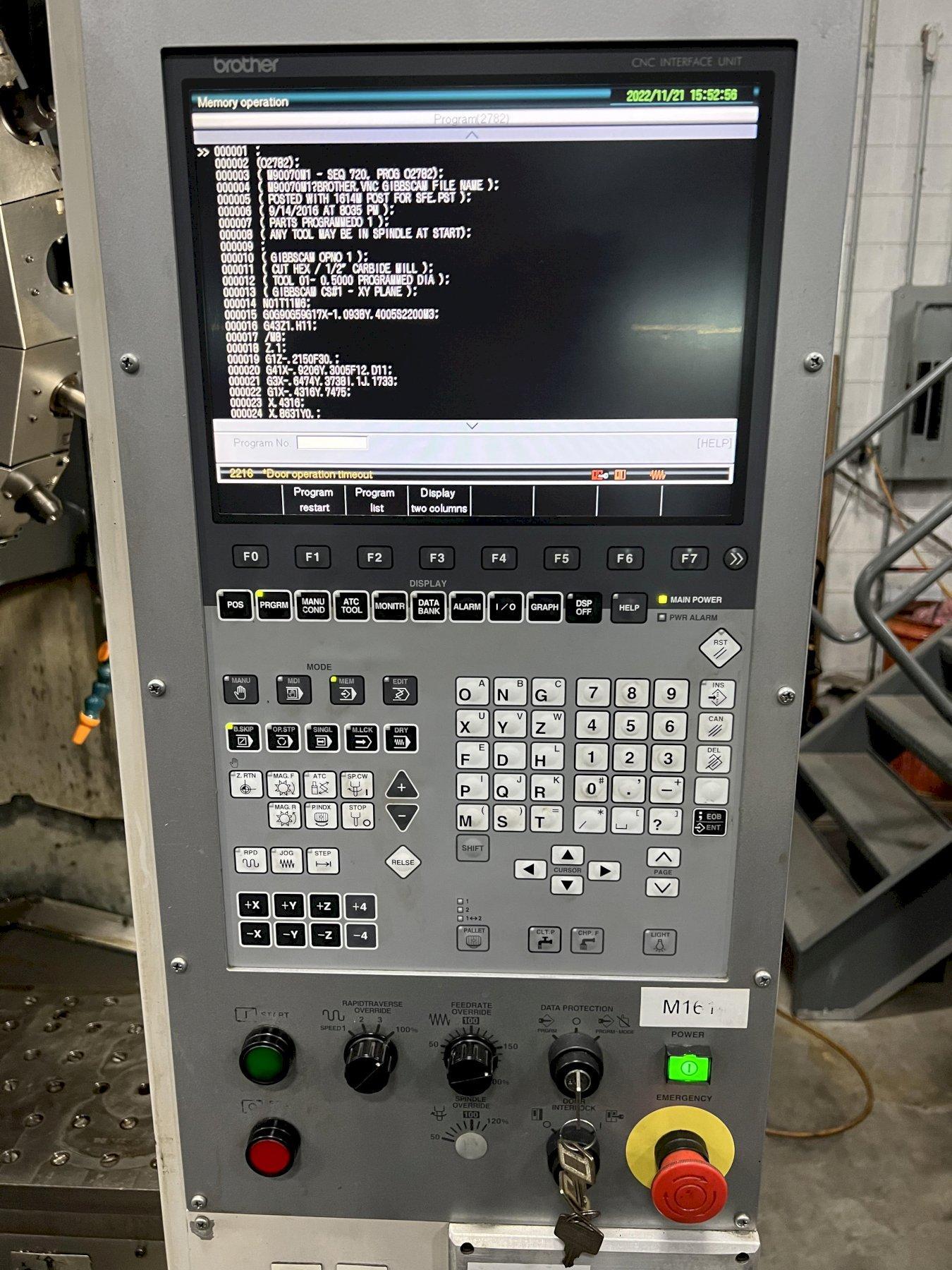

Brother CNC-B00 G-Code and Conversational with RS232C
50L Flood Coolant System
Blum Z-NANO with Interface
Auto Door Assembly Kit
SPECIFICATIONS SUBJECT TO VERIFICATION
