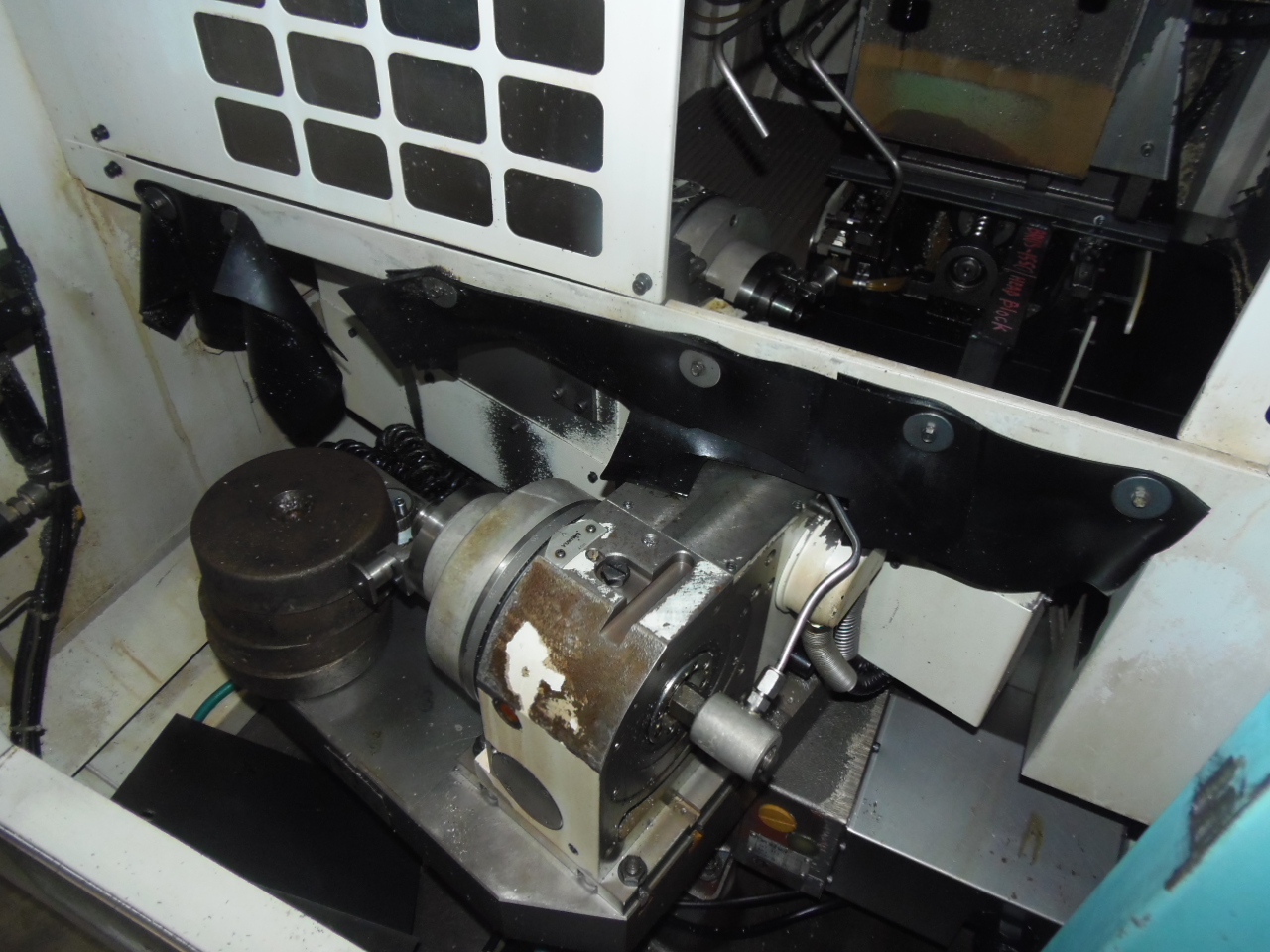

BROTHER TC-31A DRILL AND TAP MACHINE, 14" x 10" x 14" TRAVELS, 16000 RPM, 2 YUKIWA INDEX ROTARY TABLES, 1998

GENERAL SPECIFICATIONS
MANUFACTURER.................... BROTHER
MODEL........................... TC-31A

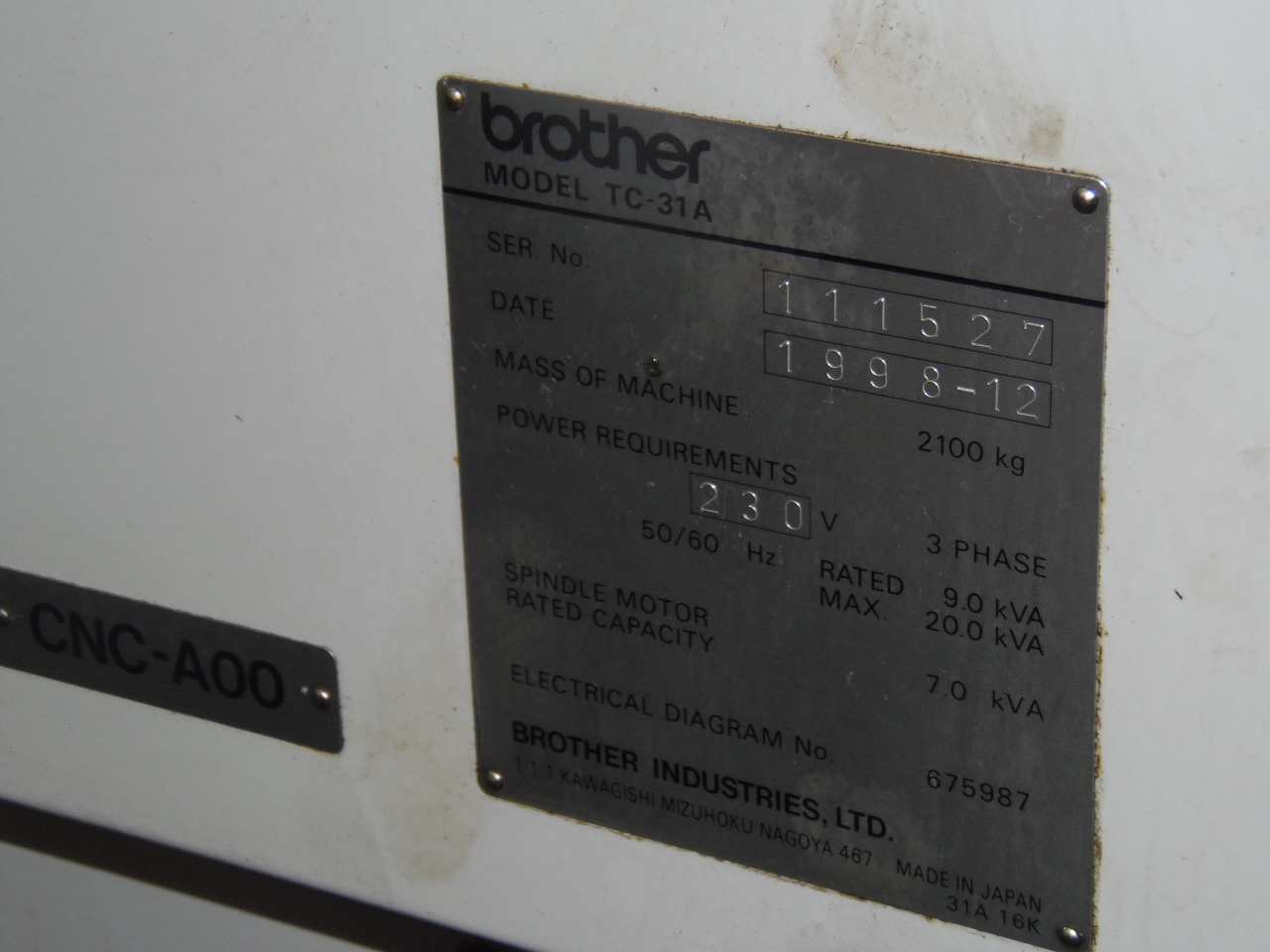

SERIAL NUMBER................... 111527
AGE............................. 1998
TABLE TRAVELS:
             X.................. 14"
             Y.................. 10"
             Z.................. 14"
TABLE SIZE...................... 21.65" x 13.7"
SPINDLE TAPER................... #30
TOOL CHANGER.................... 10
MAX. TOOL DIA., LENGTH, WEIGHT.. 3.14"/7.87"/6.61 LBS
SPINDLE SPEEDS.................. 16,000 RPM
RAPID TRAVERSE.................. 1968 IPM
TOOL TO TOOL.................... 1.5 SECONDS
MAIN MOTOR...................... 7.5 HP
MACHINE WEIGHT.................. 6400 LBS
