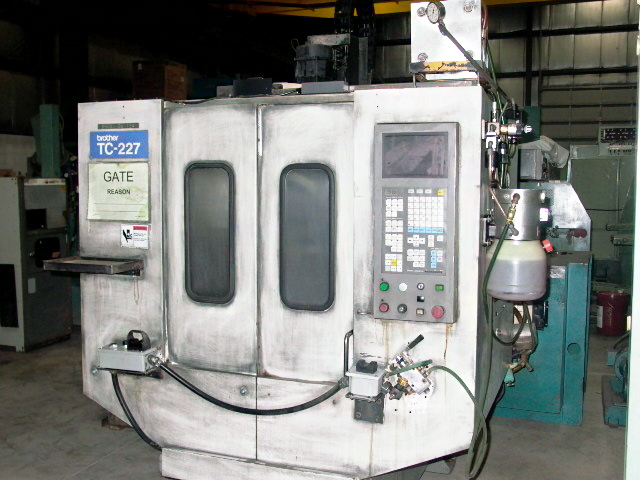

BROTHER TC-227,TAPPING MACHINE, 16.5 IN. -X, 11.8 IN. -Y, 9.8 IN. -Z, 23.6 X 11.8 IN. TBL, BROTHER CNC 520 CTRL, 5.7 HP, 1991

GENERAL MACHINE SPECIFICATIONS:
MANUFACTURER BROTHER
MODEL TC-227
NEW (APPROX.) 1991
X-AXIS TRAVEL 16.5"
Y-AXIS TRAVEL 11.8"
Z-AXIS TRAVEL 9.8"
TABLE WORK AREA 23.6" x 11.8"
SPINDLE SPEED 6,000 RPM
SPINDLE TAPER NO. 30
TOOL STORAGE CAPACITY 10
RAPID FEEDRATE 787 IPM
TOOL TO TOOL 1.5 SEC.
CHIP TO CHIP 3.1 SEC.
SPINDLE MOTOR 5.7 HP
WEIGHT (APPROX.) 3,792 LBS.
DIMENSIONS(APPROX.) 62" x 90" x 96"H

EQUIPPED WITH:

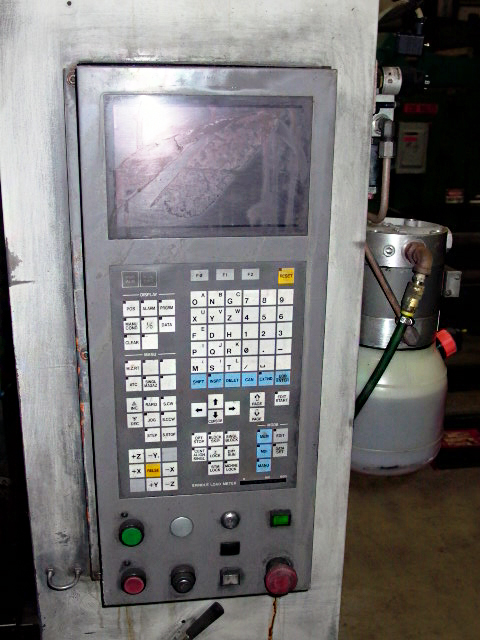

BROTHER CNC 520 CONTROL
