Specifications
Equipped With
GENERAL SPECIFICATIONS:

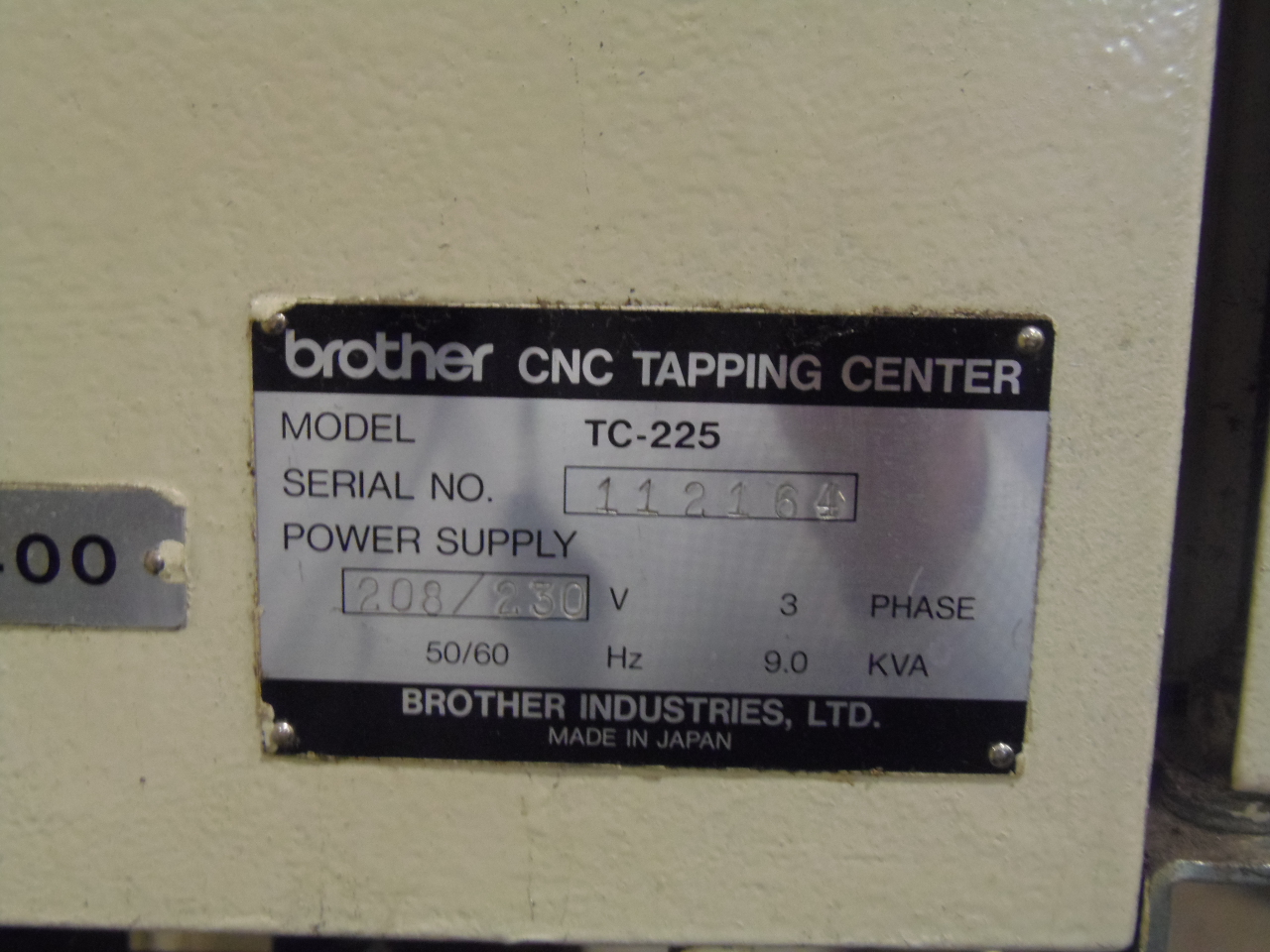

MAKE.................... BROTHER
MODEL................... TC-225
SERIAL NUMBER........... 112164
AGE (APPROX)............ 1990
TRAVEL (X).............. 16.53"
TRAVEL (Y).............. 11.81"
TRAVEL (Z).............. 9.84"
RAPID TRAVERSE.......... 787 IPM X&Y
RAPID TRAVERSE.......... 590 IPM Z

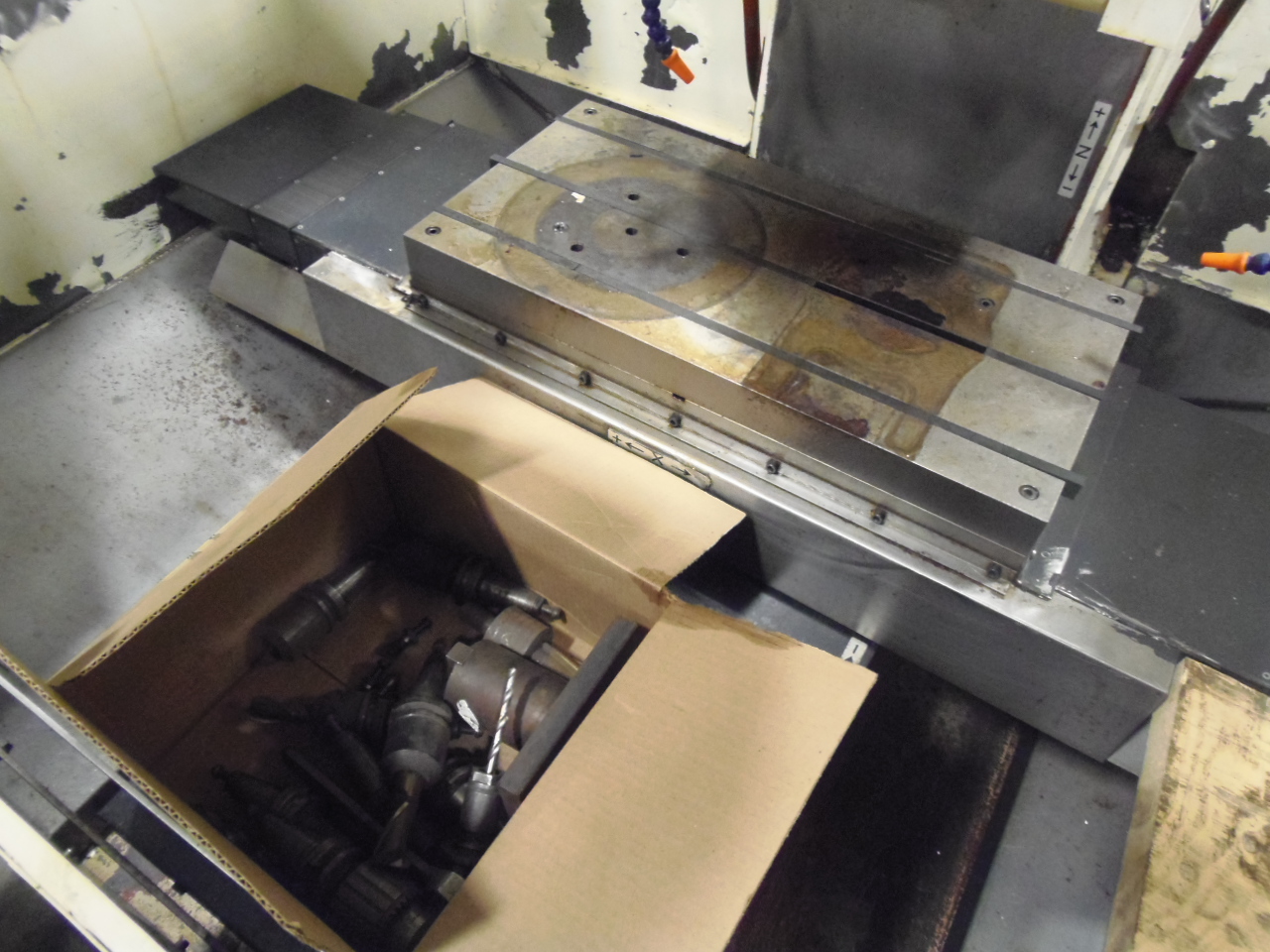

TABLE SIZE.............. 12" X 24"

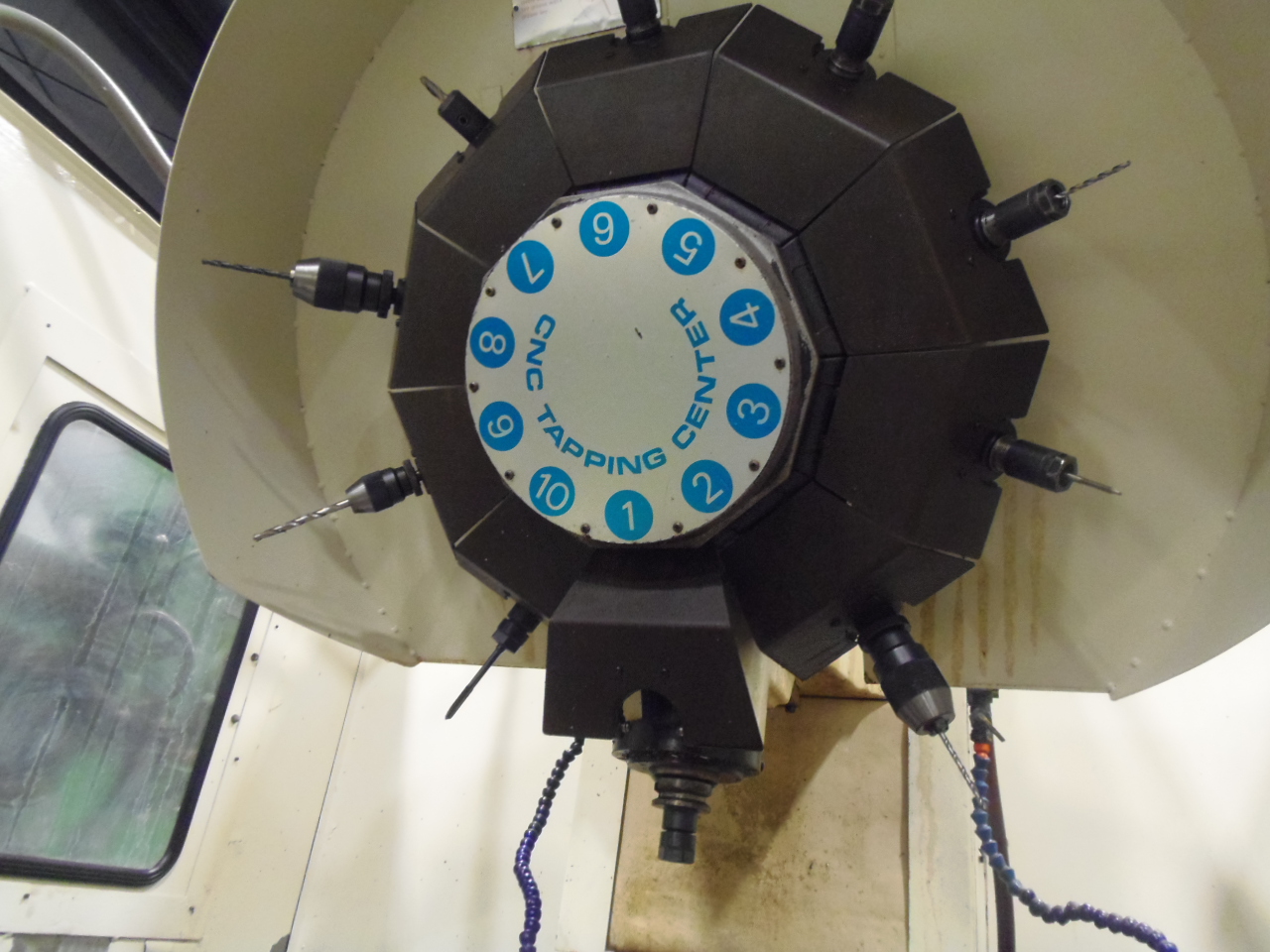

TOOL CHANGER (TURRET)... 10 ATC
CHIP TO CHIP TIME....... 5.2 SEC
TOOL CHANGE TIME........ 2.2 SEC
SPINDLE SPEED........... 6,000 RPM
WEIGHT.................. 4,000 LBS
POWER DRAW.............. 9 KVA @ 240 VOLT
SPECIFICATIONS SUBJECT TO VERIFICATION
EQUIPPED WITH:

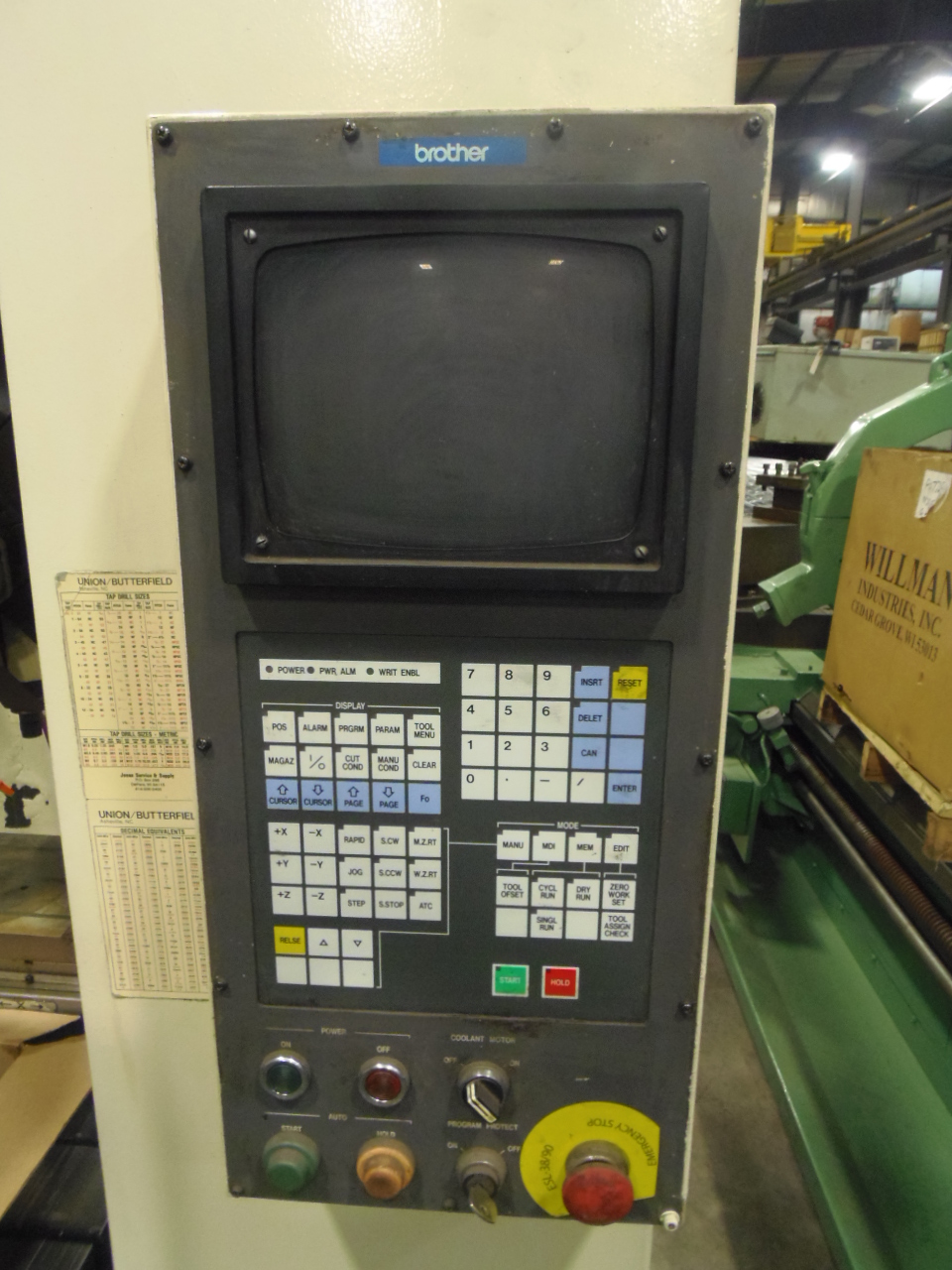

BROTHER CNC-400 CONTROL
MISC. TOOLING
