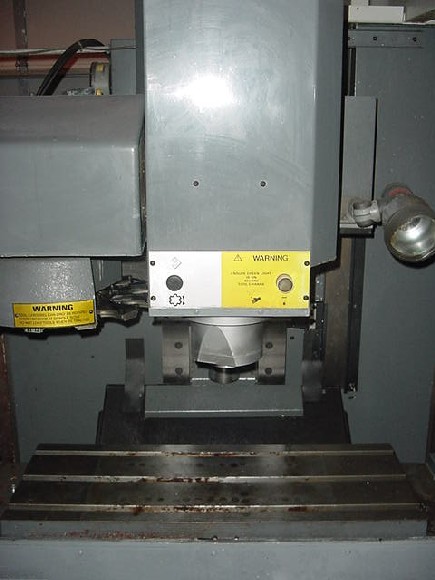

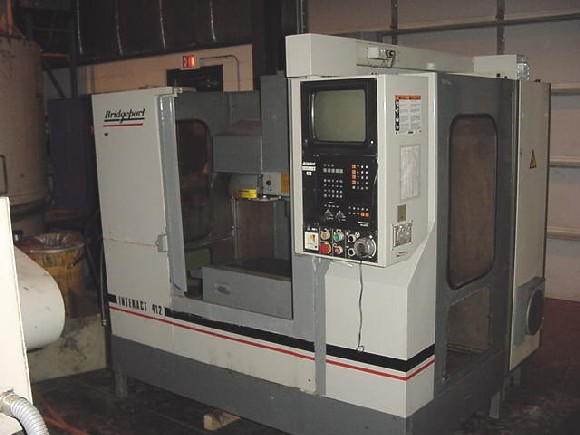

BRIDGEPORT INTERACT 412, X-17.72", Y-12.2", Z-11.81", 33.07" X 12.60" TBL, 4000 RPM, 1987

GENERAL SPECIFICATIONS:
MANUFACTURER.......................... BRIDGEPORT
MODEL................................. INTERACT 412
SERIAL #.............................. 75181
NEW APPROXIMATELY..................... 1987
TRAVELS: TABLE (X AXIS)............... 17.72"
SADDLE (Y AXIS).............. 12.21"
SPINDLE (Z AXIS)............. 11.81"
WORKING SURFACE....................... 33.07" X 12.60"
SPINDLE DRIVE 30 MIN. ROTATING........ 7 HP
SPINDLE DRIVE CONTINOUS............... 5 HP
SPINDLE SPEED RANGER (STANDARD)....... 40 - 4000 RPM
SPINDLE SPEED CONTROL................. DIRECT COMMAND
SPINDLE DIAMETER...................... 2.56"
TAPER................................. BT 40
DIST. SPINDLE NOSE TO TABLE TOP:
MIN................................ 3.55"
MAX................................ 19.69"
MAGAZINE CAPACITY..................... 12 TOOLS
TOOL SELECTION........................ SHORTEST PATH RANDOM
MAX. TOOL DIAMETER.................... 2.96" (ADJ POCKETS)
MAX. TOOL WEIGHT...................... 13.2 LBS
MAX. TOTAL WEIGHT OF ALL TOOLS........ 132 LBS.
MAX. TOOL LENGTH...................... 9.84"

EQUIPPED WITH:

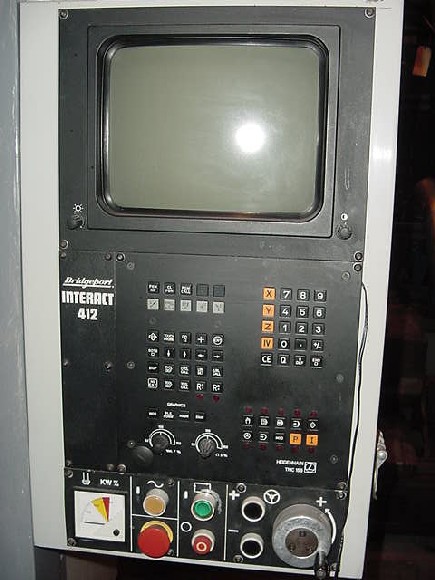

HEIDENHAIN TNC 151P CONTROL
FULL MDI AND MODE SELECT KEYBOARD
CRT DISPLAY
