Specifications
Equipped With
GENERAL SPECIFICATIONS:
TABLE SIZE 9" x 48"
MAXIMUM TABLE LOAD 300 LBS
SPINDLE NOSE TO TABLE TOP 2.5" - 18.25"
X AXIS TRAVEL (TABLE TRAVEL) 30"
Y AXIS TRAVEL (SADDLE TRAVEL) 12"
QUILL TRAVEL 5"
KNEE TRAVEL 16"
RAM TRAVEL 12"
RAPID TRAVERSE RATE X, Y & Z AXES 100 IPM
CUTTING FEED RATE 0.1 - 100 IPM
SPINDLE SPEEDS 60 - 4,200 RPM
SPINDLE TAPER R-8
SPINDLE MOTOR 3 HP
MACHINE NET WEIGHT 2,900 LBS
EQUIPPED WITH:

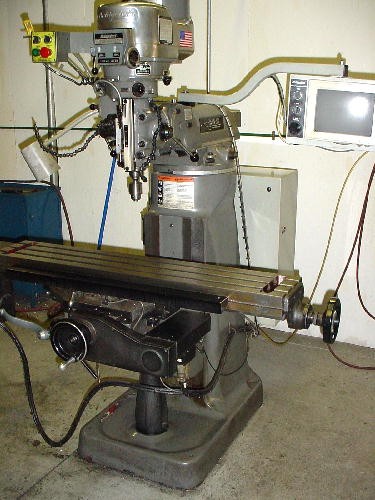

BRIDGEPORT DX PC-BASED CNC CONTROL WITH 9" CRT
RS-232C PORT INTERFACE FOR DNC OPERATION, CANNED CYCLES
FULL 3-AXIS DRO (DIGITAL READ-OUT), AUTO CORNER ROUNDING
WORK LIGHT, R-8 COLLET SET, CLAMP KIT (HOLD DOWNS)
CUTTER DIAMETER COMPENSATION, ACCU LUBE COOLANT SYSTEM
FLOPPY DISK DRIVE, AUTO WAY LUBE SYSTEM, WORK LIGHT
DOVETAIL TYPE CHROMED WAYS, ALL AVAILABLE MANUALS
