Specifications
Equipped With
GENERAL SPECIFICATIONS:
MANUFACTURER BRIDGEPORT
SERIAL# XT-618
AGE APPROX 1994
TABLE SIZE 9" x 48"
MAXIMUM TABLE LOAD 300 LBS
SPINDLE NOSE TO TABLE TOP 2.5" - 18.25"
X AXIS TRAVEL (TABLE TRAVEL) 30"
Y AXIS TRAVEL (SADDLE TRAVEL) 12"
QUILL TRAVEL W/3RD AXIS 4.4"
KNEE TRAVEL 16"
RAM TRAVEL 12"
RAPID TRAVERSE RATE X, Y & Z AXES 100 IPM
CUTTING FEED RATE 0.1 - 100 IPM
SPINDLE SPEEDS 60 - 4,200 RPM

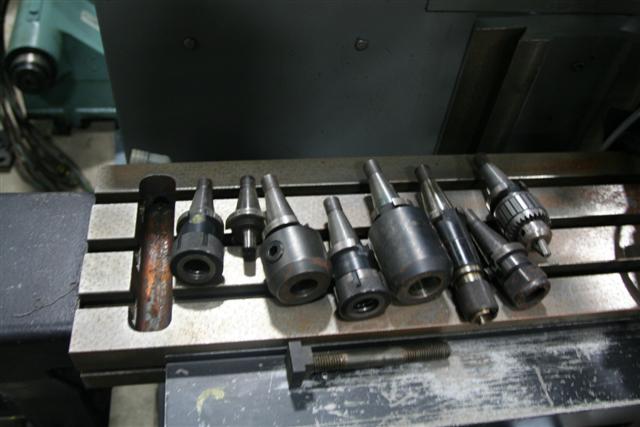

SPINDLE TAPER 30
SPINDLE MOTOR 2 HP
MACHINE NET WEIGHT 2,900 LBS
EQUIPPED WITH:

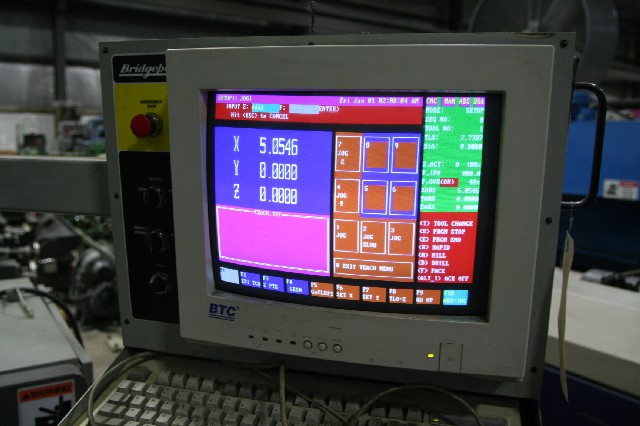

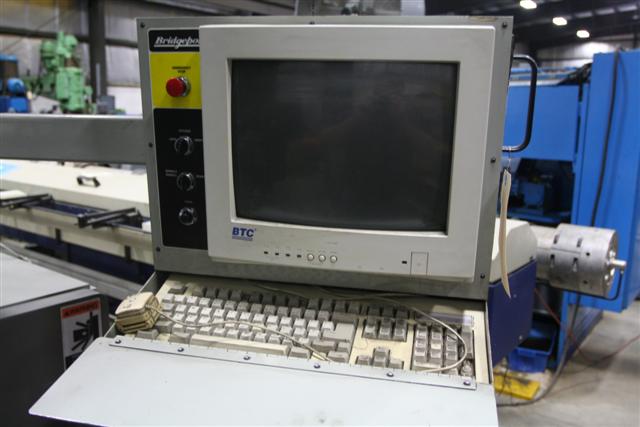

BRIDGEPORT DX PC-BASED CNC CONTROL WITH CRT
RS-232C
3-AXIS, AUTO CORNER ROUNDING, CANNED CYCLES, CUTTER DIAMETER COMPENSATION
FLOPPY DISK DRIVE
AUTO WAY LUBE SYSTEM
ALL AVAILABLE MANUALS

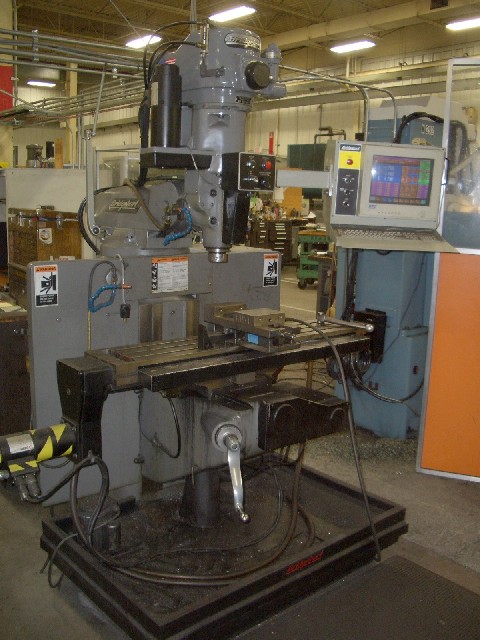

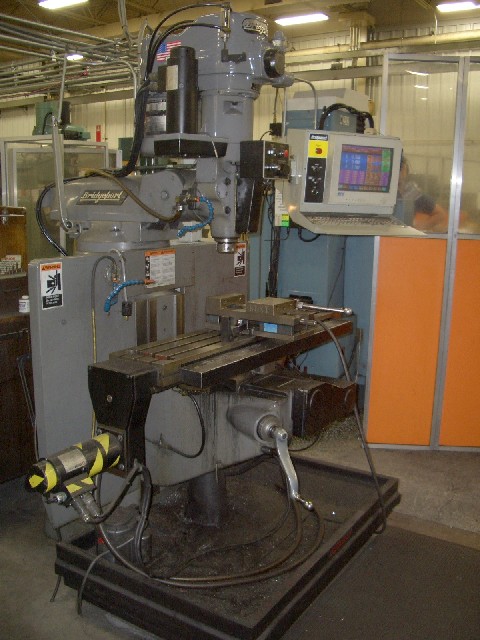

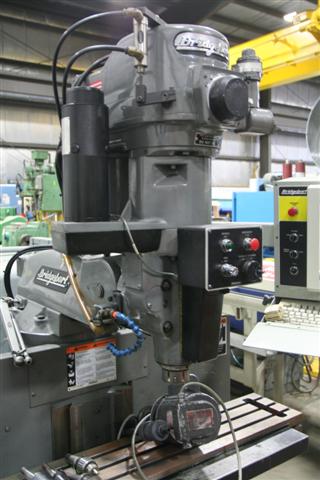

NOTE: VISE IN PICTURE IS NOT INCLUDED TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
