Specifications
Equipped With
GENERAL SPECIFICATIONS:
CHUCK (TABLE) DIAMETER 39.4"
MAXIMUM SWING / TURNING DIAMETER 55.1" / 50.03"
MAXIMUM TURNING HEIGHT 24.82"
HEIGHT UNDER RAIL 35"
X AXIS TRAVEL (CROSS TRAVEL) 68.56"
Z AXIS TRAVEL (VERTICAL TRAVEL) 31.5"
C AXIS INDEXING 0.001º
RAPID TRAVERSE RATE X & Z AXES 472 IPM
C AXIS POSITIONING SPEED 5 RPM
CUTTING FEED RATE 0.04 - 78.8 IPM
SPINDLE SPEEDS (LOW RANGE) 6.2 - 200 RPM
SPINDLE SPEEDS (LOW RANGE) 25 - 800 RPM
SPINDLE MOTOR 67 HP AC
TOOL CHANGER CAPACITY 32 STATION ATC
MILLING SPINDLE TAPER / MOTOR # 50 / 10 HP AC
MILLING SPINDLE SPEEDS 50 - 2,800 RPM
EQUIPPED WITH:

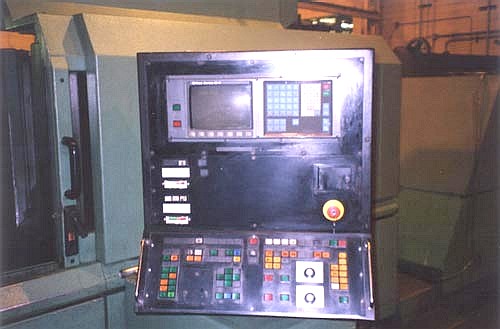

FANUC 15TA CNC CONTROL WITH 9" CRT
RS-232C PORT INTERFACE FOR DNC OPERATION

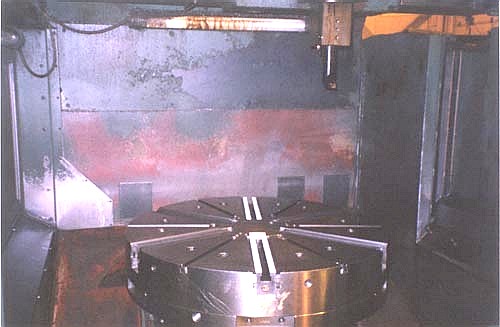

39.4" 6-JAW ROHM CHUCK WITH JAWS
FULLY CONTOURING C-AXIS LIVE MILLING
STANDARD COOLANT SYSTEM, CHIP CONVEYOR
10 STRAIGHT SHANK ID & OD TURNING HOLDERS
ALL AVAILABLE LIVE MILLING TOOL HOLDERS
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
