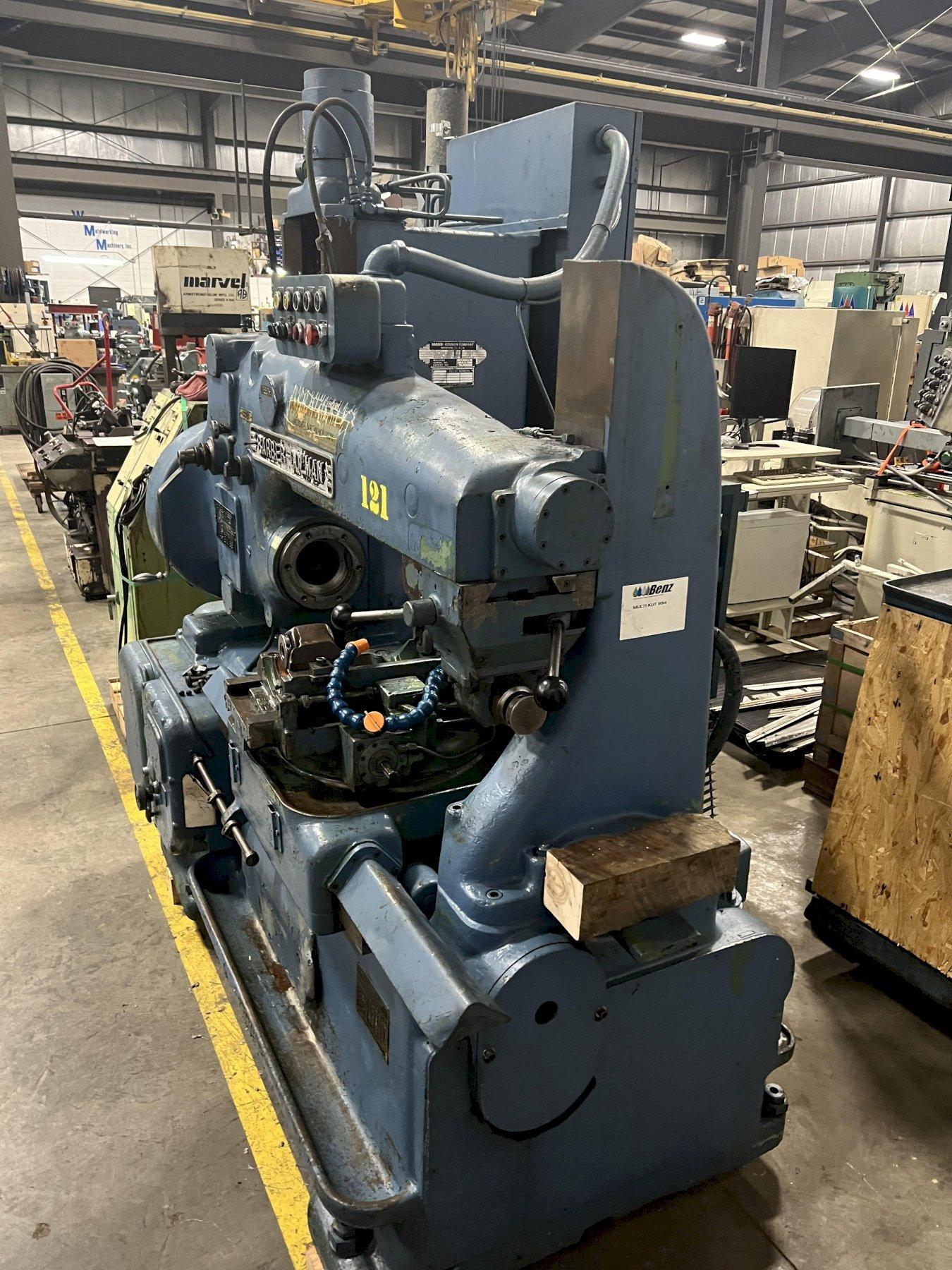

Specifications
Equipped With
GENERAL SPECIFICATIONS:

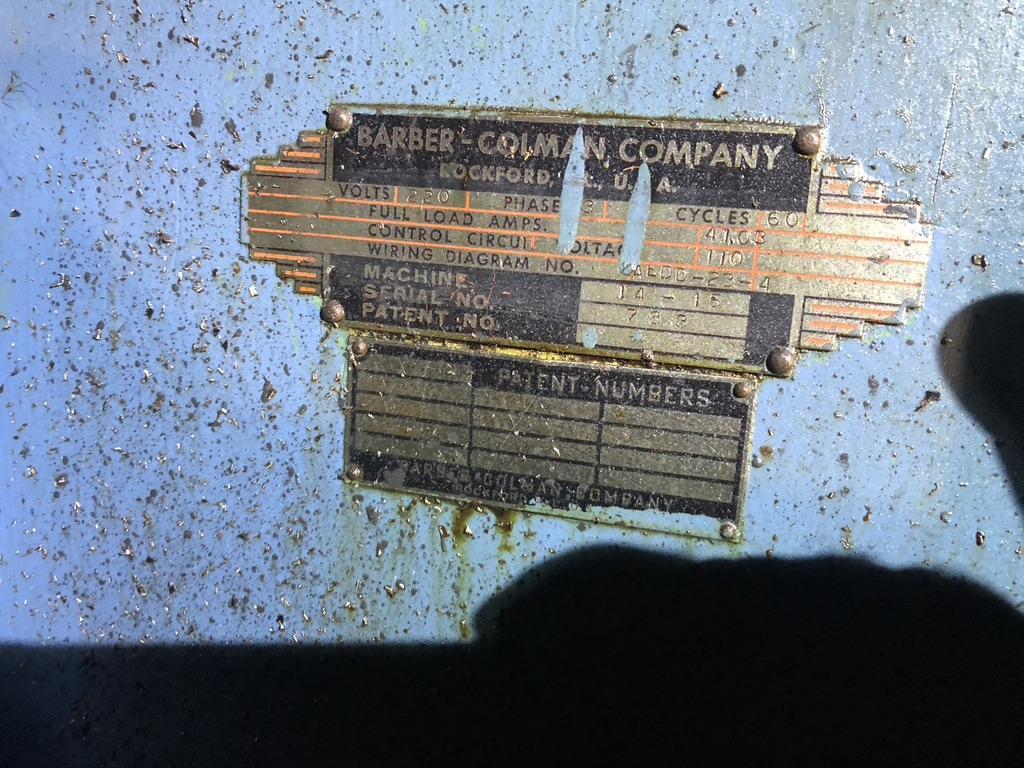

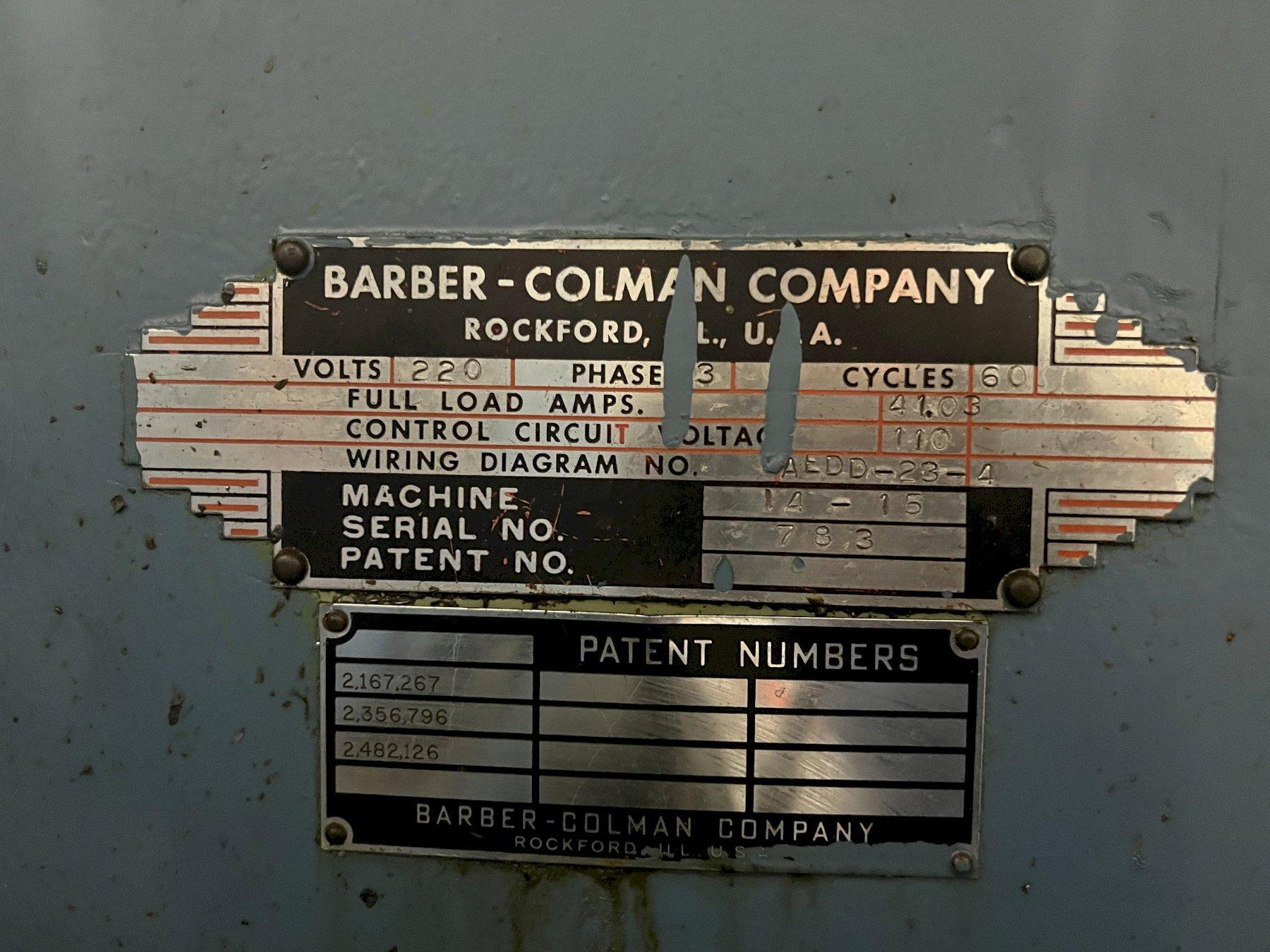

MANUFACTURER..................... 14-15
SERIAL........................... 783
MAXIMUM DP....................... 1 CUT 3.5 DP
MAXIMUM RATED WORK DIAMETER...... 14"
MAXIMUM TRAVEL OF HOB SLIDE...... 15"
DIS. SPINDLE FACE TO C/L
MAXIMUM....................... 8-1/2"
MINIMUM....................... 3-1/2"
MAXIMUM HOB DIAMETER............. 6"
MAXIMUM TRAVEL ANGLE SETTING..... 50 DEGREES
HOB SPEEDS....................... 64-362 RPM
FLOOR SPACE...................... 110" X 75"
HEIGHT........................... 84-3/8"
WEIGHT........................... 9,300 LBS.
EQUIPPED WITH:

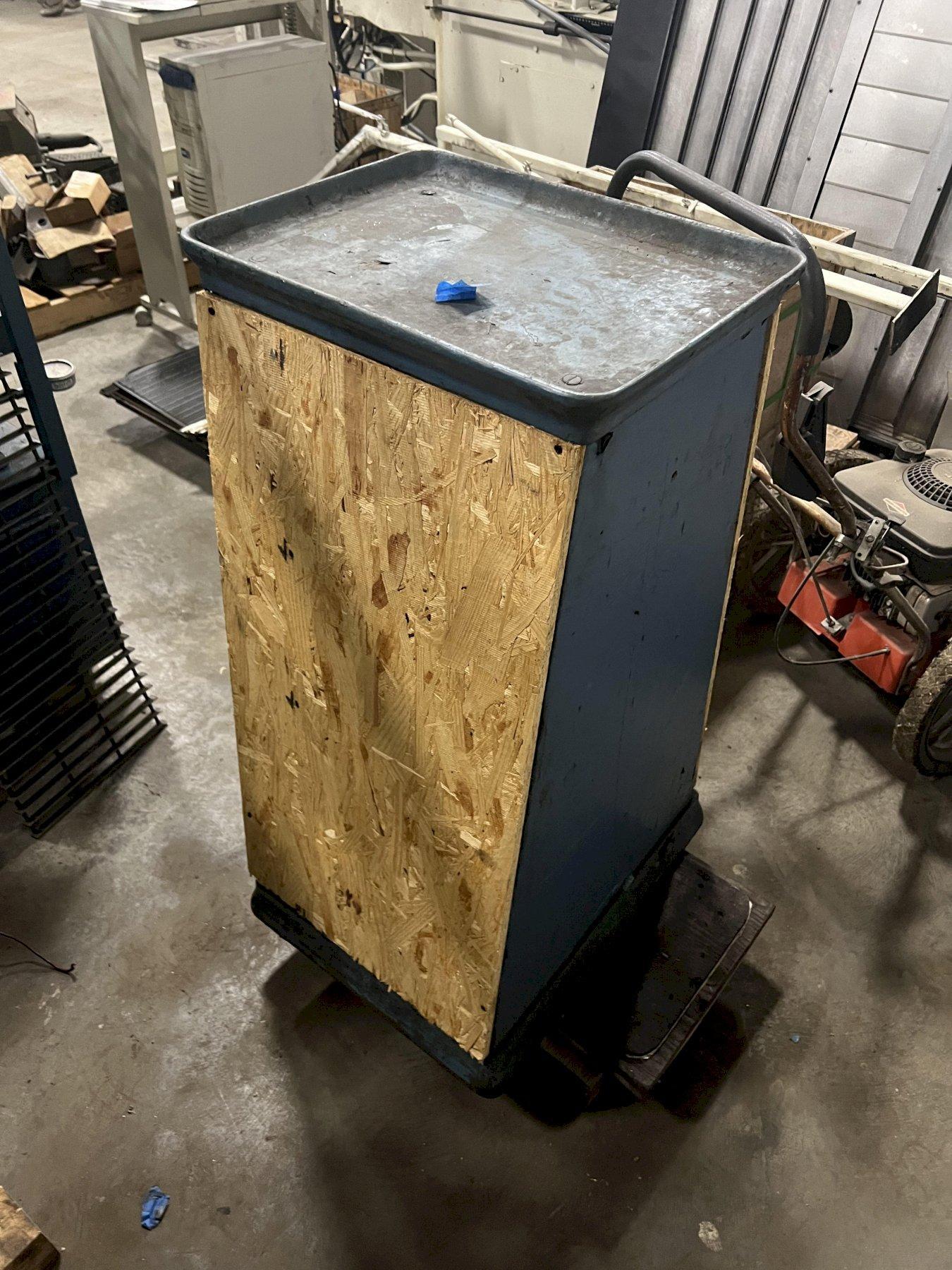

LARGE ASSORTMENT OF CHANGE GEARS WITH CABINET
HOB SHIFT
POWER CYLINDER ON WORK SPINDLE
COOLANT

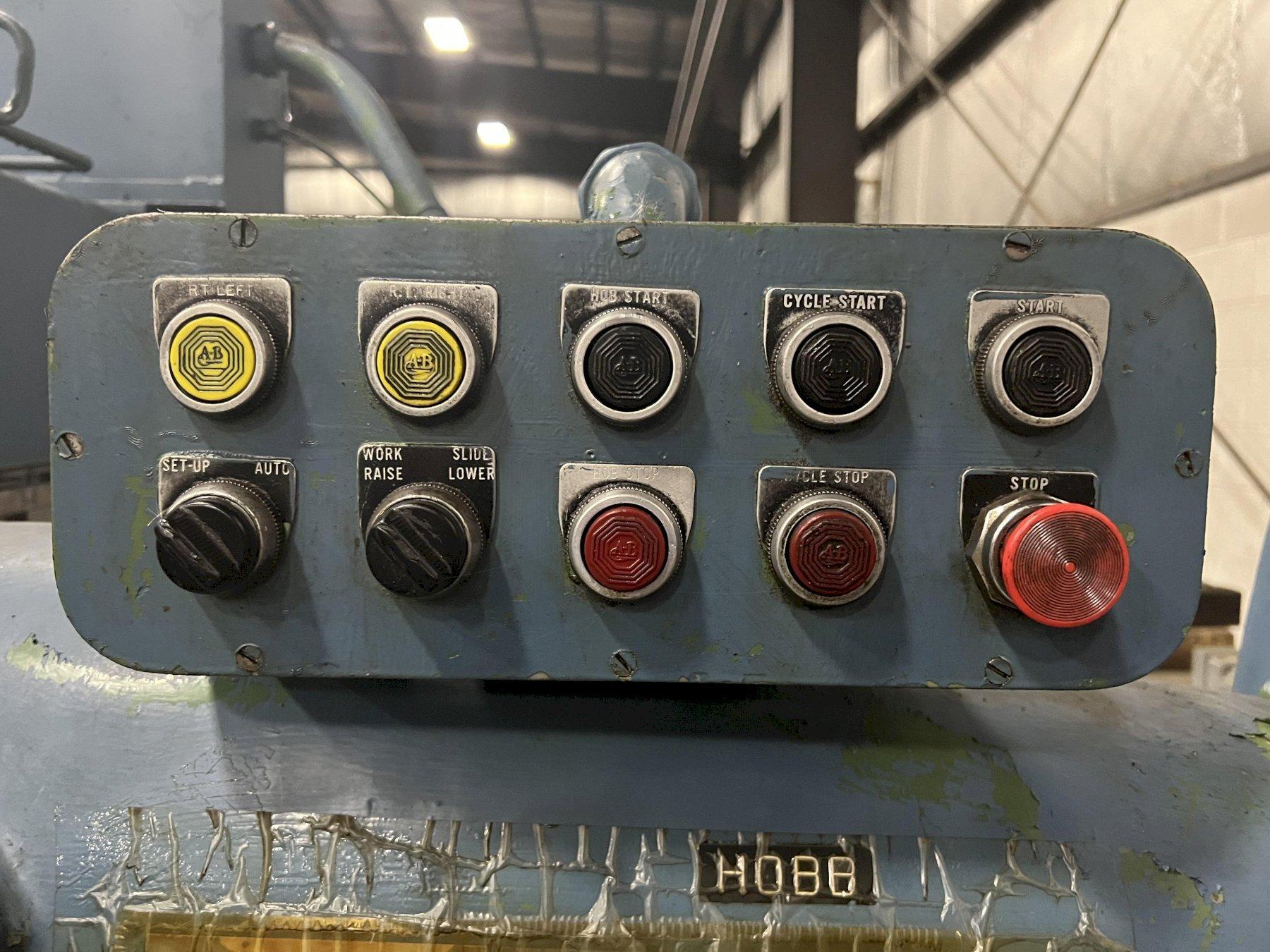

AC MOTOR WITH 110 PUSH BUTTON CONTROLS 10 HP 220/440/3/60

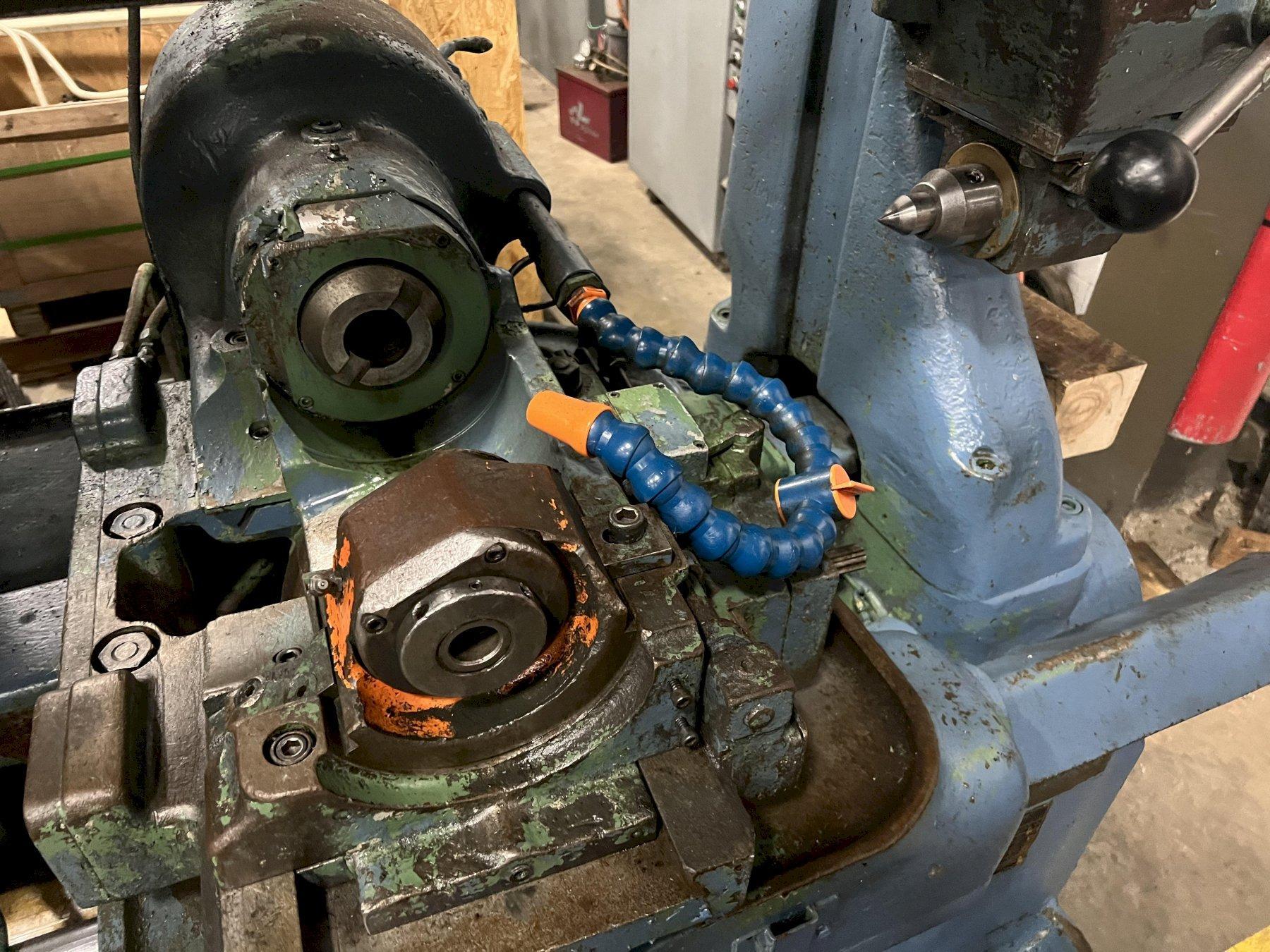

TAILSTOCK CENTER
INFINITELY VARIABLE HYDRAULIC FEED
