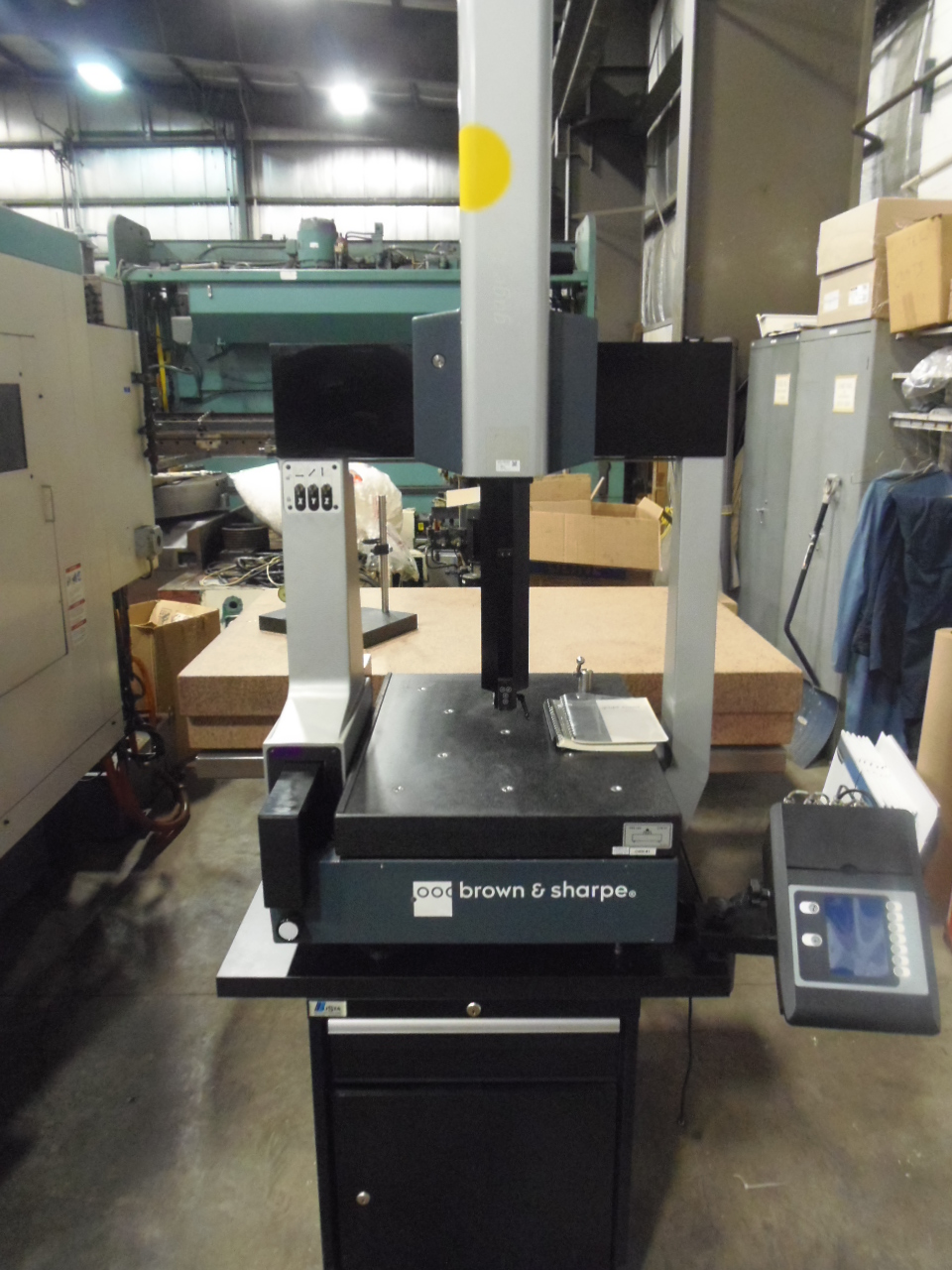

MANUFACTURER.................... BROWN & SHARPE
MODEL........................... GAGE 2000R
YEAR............................ 2003

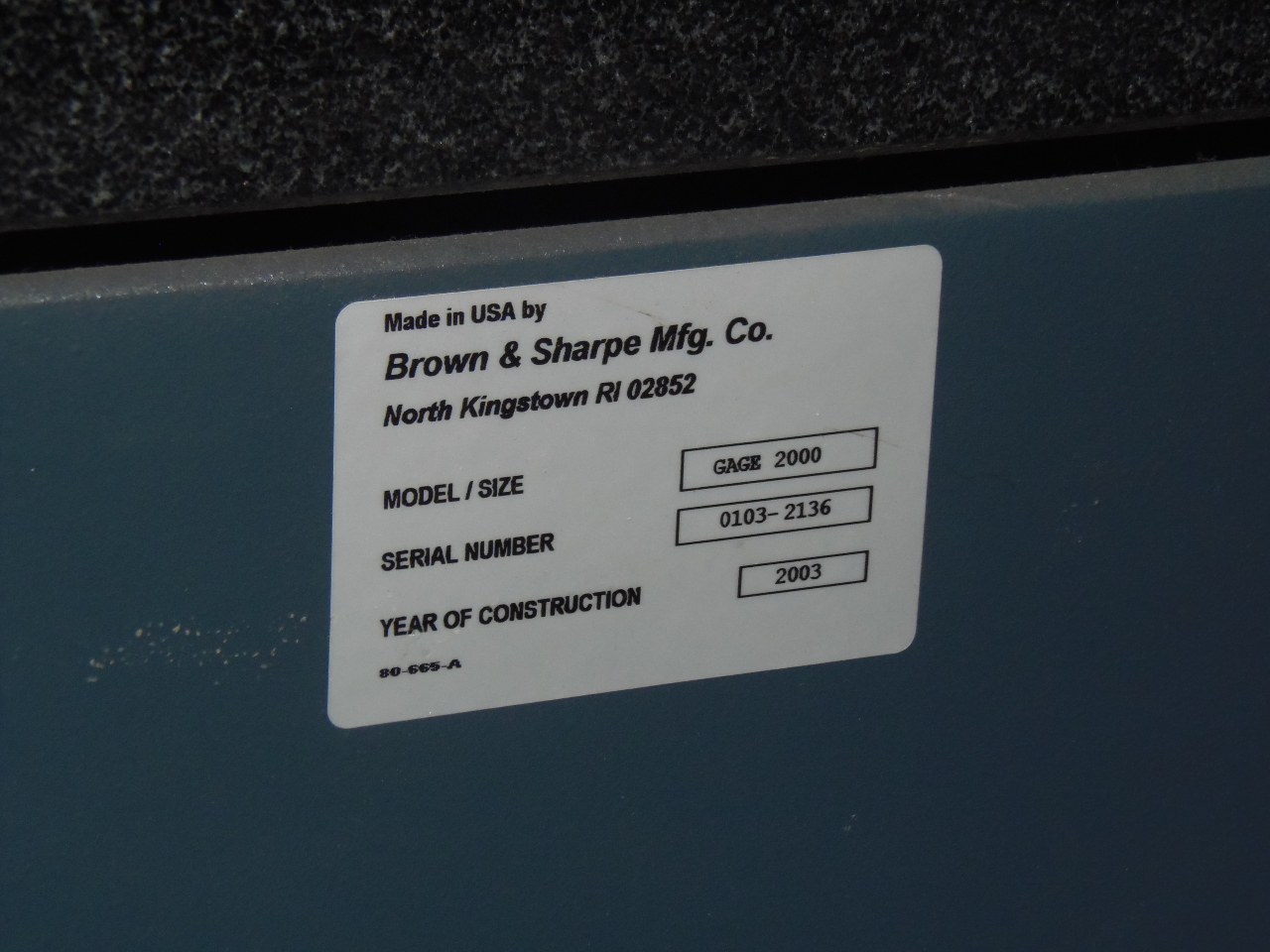

SERIAL NUMBER................... 0103-2136
RATED PERFORMANCE
REPEATABILITY B89............ 0.000016"
VOLUMETRIC ACCURACY B89...... 0.0004"
LINER ACCURACY B89........... 0.0002"
RESOLUTION................... 0.0000025"
DISPLAY RANGE................ +/-999.99999"
MEASURING SPEED (MAX)........ 30 IN/SEC
DIMENSIONS
MEASURING RANGE.............. 18 X 20 X 16"
LENGTH....................... 40"
WIDTH........................ 34.8"
HEIGHT....................... 62"
WEIGHT (MACHINE/GRANITE)..... 395 LBS
WEIGHT (COMPLETE SYSTEM)..... 500 LBS
MAXIMUM PART WEIGHT.......... 500 LBS
PART SIZE CAPABILITY......... 22 X 29.5 X 19"
EQUIPPED WITH:

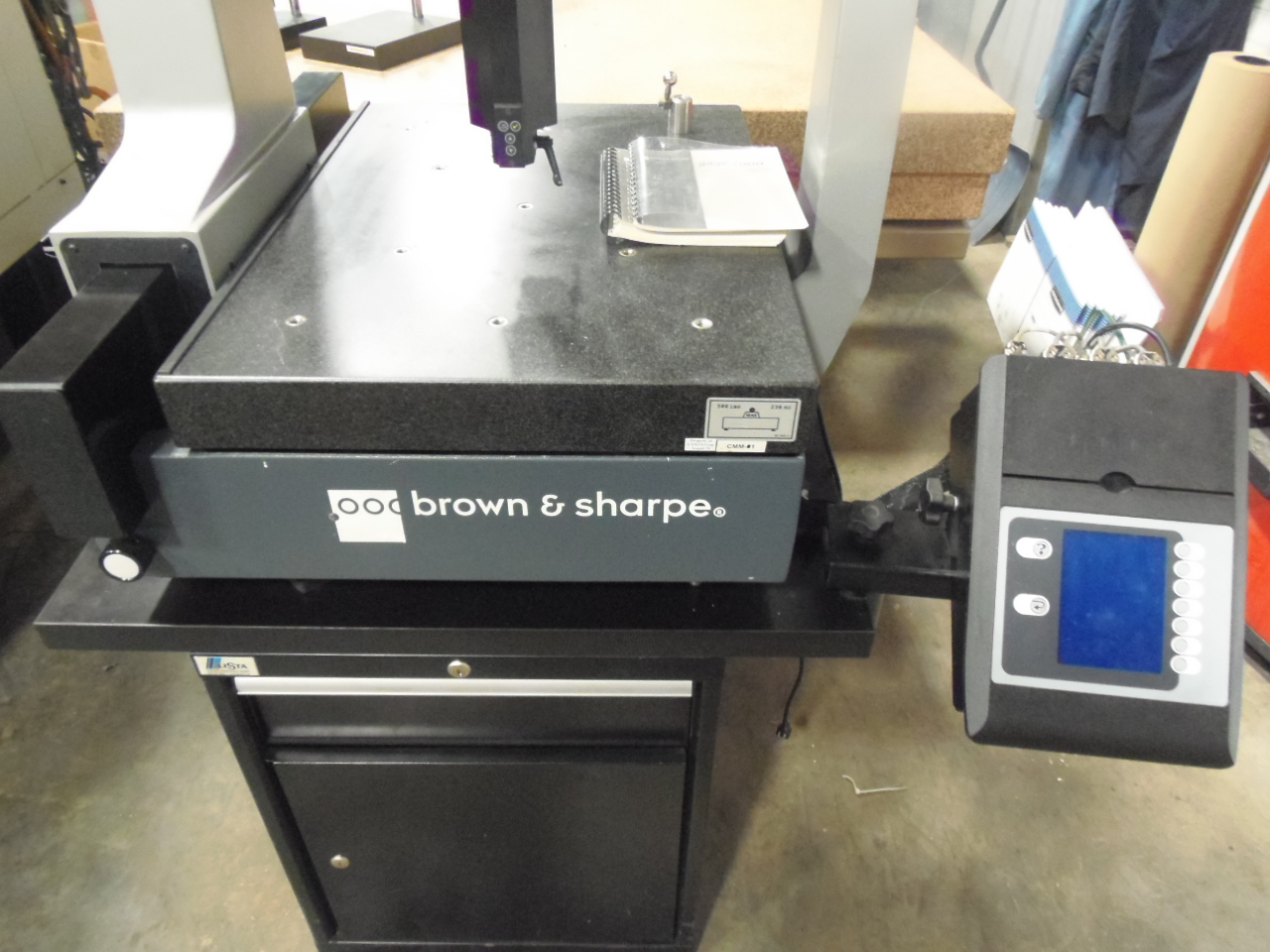

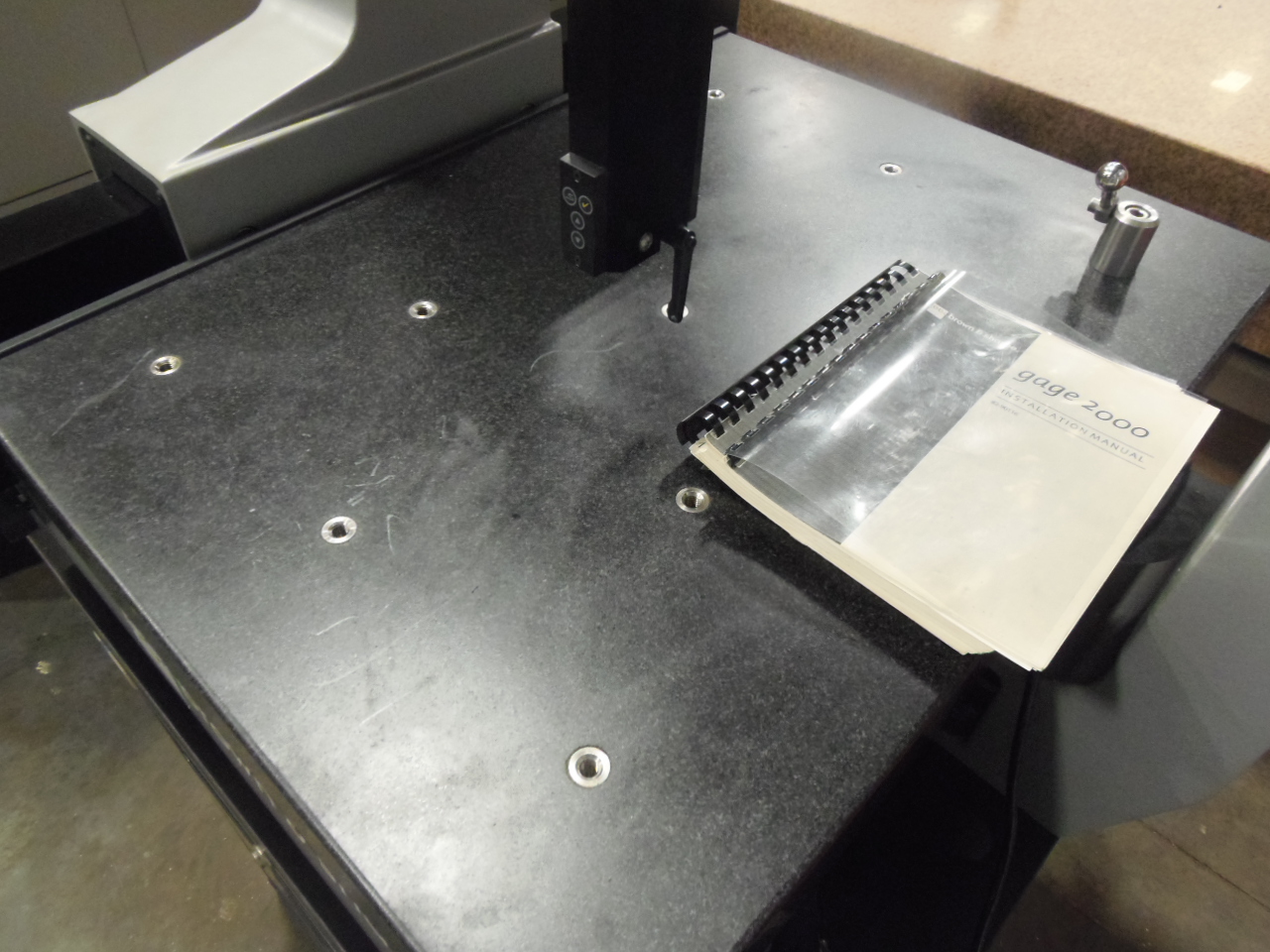

GRANITE TABLE

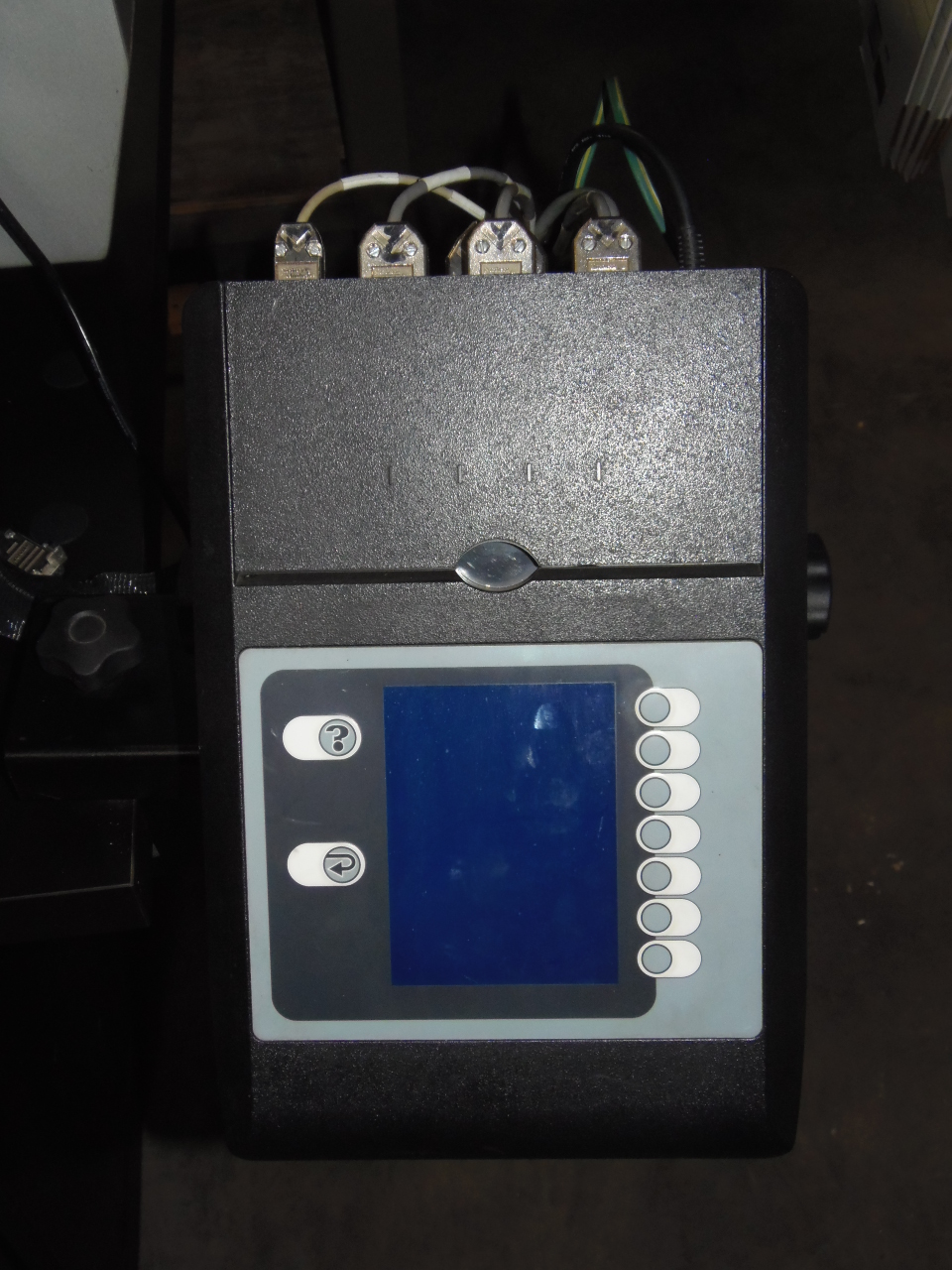

REFLEX CONTROL
TESASTAR PROBE WITH MISC. STYLUS
STAND WITH DRAWER AND CABINET
MANUALS
