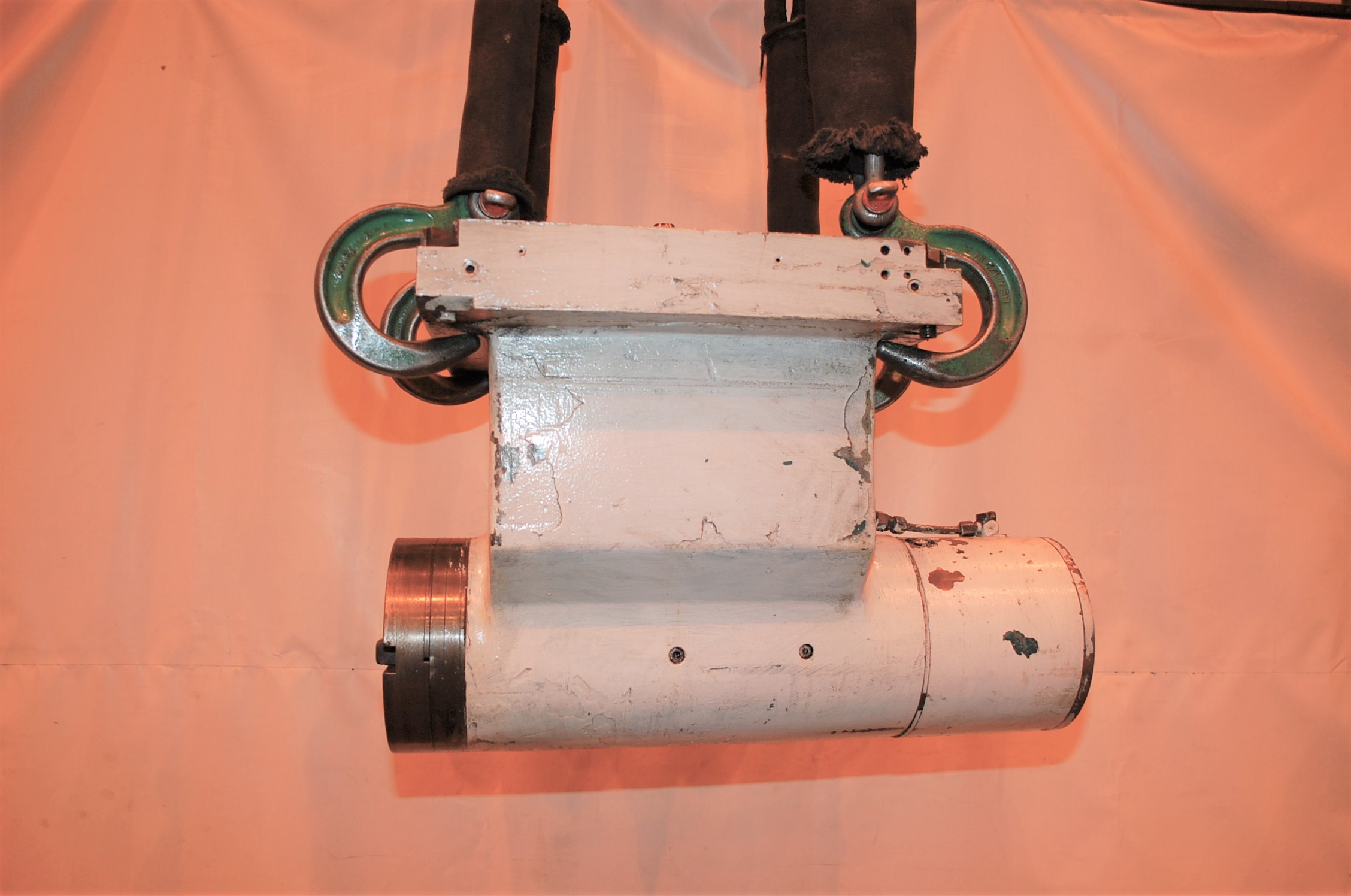

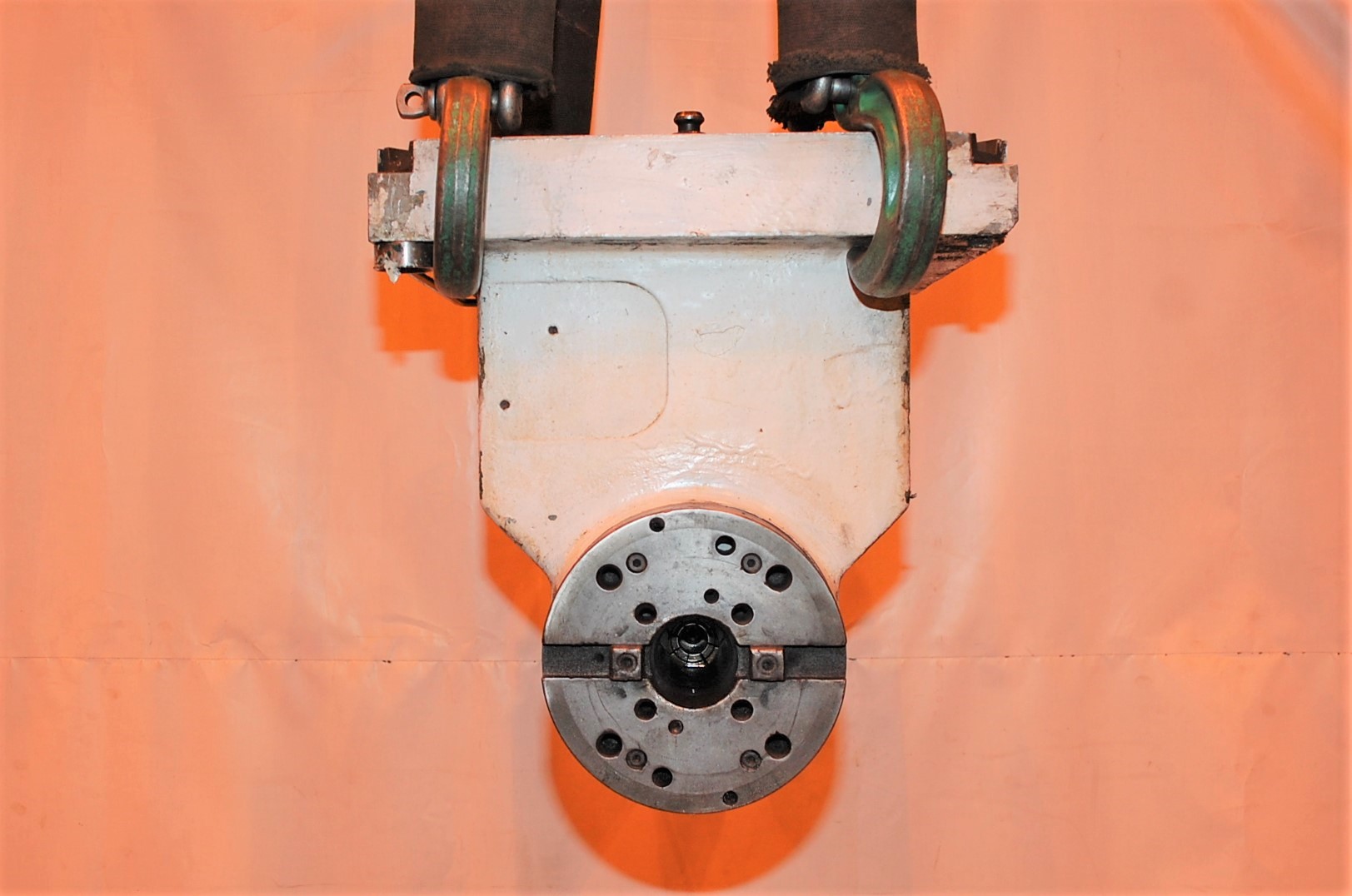

GENERAL SPECIFICATIONS:
MANUFACTURER......................... INGERSOLL/WALDRICH
MODEL................................ AUTO INDEXING
AGE.................................. 1985

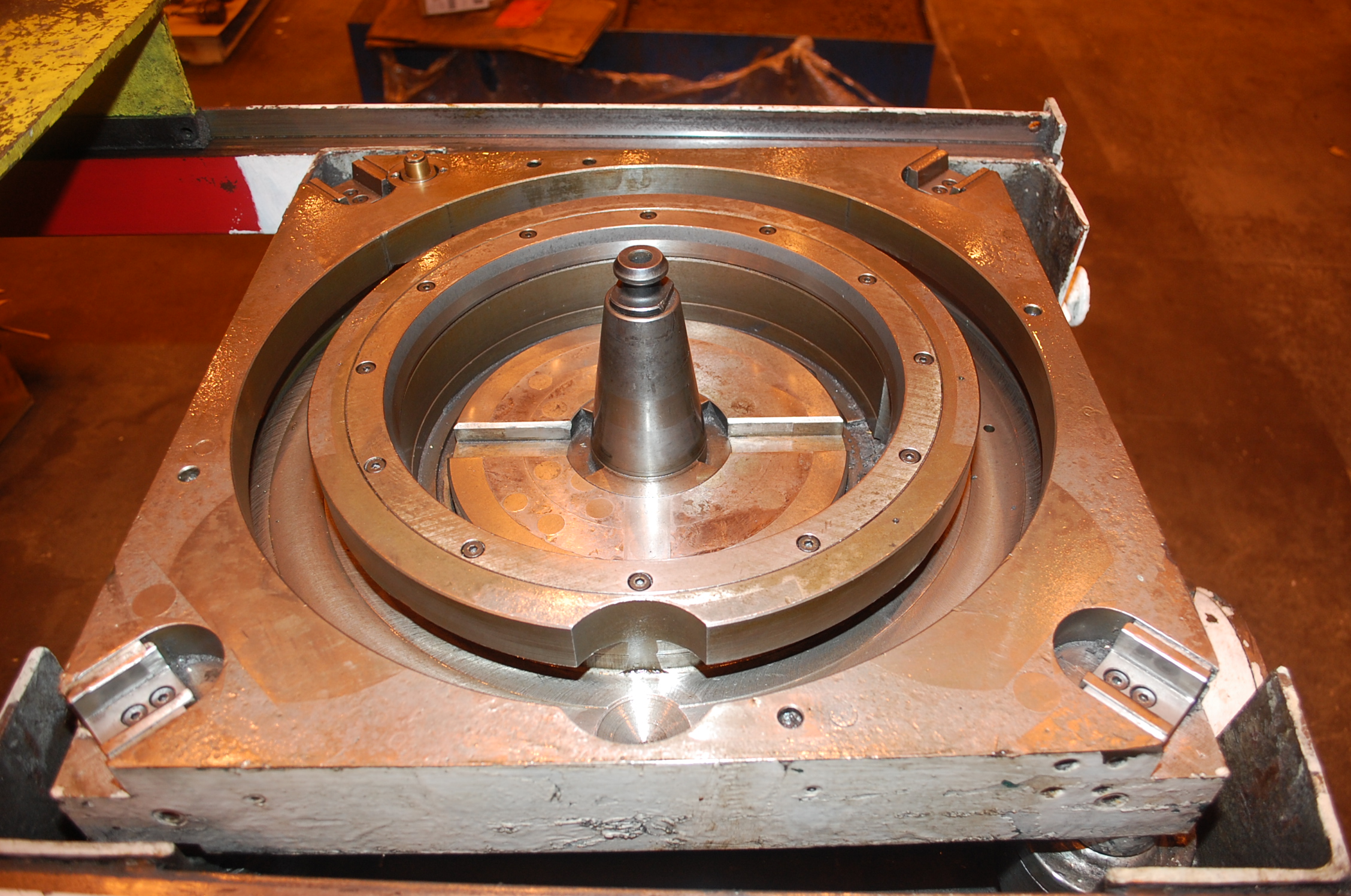

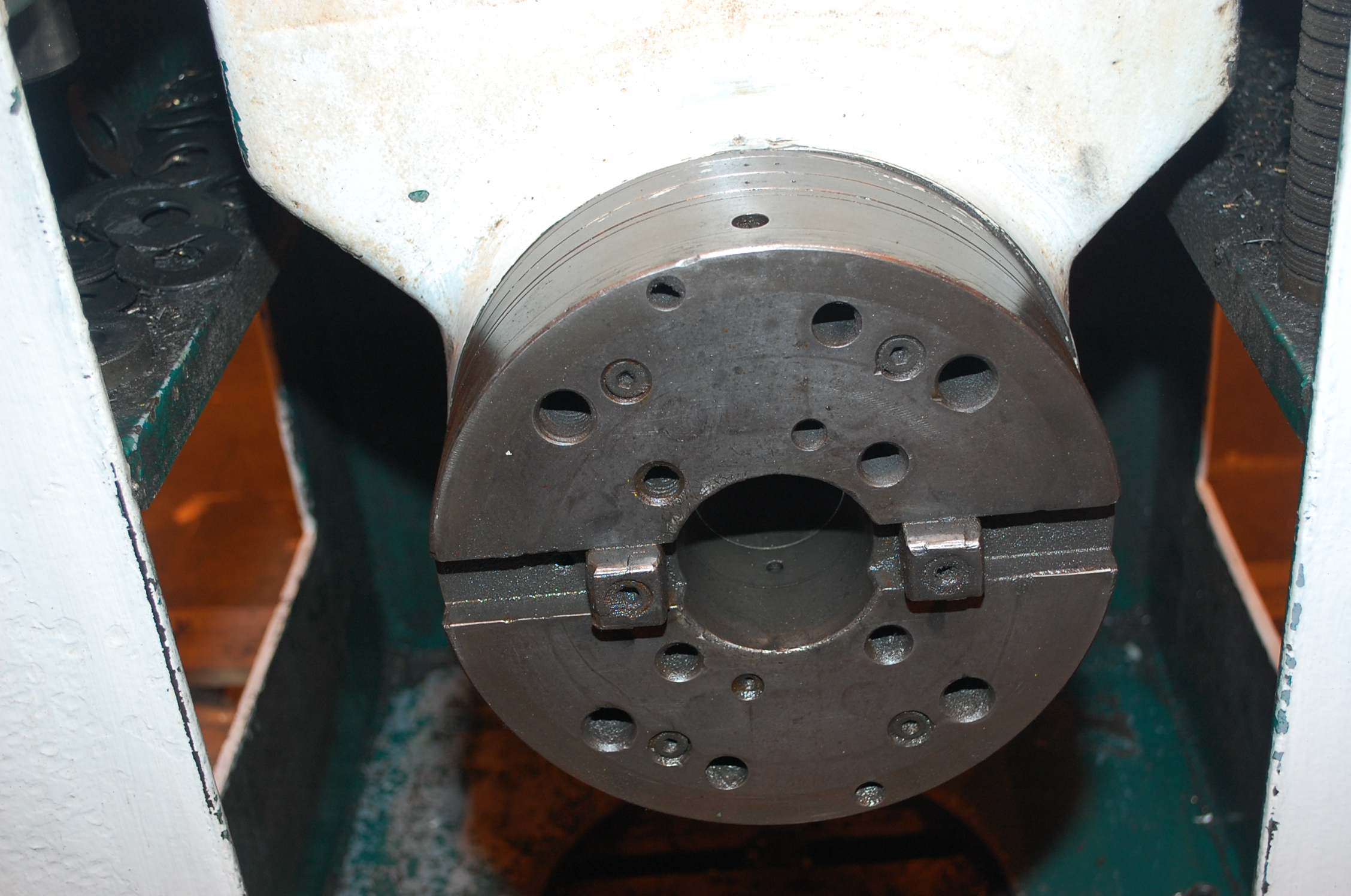

SPINDLE TAPER........................ #50 TAPER
INPUT DRIVE.......................... #50 TAPER
REACH TO SPINDLE CENTERLINE.......... 16"
OVERALL LENGTH....................... 20.5"
WIDTH................................ 13"
DEPTH................................ 29.75"
REACH................................ 19.68"
AUTO INDEX FROM CNC CONTROL OR MDI... 4 X 90 DEGREE
EQUIPPED WITH:

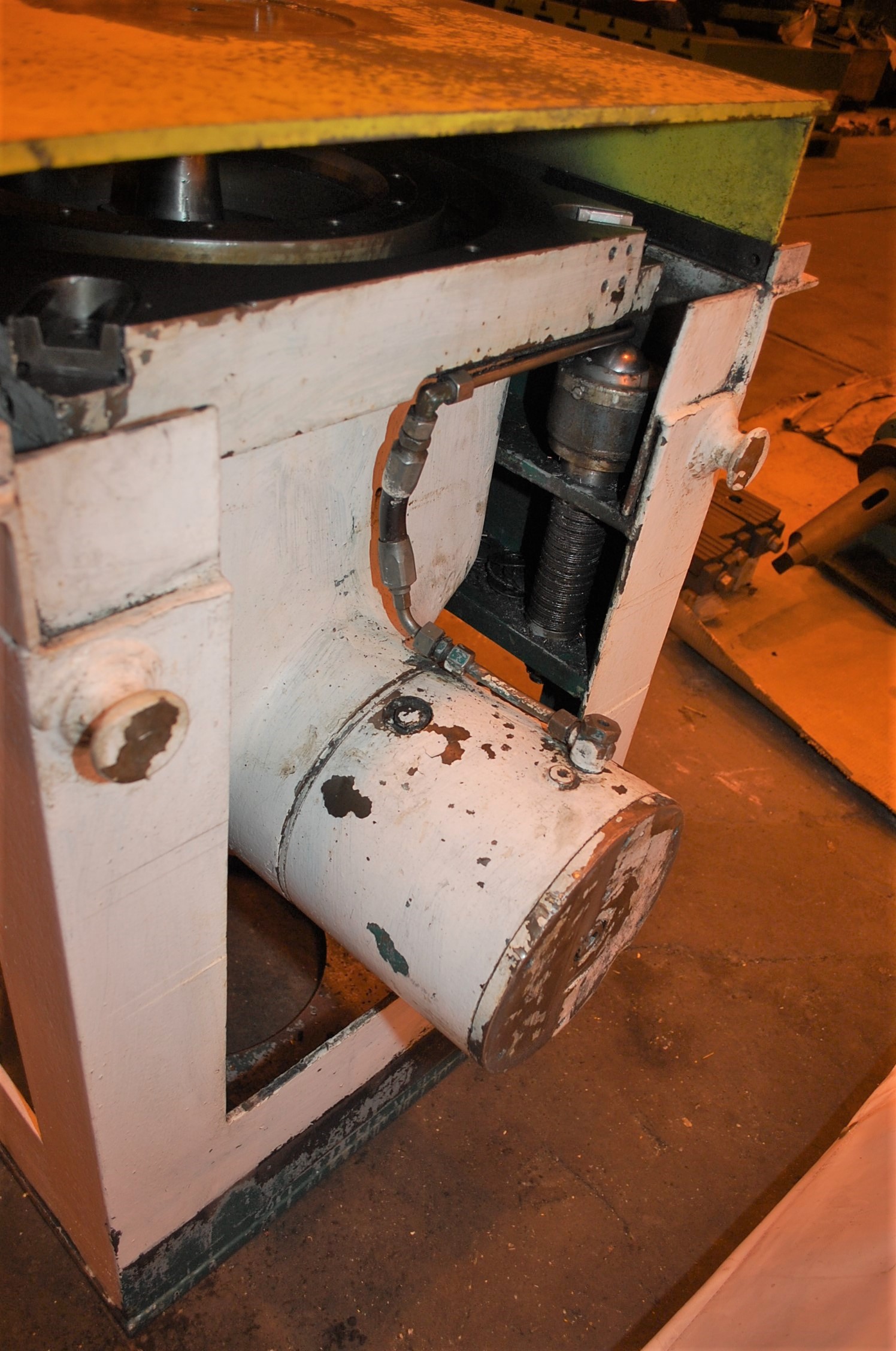

HYDRAULIC TOOL CLAMPING

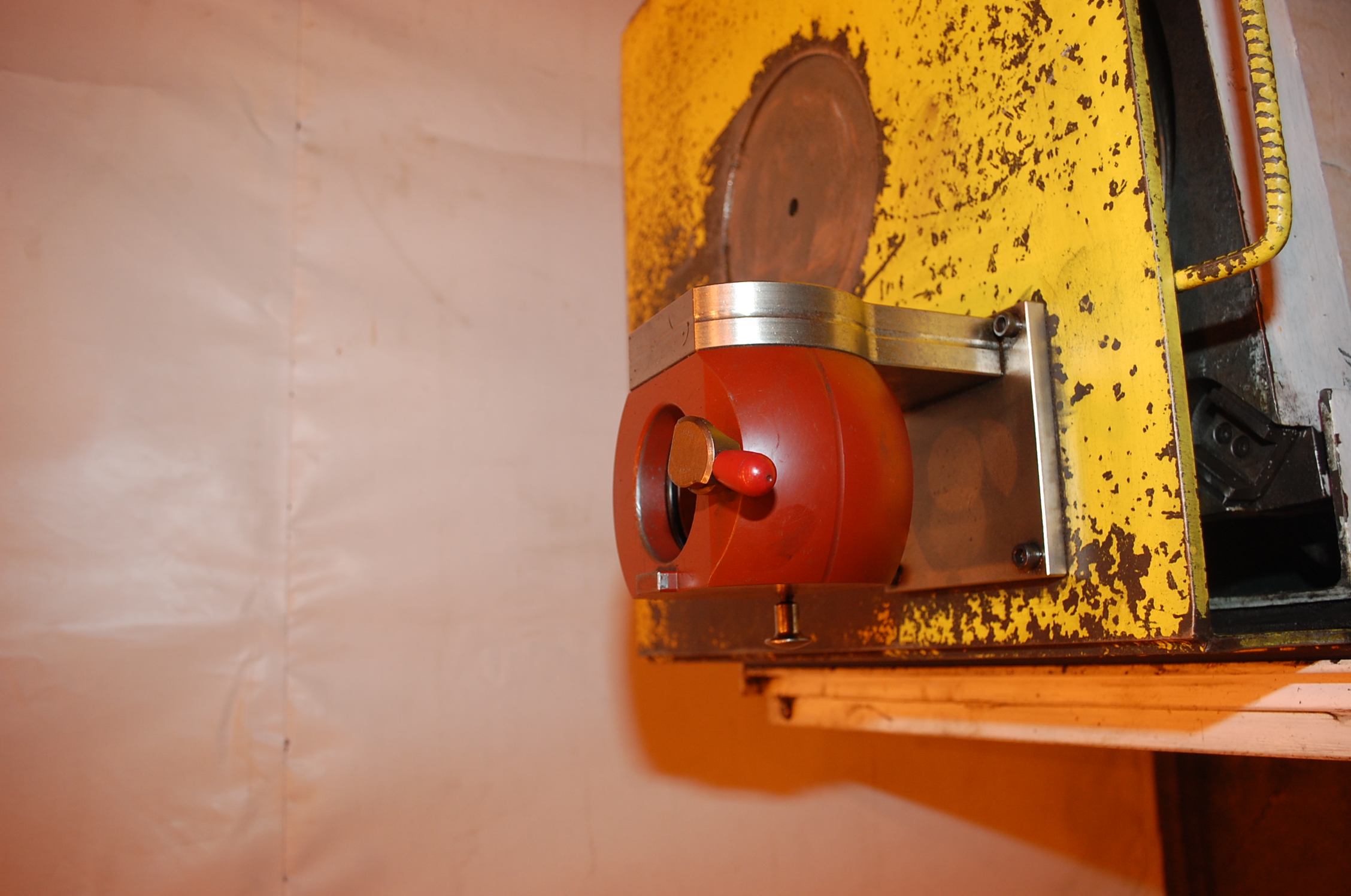

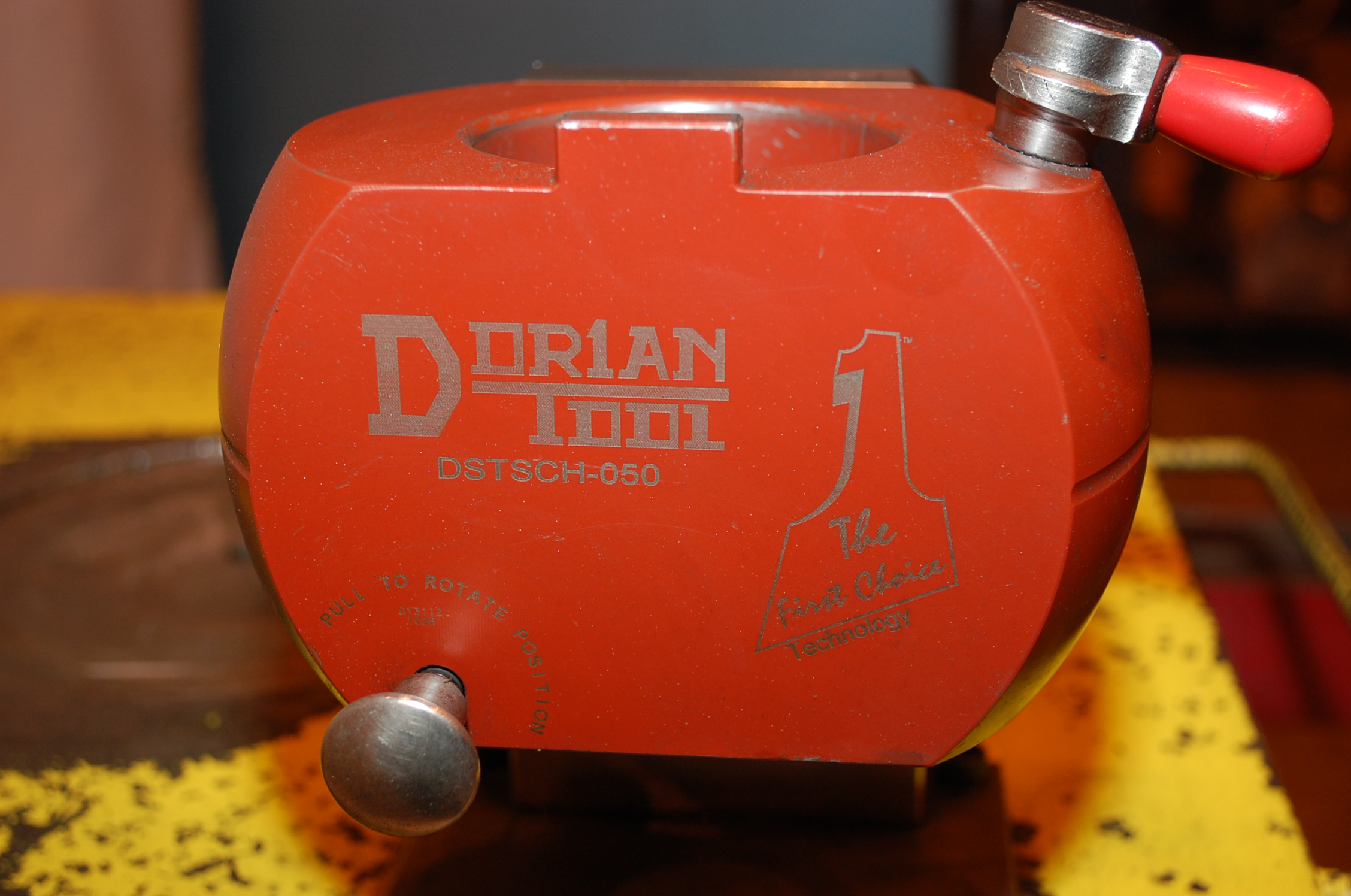

50 TAPER DORIAN TOOL VICE
AUTO CLAMPING

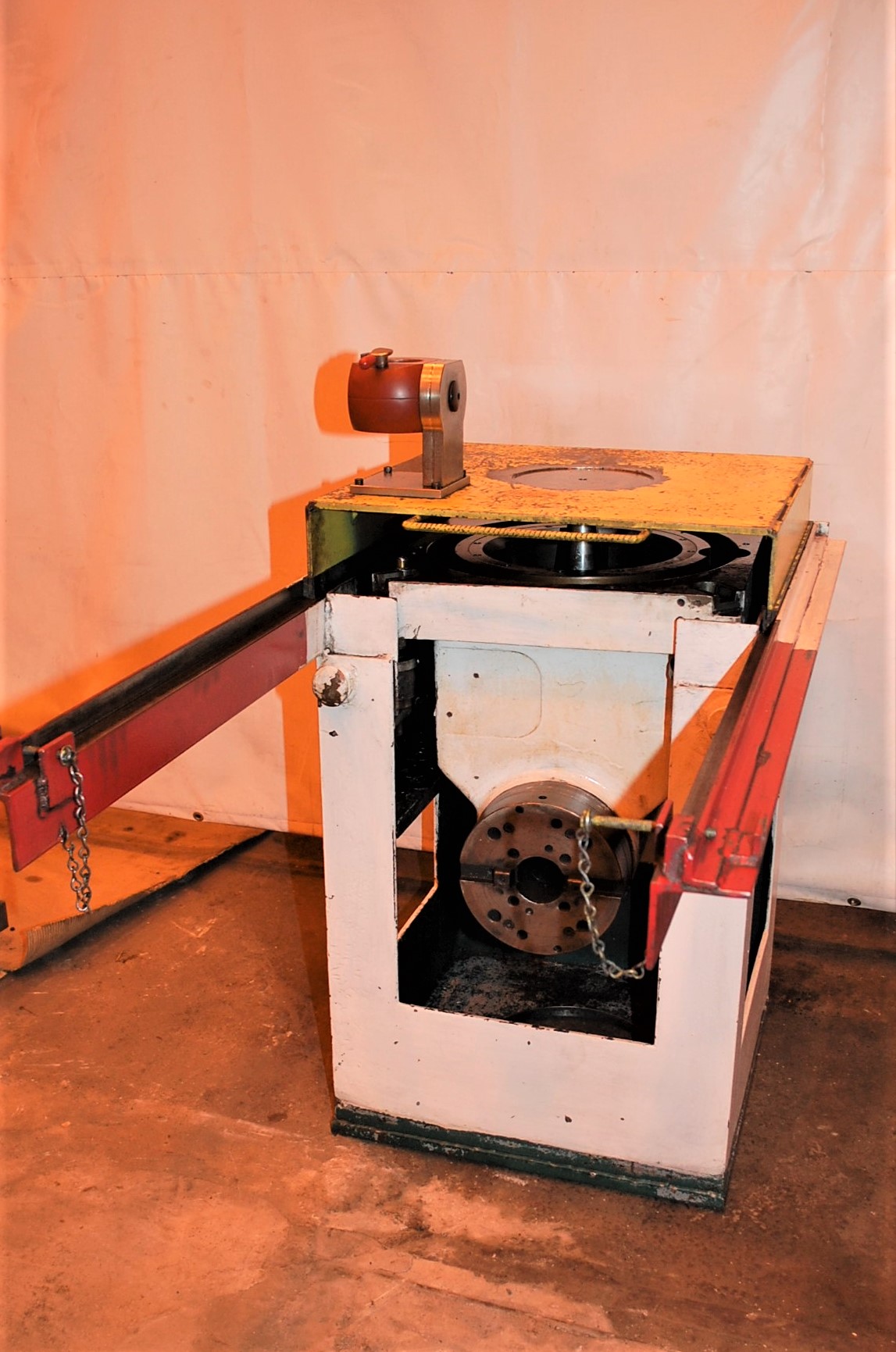

STORAGE PICK-UP CARRIAGE
THIS HEAD WAS USED ON A CNC WALDRICH SIEGEN CNC PLANER MILL WITH 100 HP AND AUTO INDEXING FOR 5 FACE MACHINING
