GENERAL SPECIFICATIONS:

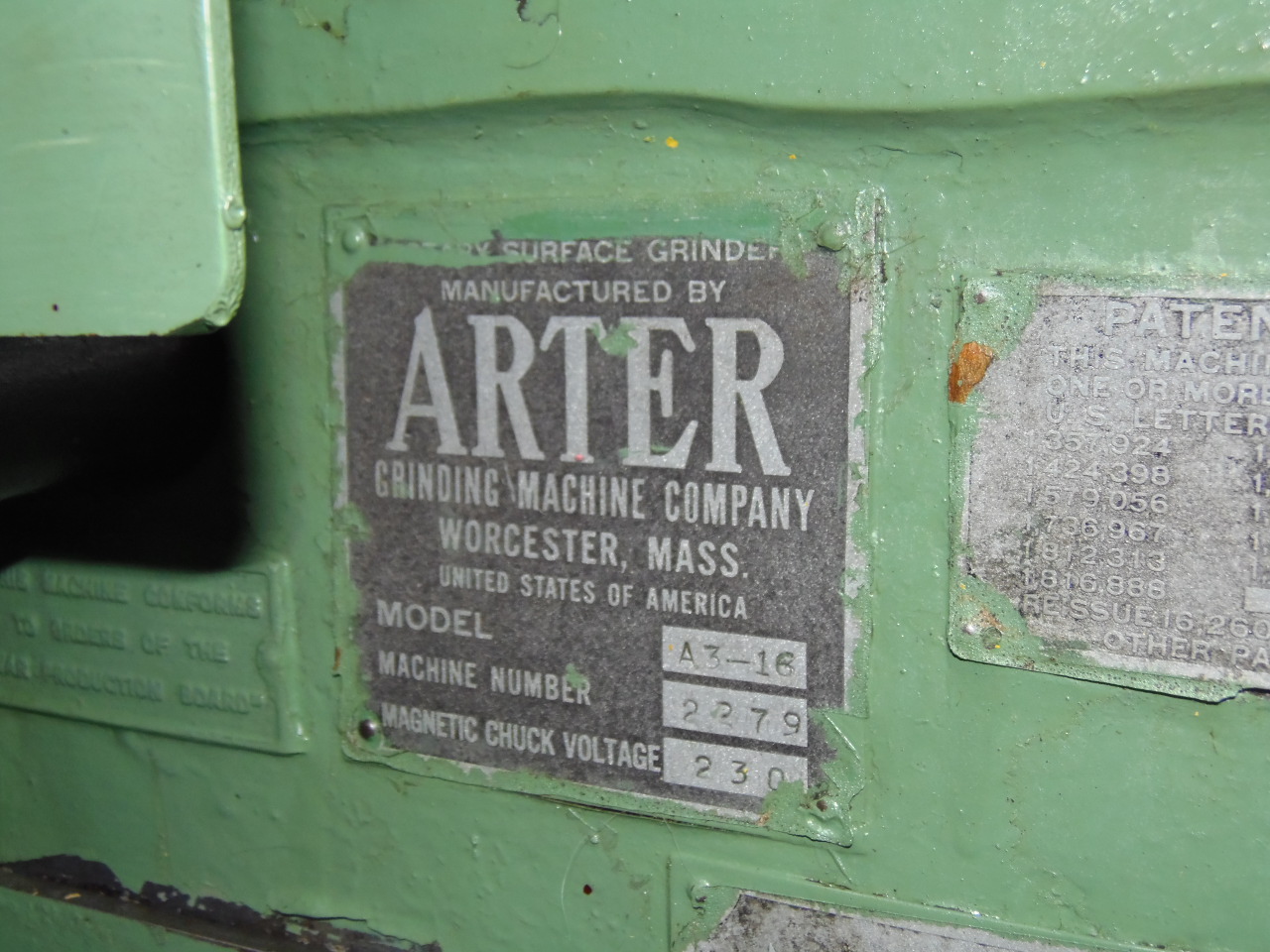

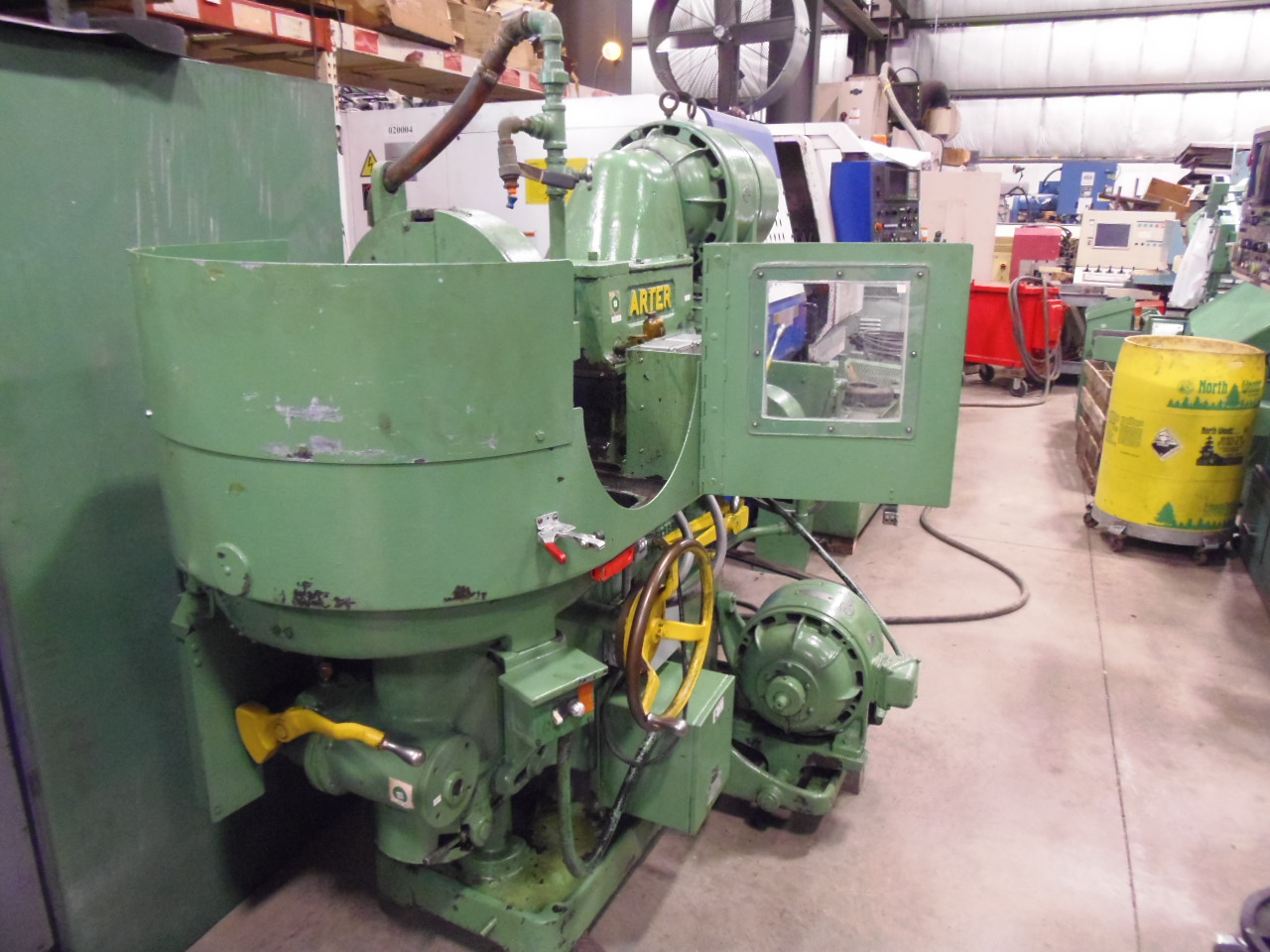

MANUFACTURER.................... ARTER
MODEL........................... A3-16
SERIAL.......................... 2279
NEW (APPROX.)................... 1950'S
CHUCK DIAMETER.................. 17"
OVERARM TRAVEL.................. 12"
MAX. SWING INSIDE CHUCK GUARD... 20"
VERTICAL CAPACITY............... 9.5"
MAX WHEEL SIZE.................. 14"
CHUCK SPEEDS.................... 30, 58, 106 & 203 RPM
TABLE TILTS (LEFT & RIGHT)...... 10 DEGREES

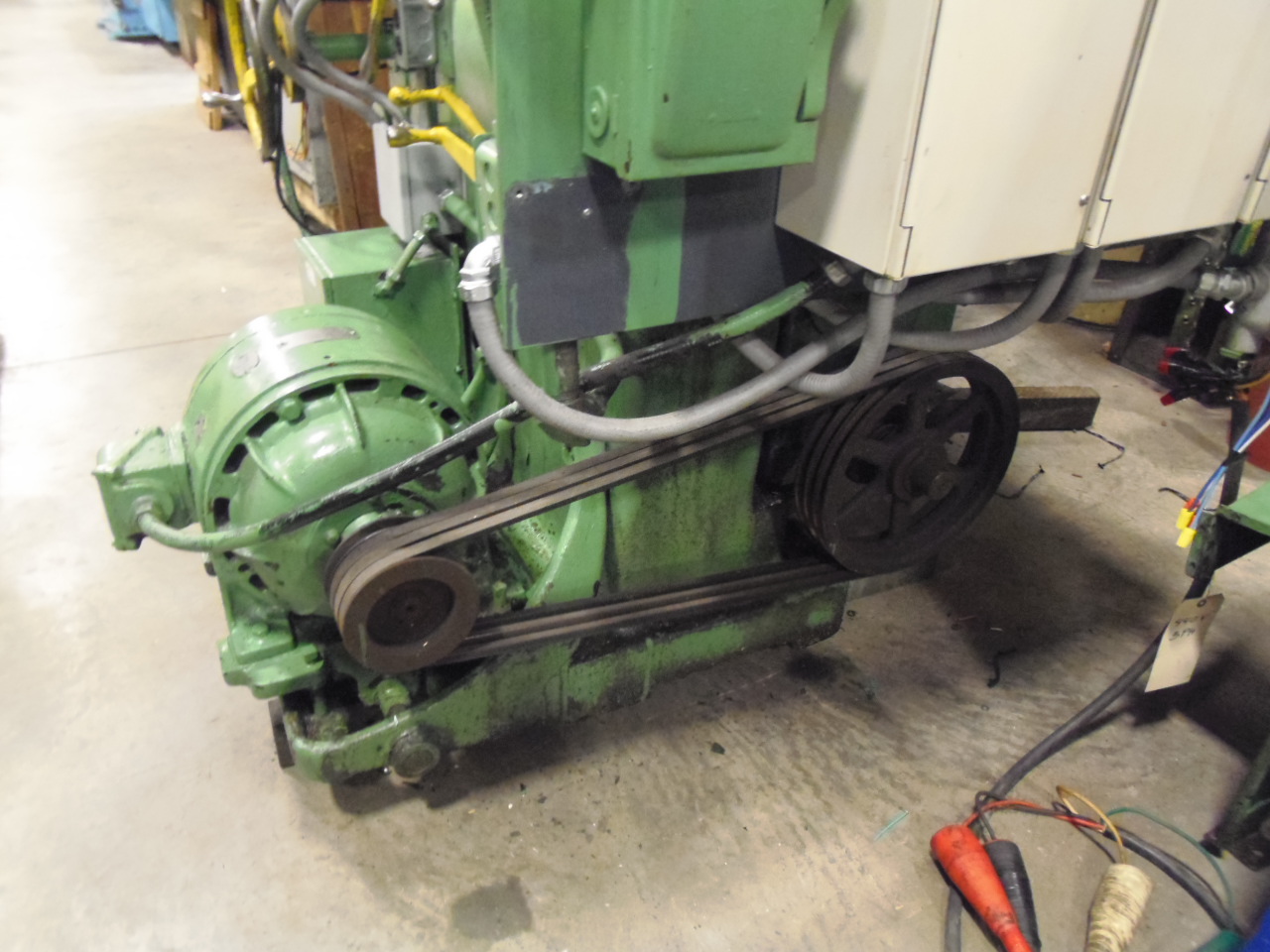

MOTOR........................... 7.5 HP
WEIGHT (APPROX)................. 7,000 LBS

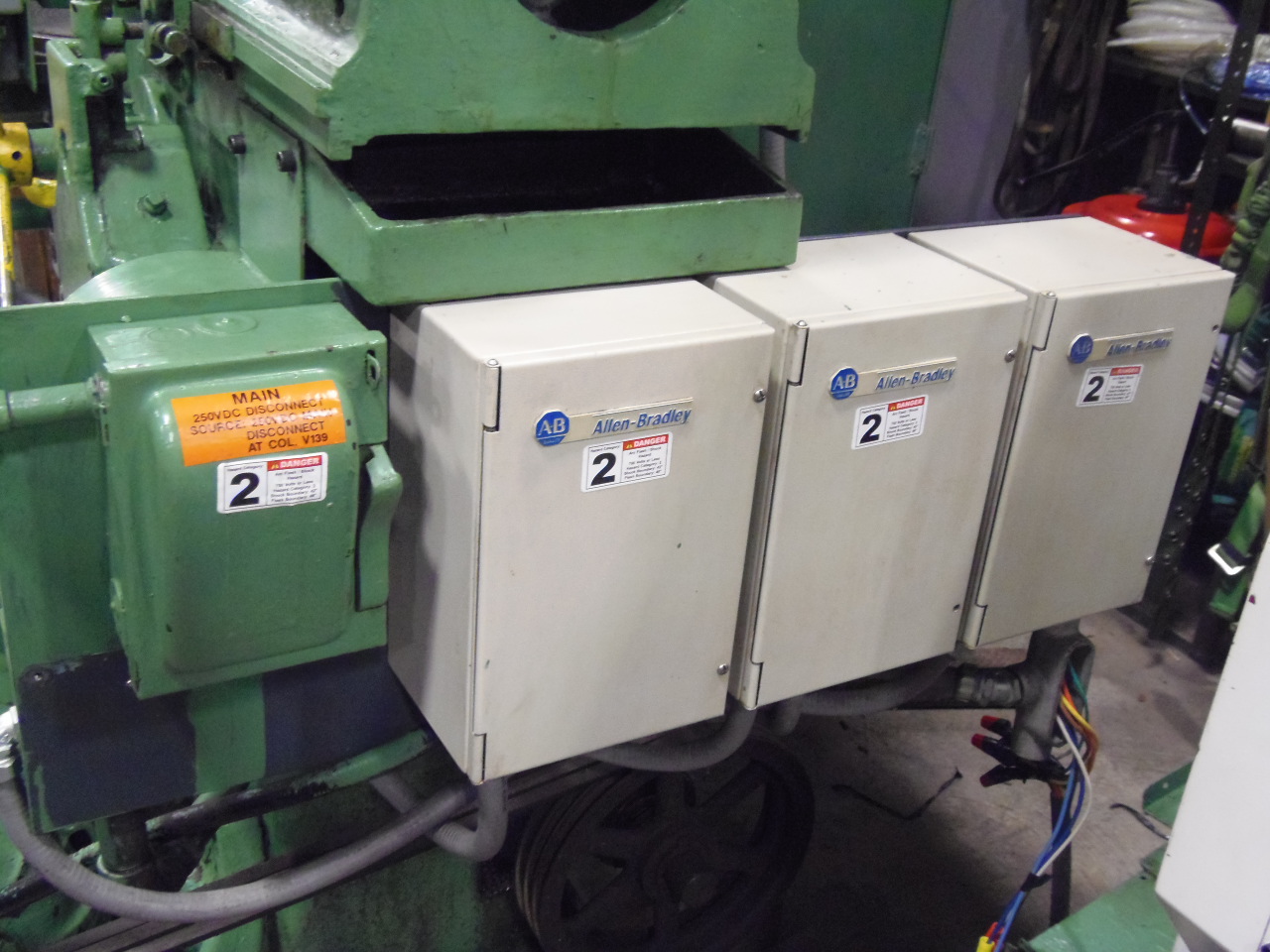

ELECTRICS RUNNING 440V
MOTORS TAGGED 220/440/3 PH/60 CYCLE
EQUIPPED WITH:

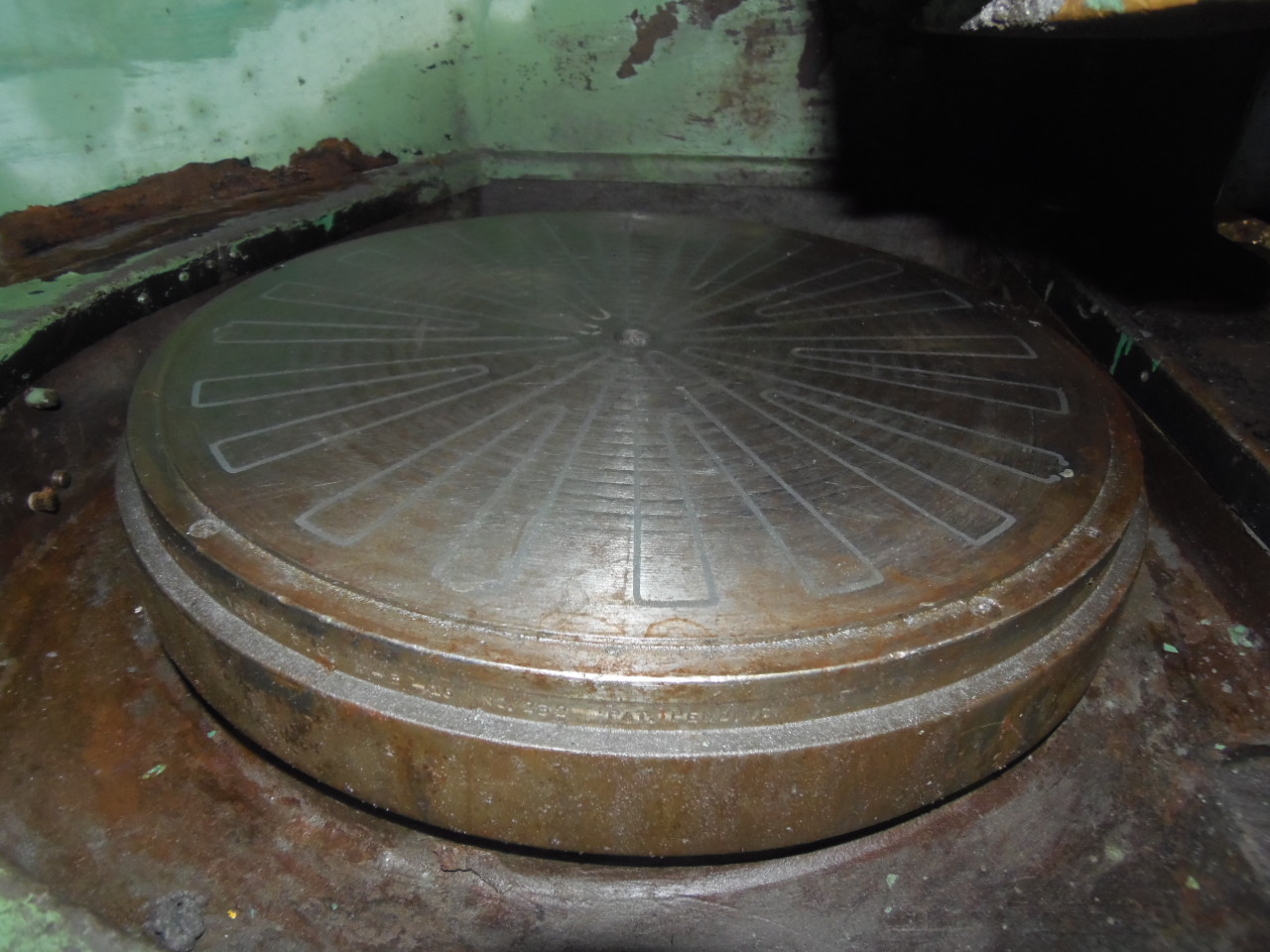

17" MAGNETIC CHUCK WITH DEMAG CONTROL
RAC & PINION MANUAL/POWER OVERARM TRAVEL
MANUAL TABLE VERTICAL TRAVEL ONLY
(2) TRIP DOGS FOR WHEEL HEAD TRAVEL
VERTICAL TRAVEL HAND WHEEL GRADUATED IN .001"

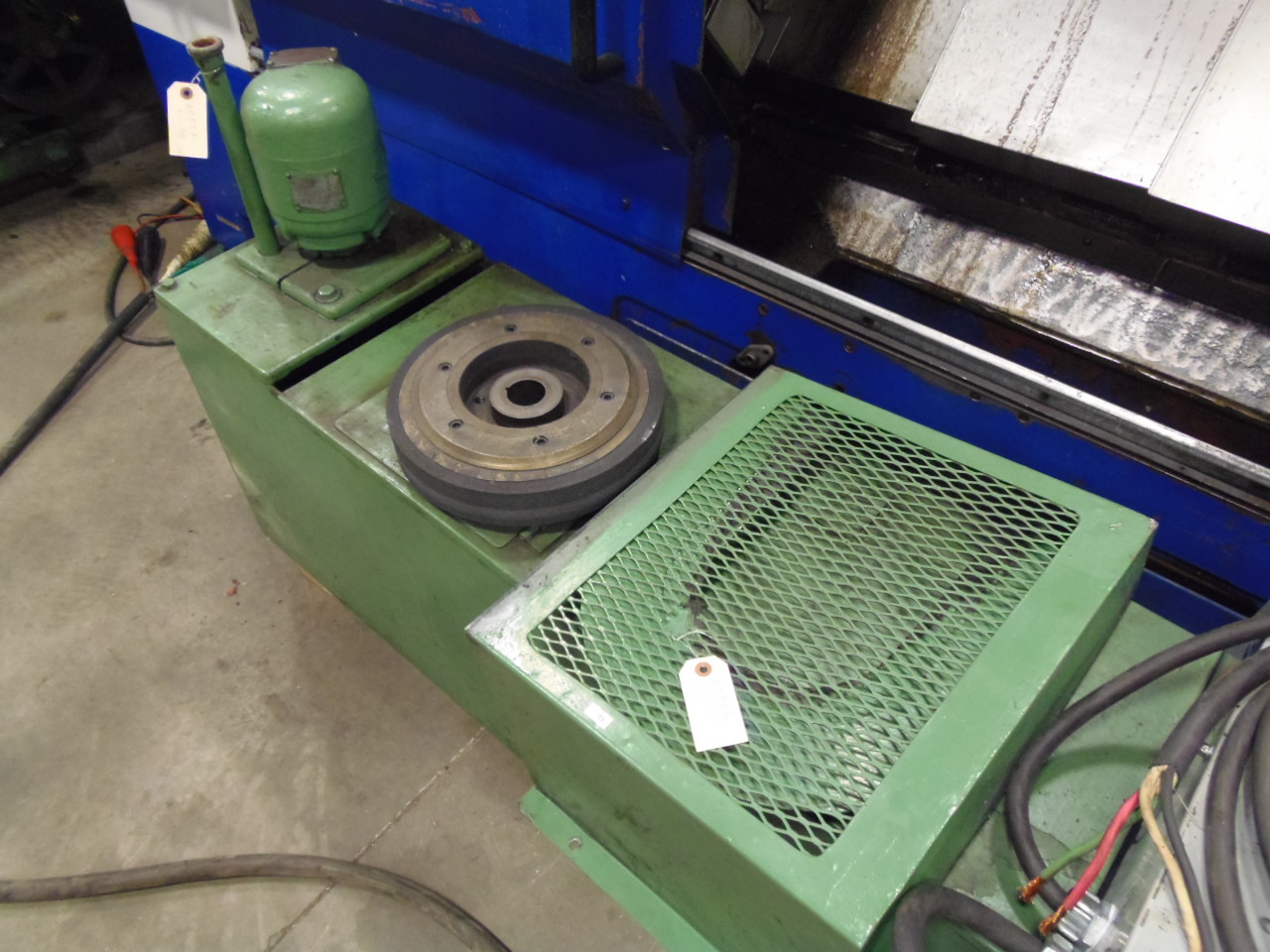

COOLANT TANK WITH PUMP

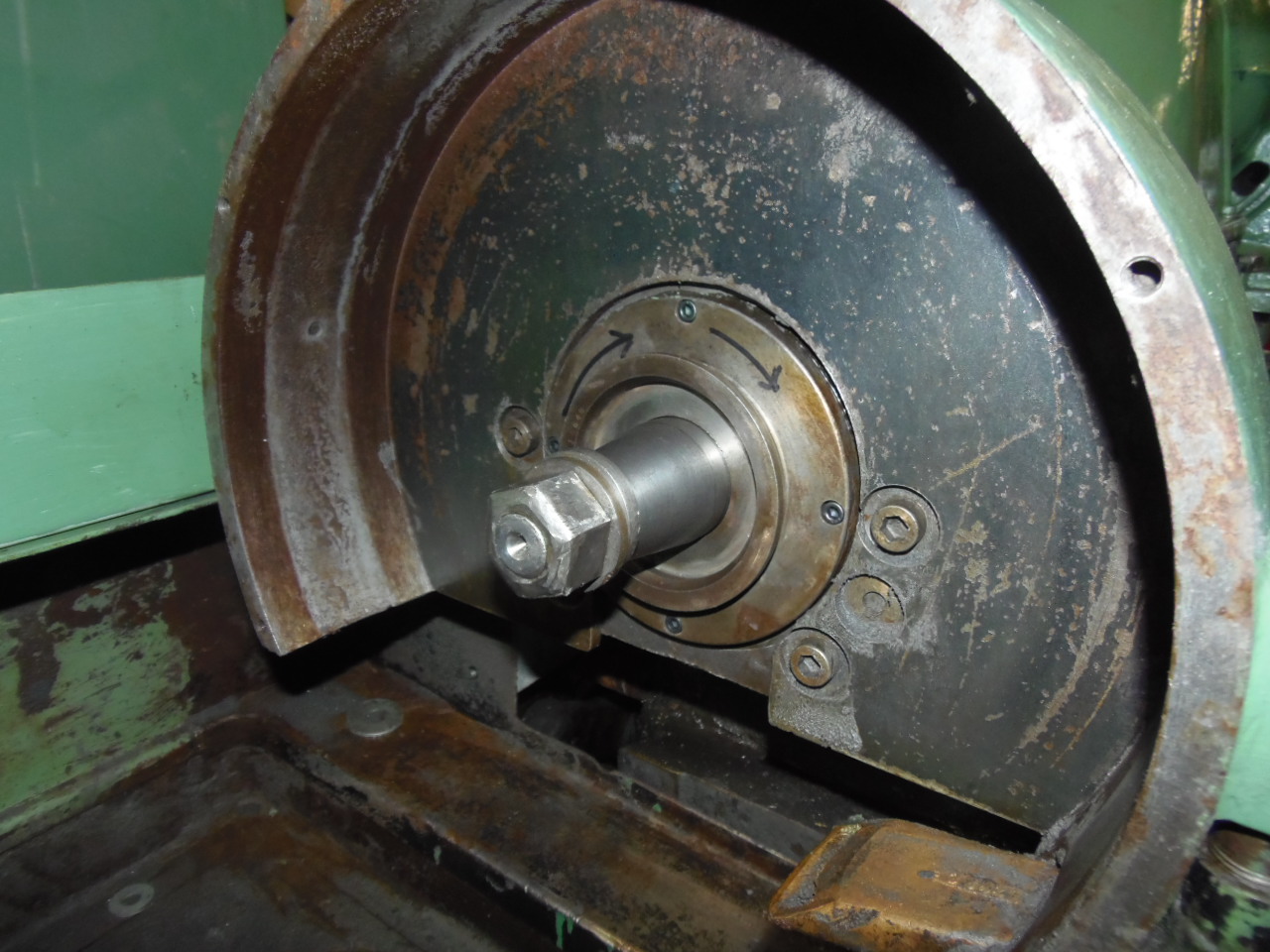

SPINDLE REBUILT WITH NEW BEARING 2015
