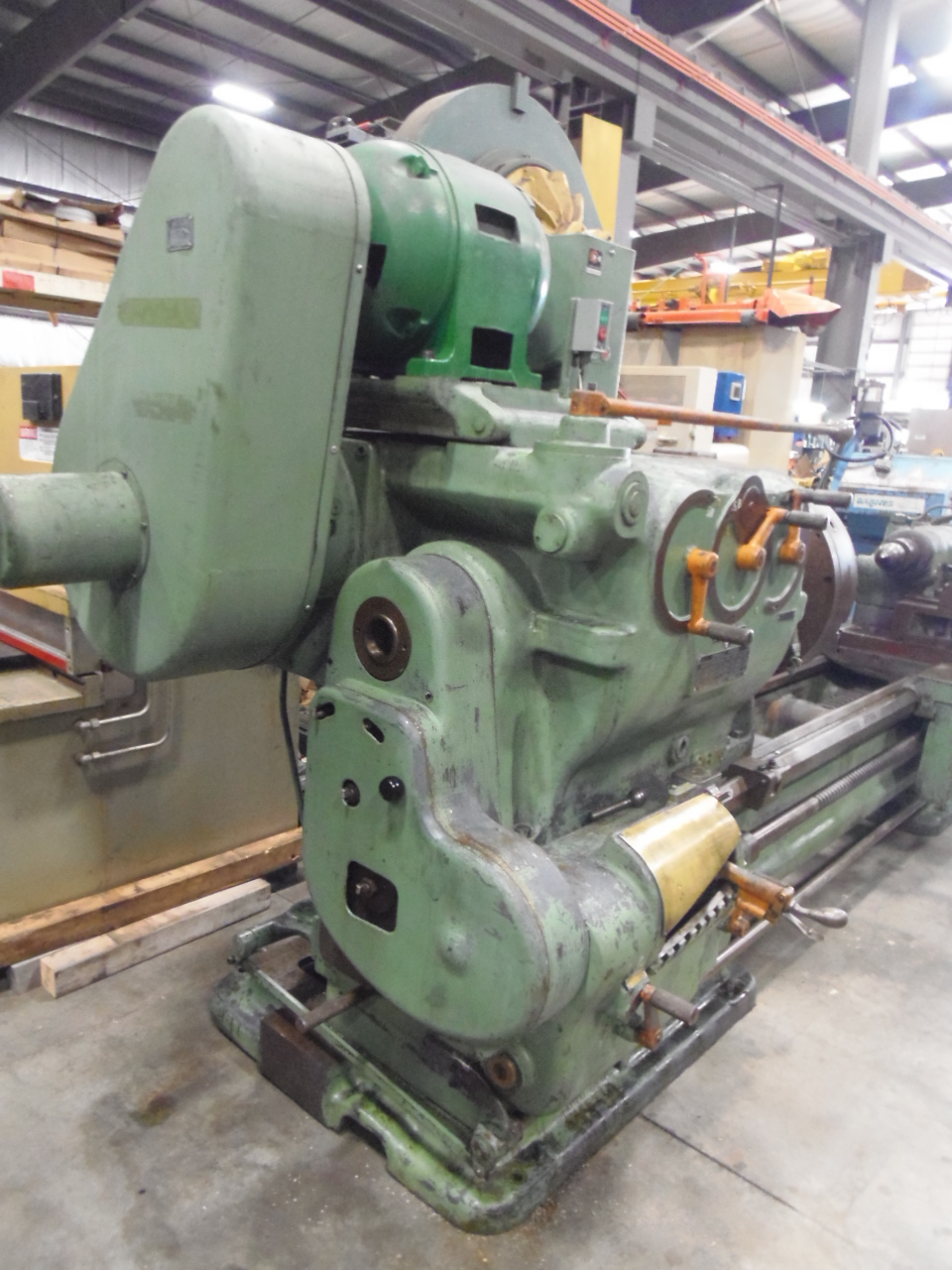

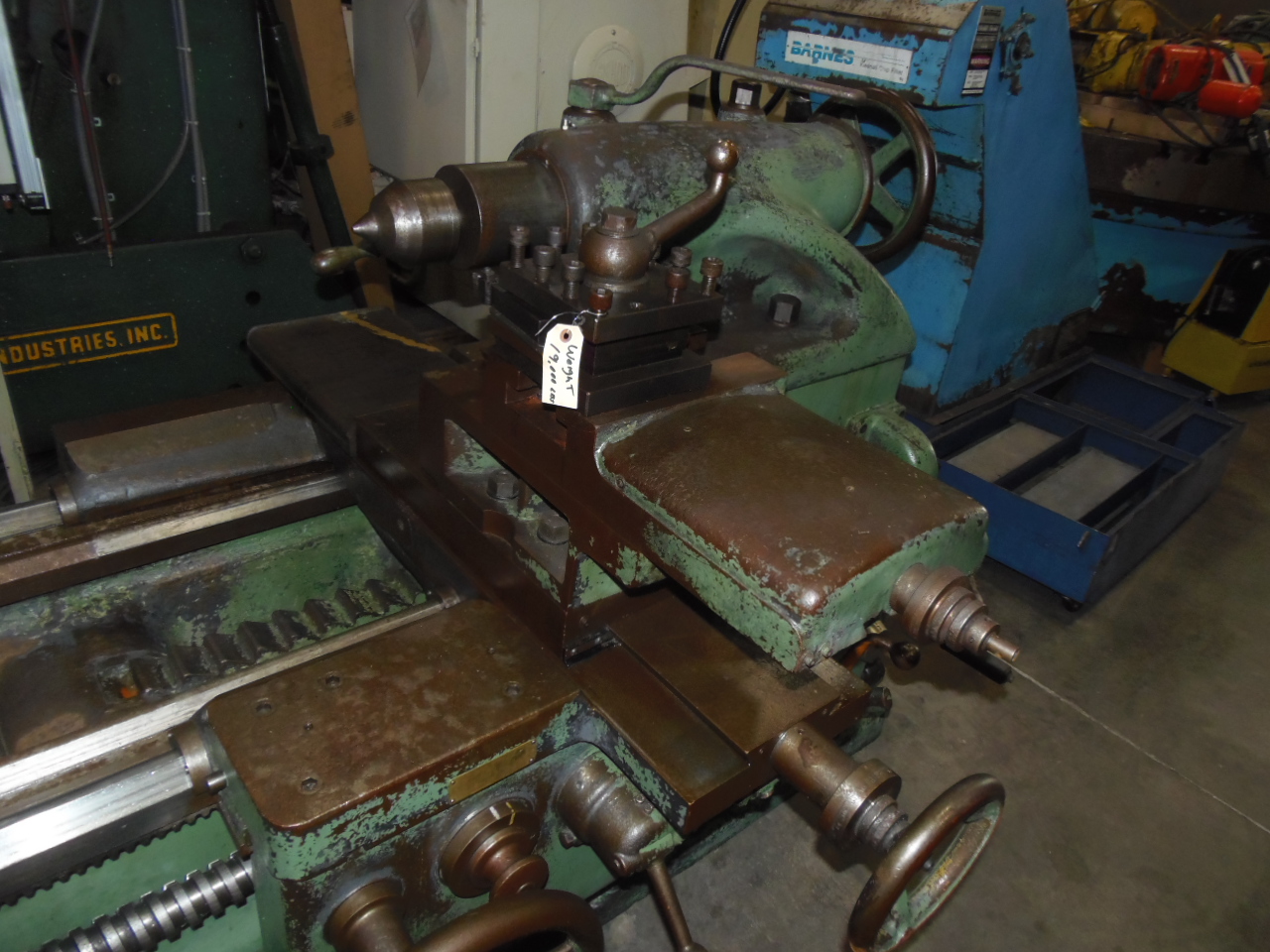

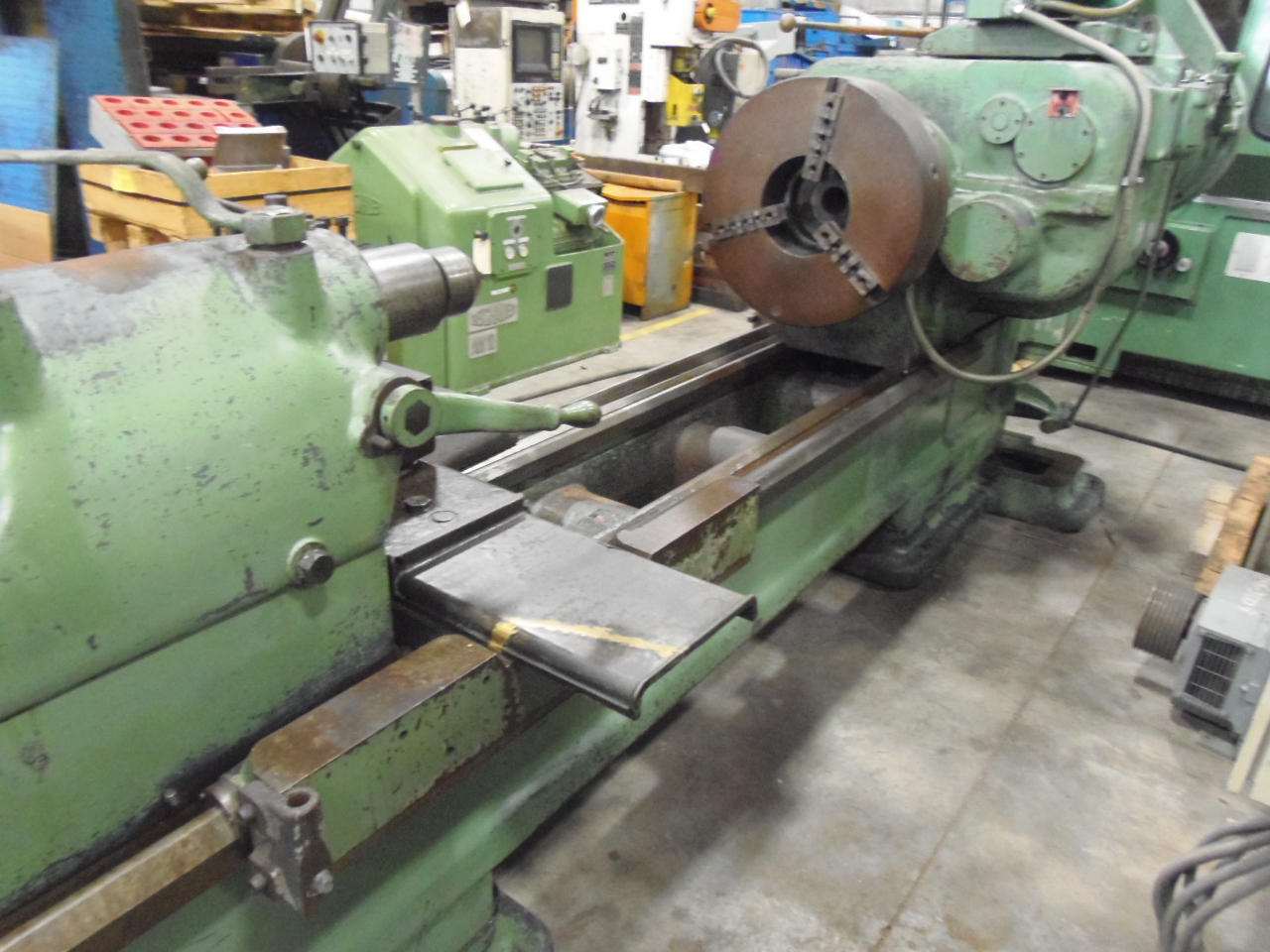

AMERICAN TOOL WORKS HEAVY DUTY LATHE, MODEL 36, 36" x 60" CENTERS, 25" CHUCK, TAILSTOCK

Brand
American

Model
36

Type
Lathes, Engine

Stock #
10319

Condition
Used

Year
1942

Request a Quote

Specifications

GENERAL SPECIFICATIONS:

MAKE...................... AMERICAN

MODEL..................... 36

SERIAL NUMBER............. 64440-42

SWING OVER WAYS........... 36"

SWING OVER CROSS SLIDE.... 26"

CENTER DISTANCE........... 60"

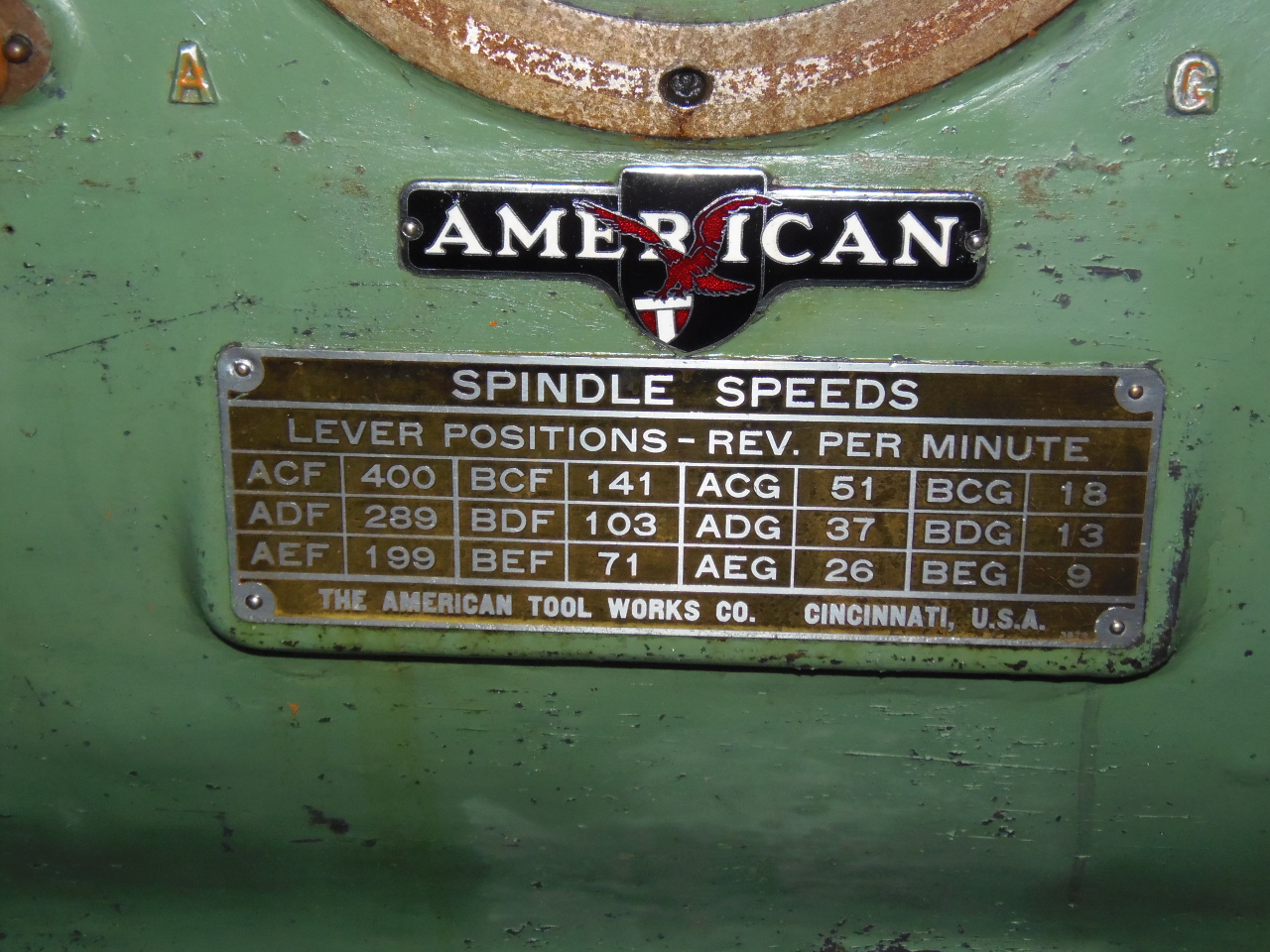

SPEEDS.................... 9-400 RPM

WEIGHT.................... 19000 LBS

DIMENSIONS................ 185" X 69" X 85"

HOLE THRU SPINDLE......... 2.5"

MAIN MOTOR................ 15 HP

EQUIPPED WITH:

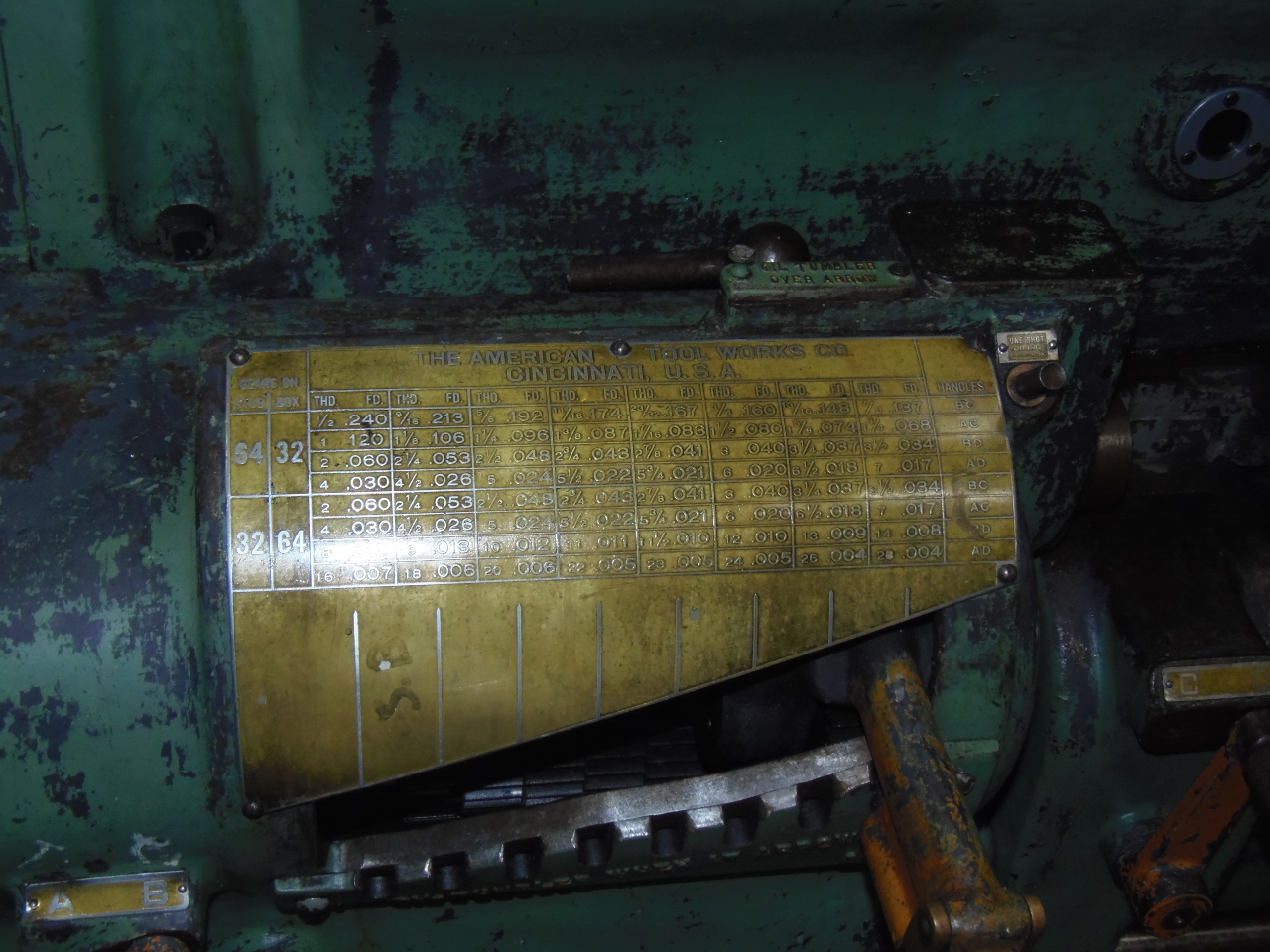

INCH THREADING

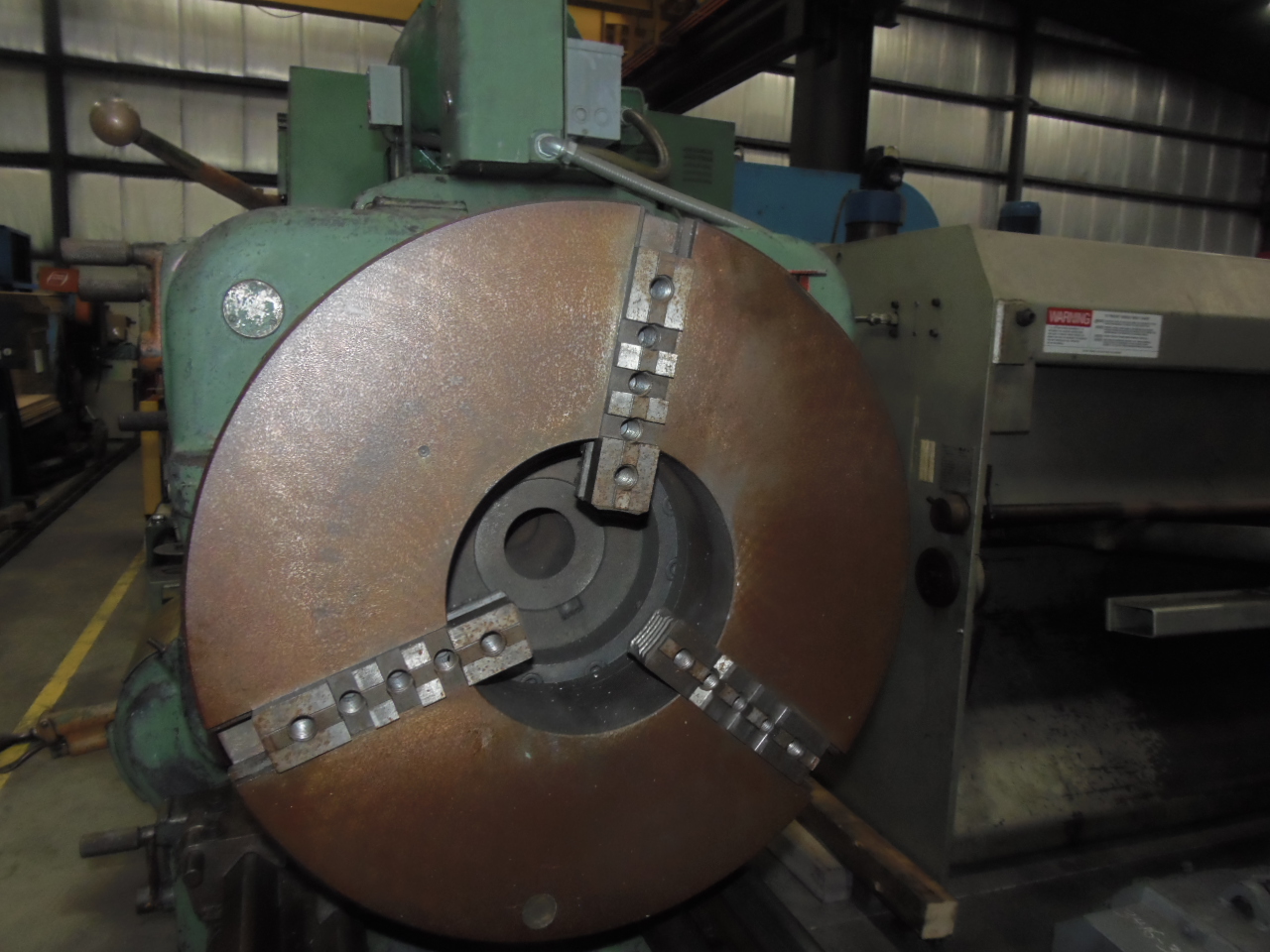

25" 3 JAW MANUAL CHUCK

10" HOLE IN CHUCK (NOT SPINDLE)

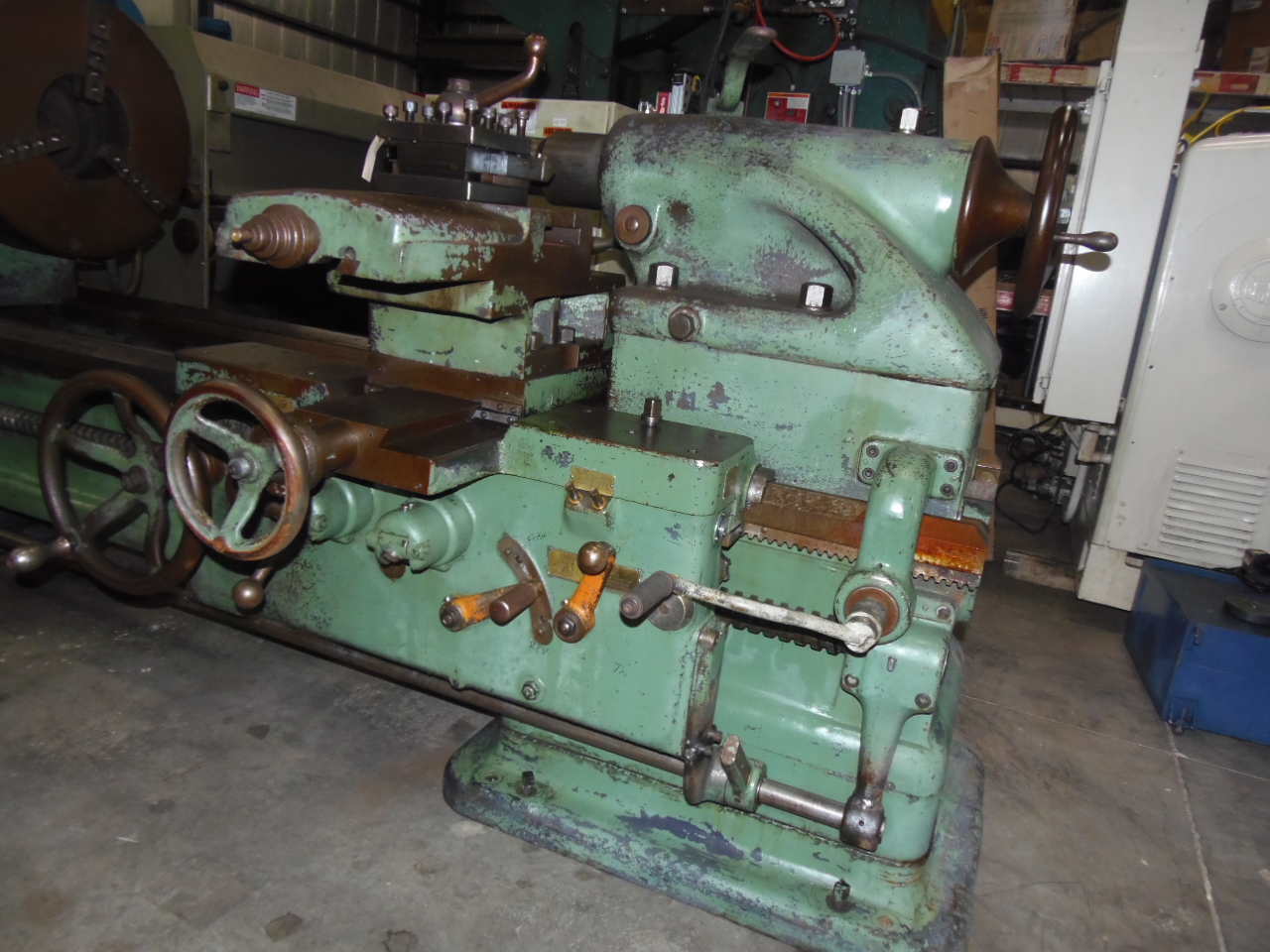

HEAVY DUTY TAIL STOCK

SPECIFICATIONS SUBJECT TO VERIFICATION
