Specifications
Equipped With
GENERAL SPECIFICATIONS:

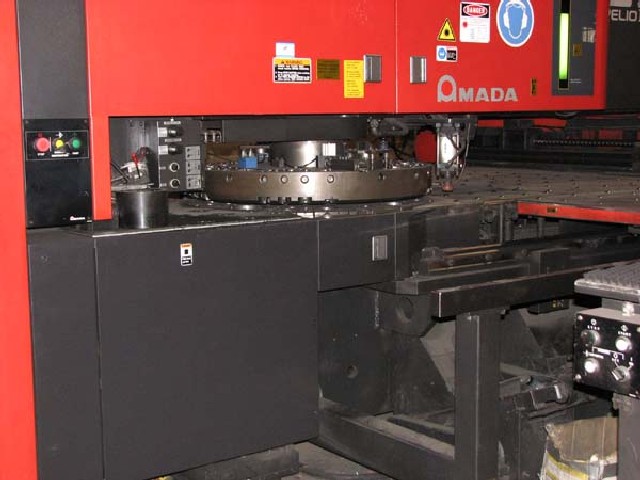

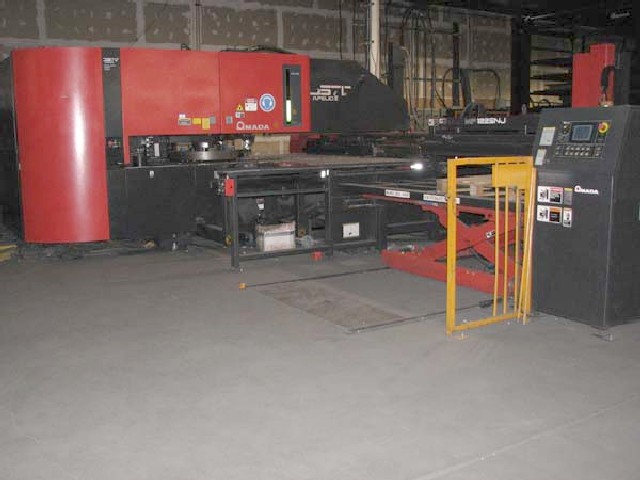

MAUFACTURER AMADA
MODEL APELIO III 375V
YEAR 1999
SERIAL NUMBER 335703318
CAPACITY 33 TONS MAX LASER CAPACITY 2000 WATTS
MAX MATERIAL THICKNESS PUNCH 1/4" MILD STEEL
MAX. SHEET SIZE 144" X 50"
Y-AXIS TRAVEL 50"
X-AXIS TRAVEL 72"
MAX. SHEET WEIGHT 220 LBS
TABLE AXIS FEED RATE 3,229 IPM
MAX HIT RATE 195 HPM ON 1" CENTER MOVES
MAX. SPM 520 NIBBLE
TURRET CONFIGURATION (THICK) 58 STATIONS WITH (2)1.25" AUTO INDEX
EQUIPPED WITH

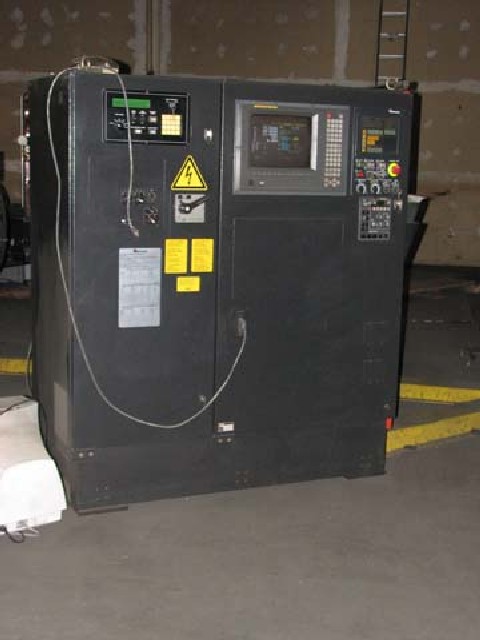

FANUC 16iL CNC CONTROL
FANUC 2000 WATT LASER
2 AUTO INDEX STATIONS
AUTOMATIC REPOSITIONING
HYDRAULIC CLUTCH AND BRAKE
CHILLER UNIT/DUST COLLECTOR
APPROX WEIGHT 30,000 LBS
