Specifications
Equipped With
General Specifications:
Capacity . . . . . . . . . . . 10' x 3/8" MS
Back-gauge Range . . . . . . . 36"
Strokes Per Minute . . . . . . 16 Full, 45 Short
Number of Hold Downs . . . . . 11
Knife Size . . . . . . . . . . 1" x 3" x 122"
Main Motor Horsepower . . . . 20 HP
Overall Dimensions (LxWxH) . . 140" x 80" x 96"
Weight . . . . . . . . . . . . 23,000 lbs.
Confirmed Voltage . . . . . . 460V 3Ph
Manufacture Date . . . . . . . SNS-38153
Features:

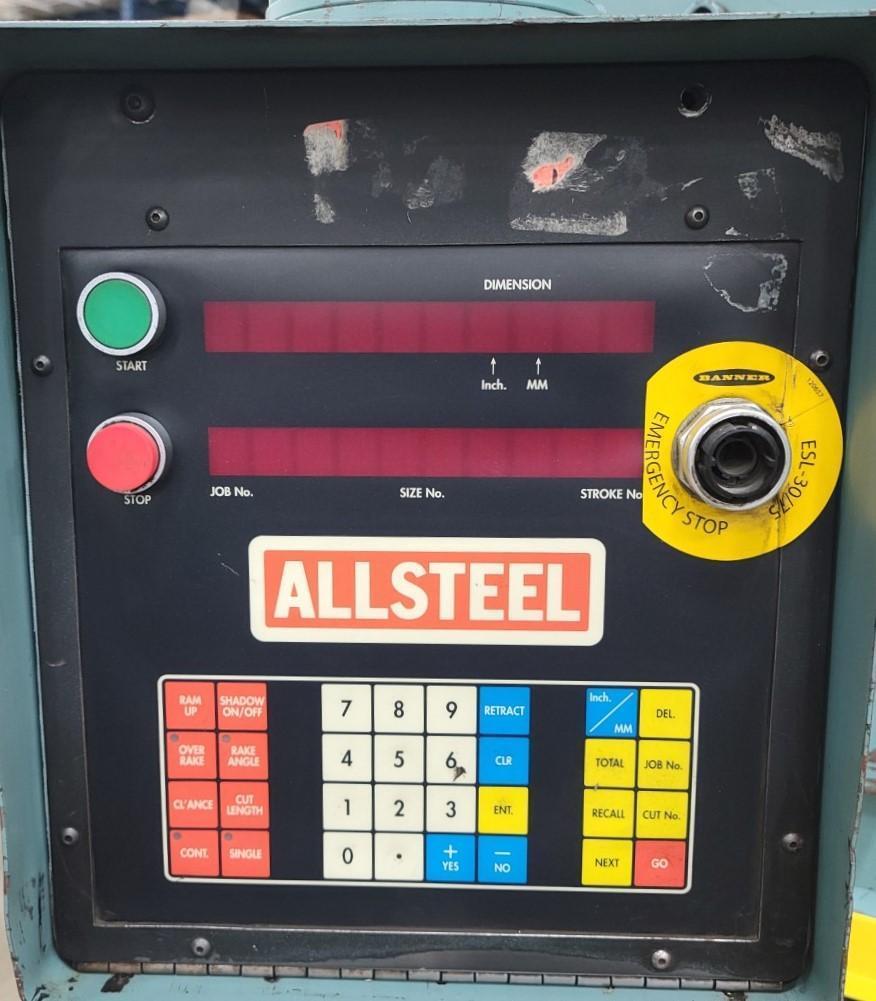

36" Front Operated Power Back-gauge with readout

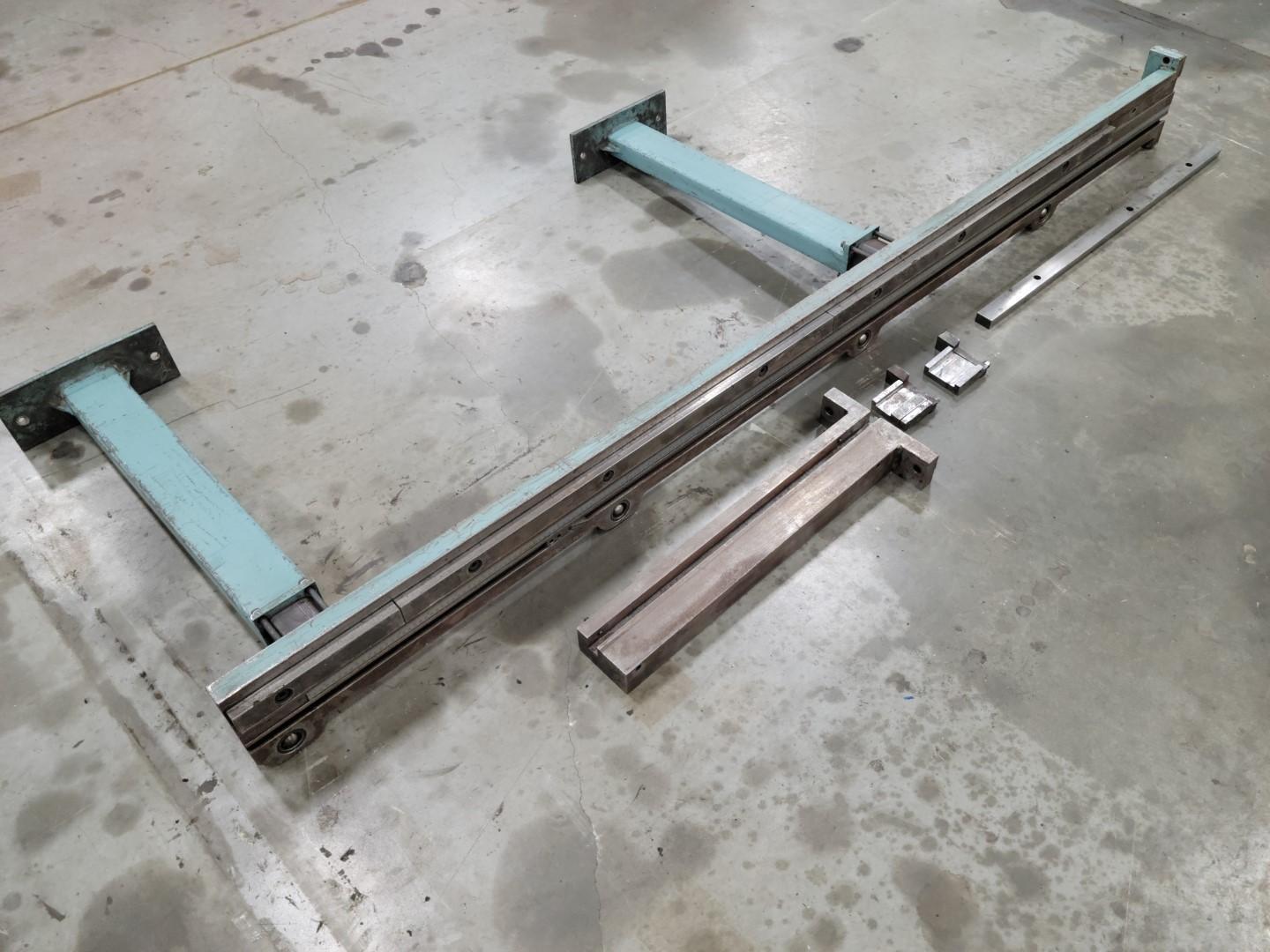

10' Squaring Arm and 1 Support Arm
Ball Transfers in Table and Squaring Arm
Blade Clearance Adjustment
Auto Lube
