Specifications
Equipped With
GENERAL SPECIFICATIONS:

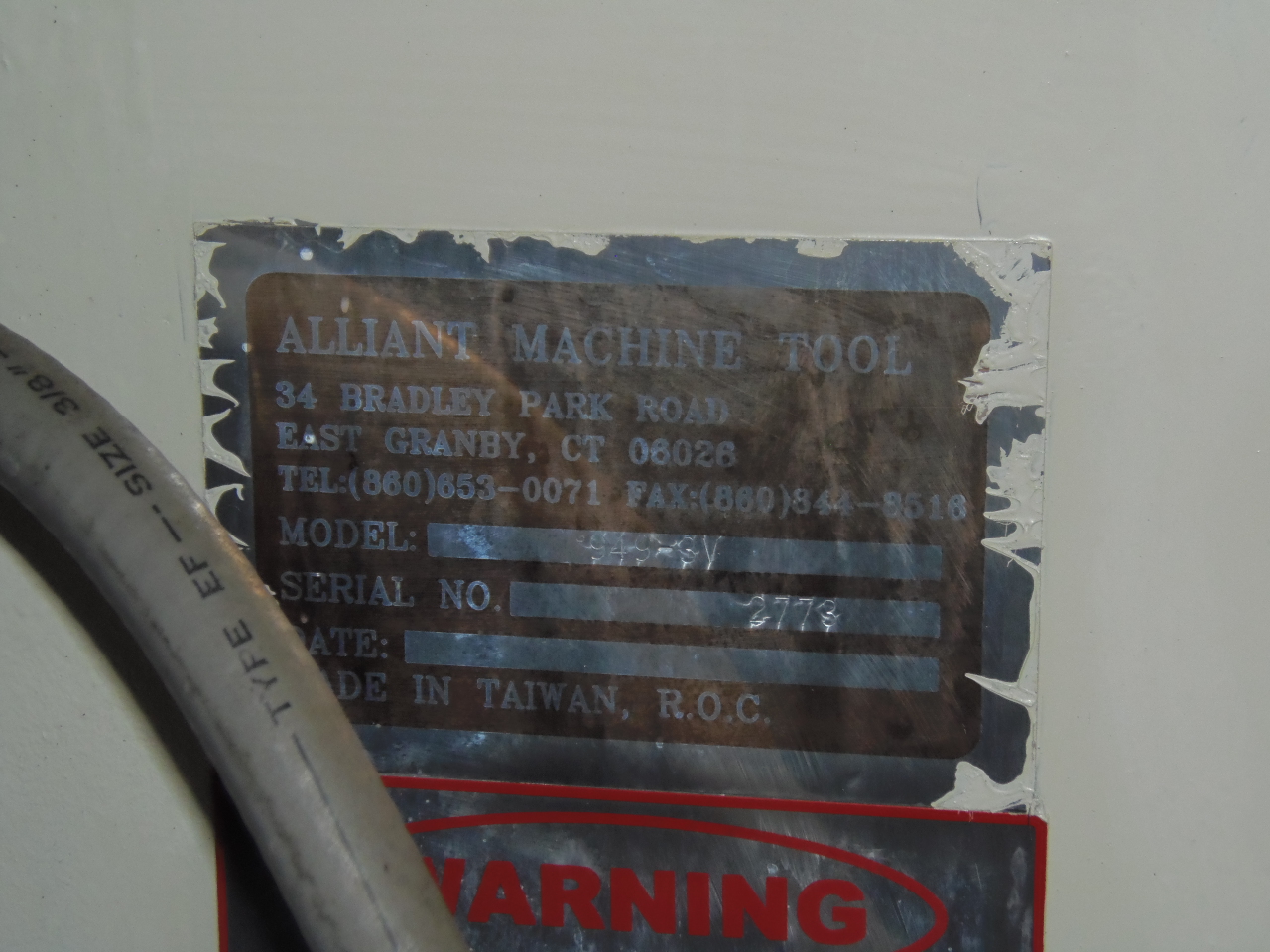

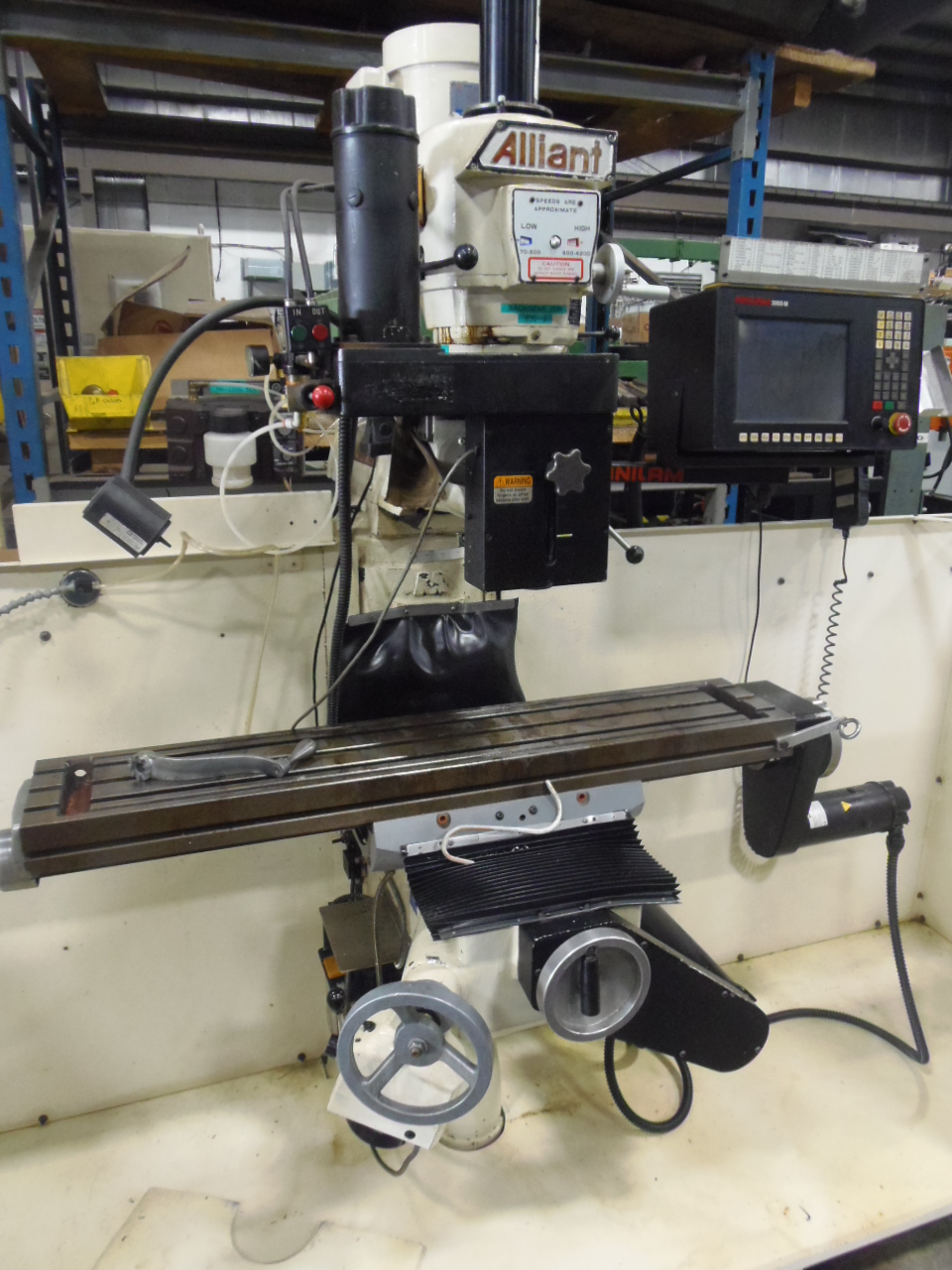

MANUFACTURER........................... ALLIANT
MODEL.................................. 949-3V
SERIAL NUMBER.......................... 2773
YEAR BUILT............................. 1996
YEAR RETROFIT.......................... 2006

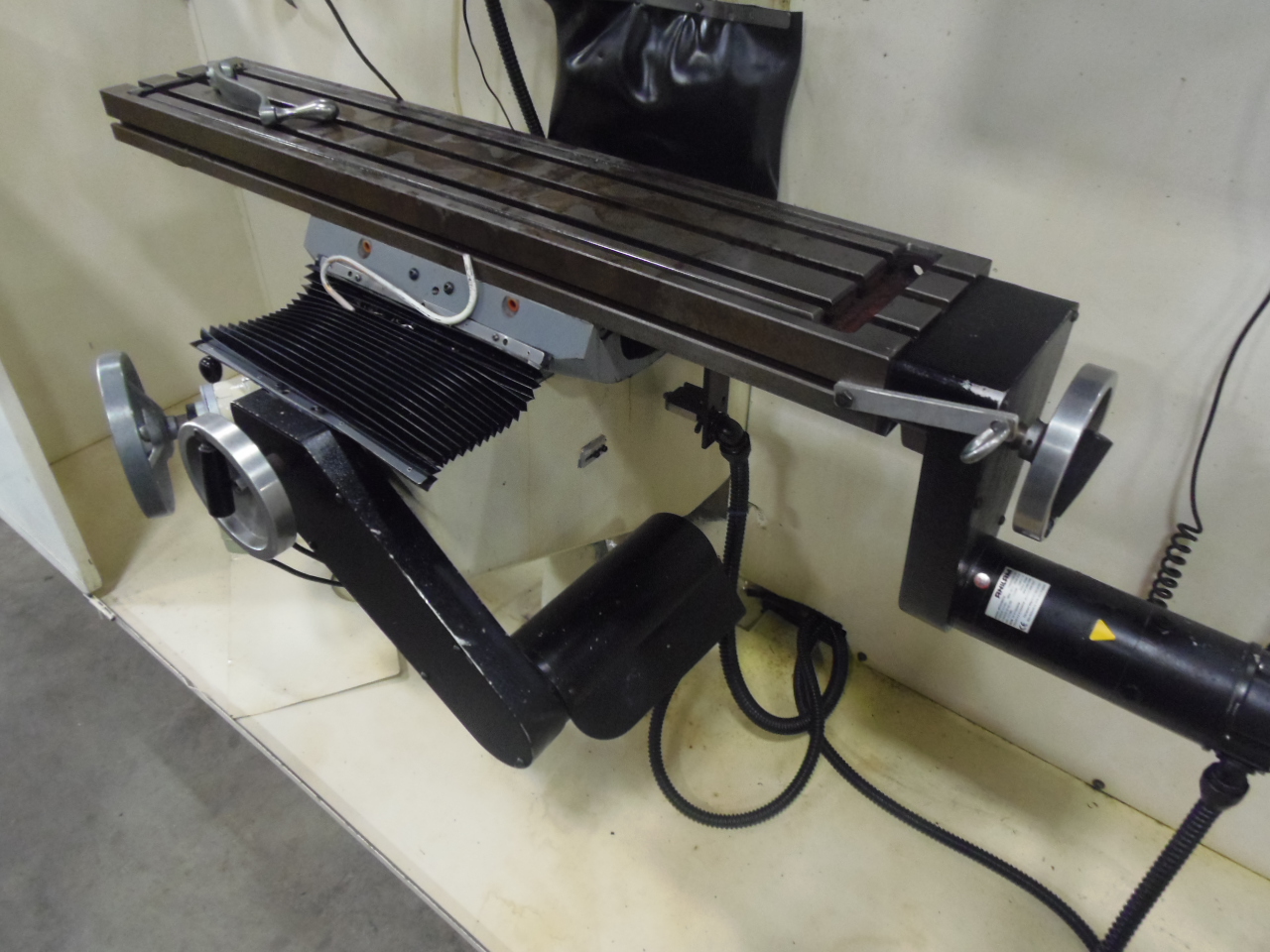

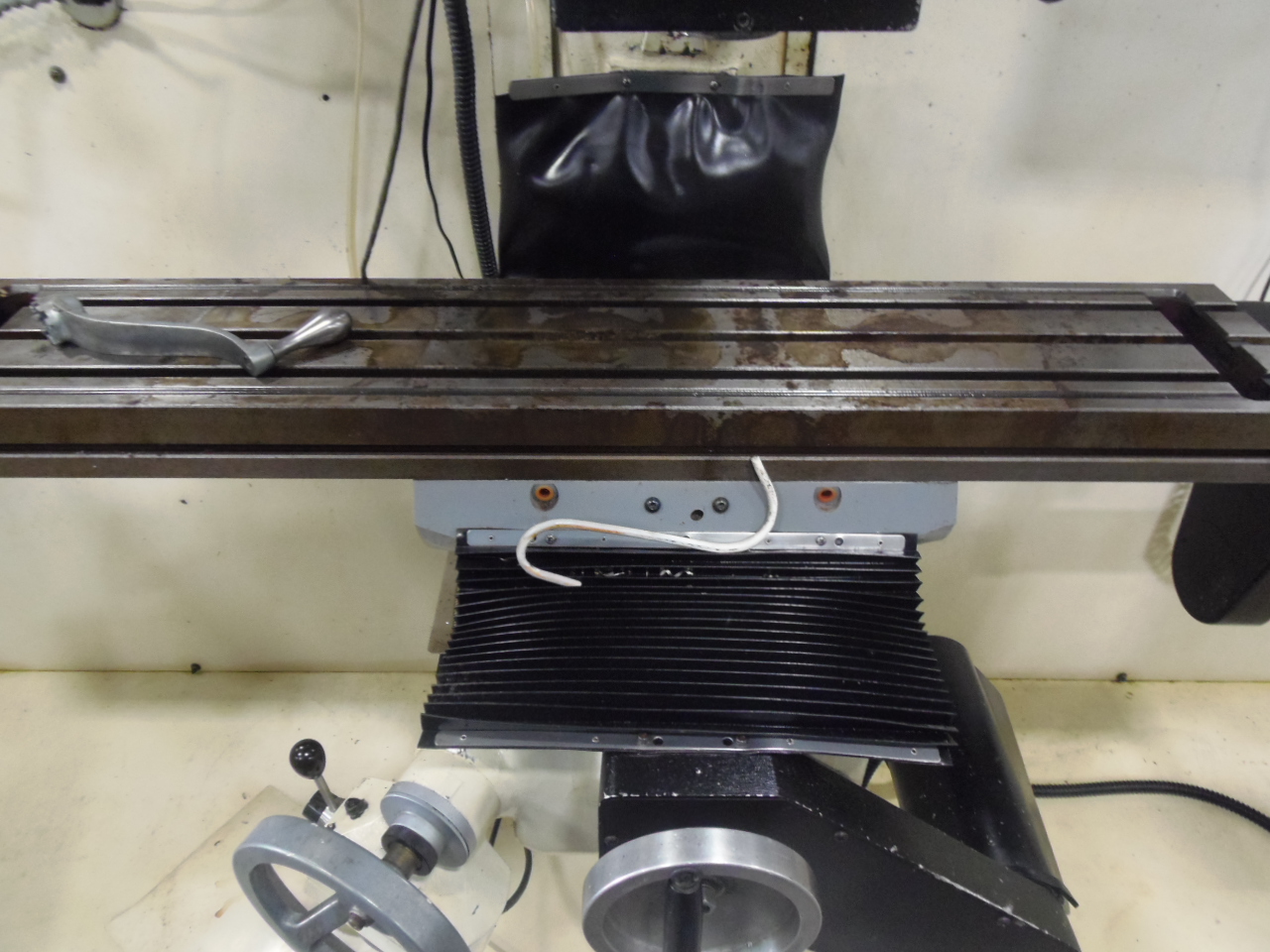

TABLE SIZE............................. 10" X 50"
TRAVELS
LONGITUDINAL........................ 36"
CROSS............................... 16"
VERTICAL............................ 18.5"
RAM ................................ 24"
QUILL .............................. 5"
SPINDLE HORSEPOWER..................... 3
SPINDLE TAPER.......................... R-8

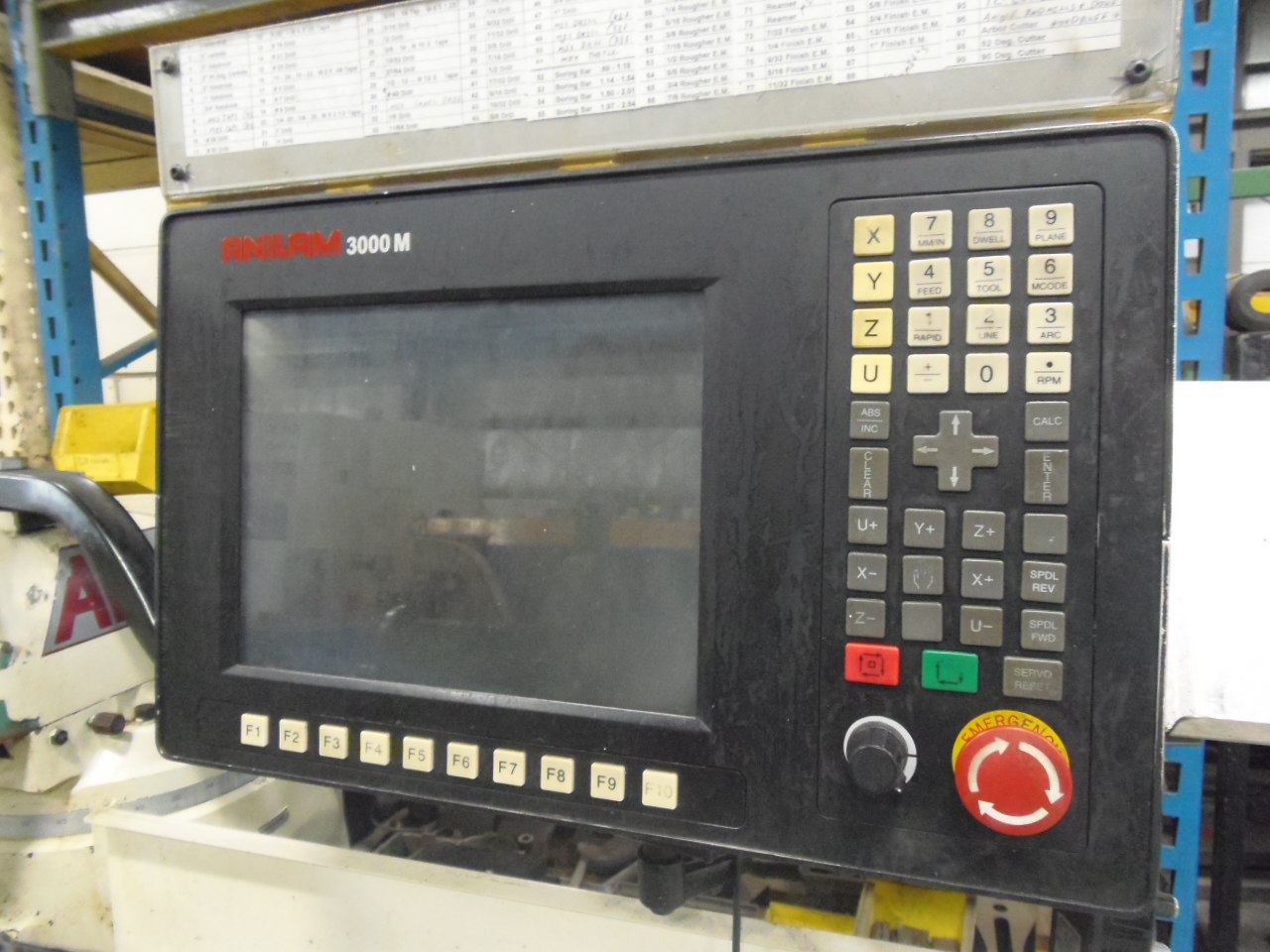

CONTROL................................ ANILAM 3000M
MACHINE WEIGHT......................... 3000 LBS
EQUIPPED WITH:
POWER DRAW BAR
MIST COOLANT
HAND HELD MANUAL PULSE GENERATOR
GUARDING
CLASS 7 SPINDLE
HARD CHROME QUILL
ONE SHOT LUBE
ROLLER BEARING HANDLES
SPECIFICATIONS SUBJECT TO VERIFICATION
