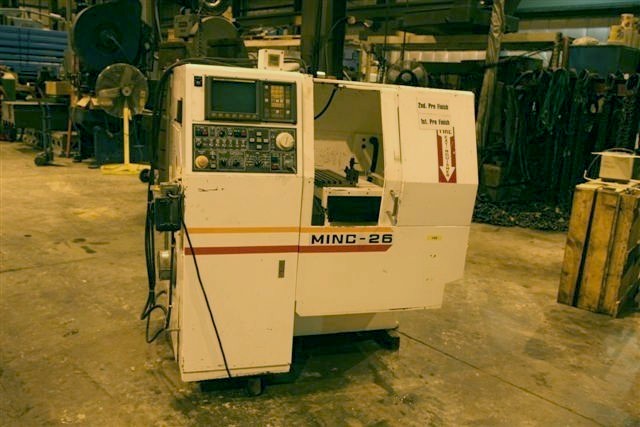

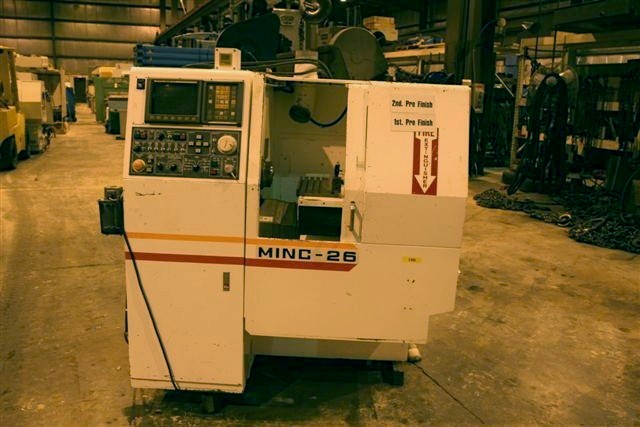

AKEBONO MINC-26 GANGSTER LATHE, NEW 1995, 10" SWING, A2-3 SPINDLE NOSE, 1" BAR CAPACITY

GENERAL SPECIFICATIONS:
MANUFACTURER AKEBONO
MODEL MINC-26
SERIAL NUMBER 3100625
NEW 1995
SPINDLE MOTOR 2.2 KW
SPINDLE SPEED 60 - 6000 RPM
SPINDLE NOSE A2-3
MAX CHUCK SIZE 4"
SWING OVER BED 10.5"
SWING OVER TABLE 3.2"
BAR CAPACITY ROUND 1"
BAR CAPACITY HEX .8"
X-AXIS TRAVEL 9.2"
Z-AXIS TRAVEL 8"

EQUIPPED WITH:

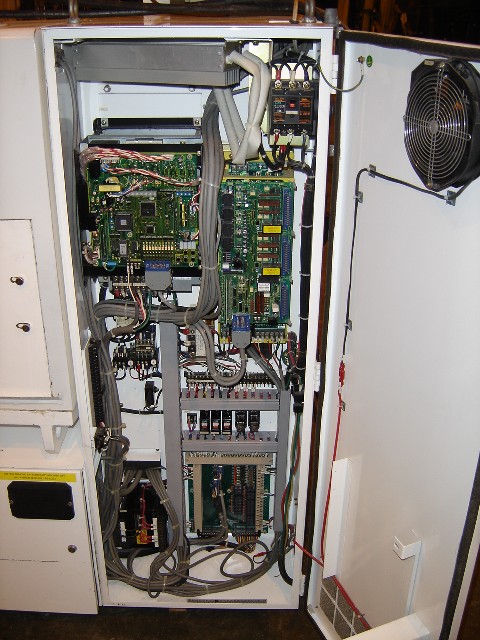

FANUC OT CNC CONTROL

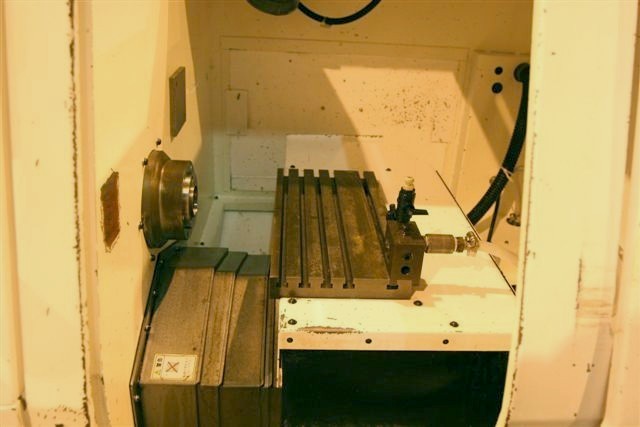

GANG TOOL CONFIGURATION (NO LOST TIME TURRET INDEXING)
ACCOMODATES UP TO 6 TOOLS FOR SMALL DIA. WORKPIECES
TOOLS CAN BE ADDED OR REMOVED FROM ANY LOCATION TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
