Specifications
Equipped With

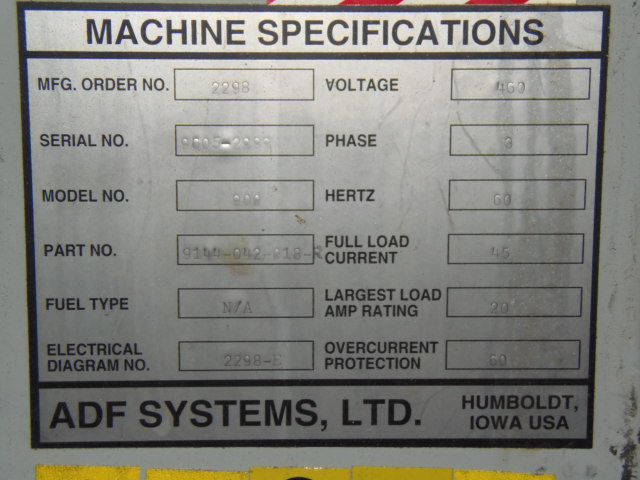

GENERAL SPECIFICATION:
MANUFACTURER ADF
MODEL SERIES 900
SERIAL# 9605-3000
AGE APPROXIMATELY 1996
DOOR OPENING 56" WIDE X 23.5" HIGH
MAX. PART HEIGHT APPROX. 19"
INSIDE DIMENSIONS 48" SQUARE

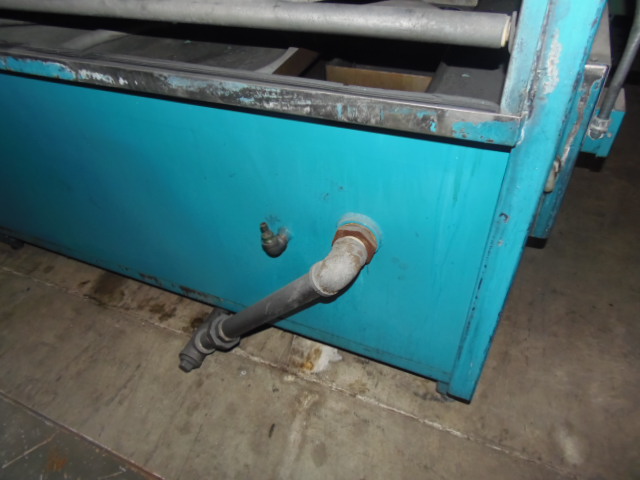

TANK DIMENSIONS (APPROXIMATELY) 14" X 52" X 18"
OVERALL DIMENSIONS 66"F-B X 78"W X 96"HIGH
ELECTRICS: 460V, 3PH, 45 AMP.
EQUIPPED WITH:
10 HP PUMP MOTOR
10 HP REGENERATIVE BLOWER

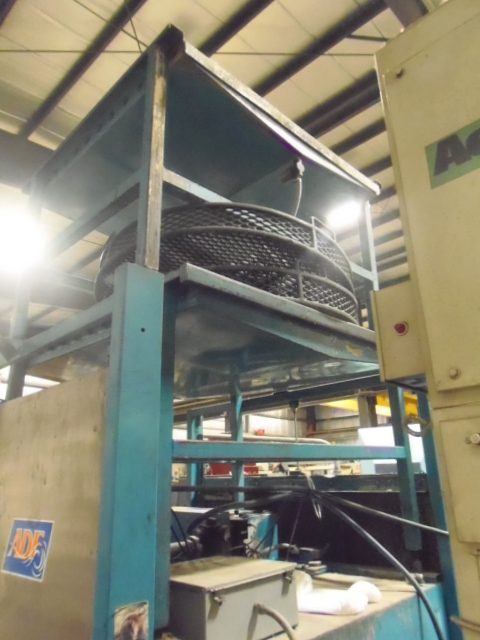

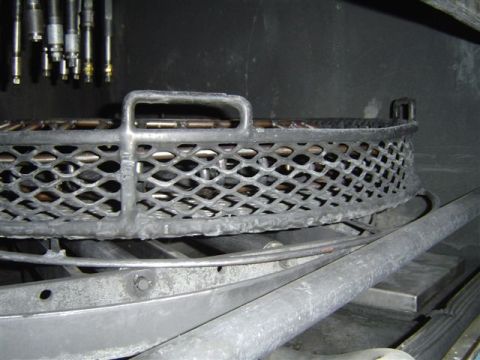

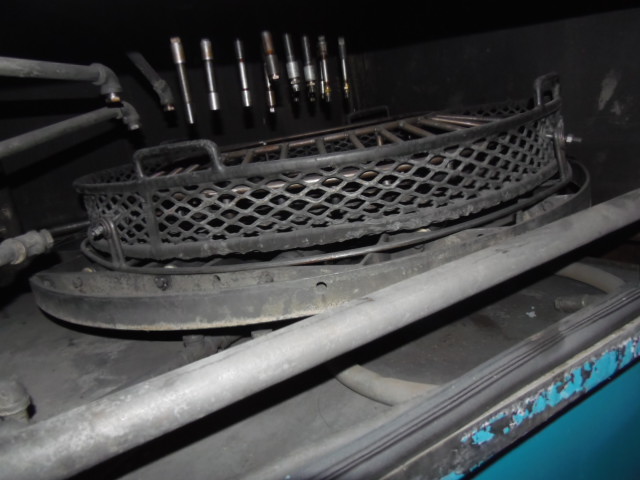

43" PARTS BASKET
HYDRAULIC DOOR OPENER
WASH, DRY, RINSE

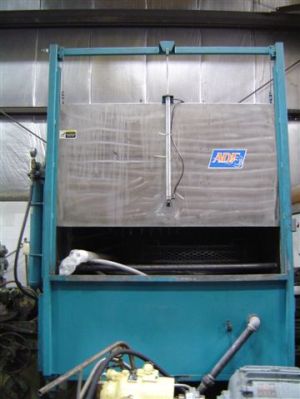

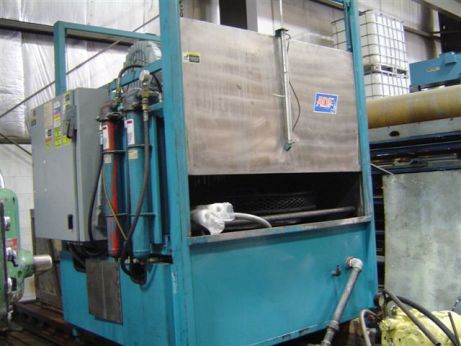

ADF Pass Through Parts Washers
THE 900 SERIES is a high production batch type washer featuring the use of high pressure impingement to achieve fast and high quality cleanliness for your cleaning operations.These aqueous systems feature the use of biodegradable detergent and hot water for environmentally safe operations as well as achieving a better cleaning environment for equipment operators.

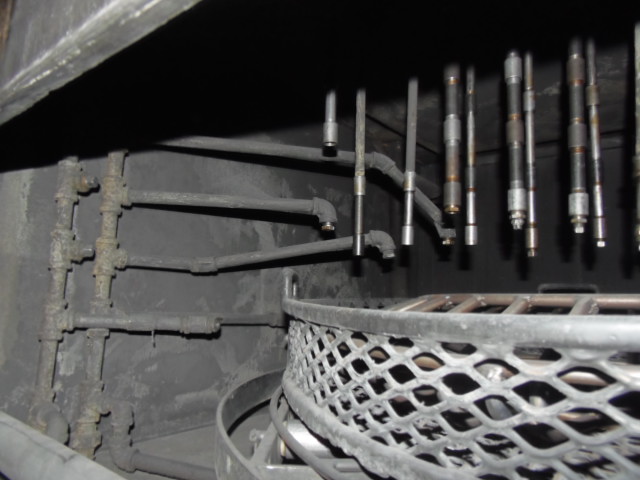

Because of the pass through feature, the 900 Series washers provide high volume and are very suitable for work cell operation. Nozzle patterns are important for any cleaning operation and the hardened stainless steel nozzles are arranged for general cleaning and provide coverage for most parts. However, the nozzles can be easily arranged for special cleaning problems such as recesses, blind holes, and so forth.
The options available for the Model 900 include drying, rinsing, and many others which allow the user to tailor the Model 900 for his particular operations. The standard unit with accessory packages will clean the parts for most applications. For special applications, ADF will work with the customer and provide the equipment he needs.
