GENERAL SPECIFICATIONS:

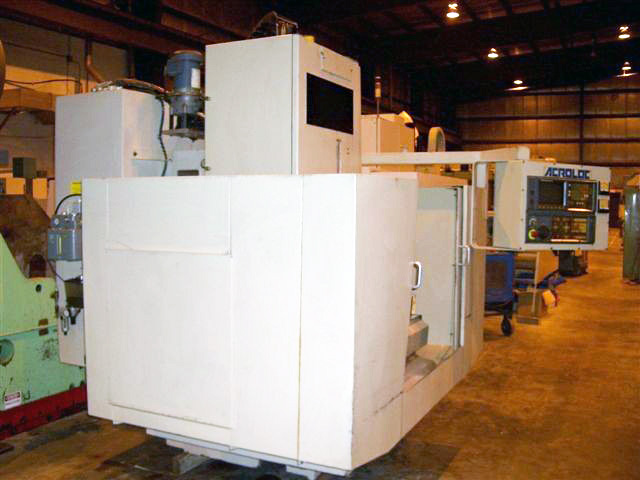

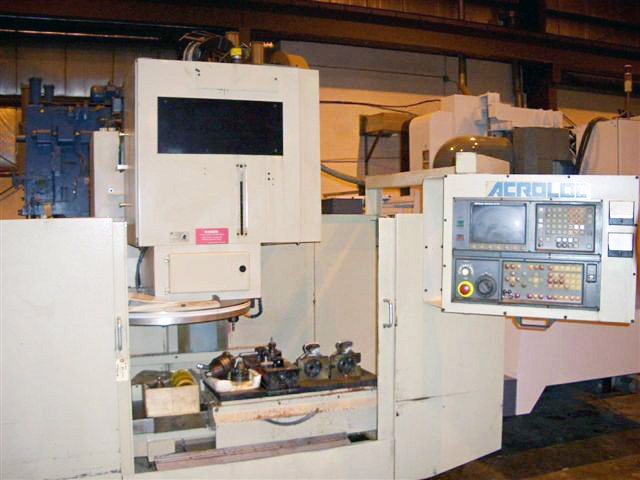

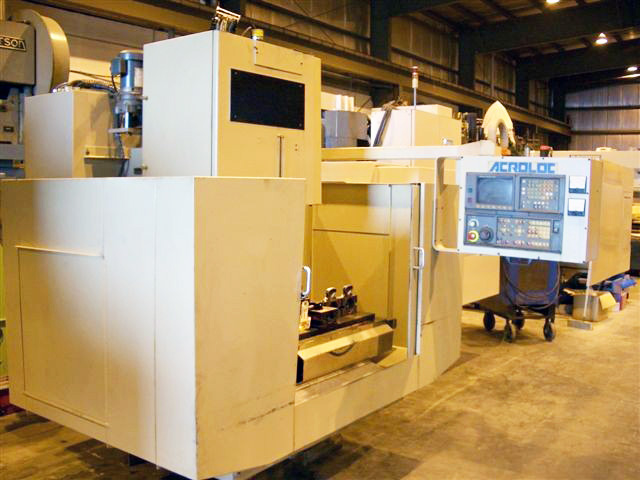

MANUFACTURER ACROLOC
MODEL AF22-20
NEW (APPROX.) 1990
TABLE SIZE 15" x 30"
X-TRAVEL 20"
Y-TRAVEL 16"
Z-TRAVEL 8"
TOOLCANGER CAPACITY 22 TOOLS
FEED RATE X, Y, Z (RAPID) .1 - 400 IPM
FEED RATE X, Y, Z (CUTTING) .1 - 150 IPM
SPINDLE SPEEDS 0 - 7000 RPM
SPINDLE MOTOR (CONTINUOUS) 7.5 HP
SPINDLE MOTOR (30 MINUTE) 11 HP
MAX. WORK LOAD 1,000 LBS.
ELECTRICS 220V/3 PH/60 HZ
WEIGHT (APPROX.) 8,000 LBS.
EQUIPPED WITH:

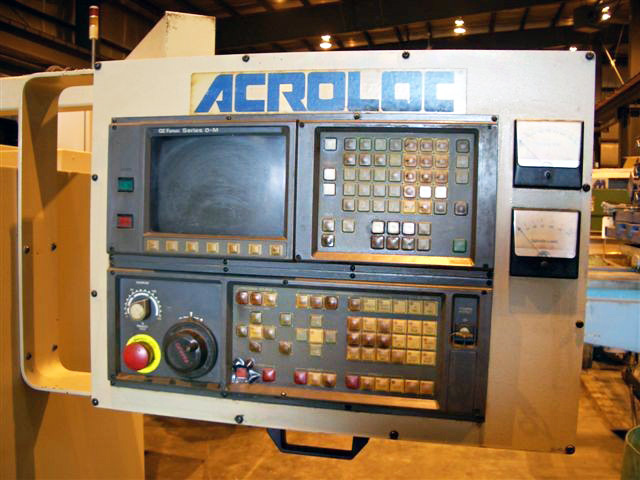

FANUC OM CONTROL

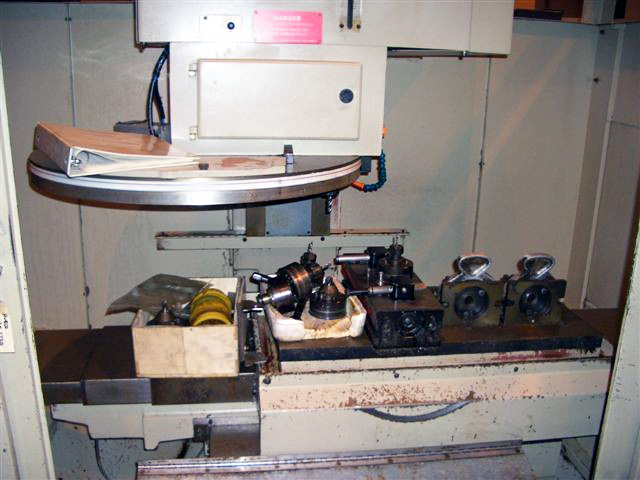

SOME TOOLING

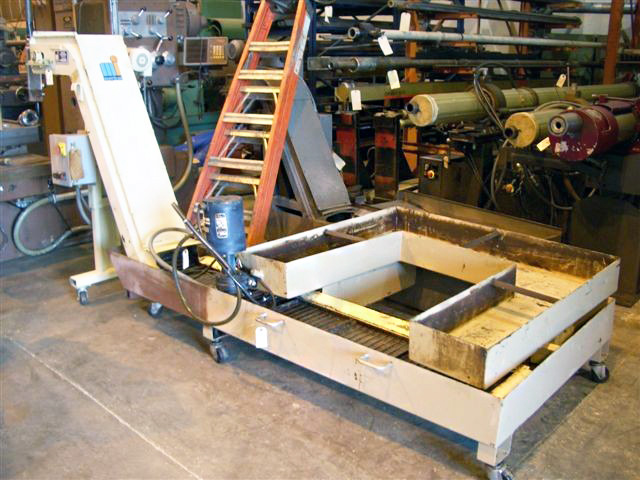

CHIP CONVEYOR
COOLANT SYSTEM TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
