Specifications
Equipped With
GENERAL SPECIFICATIONS:

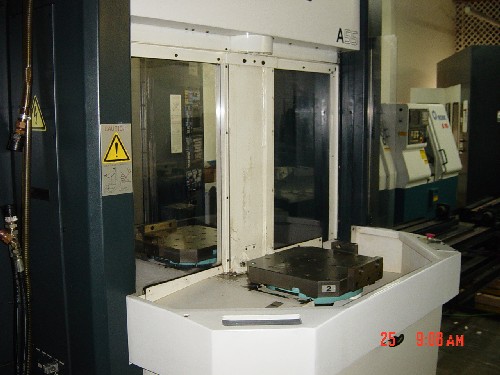

PALLET SIZE 15.75" x 15.75"
PALLET CHANGE TIME 6 SECONDS
MAXIMUM TABLE LOAD 880 LBS
SPINDLE NOSE TO PALLET CENTER 5.9" - 27.9"
SPINDLE CENTER TO PALLET SURFACE 3.1" - 25.1"
X AXIS TRAVEL 22"
Y AXIS TRAVEL 22"
Z AXIS TRAVEL 22"
B AXIS INDEXING 0.001º
RAPID TRAVERSE RATE X AXIS 1575 IPM
RAPID TRAVERSE RATE y AXIS 1575 IPM
RAPID TRAVERSE RATE z AXIS 1575 IPM
CUTTING FEED RATE 0.1 - 1575 IPM
SPINDLE SPEEDS 100 - 14,000 RPM
SPINDLE TAPER CAT 40
SPINDLE MOTOR 30 HP AC
TOOL CHANGER CAPACITY 60 STATION ATC
TOOL CHANGE TIME (TOOL TO TOOL) 0.9 SECONDS
EQUIPPED WITH:
FANUC 16M (PRO LOGIC III) CNC CONTROL WITH 9" CRT
RS-232C PORT INTERFACE FOR DNC OPERATION
RIGID TAPPING (SYCNHRONOUS / SOLID TAPPING)
COOLANT THROUGH THE SPINDLE (210 PSI PRESSURE)
COORDINATE ROTATION & SCALING, MACROS, MIRROR IMAGE
DAIKIN SPINDLE CHILLER (SPINDLE OIL COOLING SYSTEM)
INTERNAL SPIRAL & EXTERNAL CHIP CONVEYORS
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
