Specifications
Equipped With
GENERAL SPECIFICATIONS:

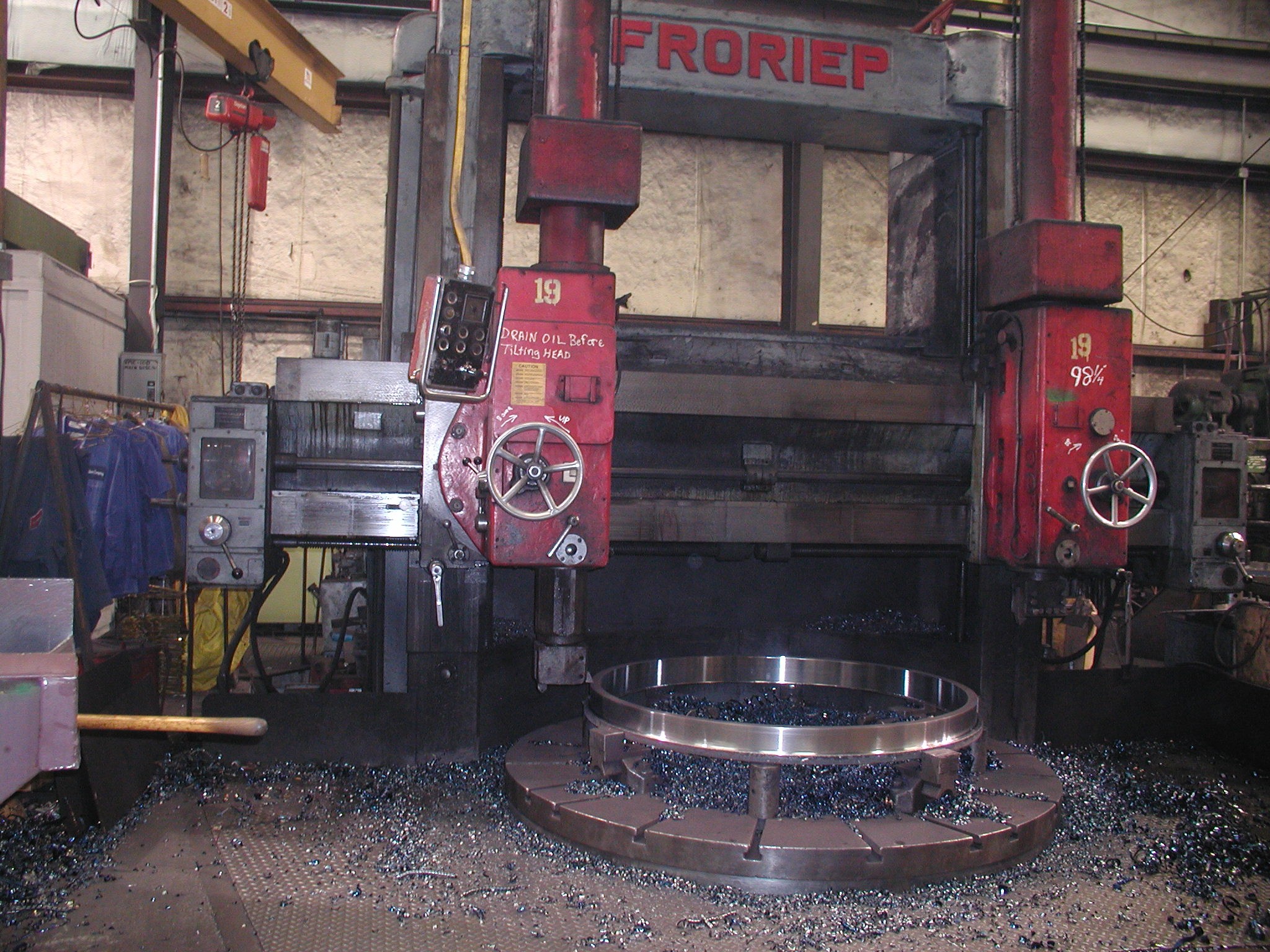

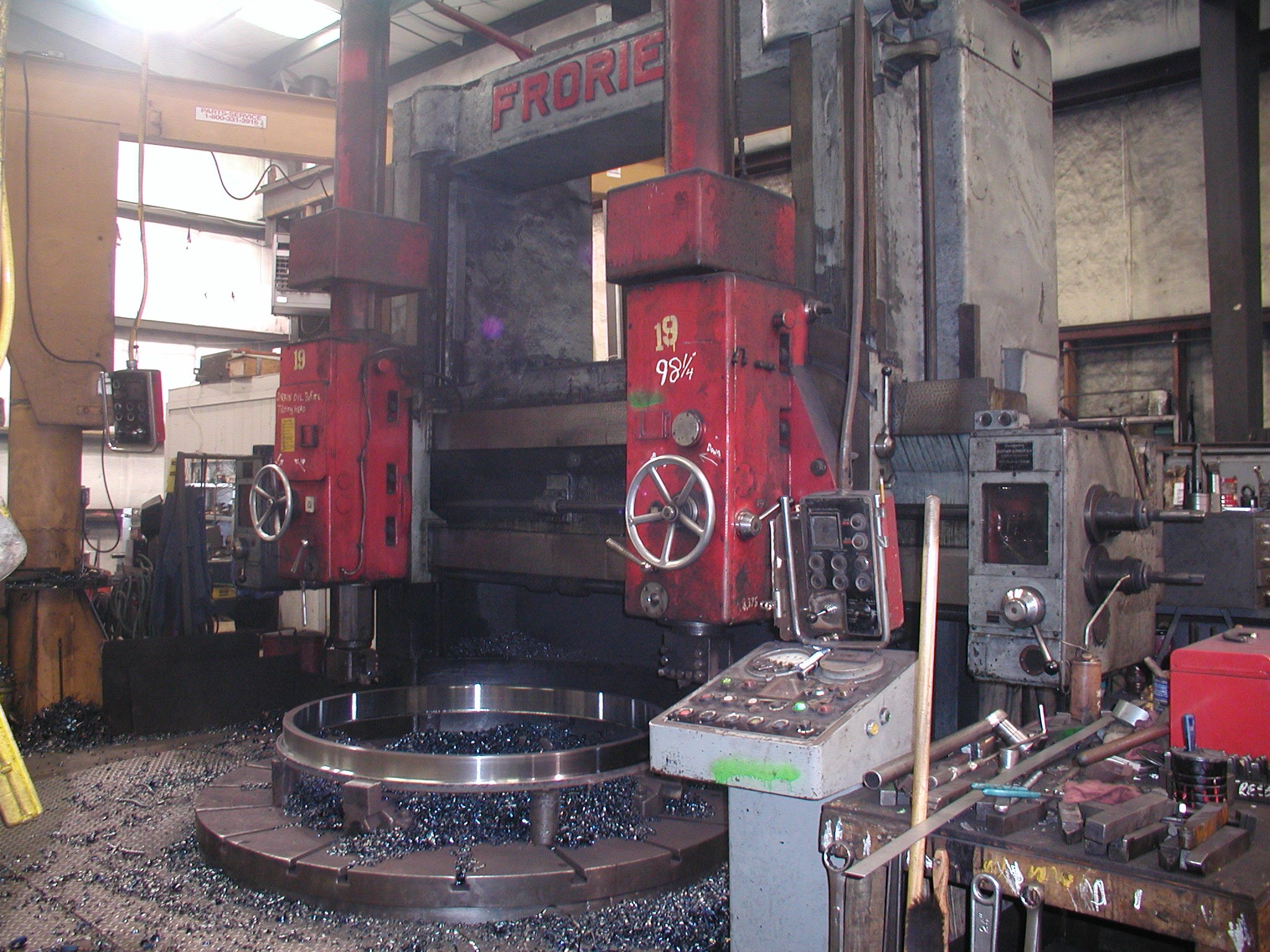

MANUFACTURER FRORIEP
MODEL 10KZ250
NEW (APPROX.) 1955
TABLE DIAMETER 98.425"
MAX. WEIGHT OF WORK PIECE 15 TON
MAX. TURNING DIAMETER 110.36"
MAX. W/SIDE HEAD UP 98.425"
MAX. TURNING HEIGHT 70.866"
VERTICAL TRAVEL OF RAM 76.771"
SWIVEL SETTING OF RAM 30 DEG.
VERTICAL TRAVEL OF CROSS RAIL 66.929"
TABLE SPEEDS (21) 0.67 - 67 RPM
TABLE FEEDS (16) 0.05 - 10MM/MIN
RAPID TRAVERSE 78.74"/MIN
MAIN MOTOR 68 HP
ELECTRONICS 460/3 PH/6 CY
WEIGHT (APPROX.) 94,797 LBS.
EQUIPPED WITH:
2 RAM HEADS ON RAIL
SIDEHEAD
PENDANT CONTROL
