Specifications
Equipped With
SPECIFICATIONS:

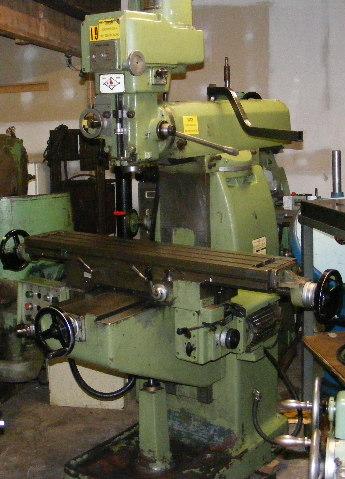

MODEL.............................. LC-18VS
SERIAL NUMBER...................... 76040048
APPROXIMATE YEAR................... 1997
Table size......................... 9" x 49"
Longitudinal travel................ 32"
Cross travel....................... 16.5"
Vertical travel.................... 16"
Spindle speed...................... 60-4500 RPM
Spindle motor...................... 3 HP
Spindle taper...................... 40
Electrics.......................... 575/3/60
Equipped with:
Variable speed head, X-axis built in power feed
