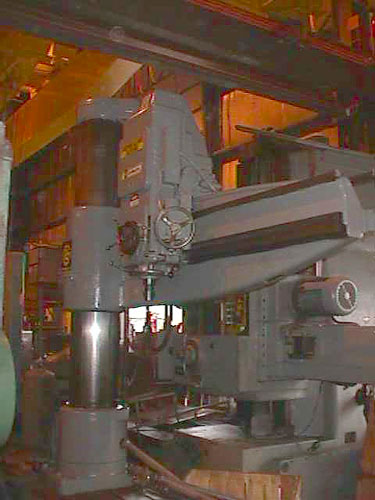

9' x 26" G & L CHIPMASTER, 1974, 1500 RPM, INCH/METRIC THREADING, 30 HP, POWER CLAMP/ELEVATION/TRAVERSE

GENERAL SPECIFICATIONS:
NEW APPROXIMATELY---------------------------1974
ARM LENGTH----------------------------------9'
ARM TRAVEL----------------------------------7'
COLUMN DIAMETER-----------------------------26"
COLUMN TRAVEL-------------------------------70"
MAX. DISTANCE UNDER SPINDLE-----------------103"
QUILL TRAVEL--------------------------------19"
TAPPING RANGE: INCH-------------------------12-1500
---------------METRIC-----------------------.61-3.18
RPM RANGE-----------------------------------12-1500
MAIN MOTOR----------------------------------30 HP
TOTAL LENGTH X WIDTH------------------------13'6" X 5'
TOTAL HEIGHT--------------------------------155"

EQUIPPED WITH:
POWER CLAMP
POWER ELEVATION
POWER FEED
