Specifications
Equipped With
GENERAL SPECIFICATIONS

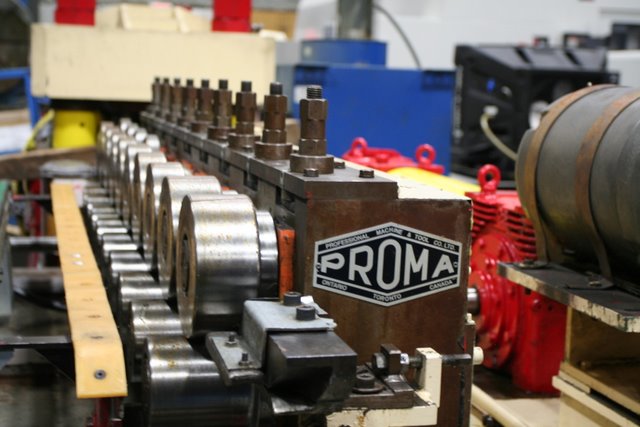

MANUFACTURER.........................PROMA
AGE APPROXIMATELY....................1986
MODEL................................1 3/4 DH-02
SERIAL#..............................472-DEVILB
NUMBER OF SPINDLES...................9
SPINDLE DIAMETER.....................1 3/4"
SPINDLE KEYWAY.......................1/4" X 1/8"
BASE TO SPINDLE BOTTOM...............6 5/8"
VERTICAL CENTERS.....................4 1/2" TO 5 1/2"
HORIZONTAL CENTERS...................8"

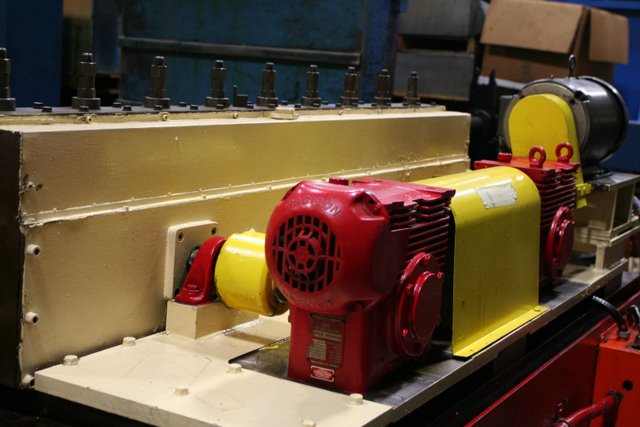

MAIN MOTOR...........................10 HP
ROLL SPACE...........................18" TO 152"
SPINDLE GEAR RATIO...................1:1.5
DRIVE HOUSING REDUCTION RATIO........30:1
SPECIFICATIONS SUBJECT TO VERIFICATION
