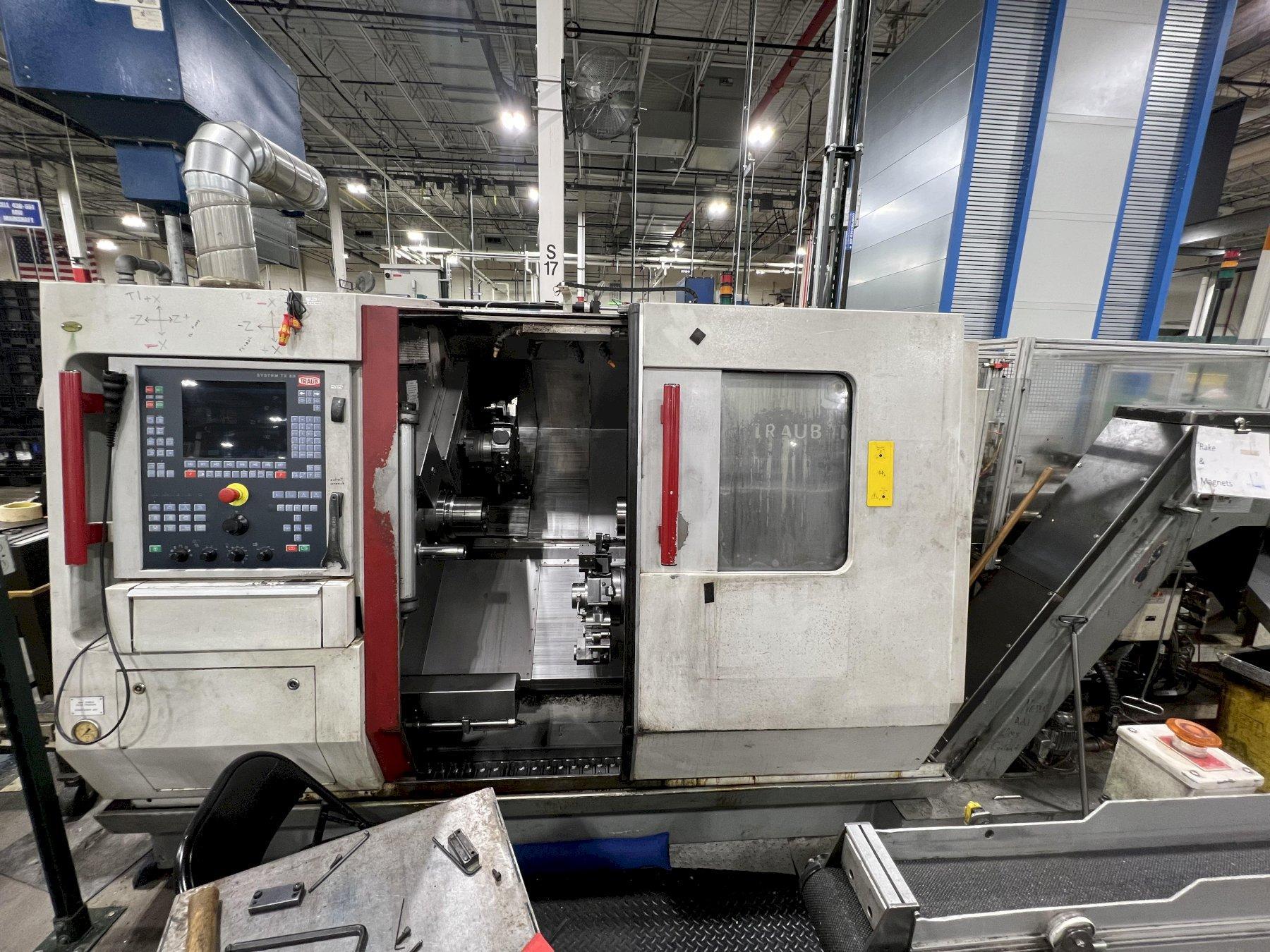

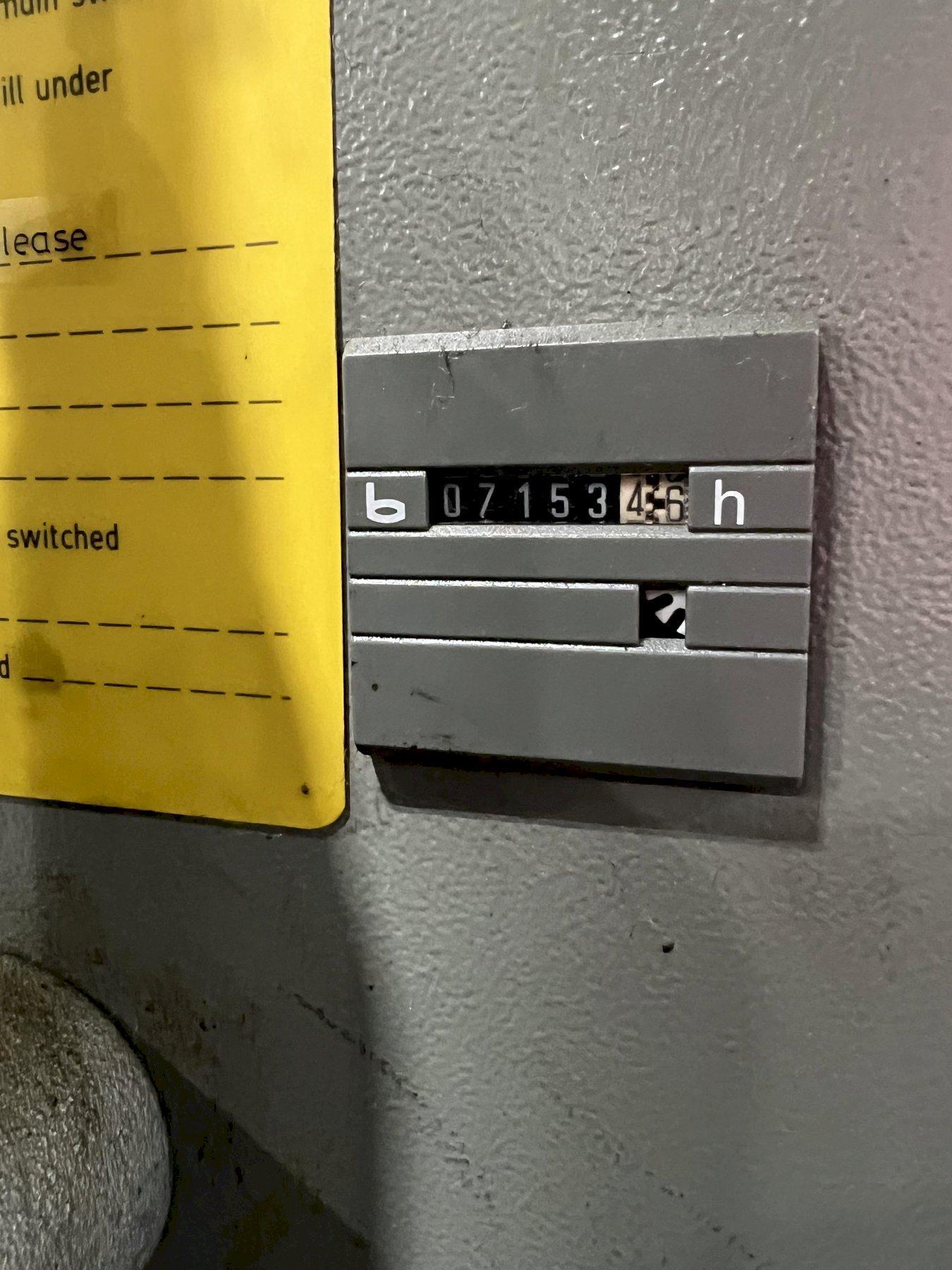

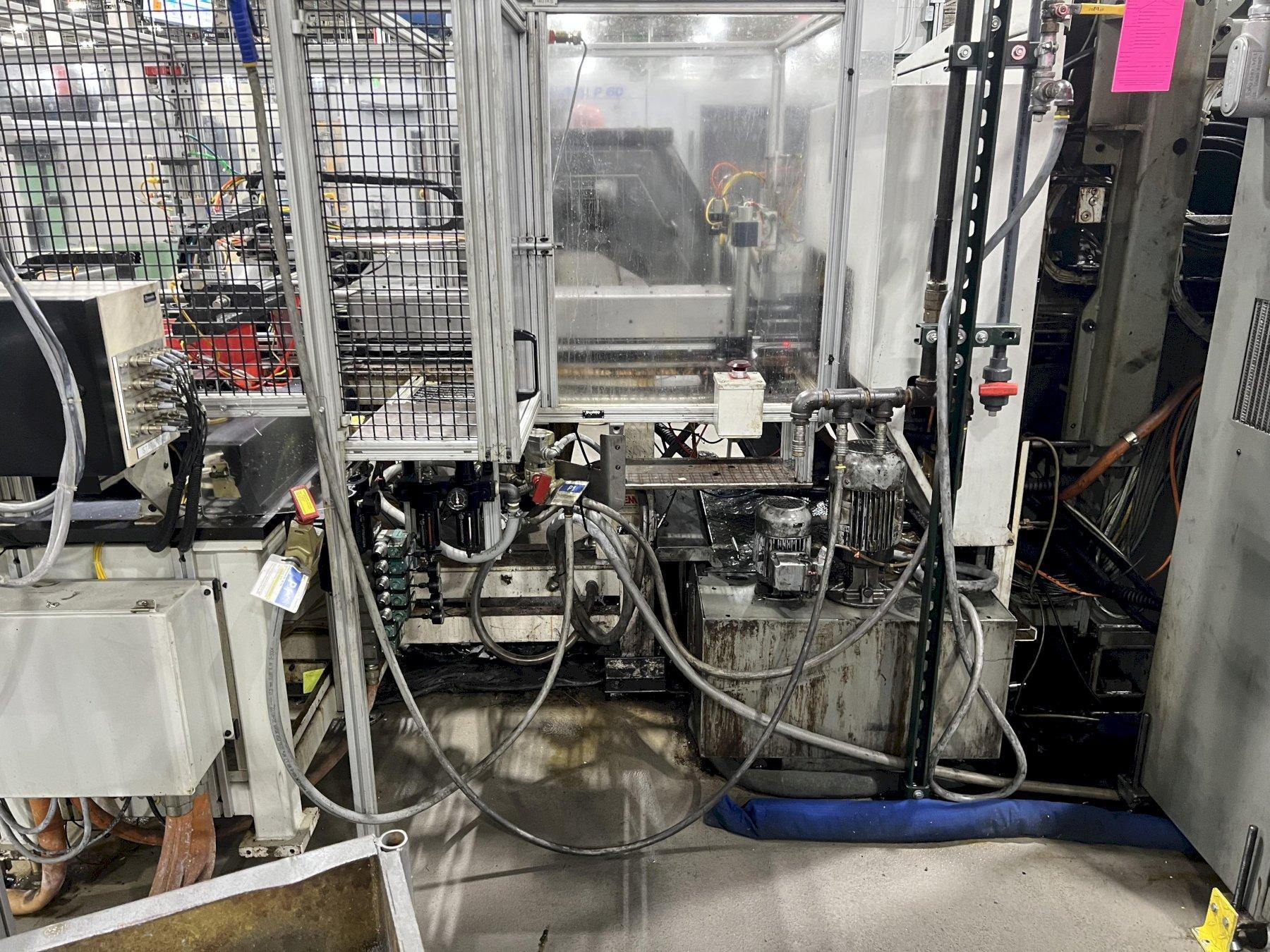

TRAUB CNC LATHE, MODEL TNC 42-65, SYSTEM TX 8H CONTROL,CHIP CONVEYOR, 2001

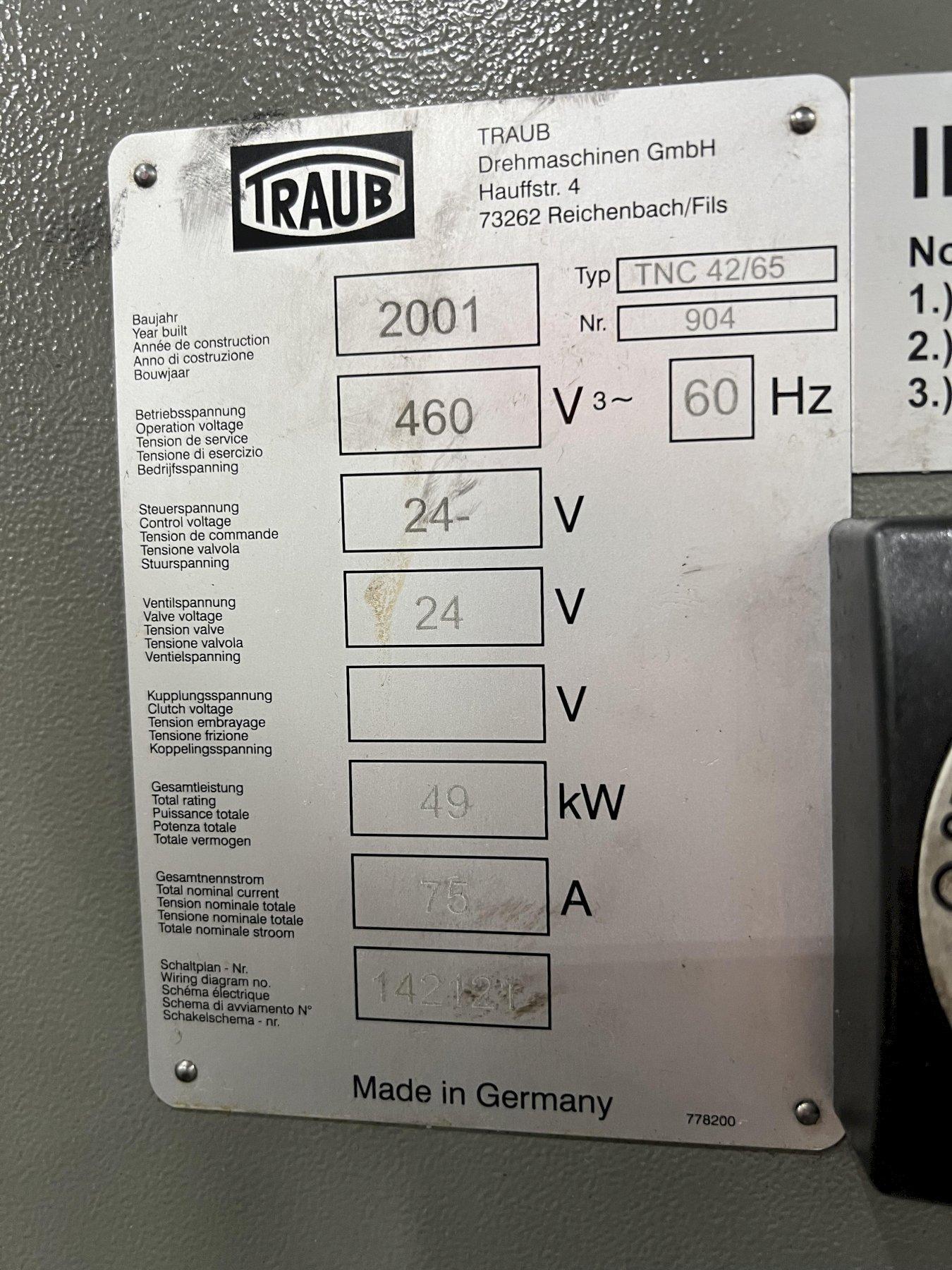

GENERAL SPECIFICATIONS:

MAKE............................ TRAUB
MODEL........................... TNC 42/65
SERIAL NUMBER................... 904
AGE (YEAR)...................... 2001

WORKING RANGE:
MAX TURNING LENGTH.............. 450 MM
SPINDLE PASSAGE OF MAIN SP...... 42-65 MM
DIAMETER IN FRONT BEARING....... 110 MM

MAIN DRIVE:
MAIN MOTOR...................... 18.5 KW
MAIN SPINDLE.................... 5600/4000 RPM

X AXIS, SLIDES S1 AND S2
RAPID TRAVERSE AND TRAVEL SPEED.. 15 M/MIN
FEED TRAVEL...................... 140 MM

Z AXIS, SLIDES S1 AND S2
RAPID TRAVERSE AND TRAVEL SPEED.. 30 M/MIN
FEED TRAVEL...................... 450 MM

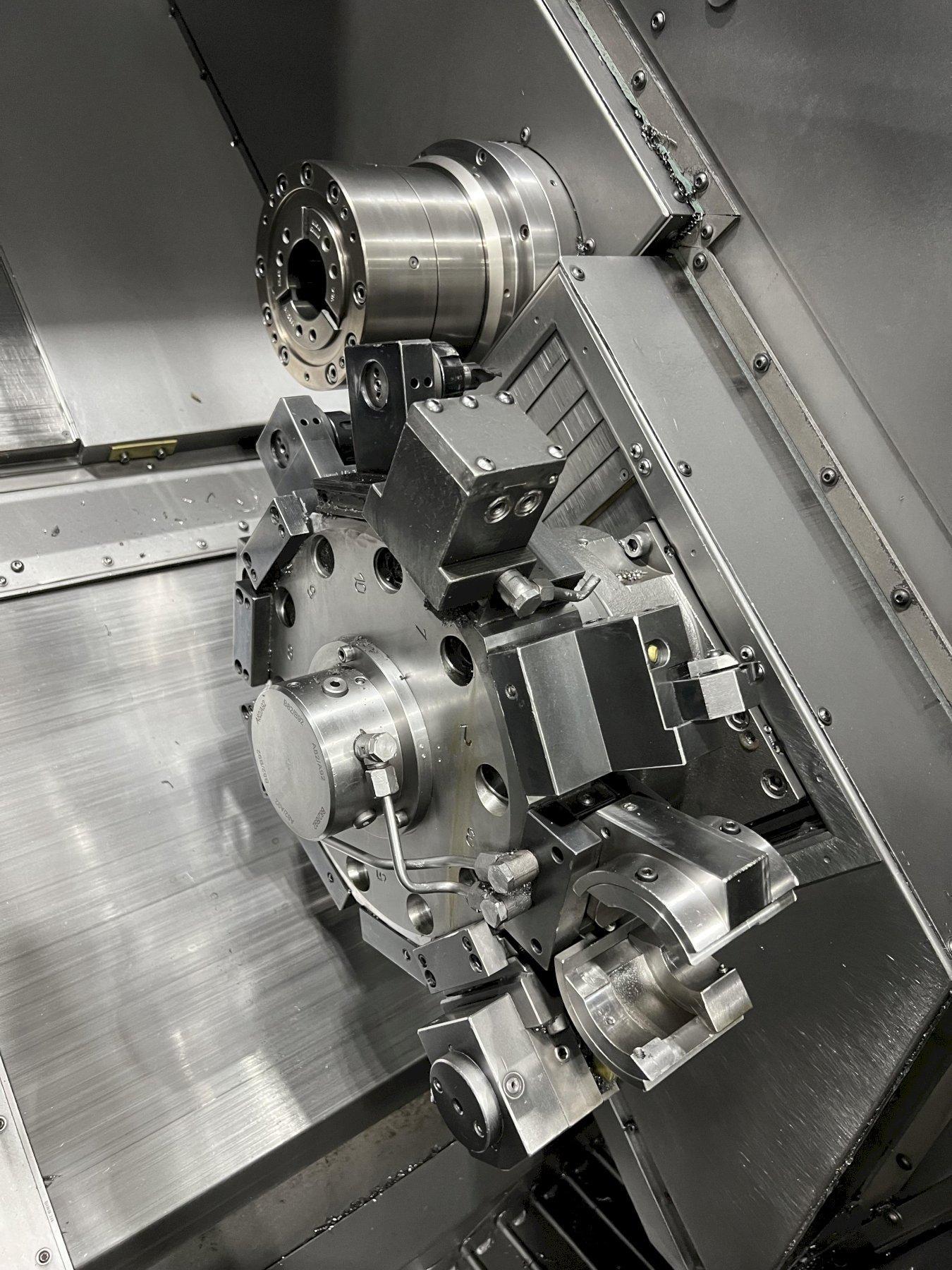

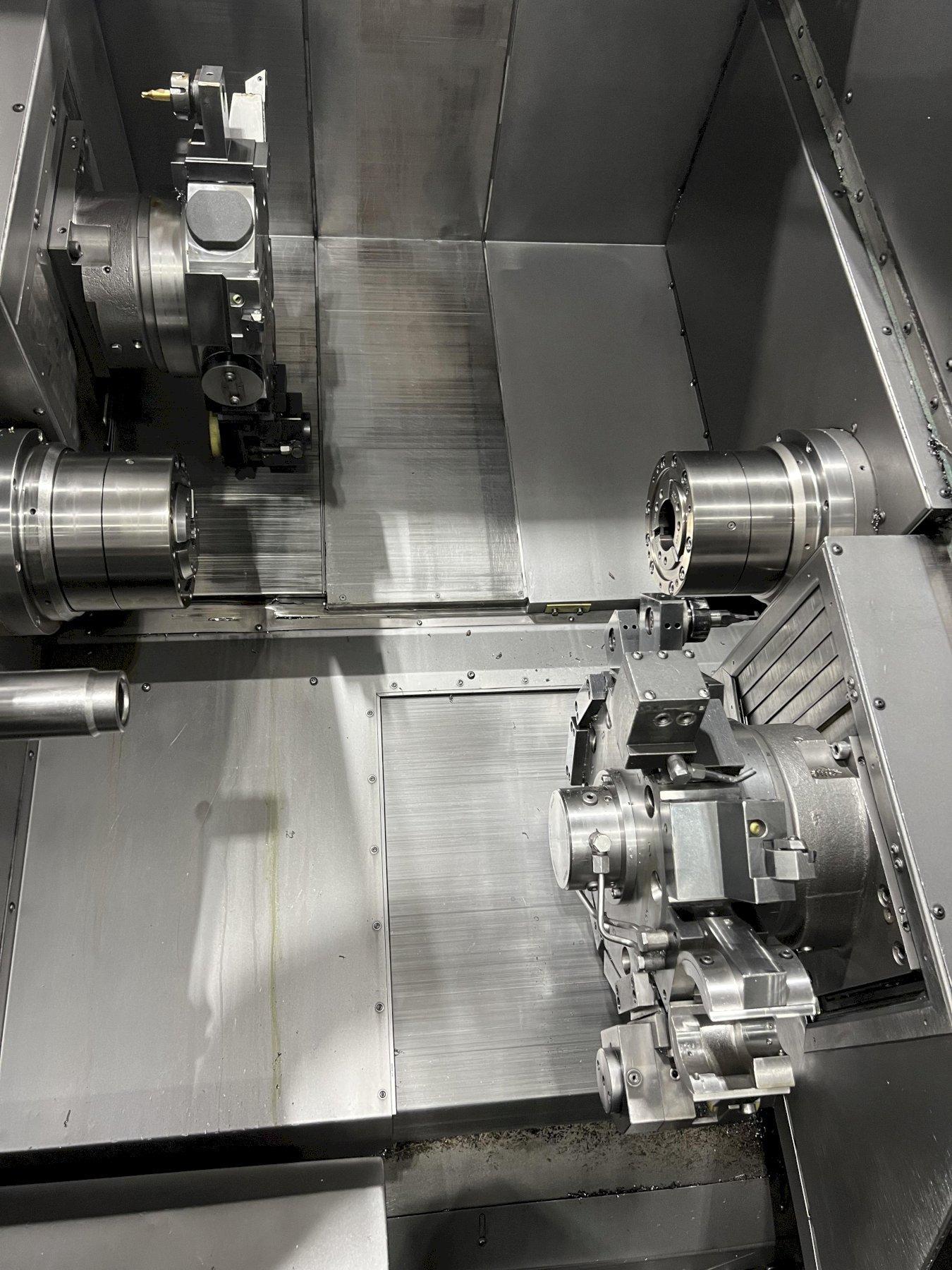

TOOL CARRIERS W1 AND W2
TOOL MOUNTS / TOOL CARRIERS...... 14(10)/10(14)
FOR CYLINDRICAL SHANKS TO
DIN69880......................... DIA. 25X48/DIA. 30X55
.................................  (30X55)/(25X48)
TOOL SIZE........................ 16X16 (20X20)/20X20(16X16) MM

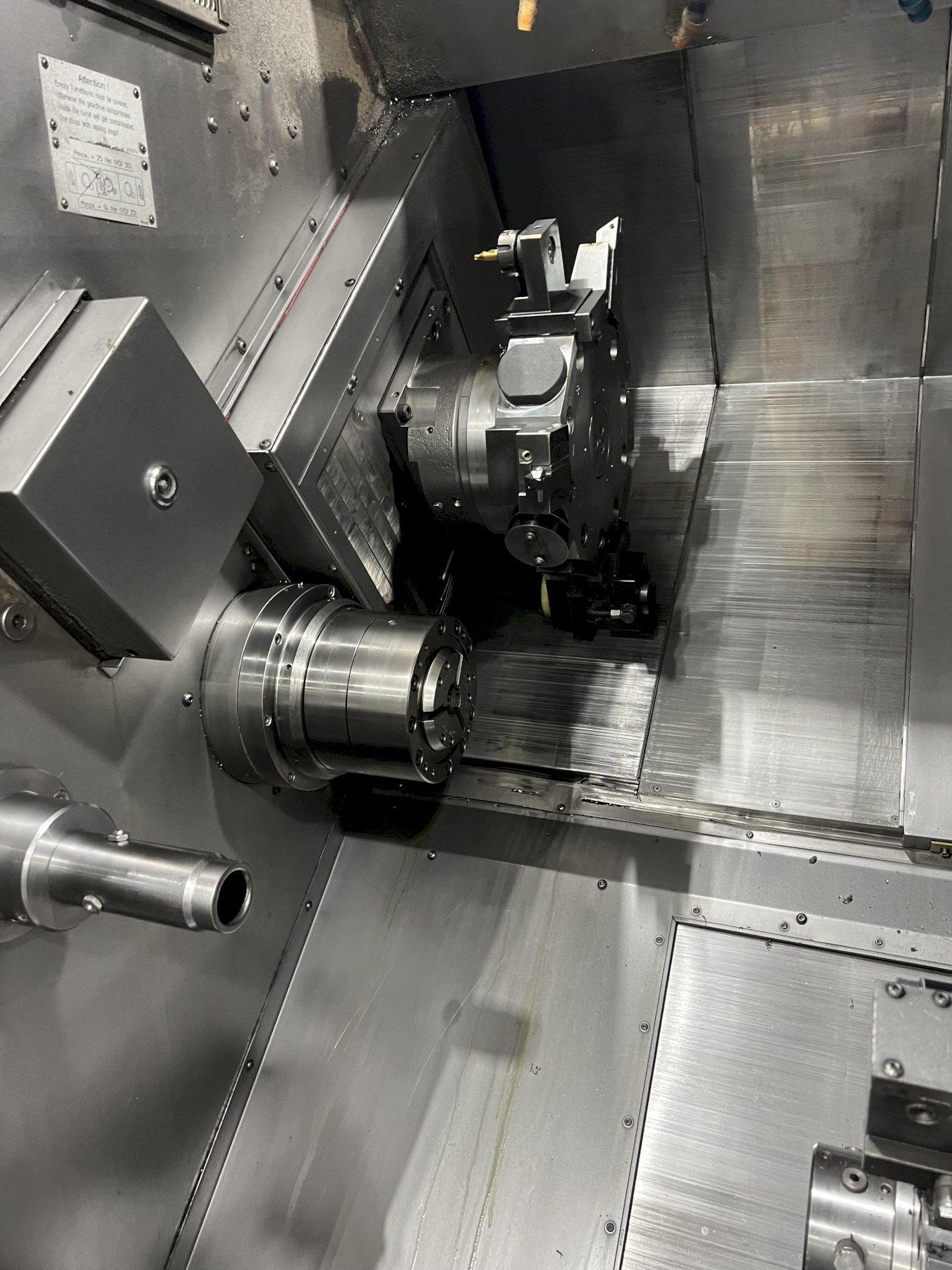

OPPOSED SPINDLE
(CAN BE DISPLACED IN Z DIRECTION UNDER
NUMERICAL CONTROL)
MAX SPEED........................ 5600/4000 RPM
MAX CLAMPING DIAMETER............ 42/65 MM
POWER OUTPUT..................... 11 KW
RAPID TRAVERSE AND TRAVEL SPEED.. 30 M/MIN
FEED TRAVEL...................... 520 MM

NUMERICALLY CONTROLLED TURNING
AND POSITIONING DEVICE (C-AXIS)
FOR THE MAIN SPINDLE

MAX SPEED........................ 100 RPM
TORQUE AT 100% DUTY CYCLE........ 140/200 NM
ELECTRICAL RESOLUTION............ .001 DEGREES

NUMERICALLY CONTROLLED TURNING
AND POSITIONING DEVISE (C-AXIS)
FOR THE OPPOSED SPINDLE

MAX SPEED........................ 100 RPM
TORQUE AT 100% DUTY CYCLE........ 140/200 NM
ELECTRICAL RESOLUTION............ .001 DEGREES

WEIGHT (APPROX).................. 4800 KG
DIMENSIONS (MM).................. 4250/2076/1917

EQUIPPED WITH:

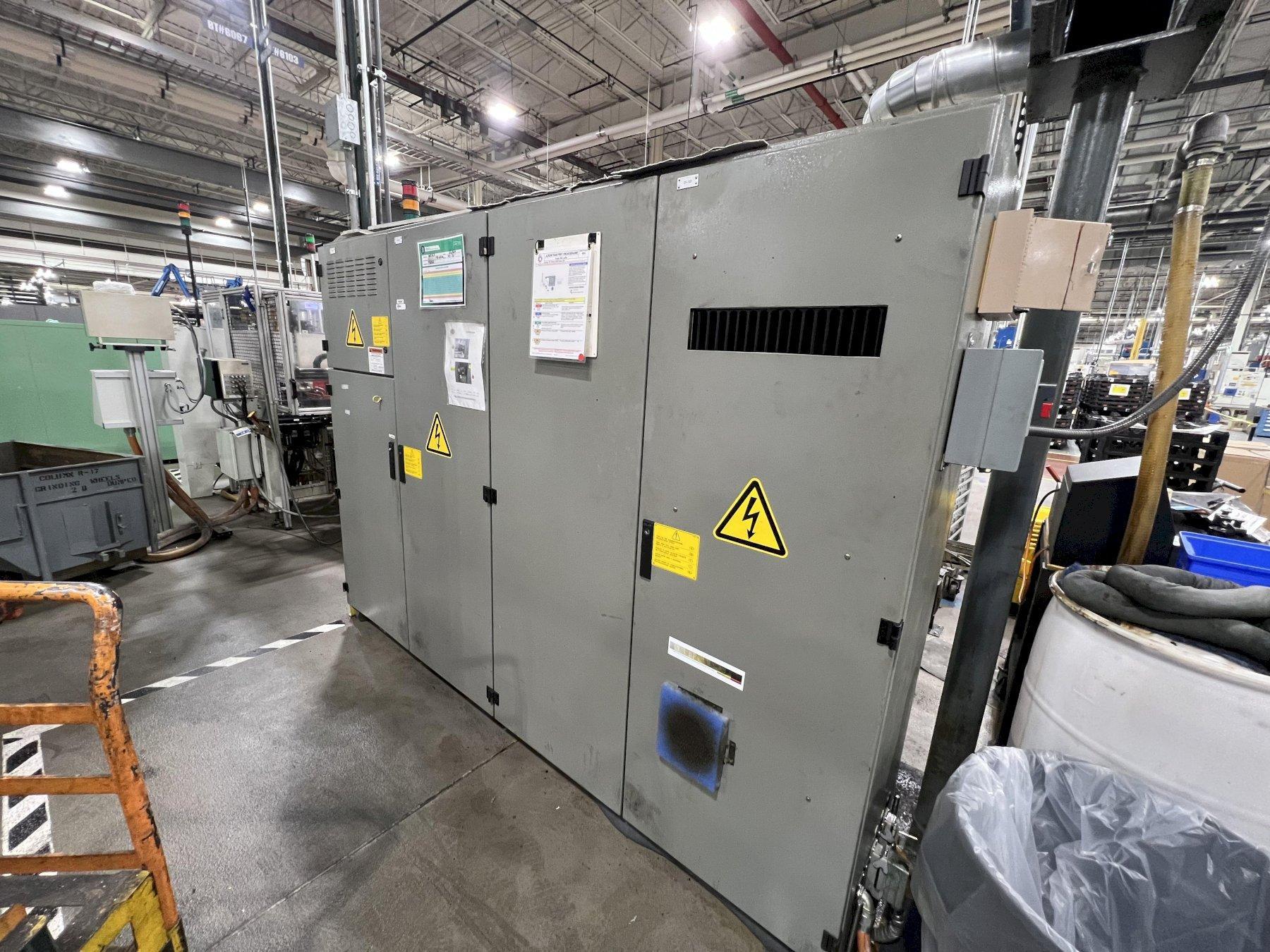

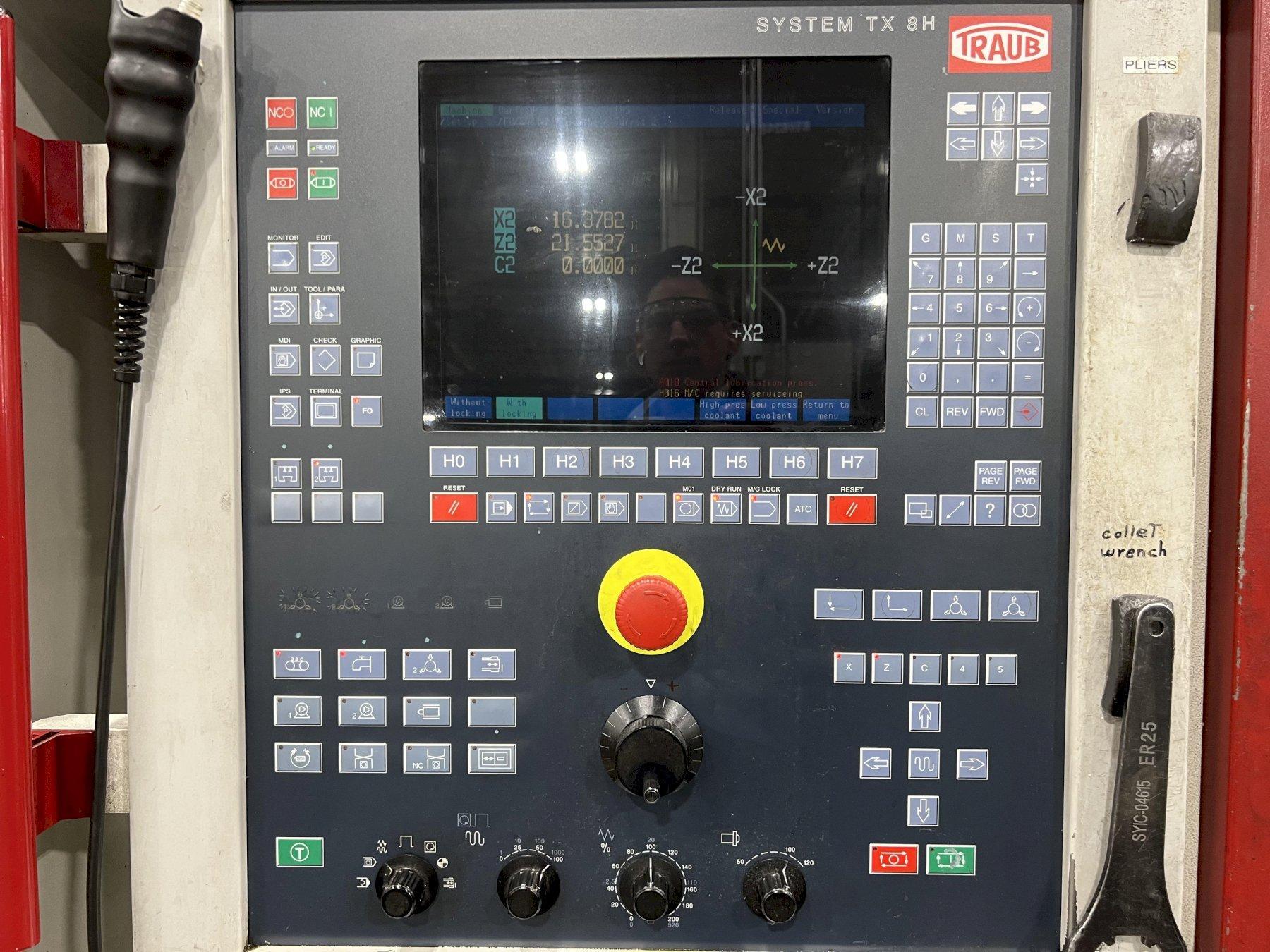

SYSTEM TX 8H CONTROL

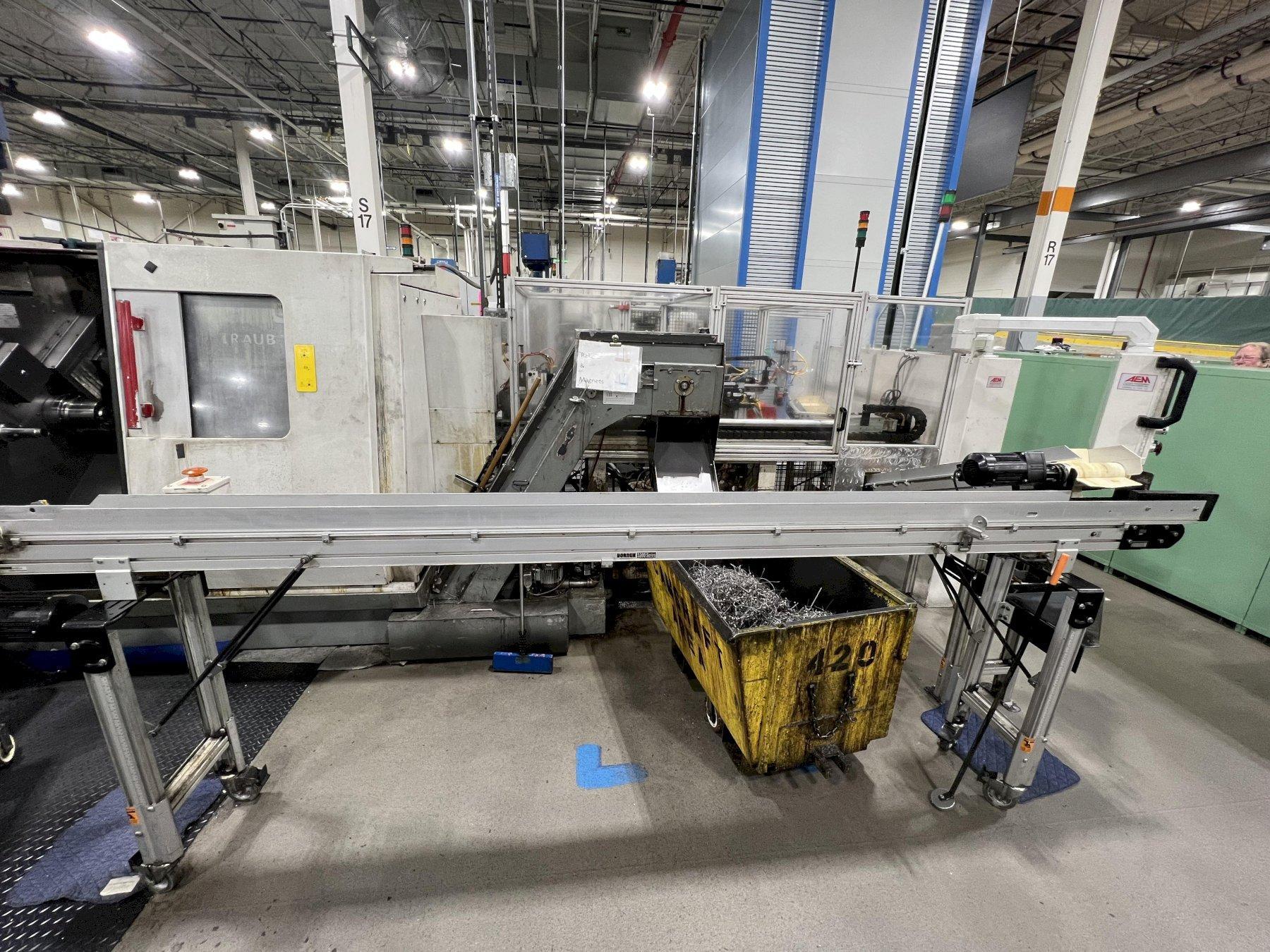

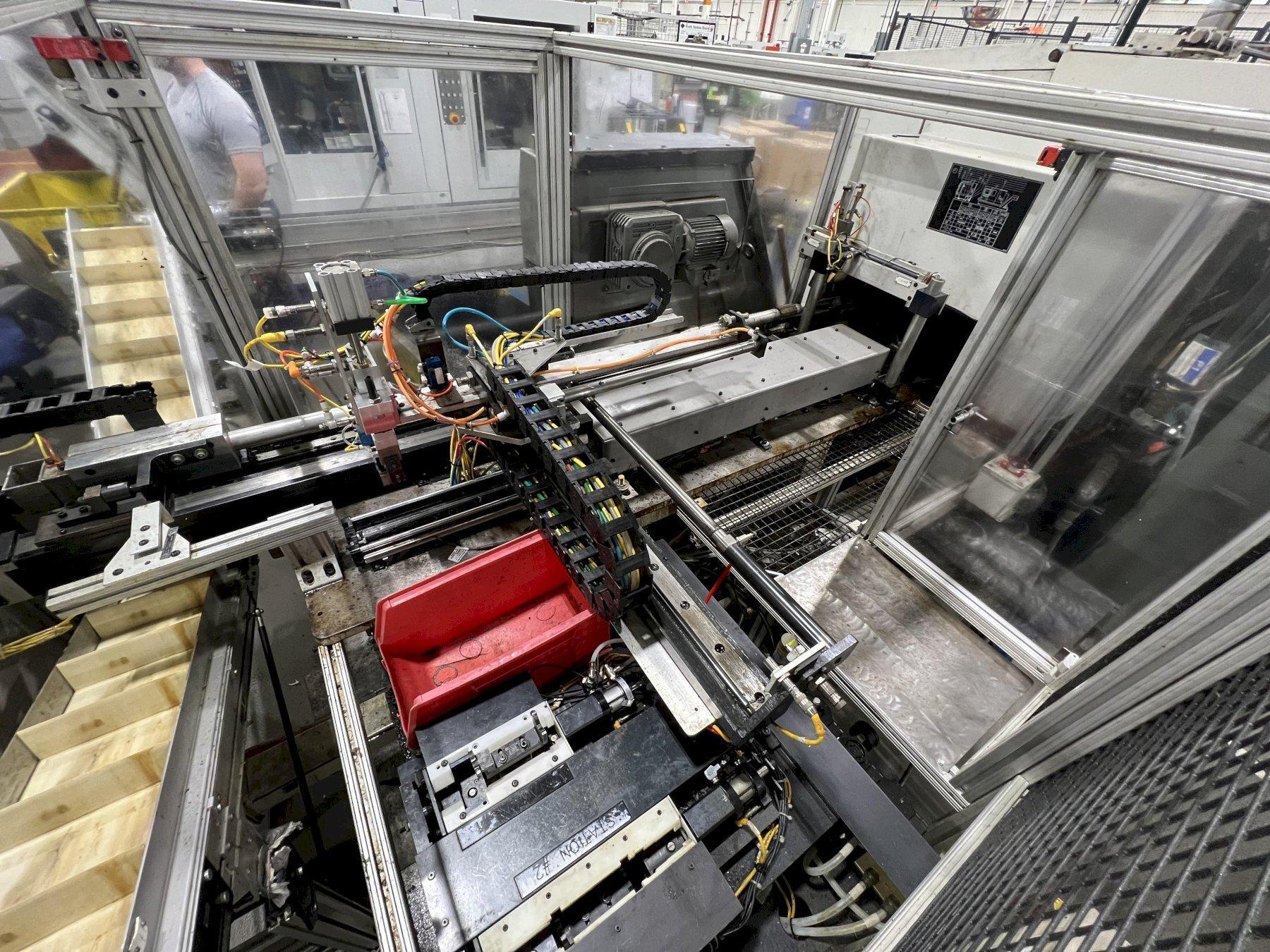

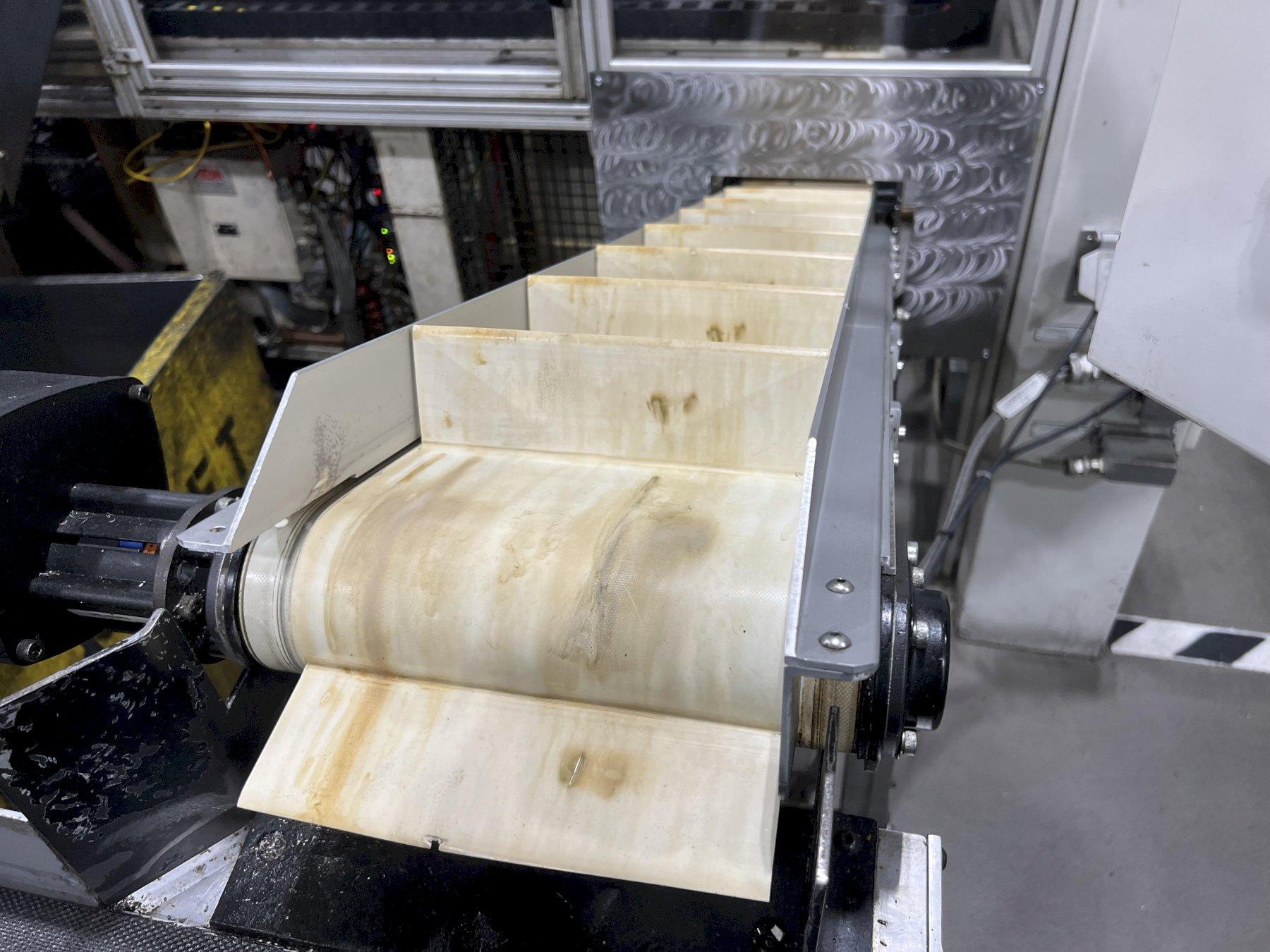

CHIP CONVEYOR

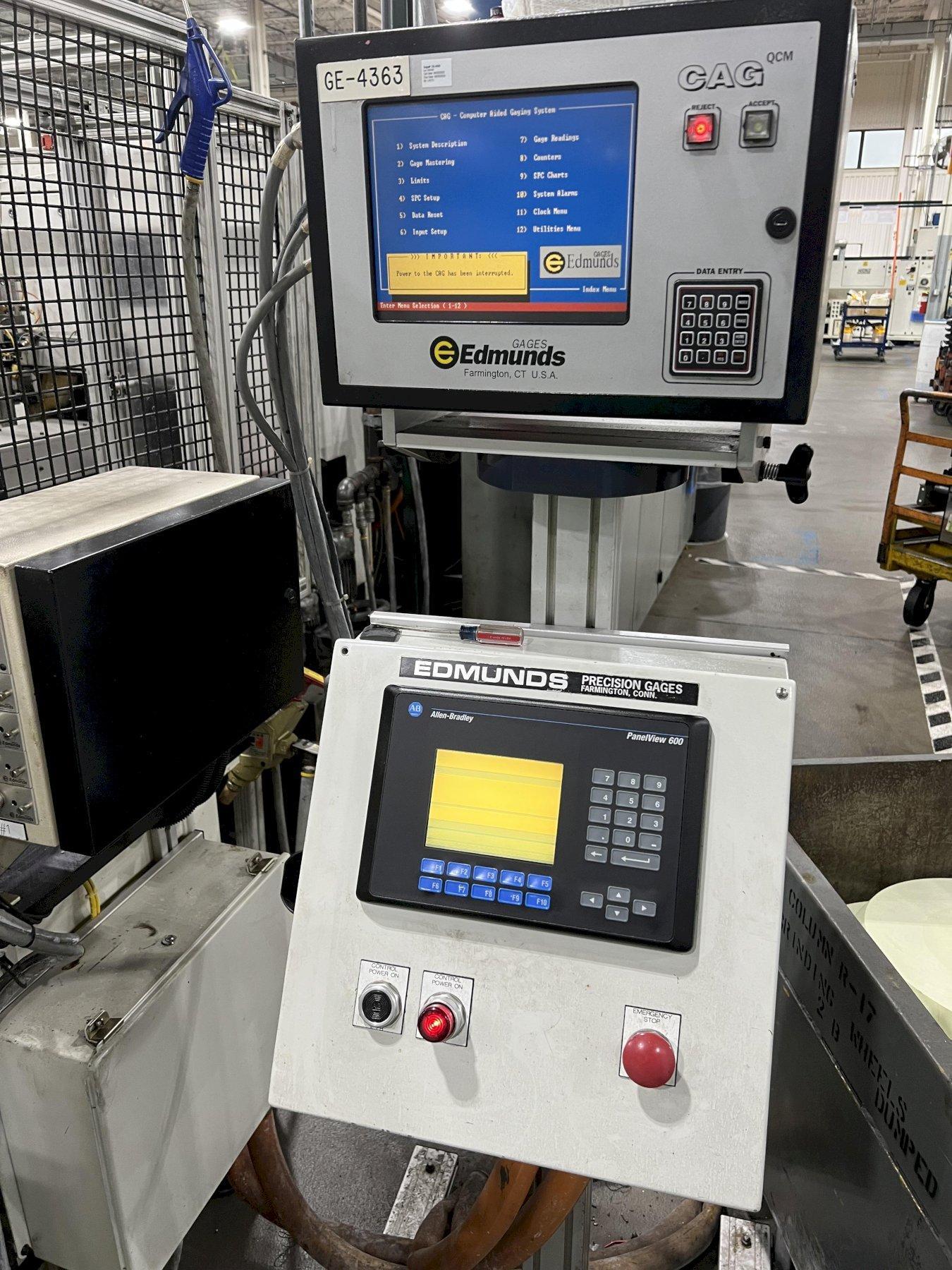

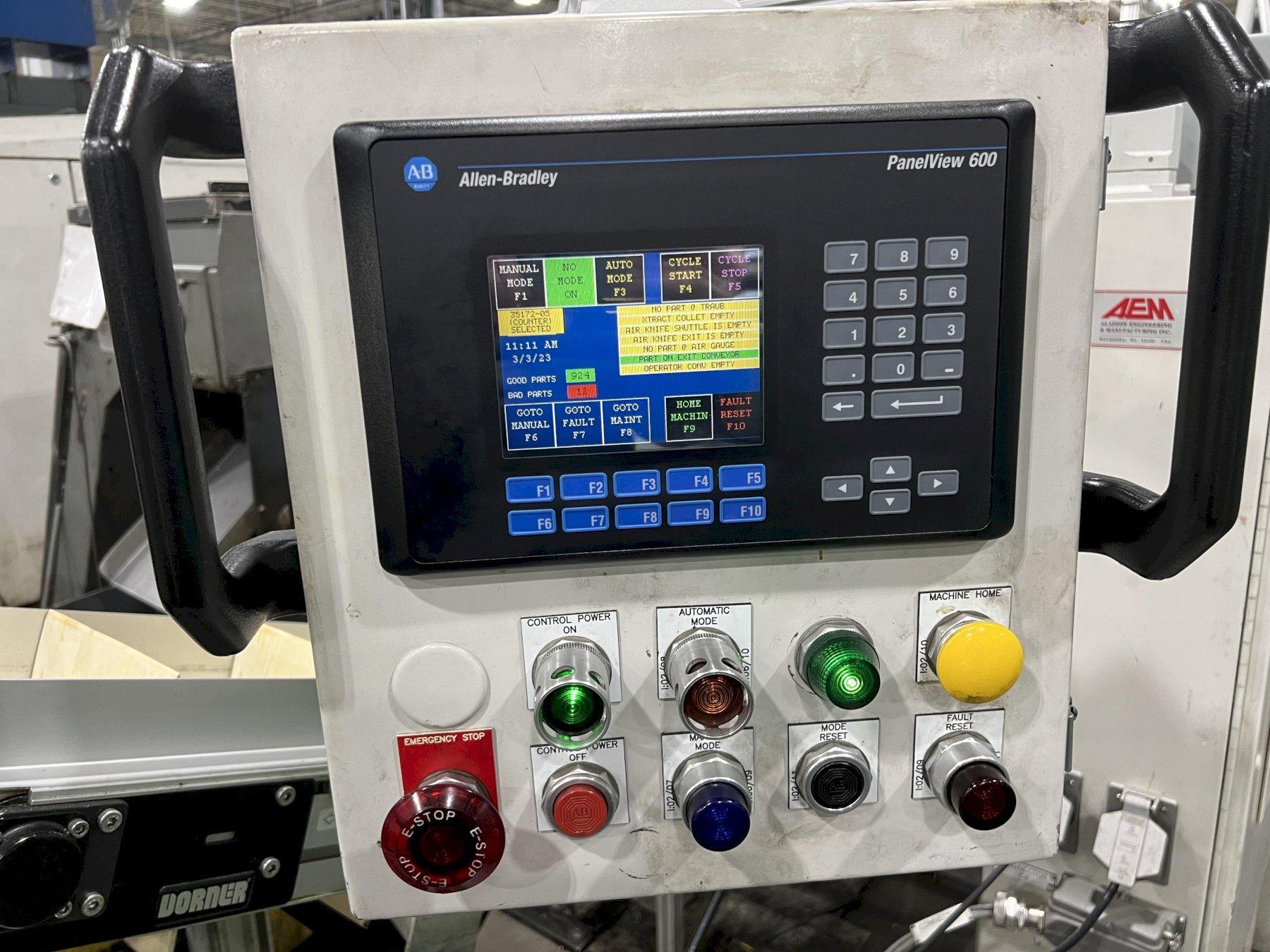

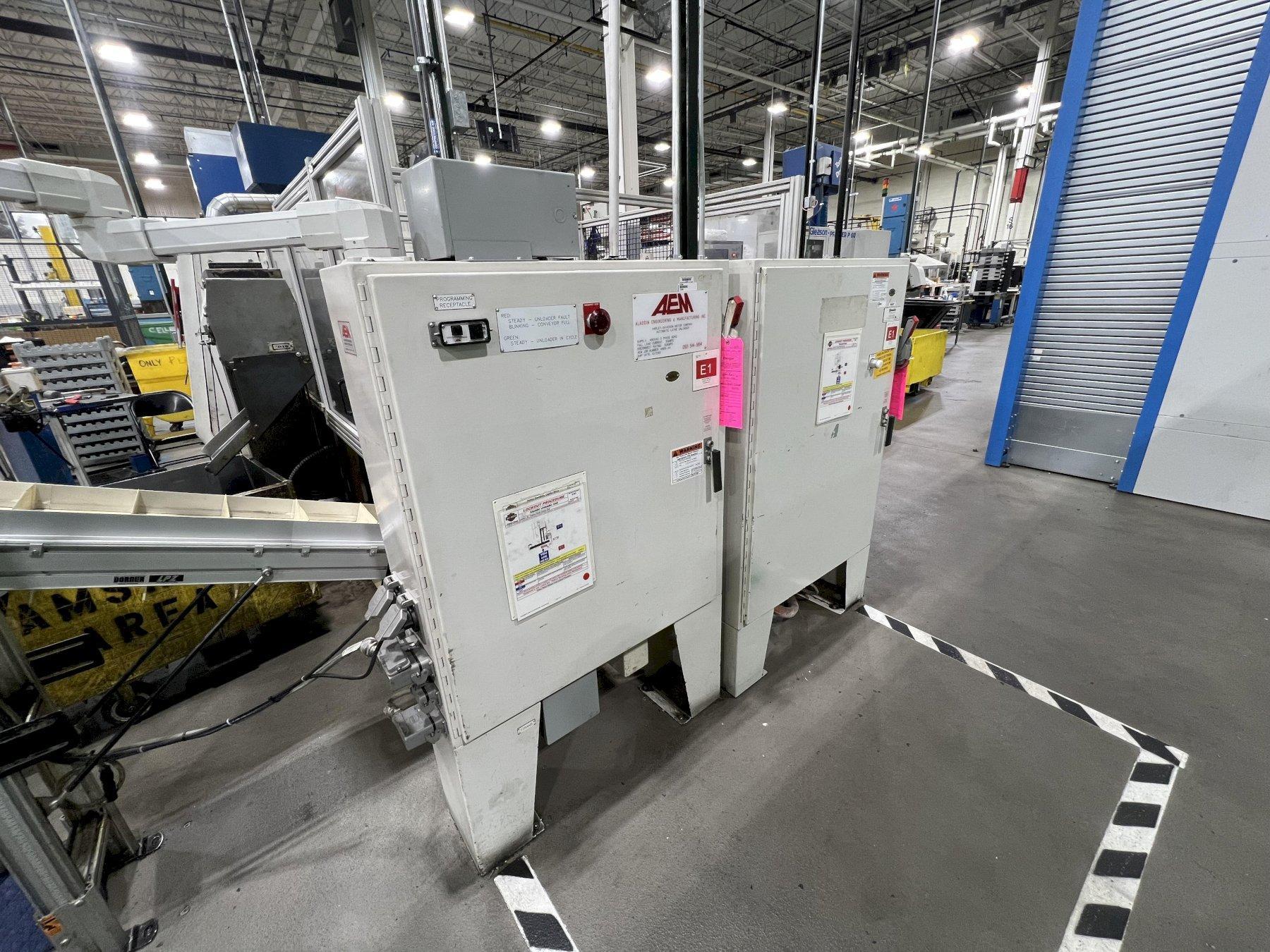

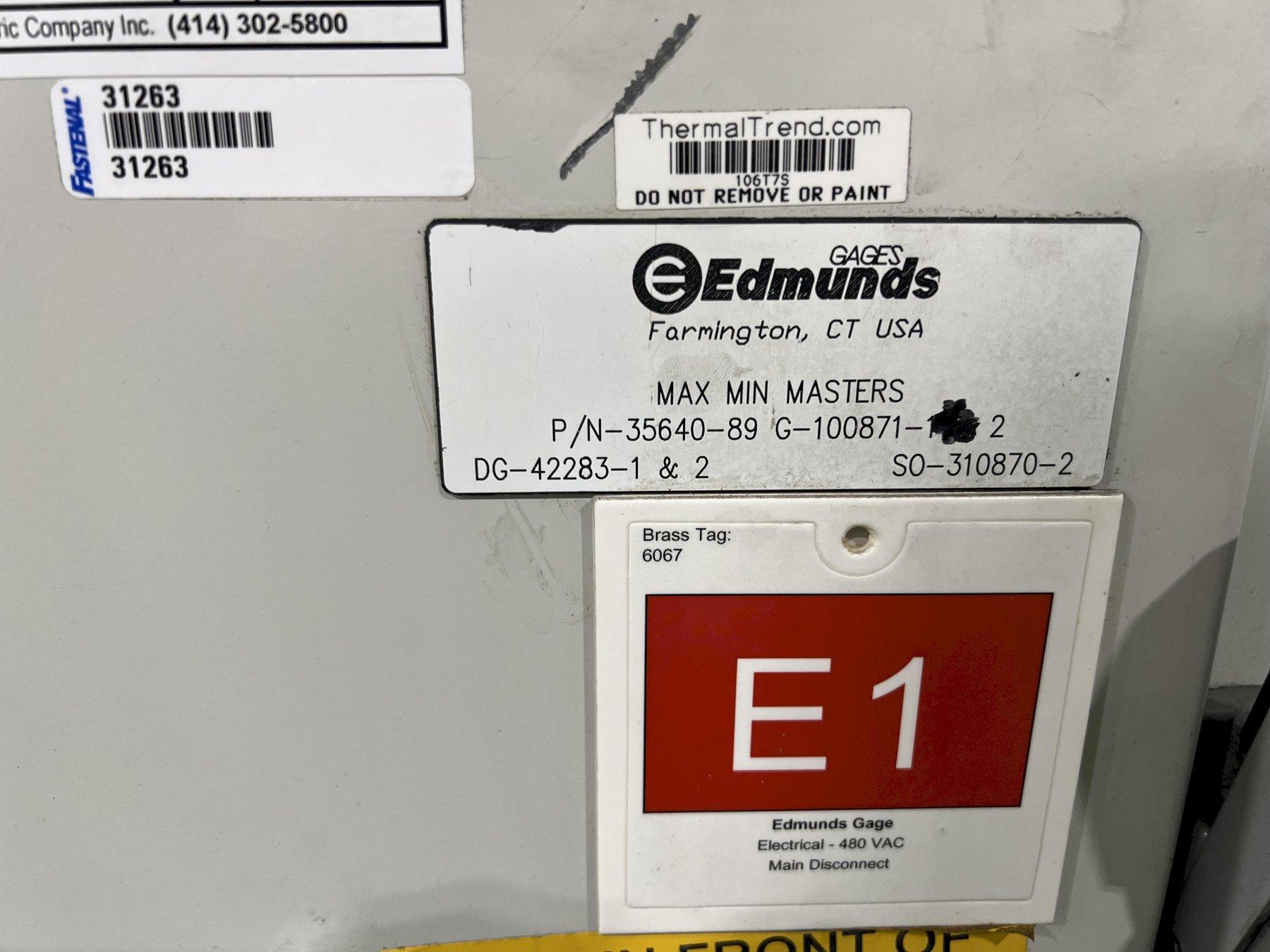

EDMUNDS GAUGING SYSTEM

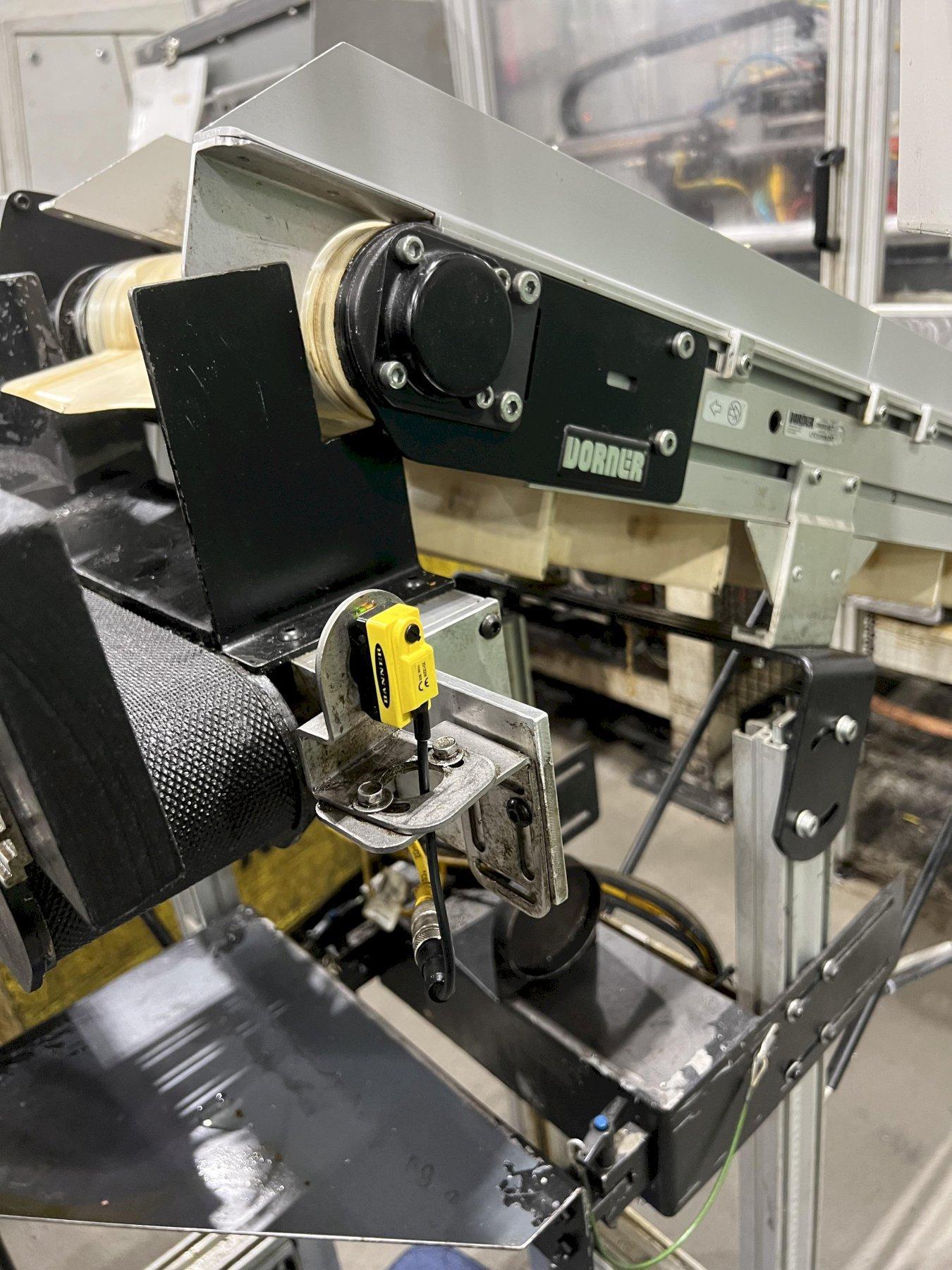

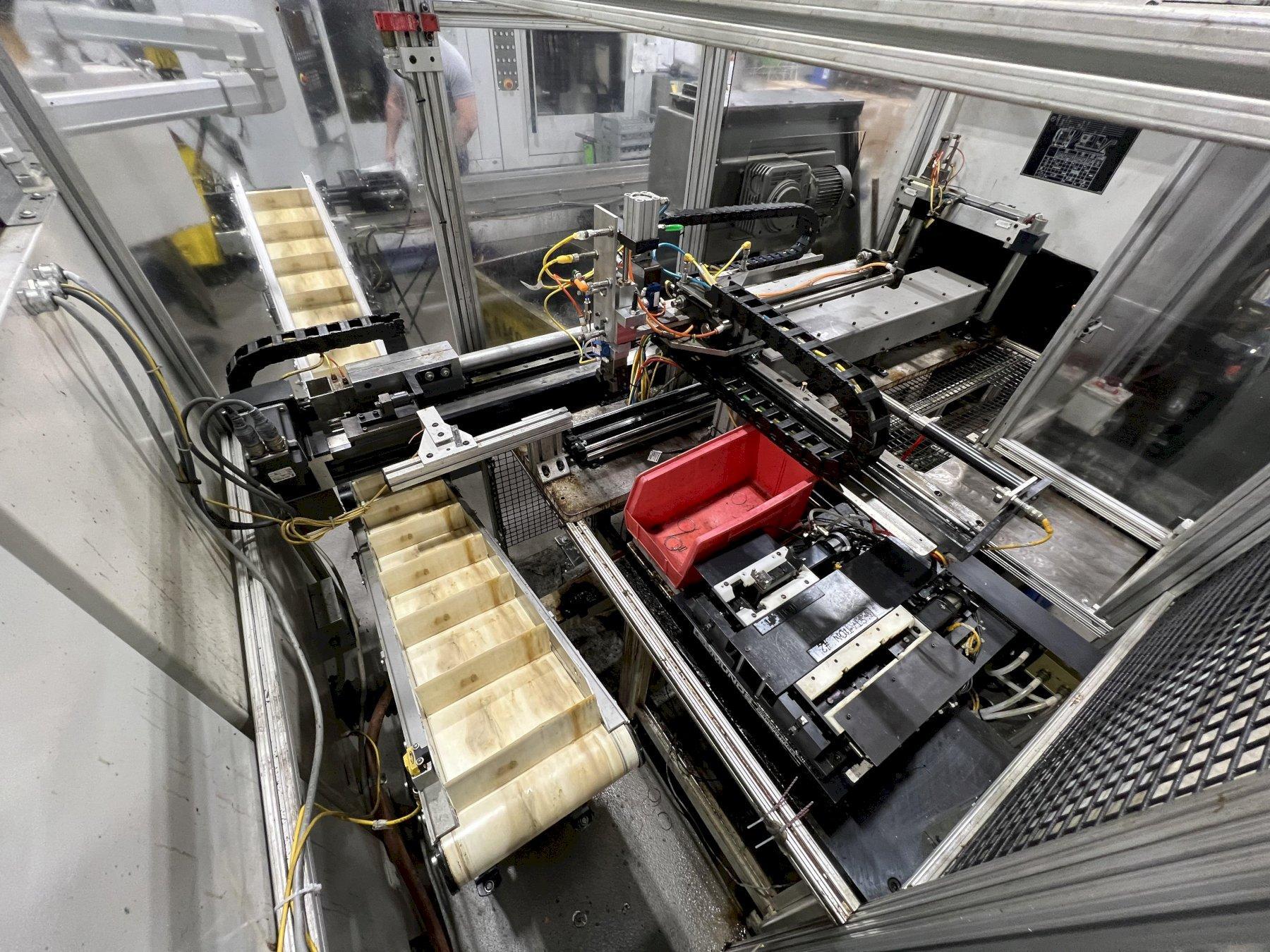

(2) DORNER PARTS CONVEYORS
TOOLING NOT INCLUDED
COLLET CHUCKS NOT INCLUDED

SPECIFICATIONS SUBJECT TO VERIFICATION
