Specifications
Equipped With

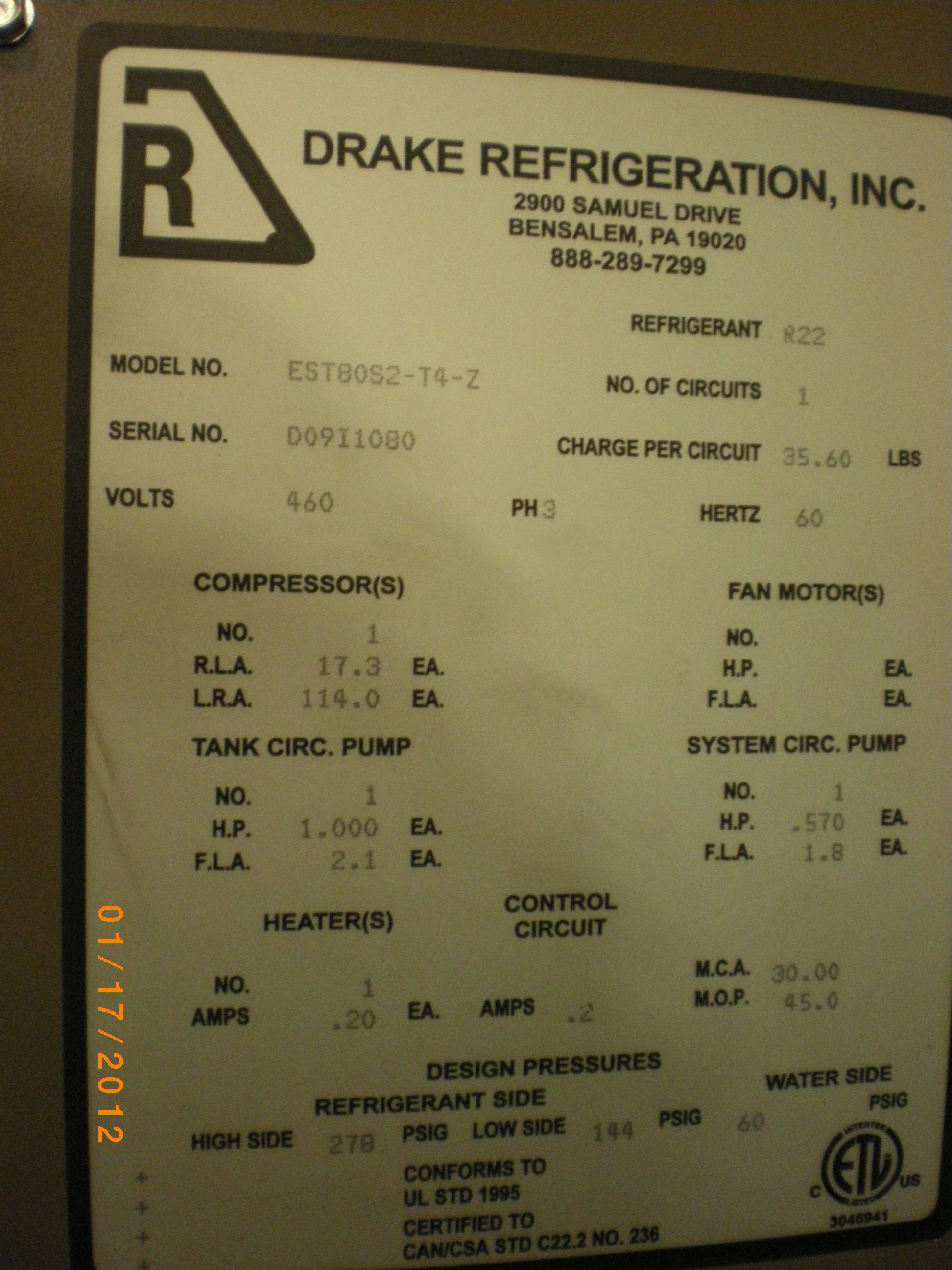

GENERAL SPECIFICATIONS:
MANUFACTURER..................................DRAKE
MODEL.........................................EST80S2-T4-Z
SERIAL#.......................................D0911080
TYPE..........................................SINGLE CIRCUIT UNIT
REFRIGERANT...................................R22
BTUH@90 DEGREES (F)AMB.
45 DEGREES (F) LWT...........................................84000
LENGTH........................................85"
WIDTH.........................................34"
HEIGHT........................................63"
TANK SIZE.....................................90 GALLONS
FLUID CONN....................................1.25 IN FPT

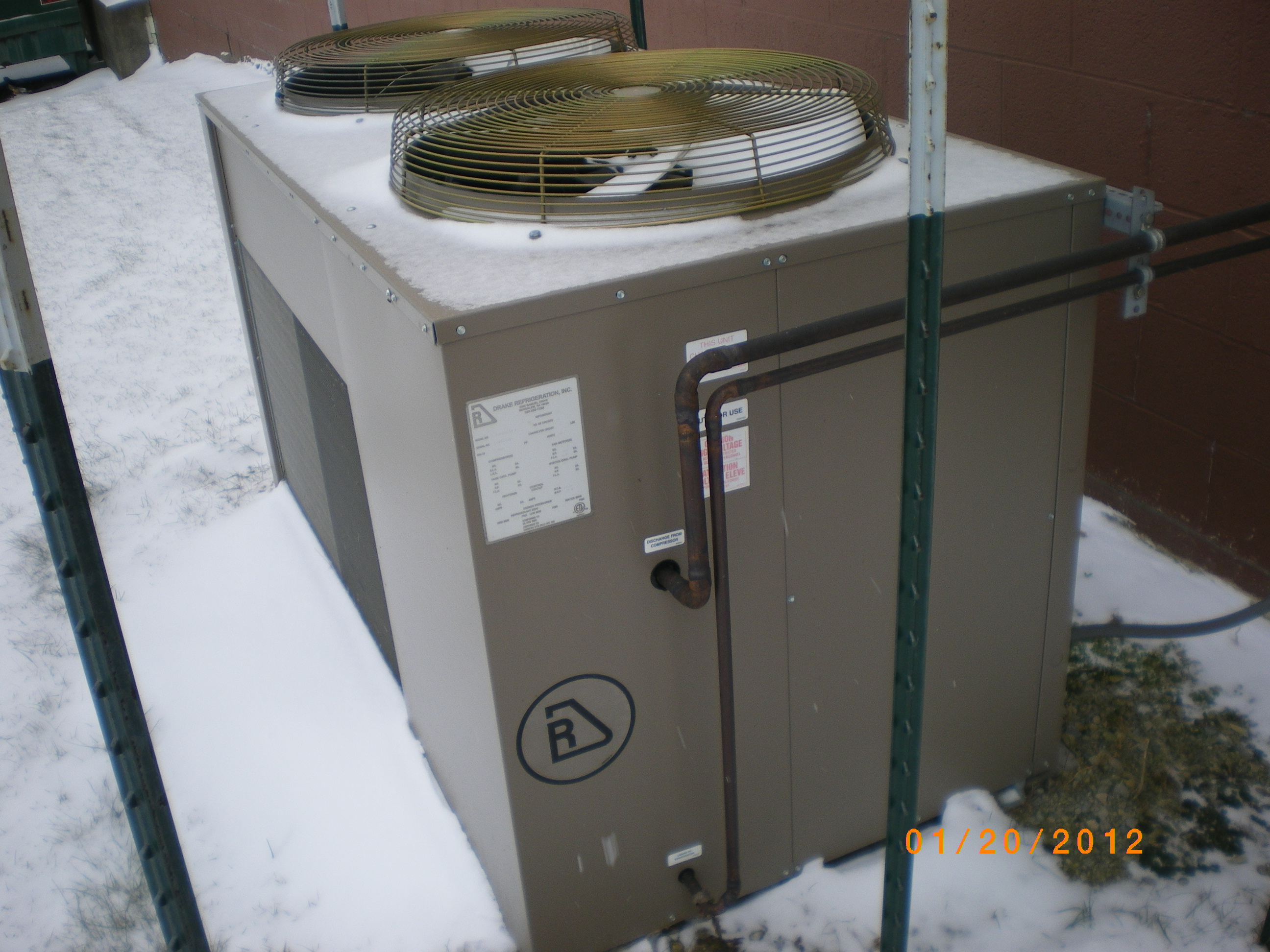

CONDENSOR TYPE................................CS80S
COMPRESSOR TYPE...............................SCROLL
COMPRESSOR....................................9 HP
RLA EA........................................17.3
LRA EA........................................114.0
MCA...........................................30
M.O.P.........................................45
WEIGHT APPROXIMATELY..........................1200 LBS
ELECTRICS.....................................460/3/60
EQUIPPED WITH:
STEEL STORAGE TANK
RECIRCULATION PUMP WITH BALL VALVE AND CLEANABLE STRAINER
TANK PRESSURE RELIEF VALVE, VENT AND DRAIN CONNECTIONS
