Specifications
Equipped With
GENERAL SPECIFICATIONS:
NEW APPROXIMATELY 1970
MODEL # 84
SERIAL # 8462
MAX. WORK DIAMETER 90"
CHUCK SIZE 84"
MAX. WORK HEIGHT 30"
FEED RANGE .005 - .165
SPEED RANGE 2.6, 5.5, 10 OR 17 RPM
MAX. TRAVERSE RATE 38-1/2"
WHEEL DIAMETER 44" CORTLAND
HORSEPOWER 200/400 RPM
EQUIPPED WITH:

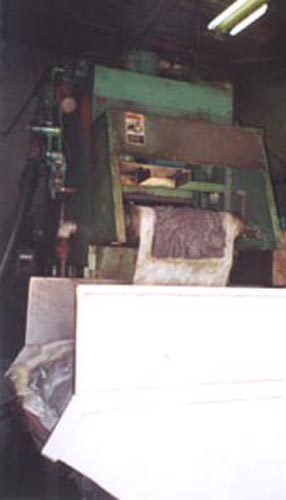

300 GPM PAPER FILTRATION SYSTEM

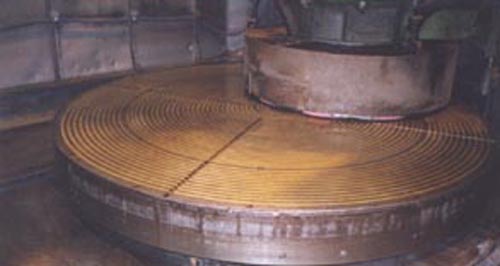

ELECTRIC CHUCK WITH DEMAG
HAND & AUTOMATIC FEED
PREDETERMINED STOP RANGE .001 - .240
APPROX. WEIGHT 82,000 LBS.
COOLANT TANK SIZE 62" X 128"
TILT HEAD
REBULT EARLY 80'S
TRABON LUBE
WIRED 440V/3/60
WHEEL DRESSOR
EQUIPPED FOR MARPOSS
VIDEO AVAILABLE
