Specifications
Equipped With
GENERAL SPECIFICATIONS:

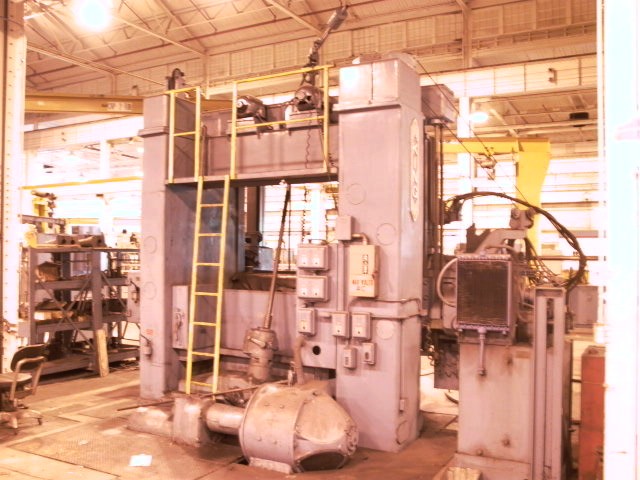

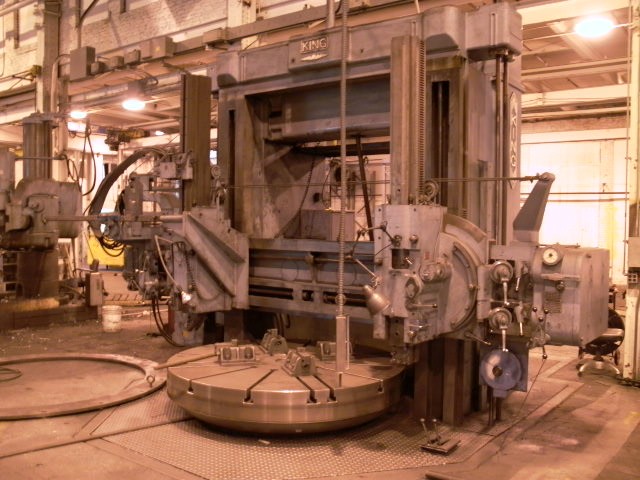

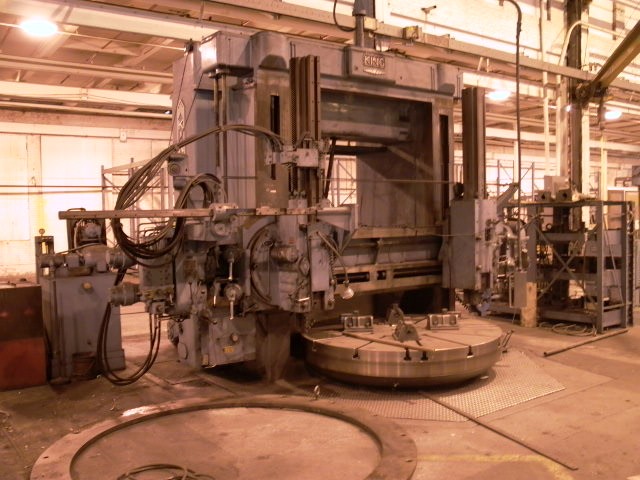

MANUFACTURER KING
SERIAL # 2909
NEW (APPROX.) 1951
TABLE DIAMETER (4 JAW) 84"
MAX. SWING 89-3/4"
MAX. HEIGHT UNDER CROSS RAILS 65"
TABLE SPEEDS 1.4 - 55 RPM
VERTICAL FEEDS .005 - 1.000 IPR
THREAD CUTTING CAP. 19/64 - 4-11/16 TPI
HEIGHT UNDER SADDLE 70"
HEIGHT UNDER RAIL 70"
HEIGHT UNDER RAM 68-1/2"
VERTICAL TRAVEL RAM HEAD 63"
HORIZONTAL TRAVEL RAM HEAD 50"
TRAVEL PAST CENTER (RAM HEAD) 1/2"
BORE SIZE RAM HEAD 4-1/2"
MIN. DIA. BORE RAM WILL ENTER 12-1/4"
SWIVEL OF RAMS 60 DEG.
CENTER PLUG DIA. 32
MOTOR 50 HP
MOTOR SPEED 500 - 1500 RPM
MOTOR MAKE WESTINGHOUSE
ELECTRIC 230V
DIMENSIONS (APPROX.) 225" x 216" x 174"H
WEIGHT (APPROX.) 94,500 LBS.
EQUIPPED WITH:
2 RAM HEADS
4 POSITION TOOL HOLDER
CONTOURING ATTACHMENT
PENDANT CONTROL PANEL
HYDRAULIC TRACER ON LEFT RAM
RAPID TRAVERSE
