Specifications
Equipped With
GENERAL SPECIFICATIONS:
NEW APPROXIMATELY 1952
REBUILT 1989
MAXIMUM SWING OVER WAYS 83"
MAXIMUM SWING OVER CROSS SLIDE 65"
MAXIMUM CENTER DISTANCE 120"
CHUCK SIZE 72"
SPINDLE SPEEDS (16) 1.4-81 RPM
SPINDLE HOLE NONE
FEEDS (6) .025,.035,.056
0.092,.125,.200
THREADS NONE
DRIVE MOTOR 50 HP
EQUIPPED WITH:

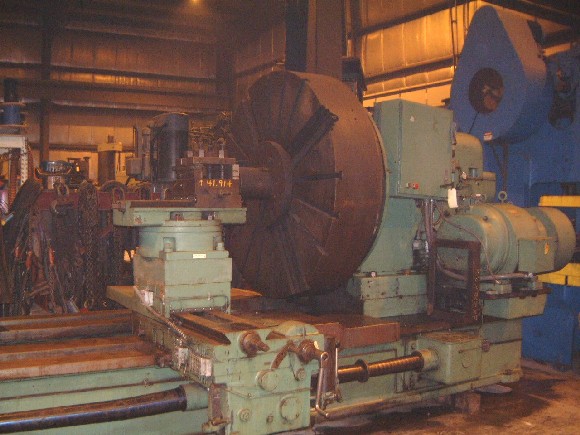

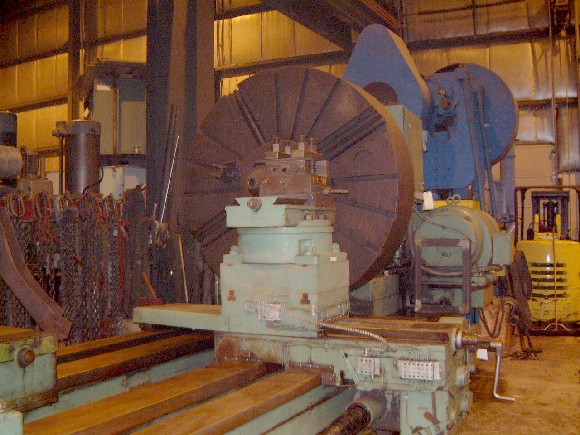

2 CARRIAGES:
ONE CARRIAGE ON REAR WITH SWIVEL COMPOUND AND HEAVY DUTY
TOOLPOST
ONE CARRIAGE ON FRONT WITH LIGHTER 4 WAY TOOLPOST

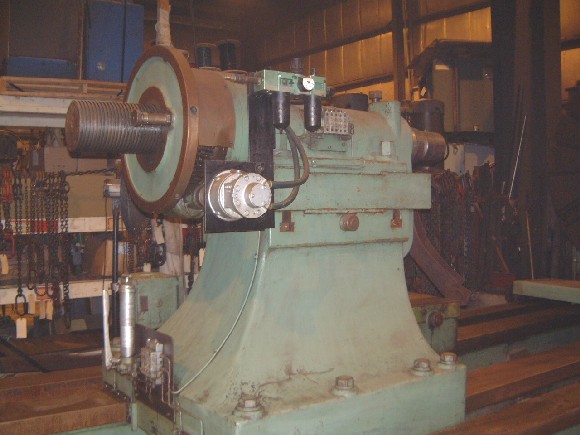

TAILSTOCK WITH POWER QUILL MOVEMENT INSTALLED AT REBUILD
50 HP MAIN MOTOR
LATHE WAS RAISED FROM 73"/55" TO 83"/65" IN 1989 DURING REBUILT
APPROXIMATE WEIGHT 80,000 LBS.
DIMENSIONS 126"WIDE X 288" LONG
X 107" HIGH
