Specifications
Equipped With

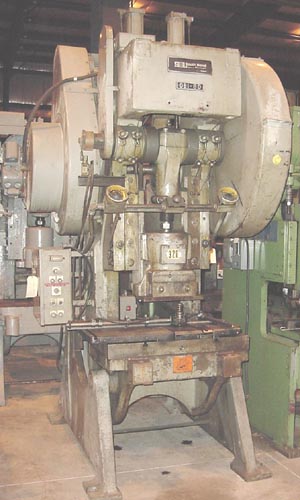

GENERAL SPECIFICATIONS:
NEW APPROXIMATELY 1973
SERIAL 73063
TONNAGE 80 TONS
STROKE 5"
RAM ADJUSTMENT 3-1/2"
SHUT HEIGHT (SDAU) TO BED 14-1/2"
THROAT DEPTH 14"
OPENING THROUGH BACK 17-1/2"
SPEED 44 SPM
BED HEIGHT FROM FLOOR 33"
FLANGED RAM AREA 23" L-R x 15" F-B
BED AREA 36" L-R X 14" F-B
ARRANGED FOR KNOCKOUT L TO R
ARRANGED FOR TIE RODS
LEFT HAND CRANK SHAFT EXTENSION
OVERALL DIMENSIONS APPROXIMATE 80"Lx 80"Dx 123"H
MAIN DRIVE MOTOR 7-1/2HP,3/60/230/460
SPEED 1875 RPM
EQUIPPED WITH:
AIR CLUTCH AND BRAKE
BOLSTER PLATE (3-1/2" THICK, T-SLOTTED)
FLYWHEEL COVER
DUAL AIR COUNTERBALANCES TO RAM
MANUAL LUBRICATION SYSTEM
AIR SURGE TANK
PRODUCTION COUNTER
ELECTRIC CONTROLS
DUAL PALM BUTTONS FOR OPERATION
SELECTOR CONTROLS FOR INCH/SINGLE STROKE/CONT. WITH TOP STOP
