GENERAL MACHINE SPECIFICATIONS:
MANUFACTURER:...............ECOTECH
MODEL:......................MK1320SE/500
YEAR:.......................2003
SWING (CAPACITY):...........8"
CENTER DISTANCE (LENGTH):...20"
CENTER HEIGHT:..............4.8"
MAX WORKLOAD:...............112 LBS.

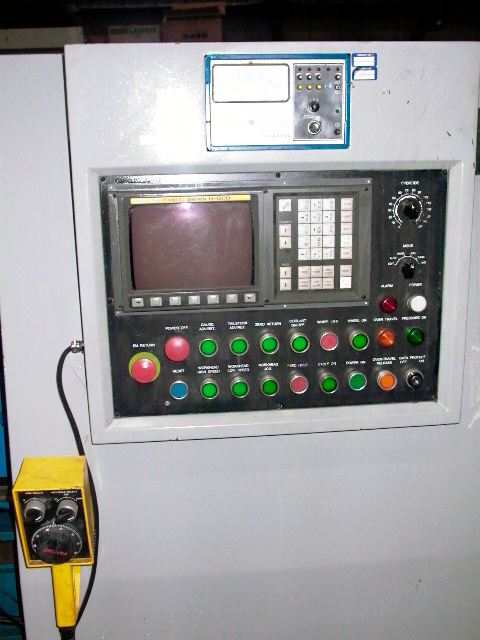

CNC:........................FANUC 0-GCP
DUAL AXIS
WHEELHEAD:..................7.5 HP / 5.5 KW
WHEEL SIZE:.................20" x 2" x 8" (DxWxID)
WHEEL SPEED.................1,720 RPM
SURFACE SPEED:..............8,840 SPM
RAPID TRAVEL:...............200 IPM
PULSE GEN HAN:..............0.00004 (FINE) PER
MAX TRAVEL RP:..............8"
MAX TRAVEL PG:..............8"
SPINDLE TAPER:..............1:5 TAPER
WORKTABLE:
SWIVEL......................SOLID
FEED RANGE..................200 IMP (MAX) / 0.01 IMP (MIN)
MAXIMUM TRAVEL..............20"
WORKHEAD....................1 HP / .75 KW
TAPER.......................40 - 500 RPM / MANUAL INFINITE
TAILSTOCK:
TAPER.......................#4 MT
QUILL TRAVEL................1"
TAPER COMP..................ADJUSTABLE
ELECTRICS:
VOLTAGE.....................220 VOLT / 3 PHASE / 60 HZ
TOTAL KVA...................10 KVA
CURRENT AMPS................45 AMP
OUTSIDE DIMENSIONS: 8'6" L TO R X 8' F TO B X 6'H
WEIGHT (APPROX):............12,000 LBS
GENERAL SPECIFICATIONS SUBJECT TO VERIFICATION
