Specifications
Equipped With
GENERAL SPECIFICATIONS:

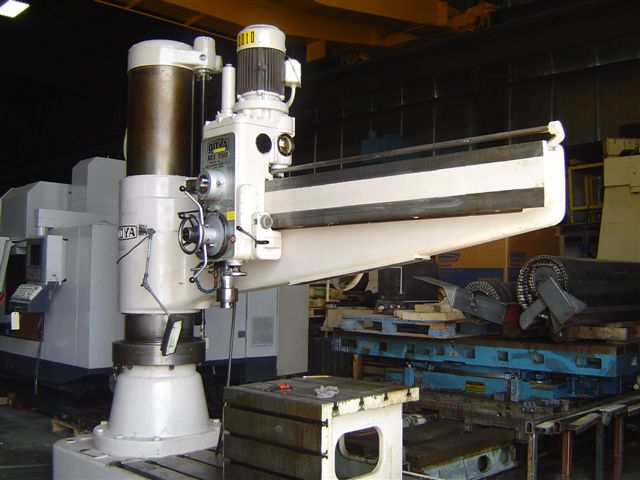

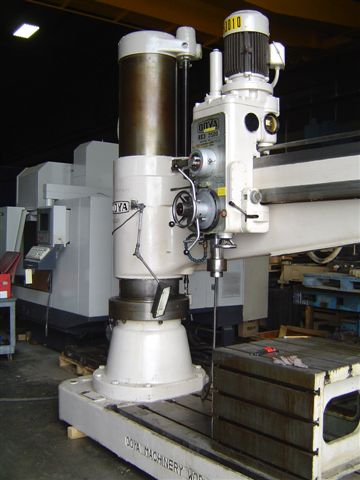

MANUFACTURER------------------------------- OOYA

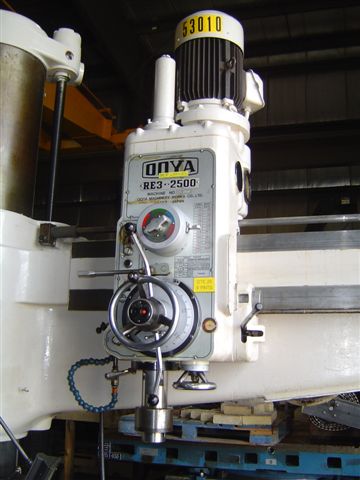

MODEL-------------------------------------- RE3-2500
SERIAL NUMBER------------------------------ 812167
AGE---------------------------------------- 1981
DRILLING CAPACITY ------ ( STEEL ) -------- 3"
DRILLING CAPACITY ------ ( CAST IRON ) ---- 3-5/8"
SPINDLE SIZE ------------------------------ #6 M.T.
MAXIMUM DISTANCE COLUMN TO SPINDLE CENTER - 99-1/4" (2514 MM)
MINIMUM DISTANCE COLUMN TO SPINDLE CENTER - 16-1/2"
MAXIMUM DISTANCE BASE TO SPINDLE ---------- 70-7/8"
MINIMUM DISTANCE BASE TO SPINDLE ---------- 22-1/4"
COLUMN SIZE ------------------------------- 19" (482 MM)
SPEEDS ------------------ ( 16 ) ---------- 20 TO 2180 RPM
FEEDS ------------------- ( 18 ) ---------- .0015 TO .125
MAIN DRIVE MOTOR -------------------------- 15 HP A.C.
EQUIPPED WITH:
DRILL/TAP
ELECTRIC CLAMPING TO HEAD/COLUMN AND ARM
COOLANT PUMP
AUTO LUBRICATION

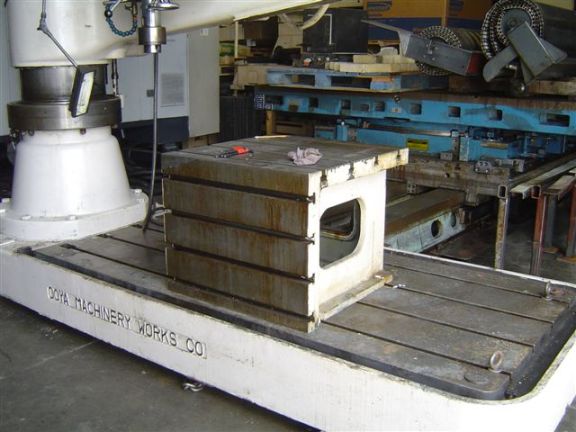

T-SLOTTED BASE
29 X 23 X 29 BOX TABLE
APPROX. WEIGHT 20,000 LBS
APPROX. DIMENSIONS 142" X 53" X 125" TALL
TEMPORARY SPECIFICATIONS PENDING ARRIVAL
WEIGHT: 20000 LBS.
