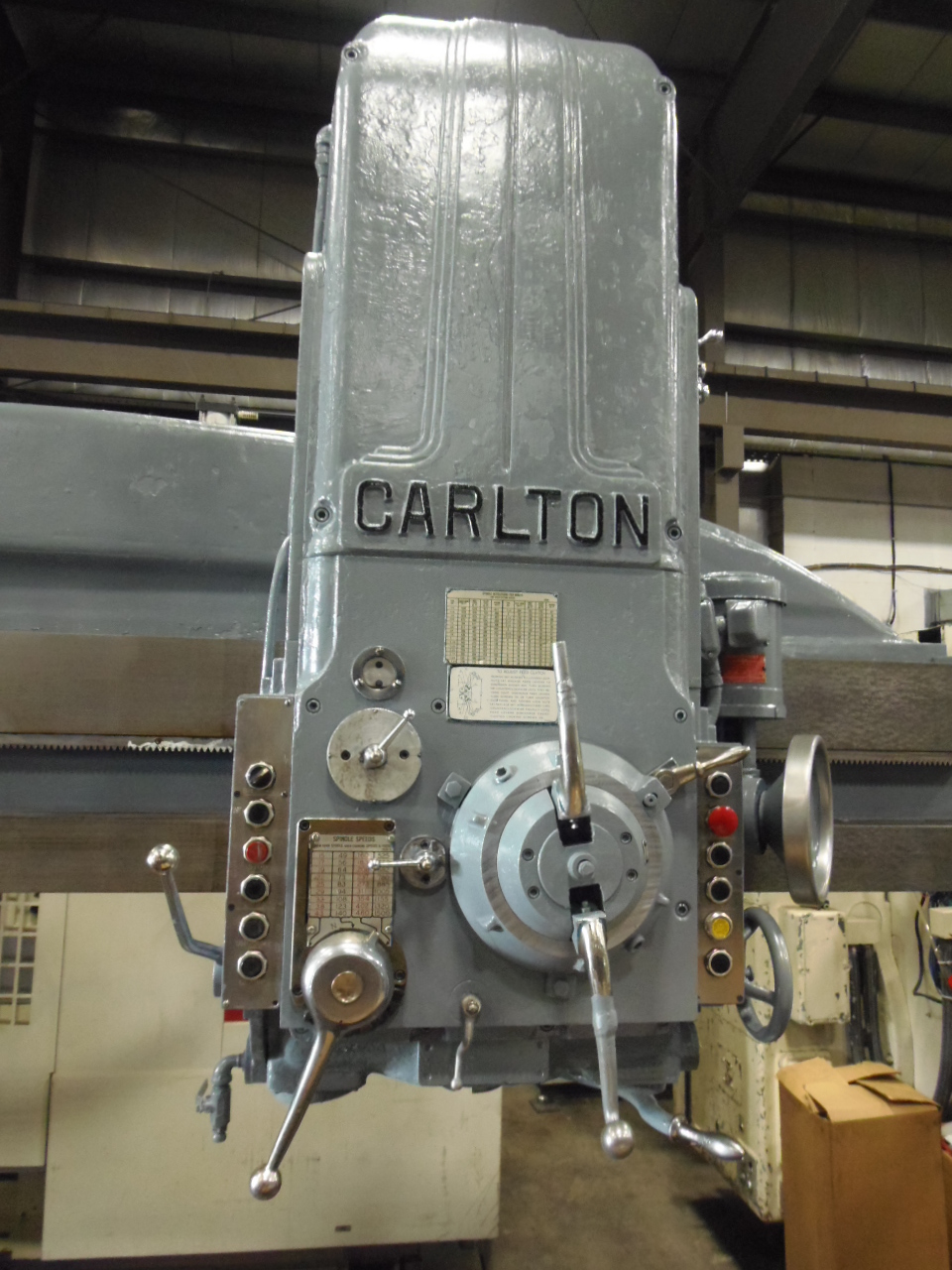

GENERAL SPECIFICATIONS:
MAKE..................................... CARLTON
MODEL.................................... 4A
SERIAL NUMBER............................ 5949
AGE (APPROX)............................. 1979

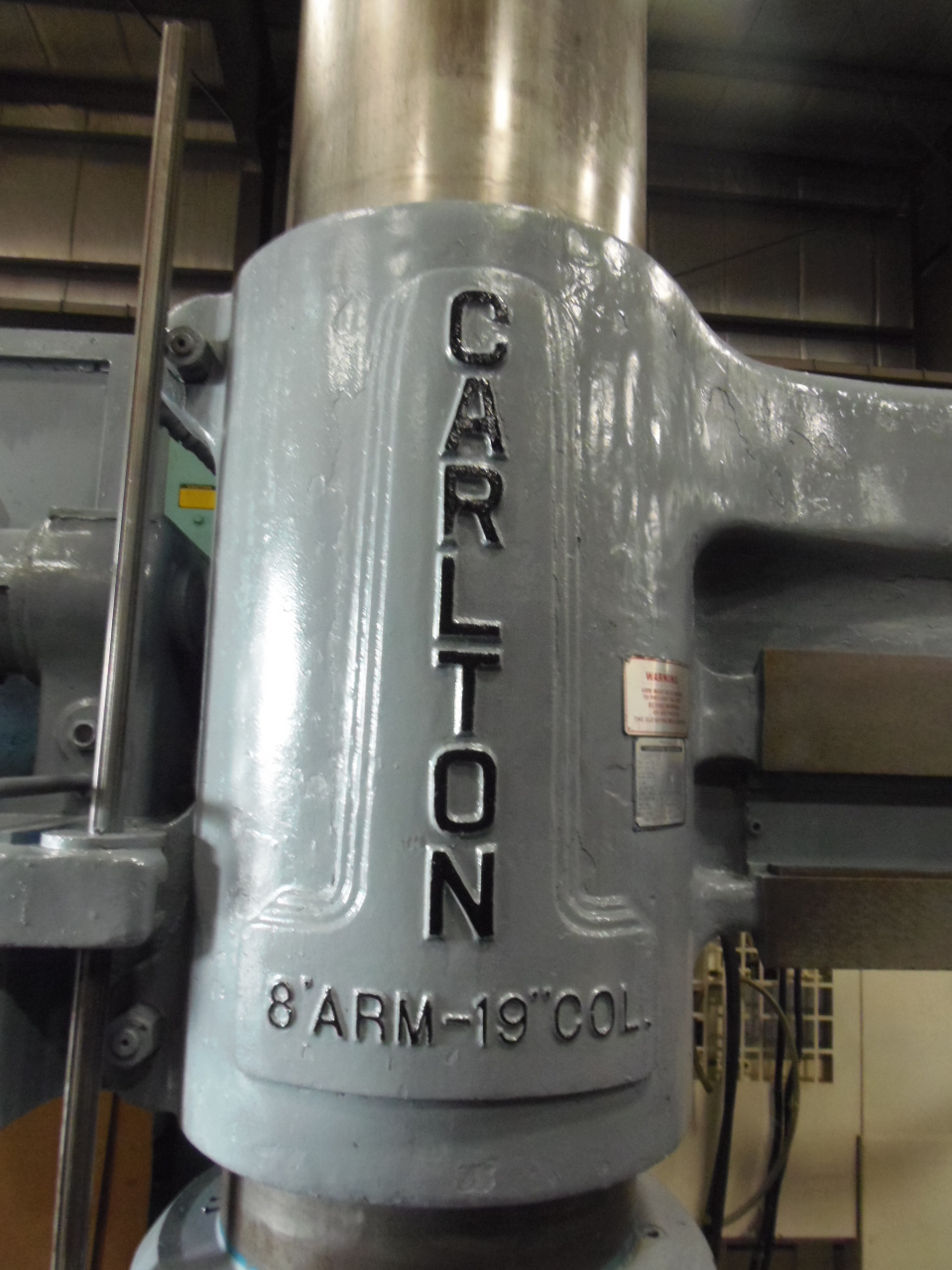

COLUMN DIAMETER.......................... 19"
ARM LENGTH............................... 8'
FACE OF COLUMN TO CENTER OF SPINDLE MAX.. 8' 0"
FACE OF COLUMN TO CENTER OF SPINDLE MIN.. 13 1/4"
SPINDLE MOTOR............................ 50 HP
SPINDLE RADIUS MAX....................... 9' 1 3/4"
SPINDLE RADIUS MIN....................... 27"
SPINDLE TO BASE MAX...................... 6' 6"
SPINDLE TO BASE MIN...................... 14 1/2"
WORKING BASE DIMENSIONS.................. 50" X 101"
HEIGHT OF BASE........................... 10"
VERTICAL TRAVEL OF SPINDLE IN HEAD....... 20"
BEARING OF HEAD ON ARM................... 23 1/4"
BEARING OF ARM ON COLUMN................. 38"
HEIGHT OVER HEAD MAX..................... 12' 2"
SPINDLE DIAMETER......................... 4"
SPINDLE TAPER............................ MT#6
TRAVERSE OF ARM ON COLUMN................ 3' 7 1/2"
TRAVERSE OF HEAD ON ARM.................. 6' 10 3/4"
DRILLS TO CENTER OF CIRCLE............... 16' 0"
SWING OF ARM............................. 10' 6"

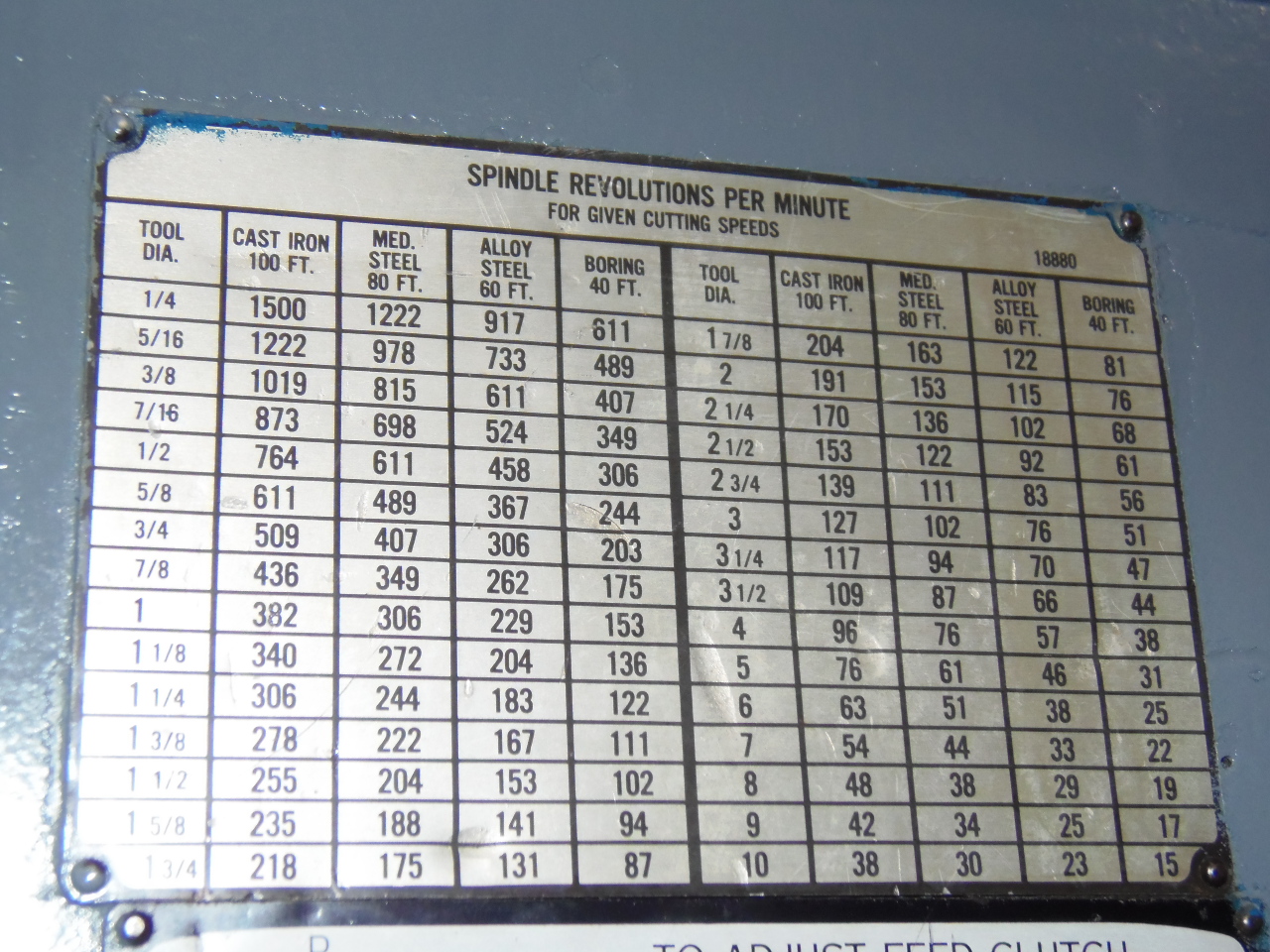

SPINDLE SPEEDS........................... 36
(100 TO 1 RATIO:
6-600, 8-800, 10-1000, 12-1200, 15-1500 RPM)
ELECTRICS................................ 230/460V
DIMENSIONS...............................
WEIGHT (APPROX).......................... 31,000 LBS
EQUIPPED WITH:

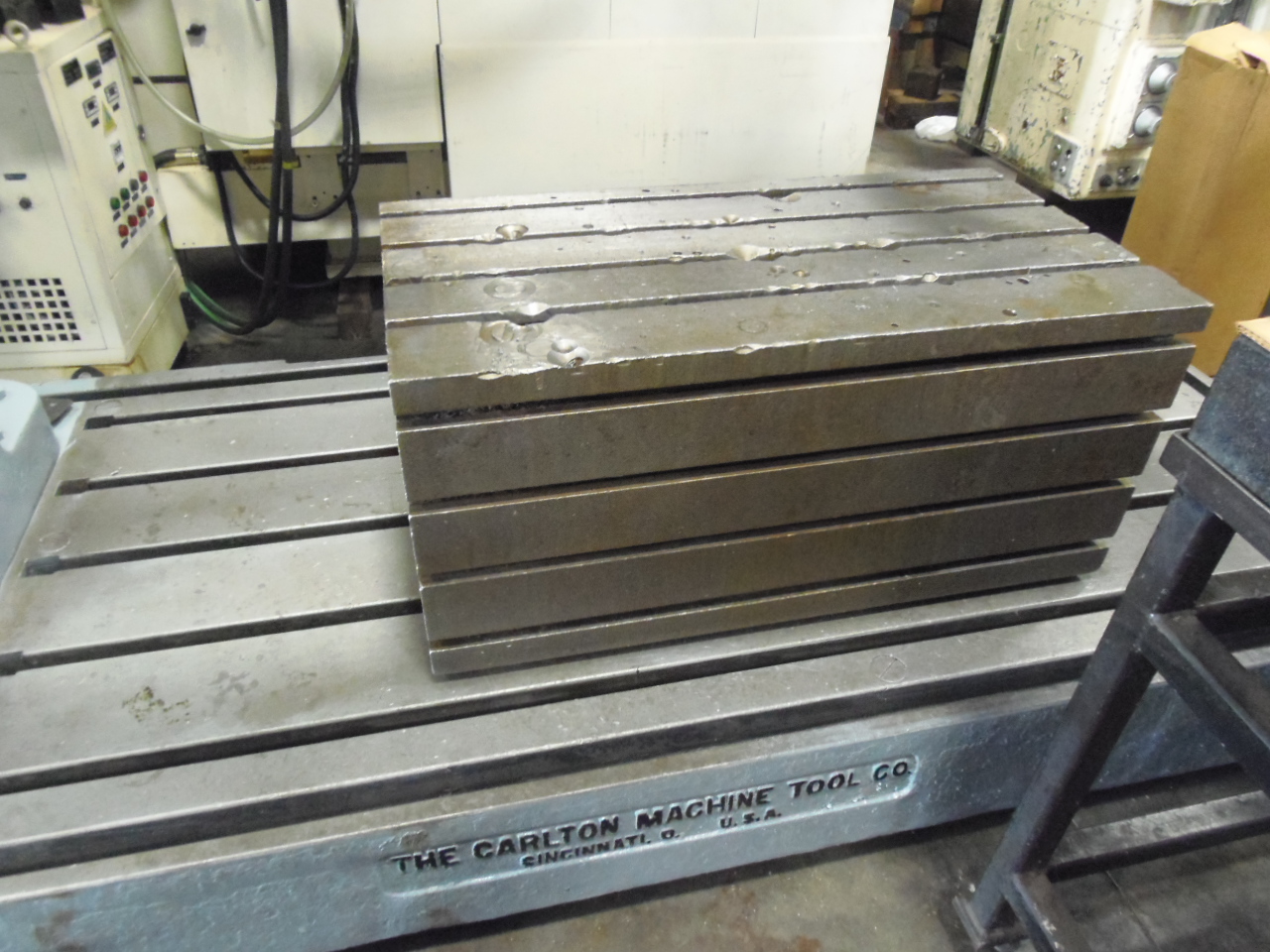

BOX TABLE
SPECIFICATIONS SUBJECT TO VERIFICATION
