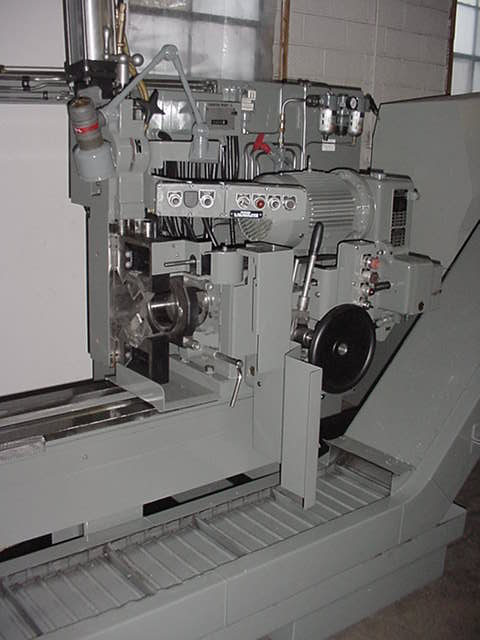

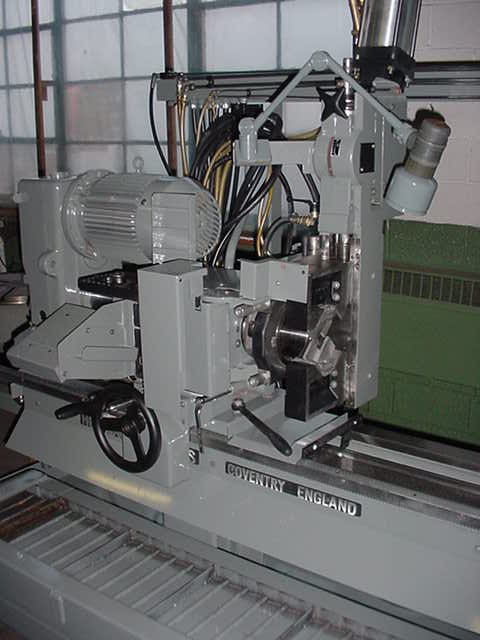

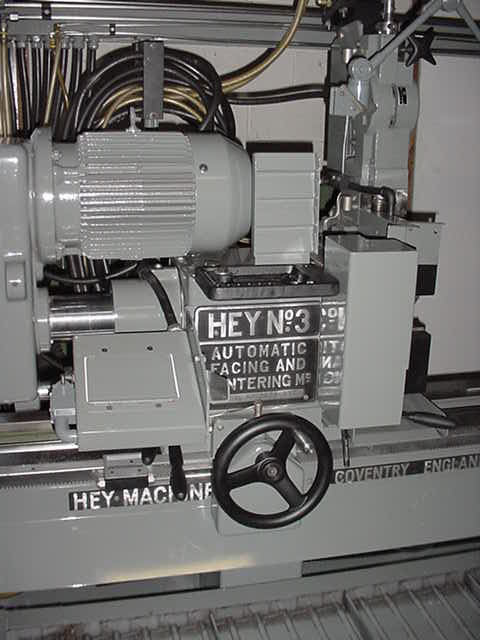

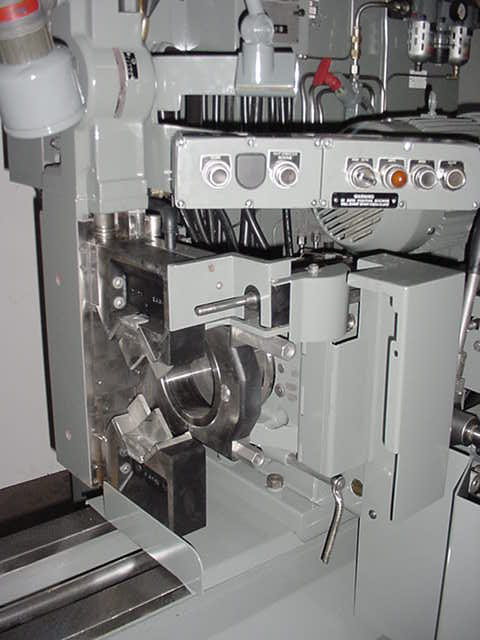

8" x 111" HEY MDL 3, 21" SW, 81-1180 RPM, 15 HP, DC INJ BRAKING, CENTRALIZED LUBRICATION, 1990

GENERAL SPECIFICATIONS:
MANUFACTURER HEY
MODEL 3
NEW (APPROX.) 1990
MAX. DIA. OF WORK IN VISE 8-1/4"
MAX. WORK LENGTH 111"
MAX. SWING OVER BED 21"
SPINDLE SPEEDS THRU GEAR CHANGES 80 - 1175 RPM
FEED RATES (8) .001 - .018 IPR
RAPID TRAVERSE RATE 250 IPM

EQUIPPED WITH:
(2) 15 HP SPINDEL DRIVE MOTORS
(2) AIR OPERATED VISES
AUTOMATIC CYCLE CONTROLS
HEAVY DUTY CHIP CONVEYOR
MISC. CHANGE GEARS FOR SPINDLE SPEEDS
FLAG STOP
AUTOMATIC LUBRICATION SYSTEM
COOLANT PUMP
