GENERAL SPECIFICATIONS:
MANUFACTURER GIDDINGS & LEWIS
MODEL ENDOMATIC MC
NEW (APPROX.) 1979
SERIAL # 165-1289
MILLING HEADS 15 HP
SPINDLE NOSE NO. 50
SPEED RANGE (CHANGE GEARS) 31 - 283 RPM
MAX. MILLING DIA. W/10" CUTTERS 7"
MAX. PART LENGTH 108"
SLIDE STROKE 9-3/4"
FEED RATE (INFINATELY VARIABLE) 0 - 100 IPM
DRILLING HEADS 3 HP
SPEED RANGE (CHANGE GEARS) 377 - 1145 RPM
QUILL STROKE 3"
FEED STROKE 2-3/4"
HEAD ADJUSTMENT 3"
FEED RATE (INFINATELY VARIABLE) 0 - 100 IPM
CENTER DRILL DIAMETER 1/4" - 3/4"
TWIST DRILL DIAMETER 3/4" - 1-1/4"
NORMAL SPOT FACING & RECESSING 2" DIA.
EQUIPPED WITH:

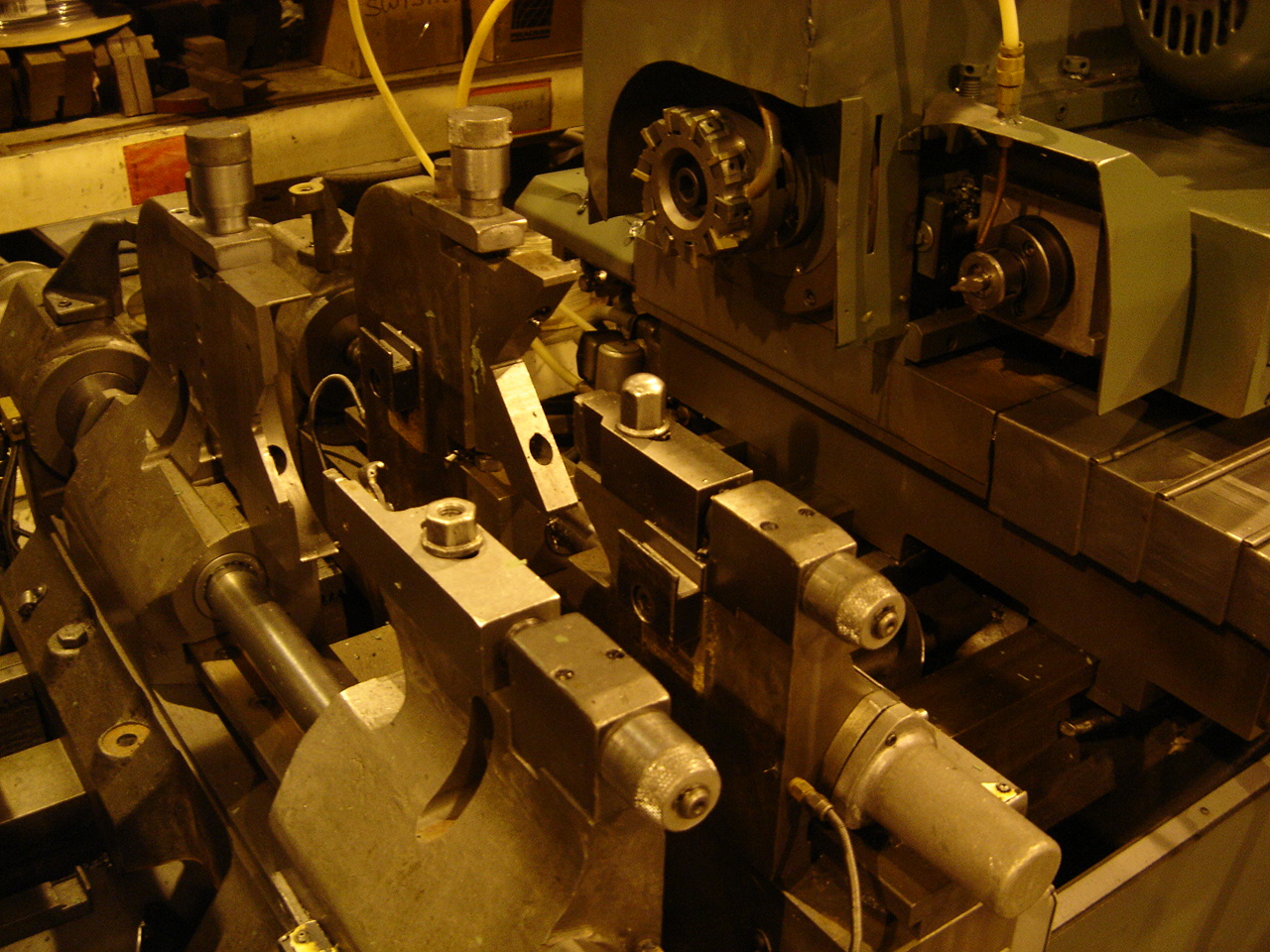

(2) 3 POINT HYD. VICES
1/2" - 7" CLAMPING DIAMTER
OPENING & CLOSING SPEED 120 IPM

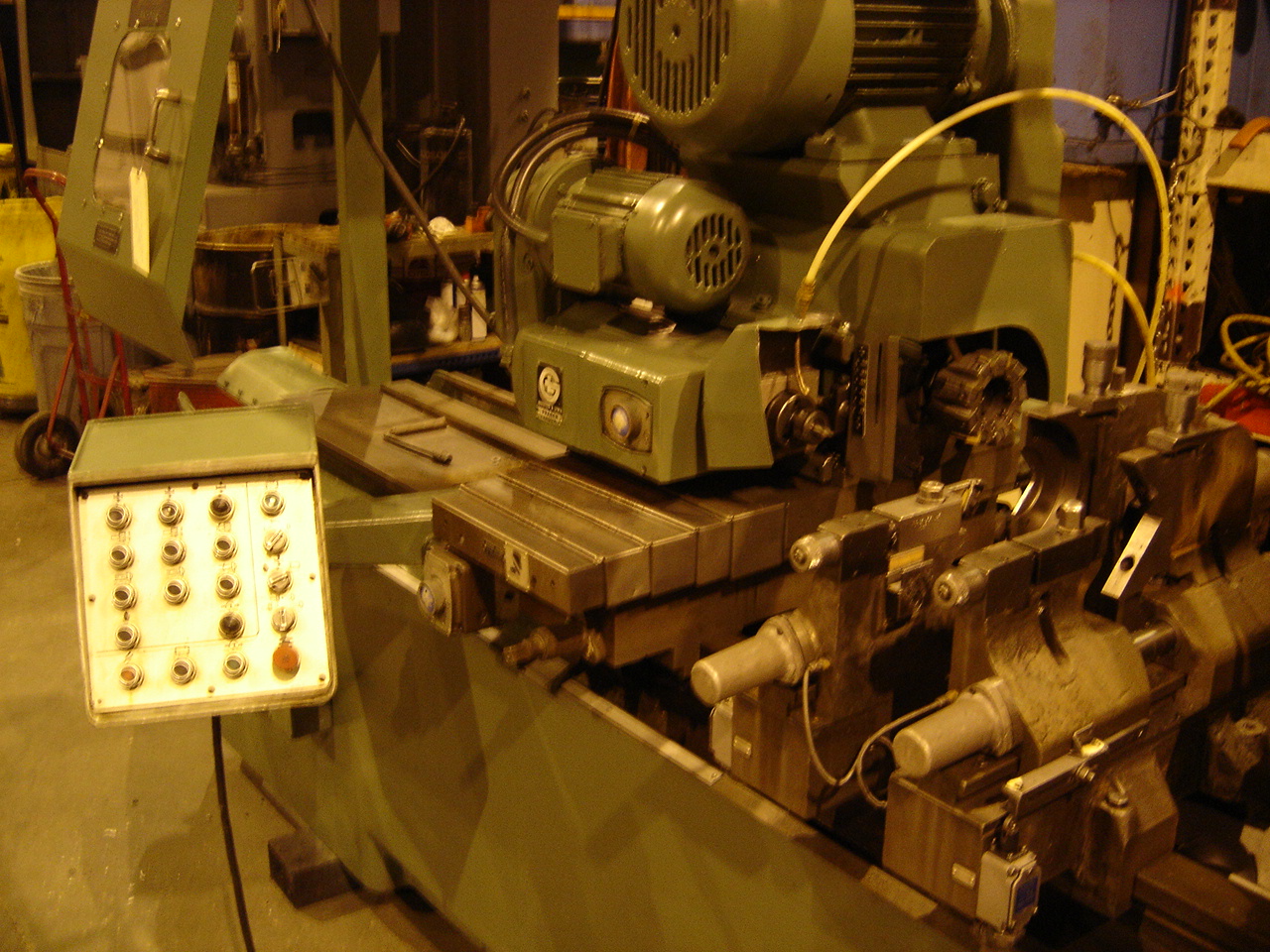

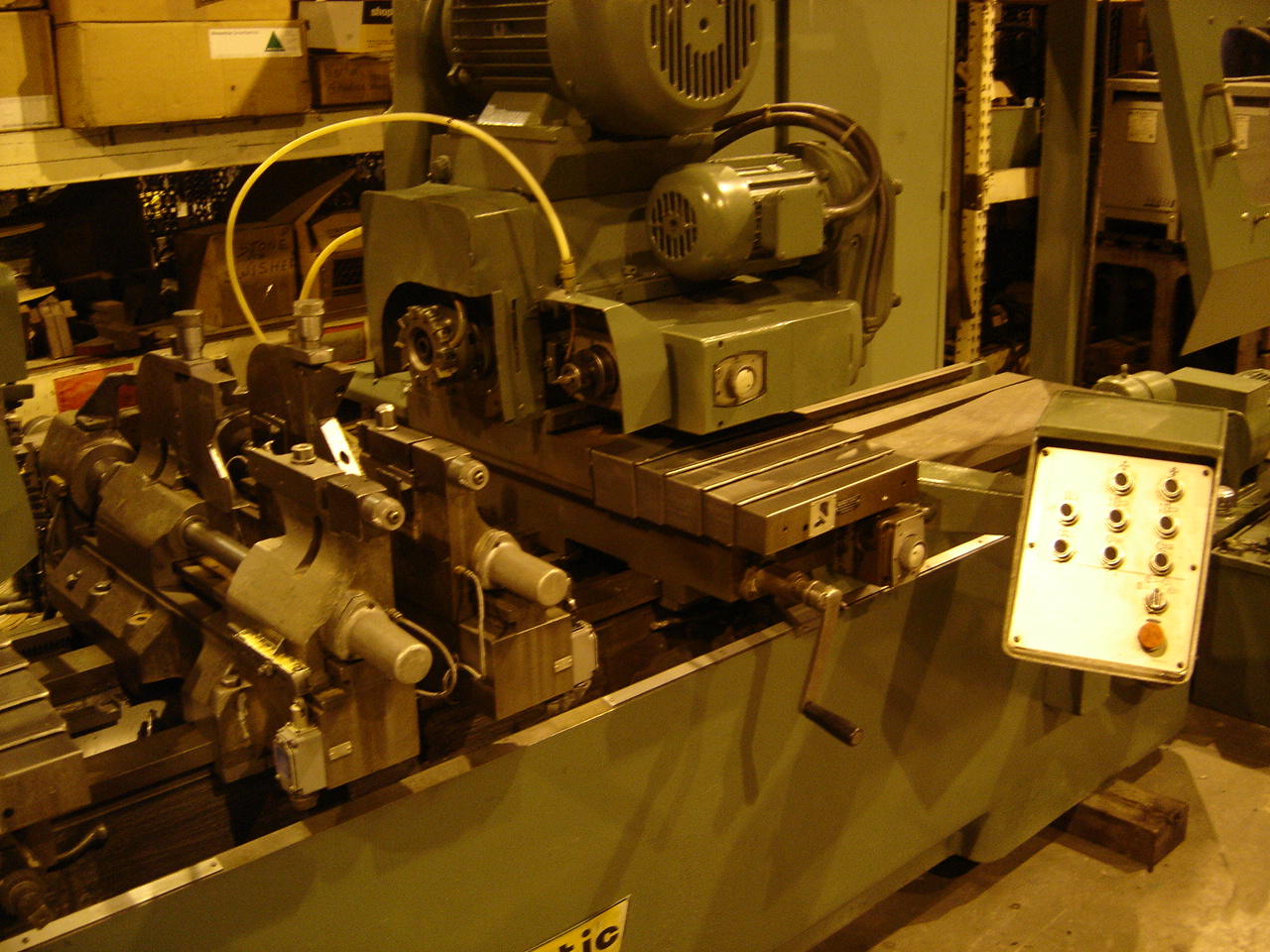

(2) HAND PENDENT CONTROL STATIONS (1 AT EACH END)
BIJUR LUBE
COOLANT
