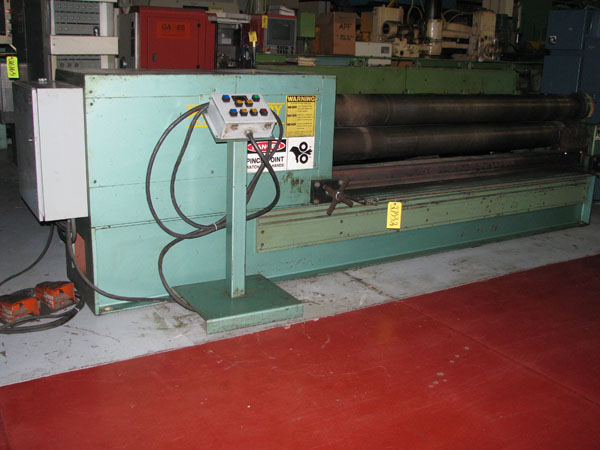

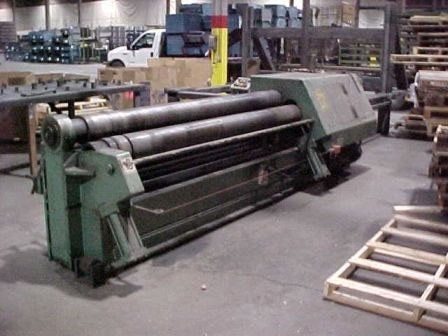

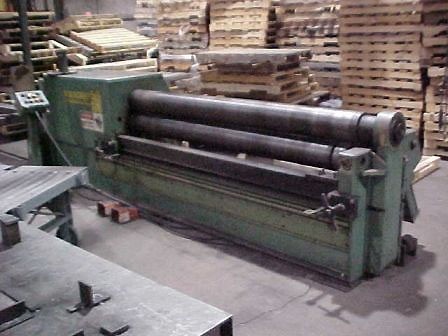

8' X 1/4" MONTGOMERY INITIAL PINCH, HYDRAULIC, 8" ROLL DIAMETER, 3 ROLL, HYD DROP END, HYD ROLL ADJ, 2000

GENERAL SPECIFICATIONS:
MANUFACTURER MONTGOMERY
MODEL 9625-H
AGE APPROX 2000
DESIGN 3 ROLL HYDRAULIC INITIAL PINCH
CAPACITY 8'
THICKNESS 1/4"
OVERALL LENGTH OF ROLLS 98"
DIAMETER OF TOP ROLL 8"
DIAMETER OF BOTTOM ROLLS 8"
OVERALL DIMENSIONS (APPROX) 172"L-R X 48"F-B X 48"H
WEIGHT (APPROX) 10,000 LBS

EQUIPPED WITH:

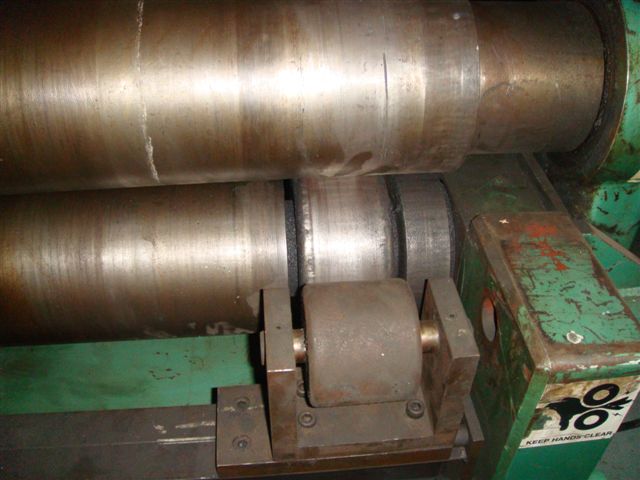

FIXED TOP ROLL
ADJUSTABLE LOWER ROLLS
ANGLE ROLLING ATTACHMENT
HYDRAULIC DROP END HOUSING
HYDRAULIC ADJUSTMENT TO REAR ROLL
MANUAL ADJUSTMENT OF FRONT ROLL
AC MAIN (PUMP) MOTOR
ELECTRICAL CONTROLS

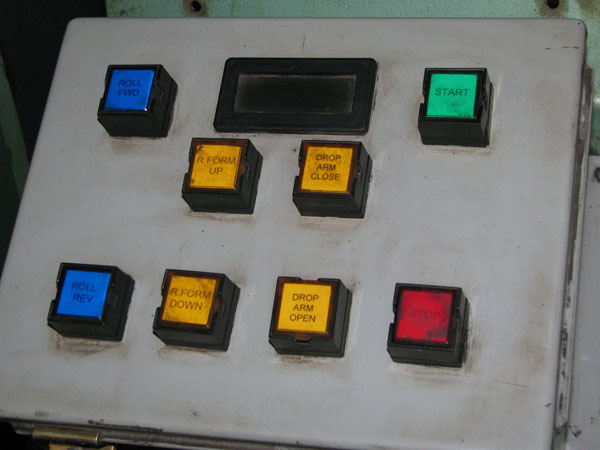

PEDISTAL MOUNTED OPERATOR STATION
ELECTRIC DUAL FOOT SWITCH OPERATION
