Specifications
Equipped With

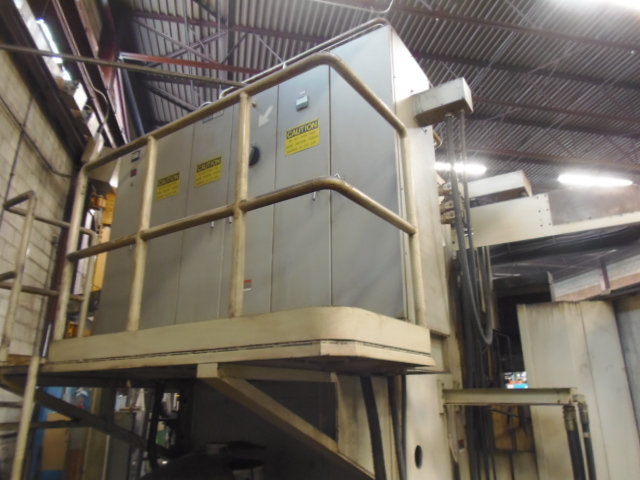

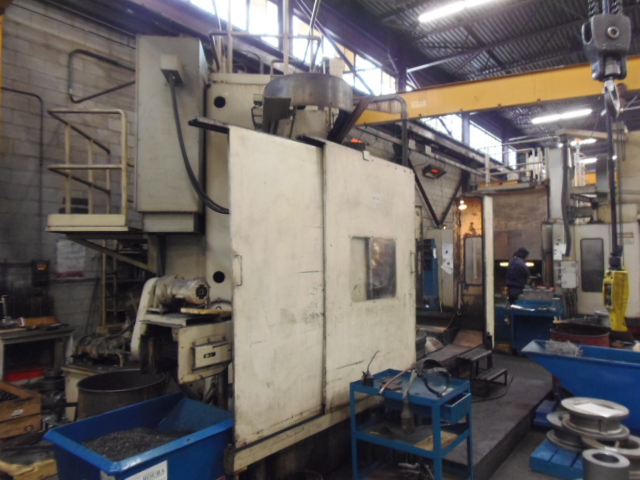

GENERAL SPECIFICATIONS:
MANUFACTURER..................... TOSHIBA
MODEL............................ TSN-16A
NEW.............................. 1982
MAX. SWING....................... 78.7" (2000 MM)

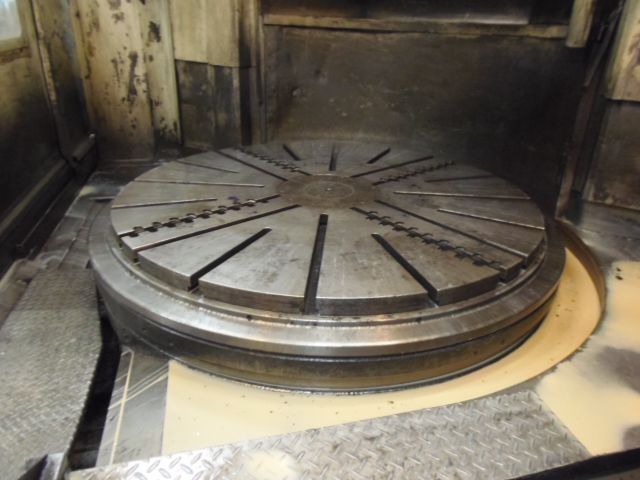

CHUCK DIAMETER (4 JAW)........... 63" (1600 MM)
HORIZ. TRAVEL OF RAIL HEAD....... 39.37" (1000 MM
MAX. HEIGHT UNDER RAM FACE....... 72.8" (1849 MM)
MAX. LOAD ON TABLE............... 30,684 LBS.
MAX. TORQUE OF TABLE............. 23,830 FT/LBS.
MAX. CUTTING FORCE OF RAM........ 6,600 LBS
SPEED RANGE (2 RANGES)........... 5 - 250 RPM
VERT. TRAVEL OF RAM (Z AXIS)..... 49.2" (1250 MM)
VERT. TRAVEL OF CROSS RAIL....... 39.4" (1000 MM)
NET WEIGHT....................... 53,000 LBS (24,090 KG)
ELECTRICS........................ 480V/3PH/60HZ
EQUIPPED WITH:

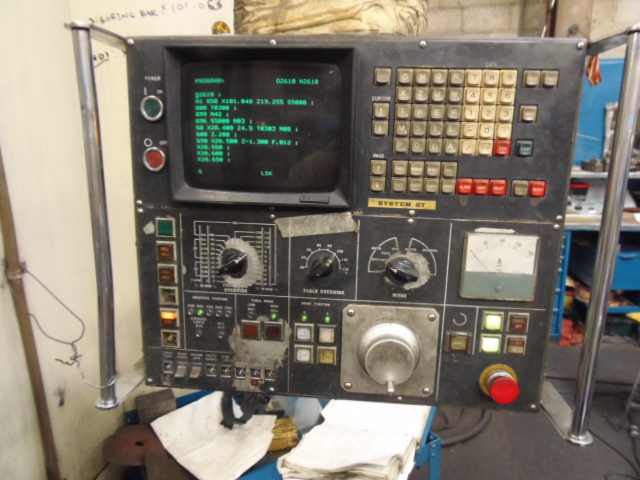

FANUC 6T CONTROL WITH CRT

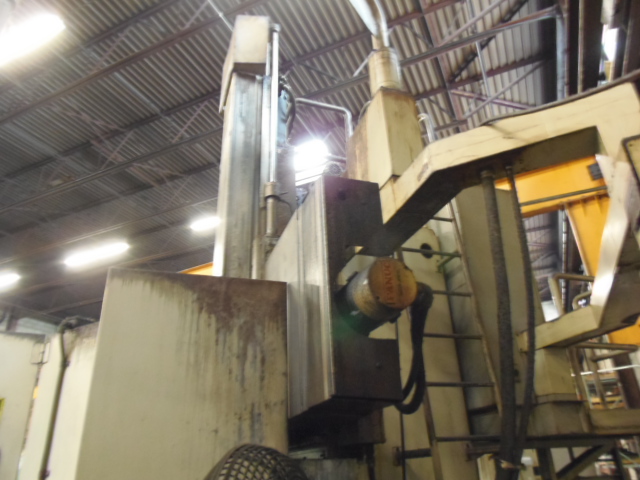

ADJUSTABLE CROSS RAIL

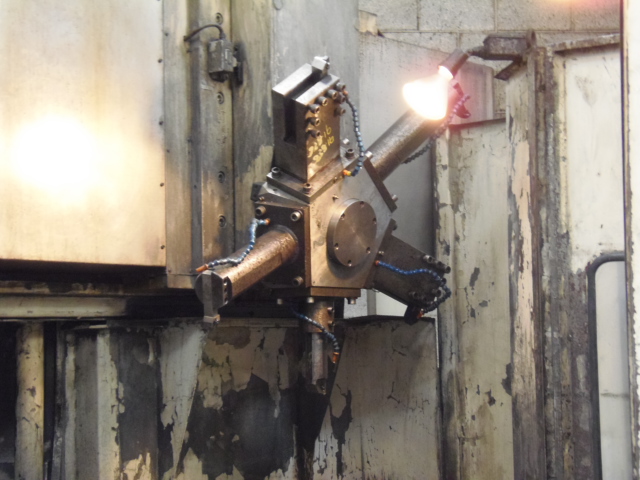

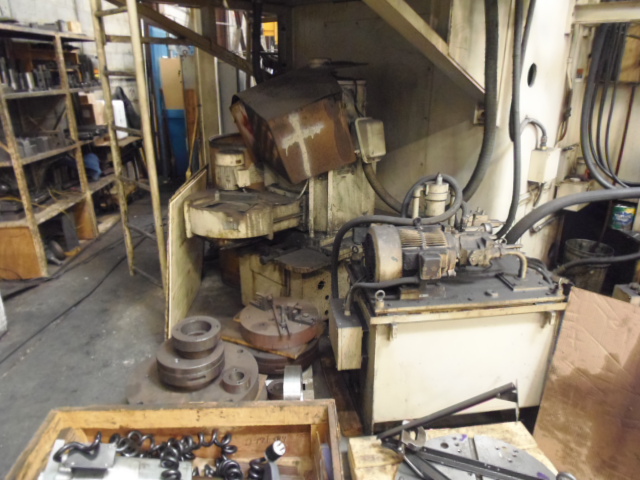

5 POSITION TURRET

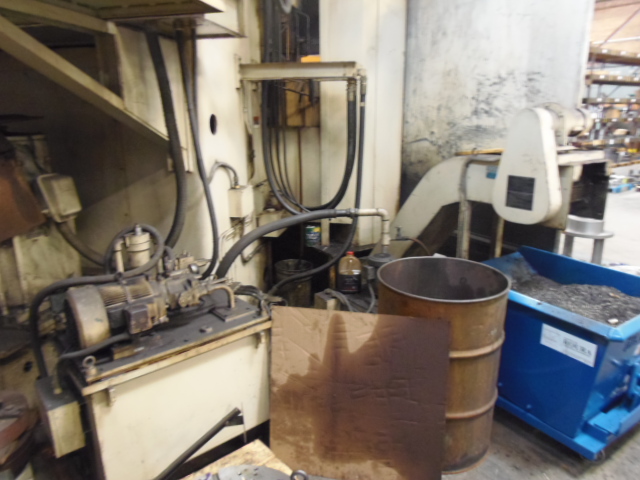

CHIP CONVEYOR
MANUALS
SPECIFICATIONS SUBJECT TO VERIFICATION
