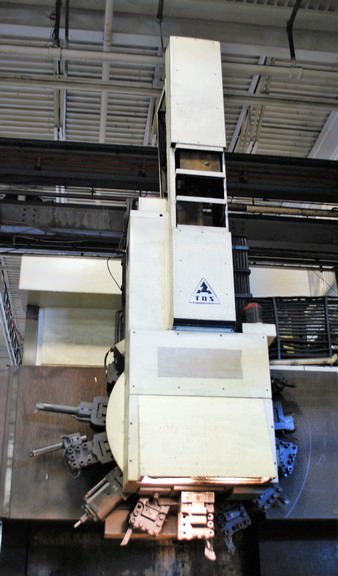

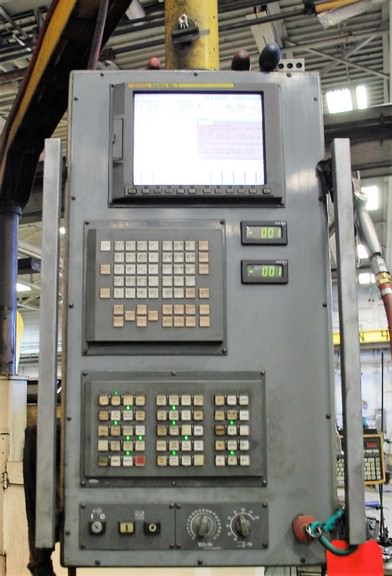

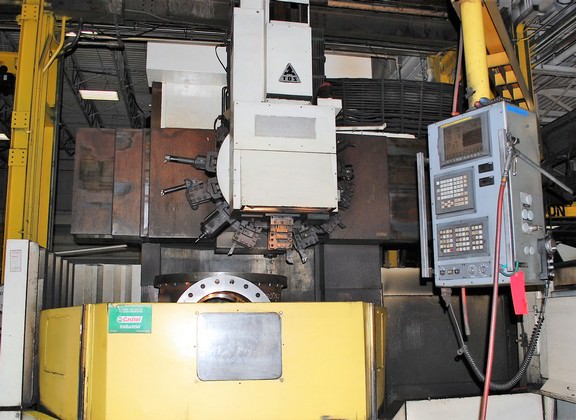

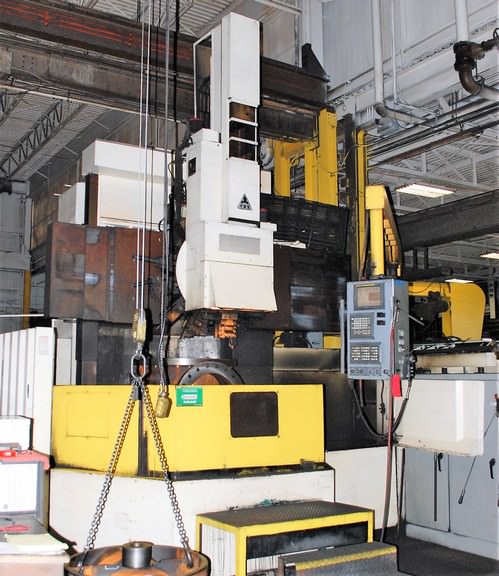

78" TOS CNC VTL WITH LIVE TOOLING AND FANUC 18iT CONTROL

Specifications

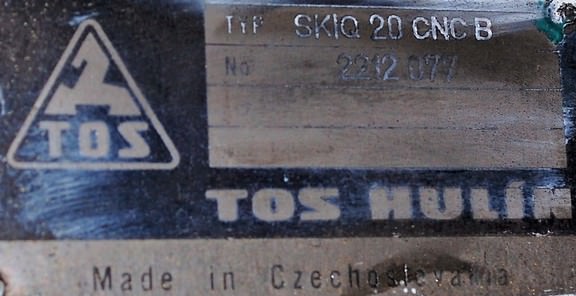

Manufacturer............................ TOS
Model................................... SKIQ 20 CNC B
Serial number........................... 62212077
Age..................................... 1992

Table Diameter.......................... 78.4"

Max. Swing.............................. 86.6"
Max. Turning Height..................... 49.6"
Max. Part Height........................ 67.3"
Ram Stroke.............................. 39.3"

Cross Rail Vertical Stroke.............. 31.49"
Max. Part Weight........................ 44,000 lbs

Table Motor............................. 84 HP

C Axis Table Incremental Movement....... 0.001 Degrees

Spindle Speeds.......................... 1.6 - 160 RPM

Speed Ranges............................ 2

Rotary Tool Motor....................... 18 HP
Speeds.................................. 8.5 - 3312 RPM
Speed Ranges............................ 3

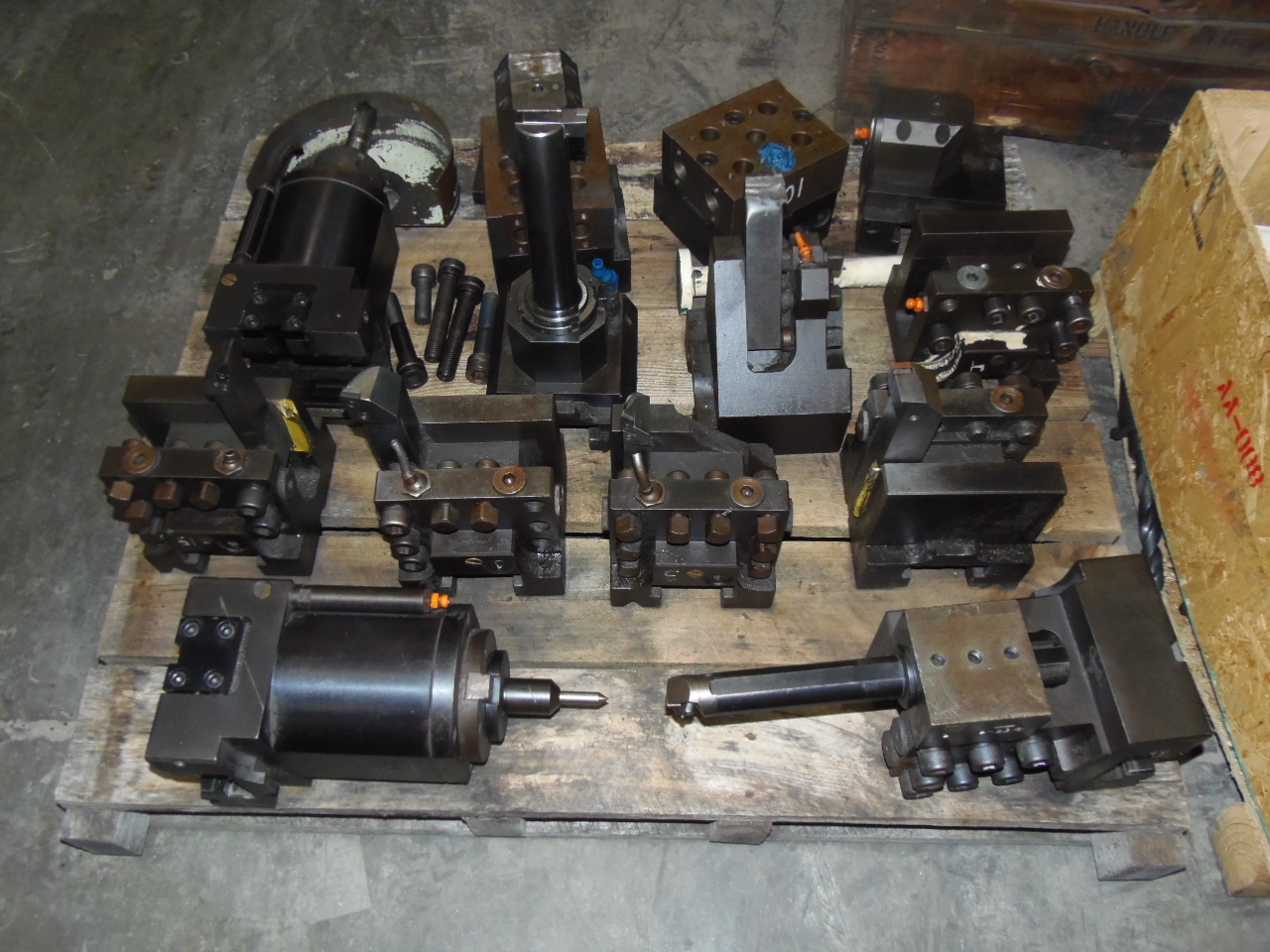

Tool Magazine Capacity.................. 15 Tools

Floor Space............................. 265"x223"
Machine Height.......................... 213"

Machine Weight.......................... 72,000 lbs.
