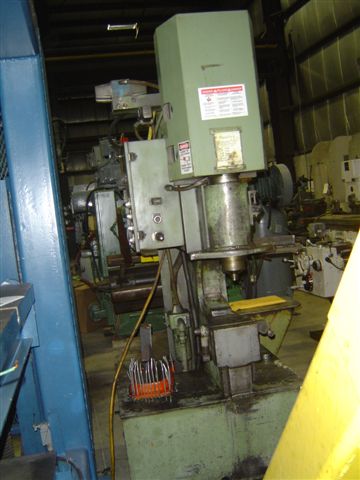

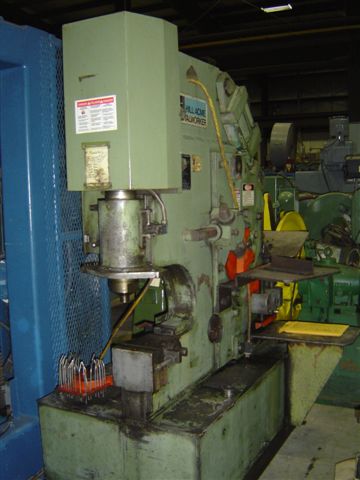

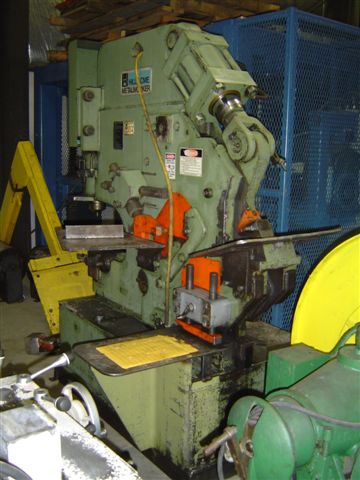

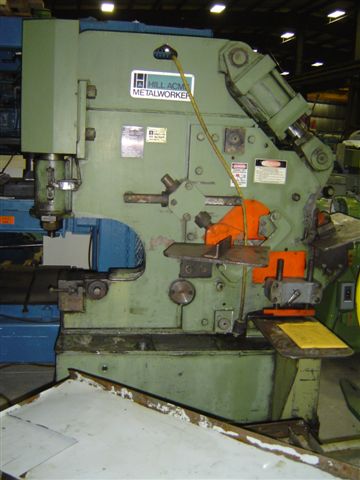

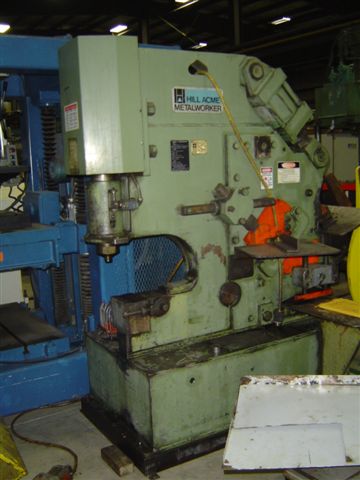

78 TON HILL ACME MODEL#5, 5" X 5" X 1/2", 1.25" PUNCH, .625 X 10" SHEAR, COPE, 1.875 ROUNDS

GENERAL SPECIFICATIONS:

MANUFACTURER HILL ACME
MODEL 5
SERIAL # 7805-423-09
AGE 1978
CAPACITY 78 TONS
MAX DIAMETER THRU THICKNESS 1 1/4" THRU 11/16"
DIAMETER THRU MAX THICKNESS 7/8" THRU 3/4"
SHEARING CAPACITY: (FLATS) 1" X 4"
3/4" X 6"
5/8" X 10"
ROUNDS: 1 7/8"
SQUARE 1 3/4"
ANGLES (90 DEGREE) 5" X 5" X 1/2"
(45 DEGREE) 4" X 4" X 3/8"
COPING: (SQUARE NOTCH) 3" X 3" X 1/2"
(90 DEGREE V COPE) 3" X 4 1/4" X 1/2"
FLANGES OF BEAMS AND CHANNELS 4" TO 7"

EQUIPPED WITH:

FOOT CONTROLS
