GENERAL SPECIFICATIONS:

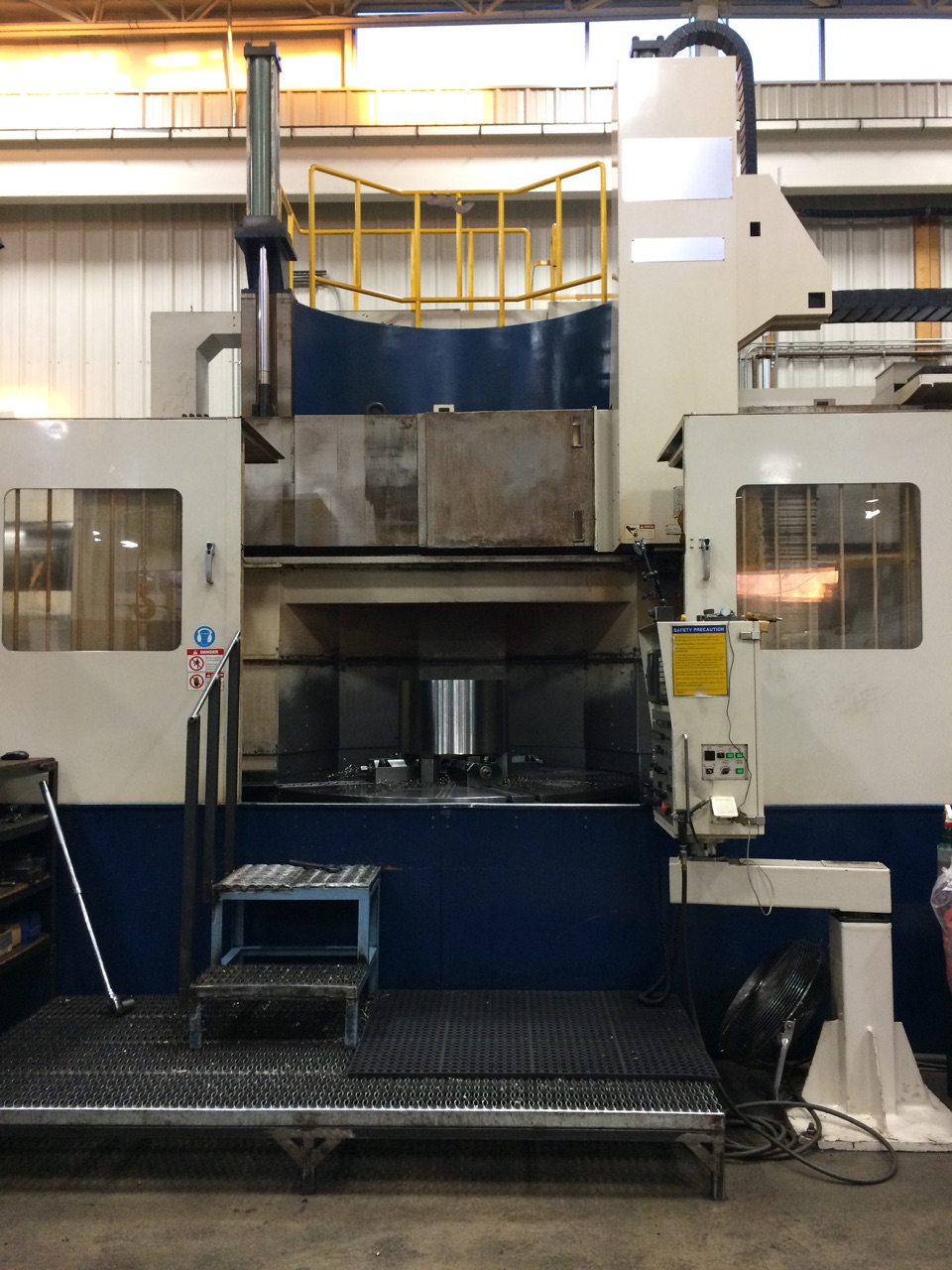

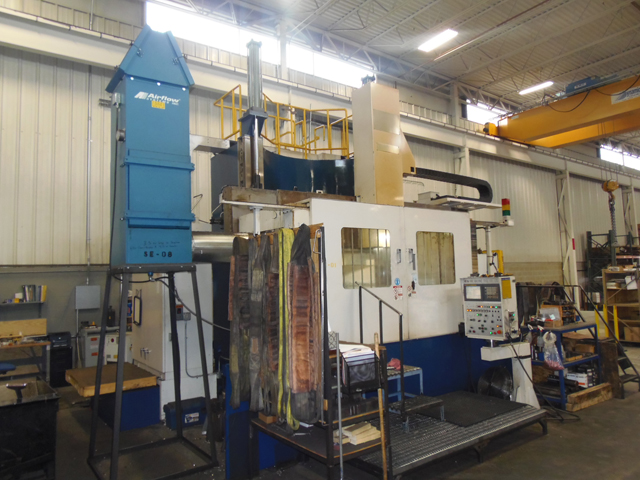

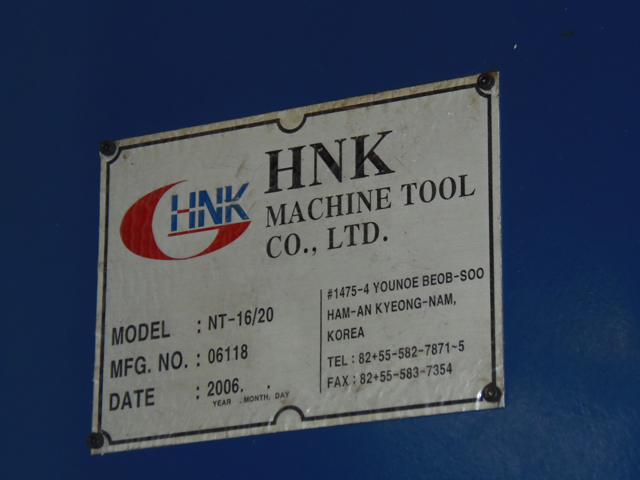

MANUFACTURER..................... HNK
MODEL............................ HKNT-16/20
NEW.............................. 2006
MAX. SWING....................... 78.7" (2000 MM)

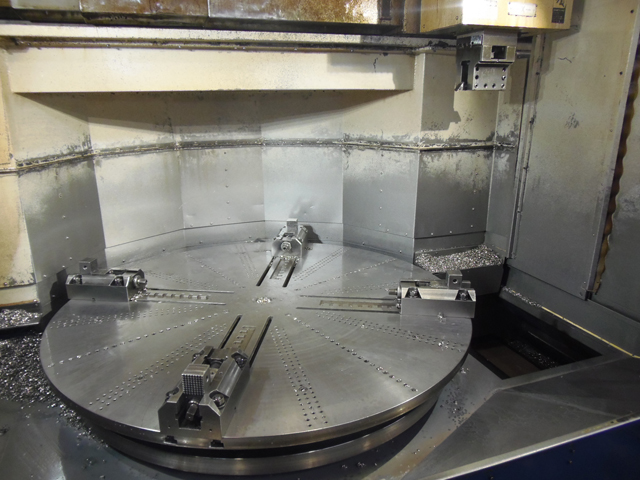

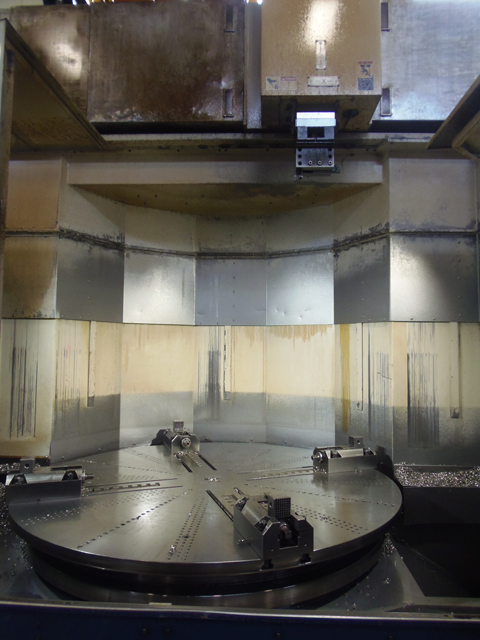

CHUCK DIAMETER (4 JAW)........... 75" (1905 MM)
HORIZ. TRAVEL OF RAIL HEAD....... 82.7" (2100 MM)
RAPID FEED RATE.................. 393 IPM (10,0000 MM/MIN)
CUTTING FEED RATE................ .04 - 118 IPM (1 - 3000 MM/MIN)
MAX. TURNING HEIGHT.............. 63" (1600 MM)
MAX. LOAD ON TABLE............... 17,600 LBS.
MAX. TORQUE OF TABLE............. 15,219 FT/LBS.
SPEED RANGE (2 RANGES)........... 1 - 250 RPM

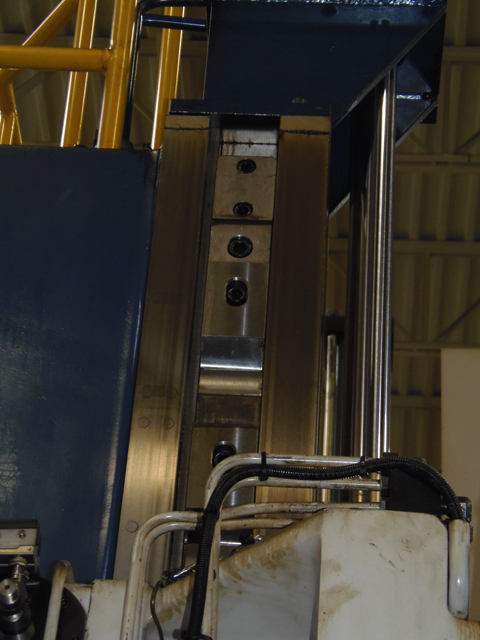

VERT. TRAVEL OF RAM (Z AXIS)..... 35.4" (1250 MM)
VERT. TRAVEL OF CROSS RAIL....... 29.5" (1000 MM)
TOOL CHANGER CAPACITY............ 12 TOOLS

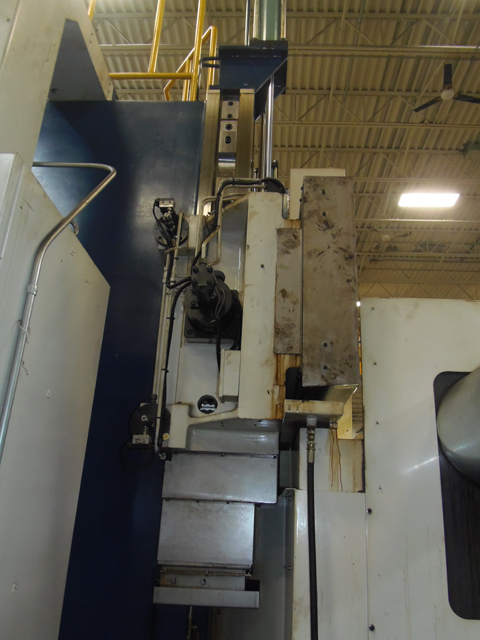

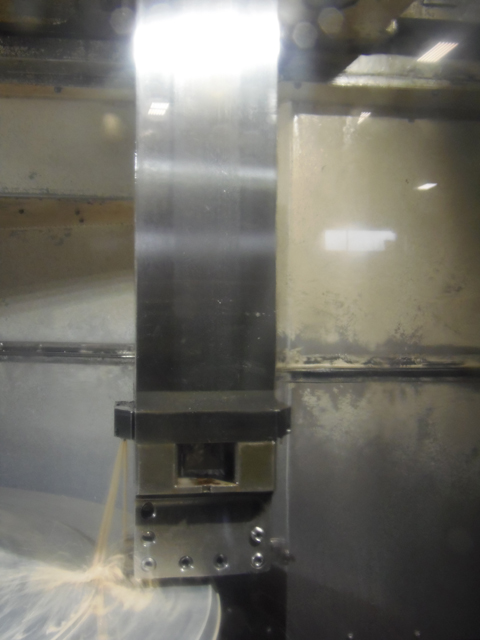

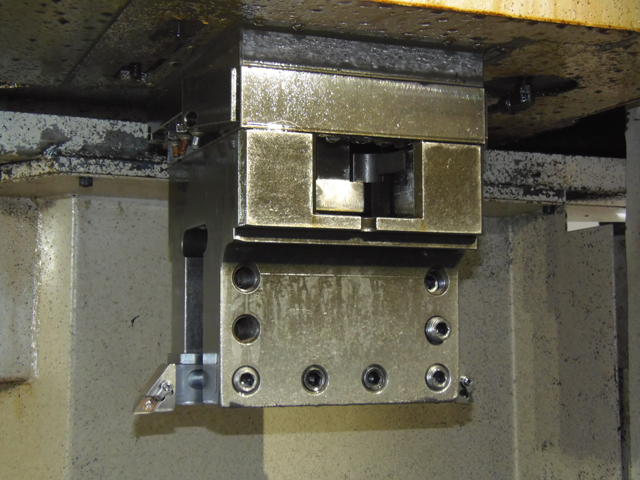

RAM SIZE......................... 7.9" X 7.9" (200 X 200 MM)
MACHINE HOURS
POWER ON...................... 4523
CUTTING....................... 1444
NET WEIGHT....................... 57,000 LBS (26,000 KGS)
FLOOR SPACE...................... 273" X 216"
HEIGHT........................... 220"
ELECTRICS........................ 480V/3PH/60HZ
MAIN MOTOR....................... 50/60 HP
EQUIPPED WITH:

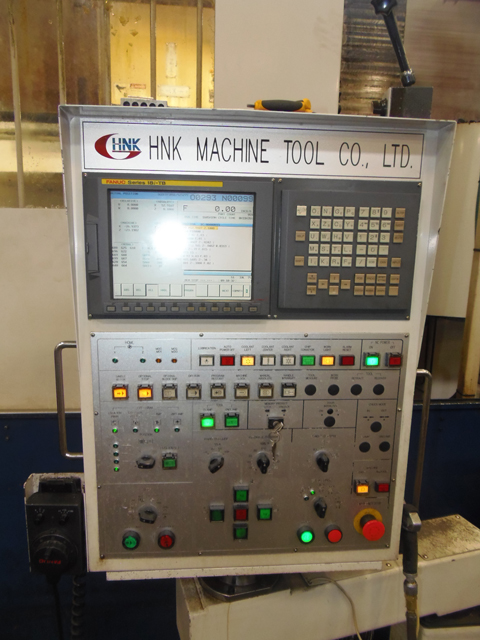

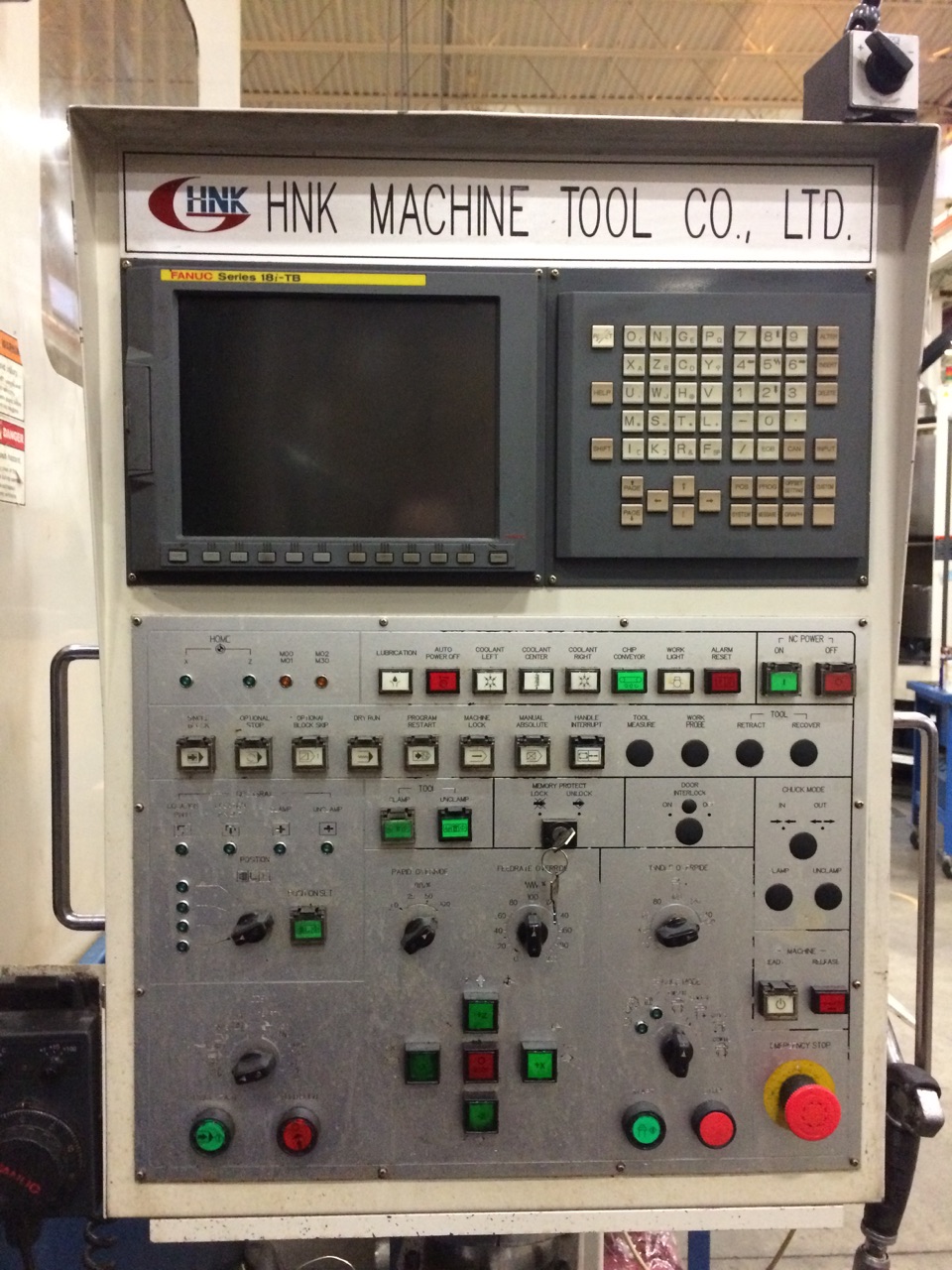

FANUC 18i-TB CNC CONTROLLER
FANUC DIGITAL AC SERVO MOTORS

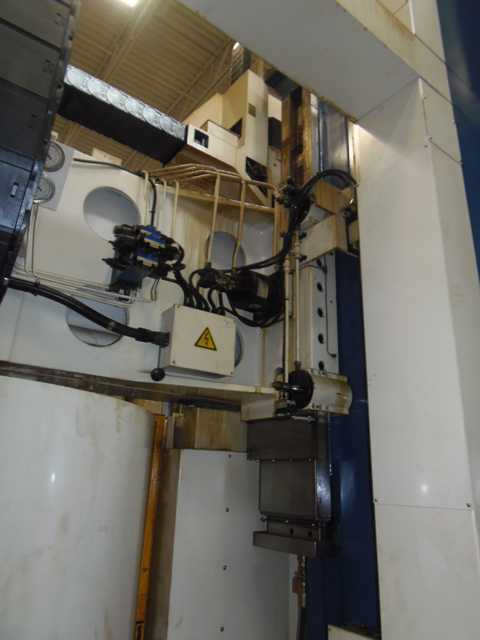

ADJUSTABLE CROSS RAIL

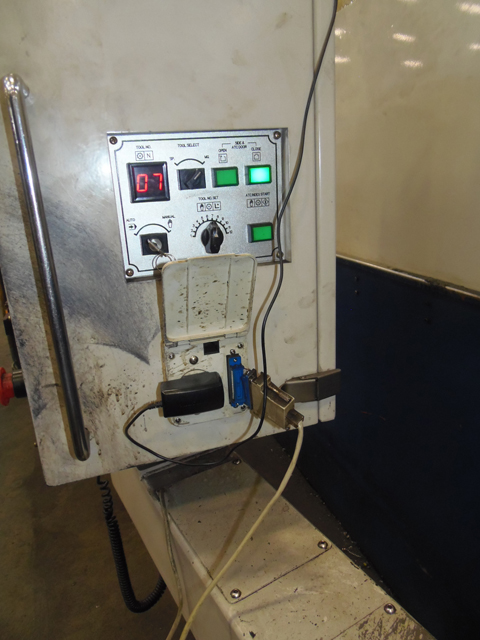

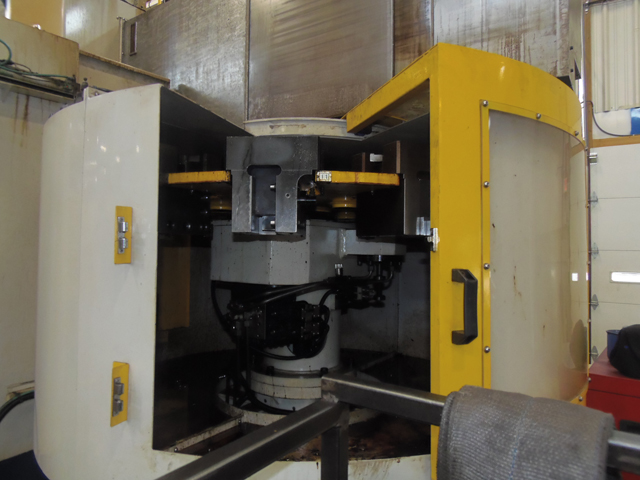

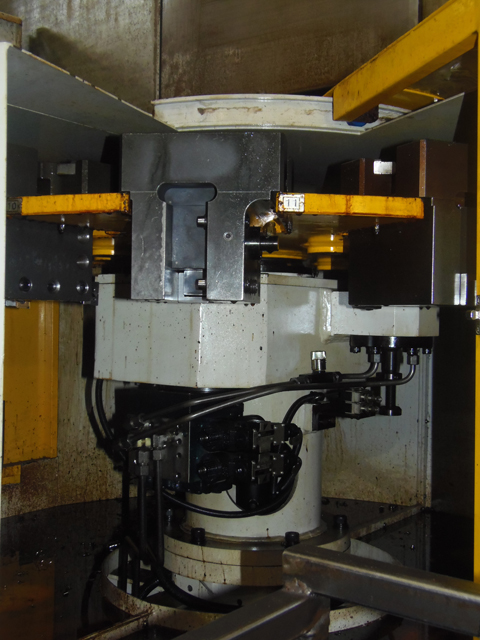

12 POSITION AUTOMATIC TOOL CHANGER

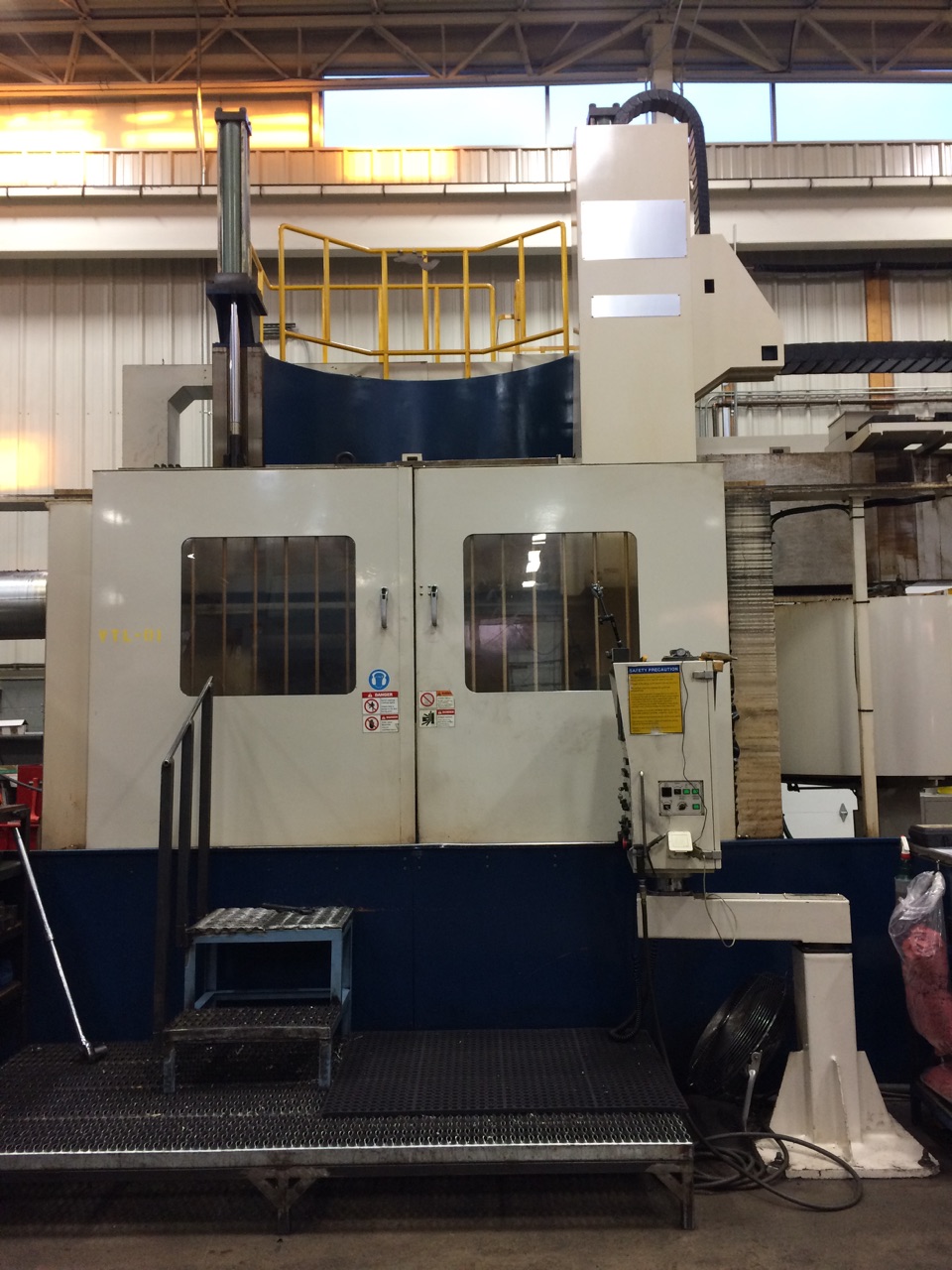

FULLY ENCLOSED SPLASH GUARDS

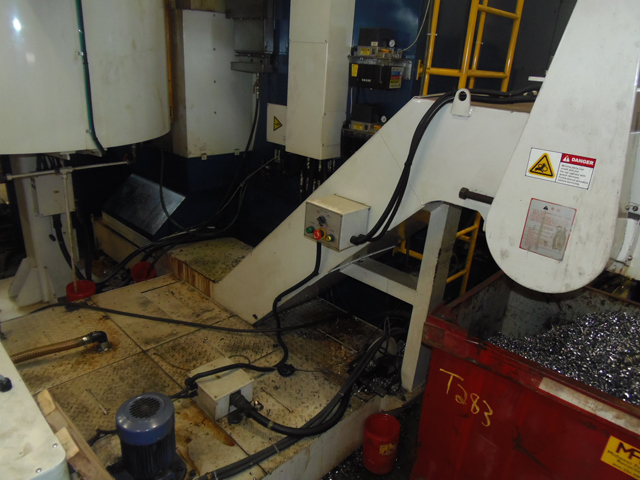

CHIP CONVEYOR
MANUALS
SPECIFICATIONS SUBJECT TO VERIFICATION
