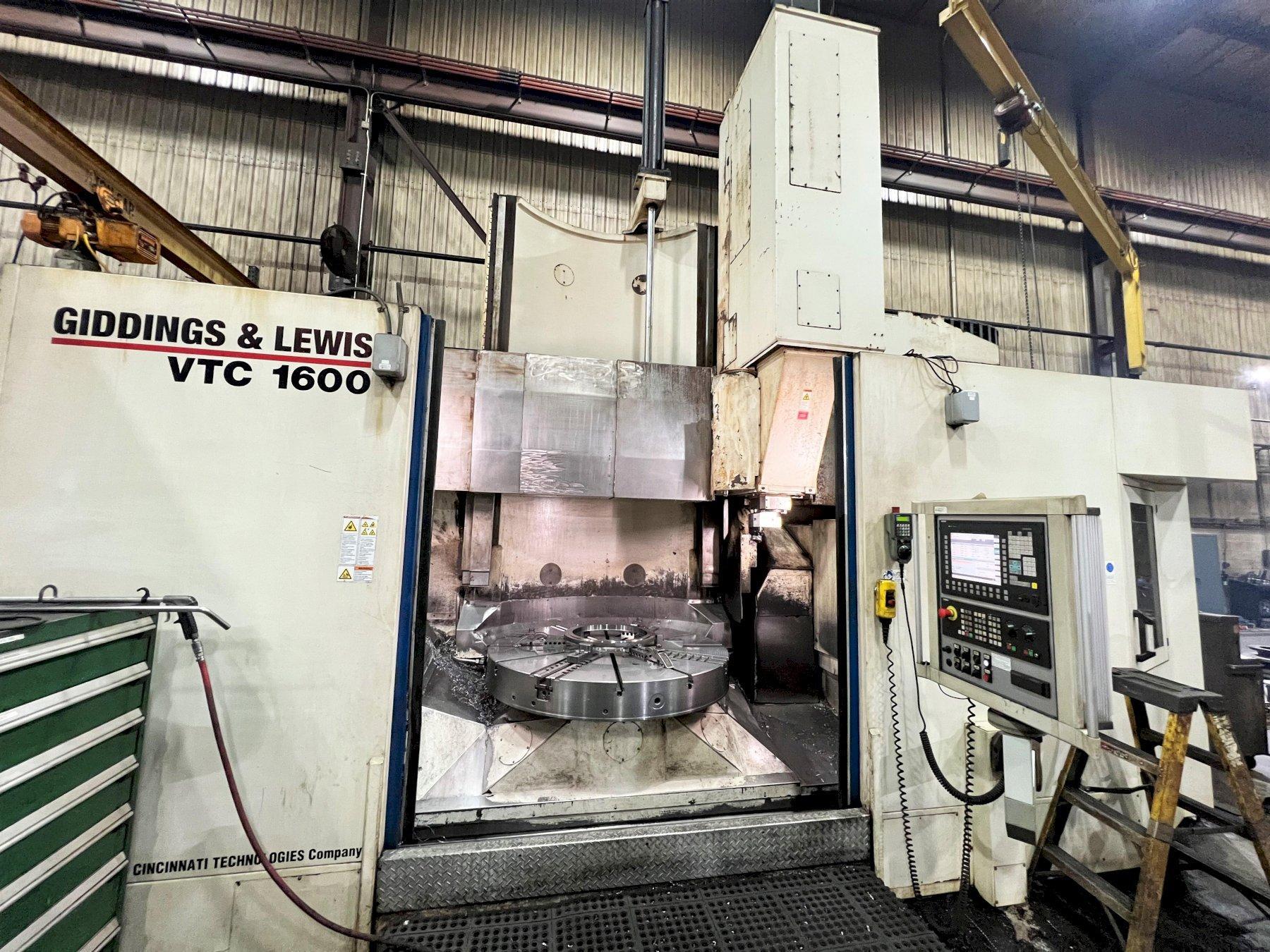

78" Gidding & Lewis CNC VTL with Live Tooling, C- Axis, Siemens control, 2006

Brand
GIDDINGS & LEWIS

Model
VTC-1600

Type
Boring Mills, Vertical, CNC (Including VTL)

Stock #
10816

Condition
Used

Year
2006

Request a Quote

Specifications

TABLE DIAMETER 62.99"
MAXIMUM TURNING DIAMETER 78.74"
RAM STROKE 68.89
MAXIMUM CUTTING HEIGHT 75.98"
TURNING TOOL TAPER WEDGE LOCK
TABLE SPEEDS 1-400 RPM
TABLE MOTOR 100 HP
TABLE INDEXING, C-AXIS .001 DEGREES
LIVE MILLING SPINDLE SPEEDS 4,000 RPM
LIVE SPINDLE TAPER KM80
LIVE MILLING MOTOR 44 HP

Equipped With

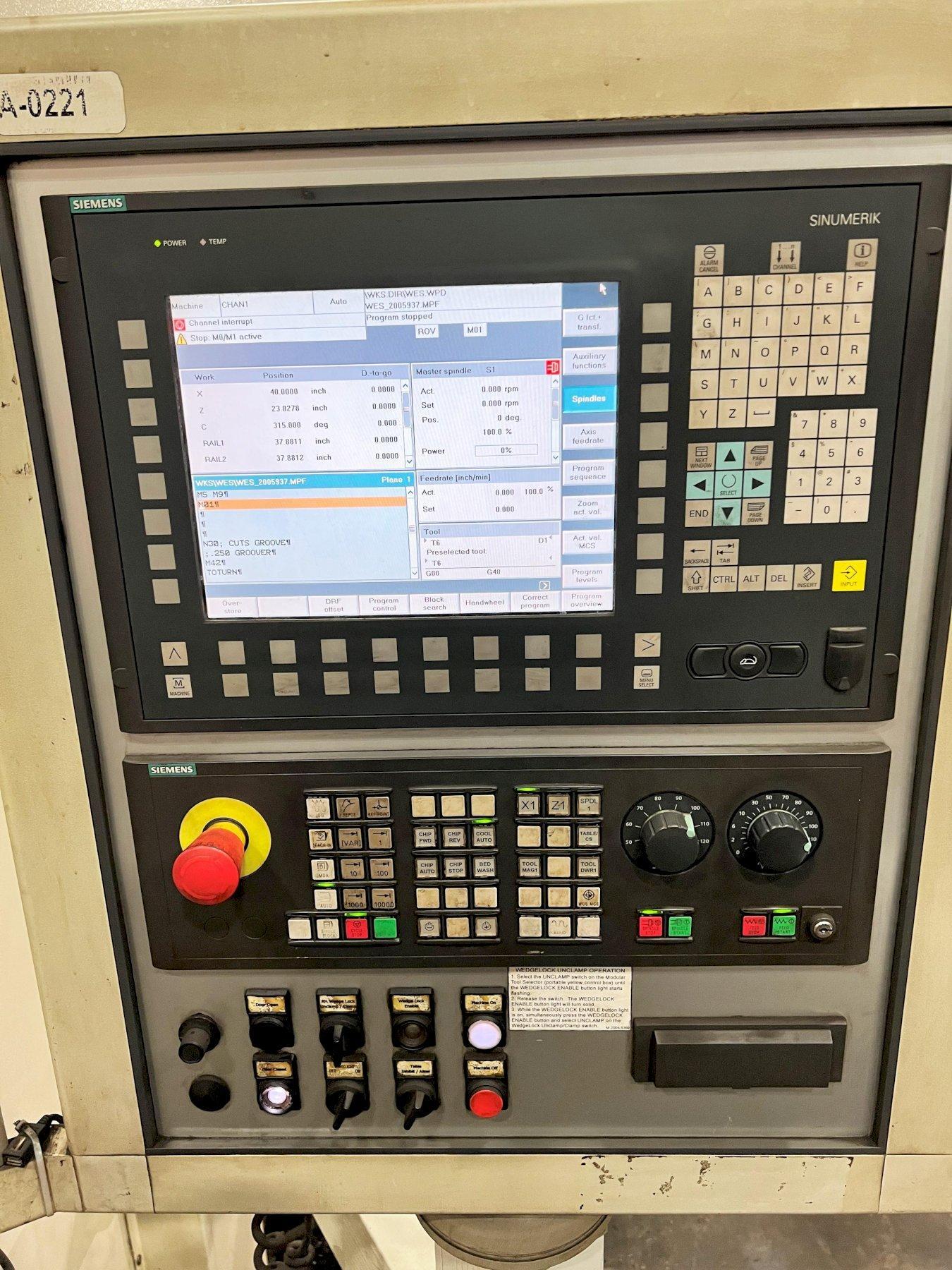

SIEMENS 840D CNC CONTROL
25-STATION AUTOMATIC TOOL CHANGER

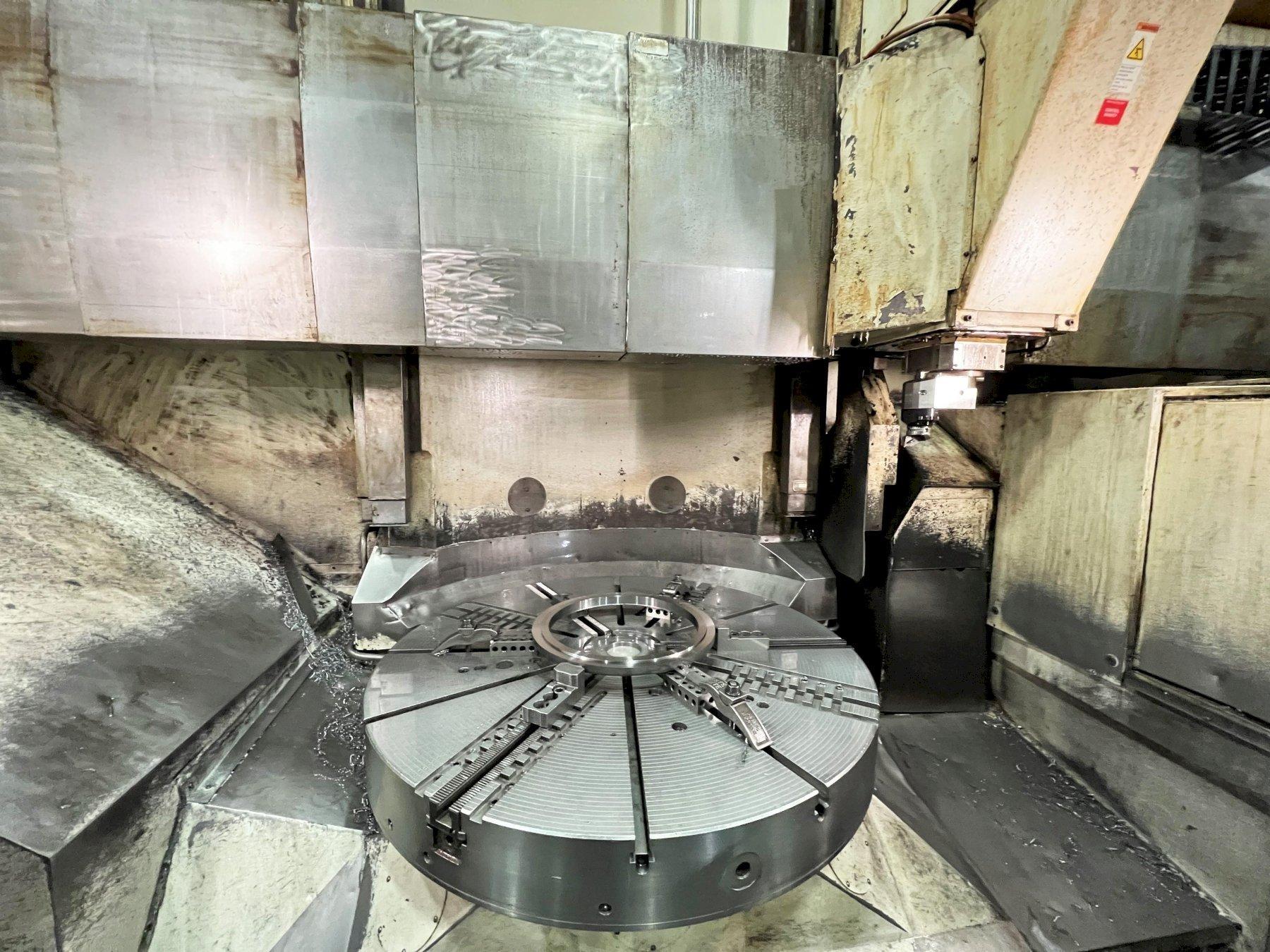

62.99" DIA. 3-JAW/4-JAW COMBINATION CHUCK

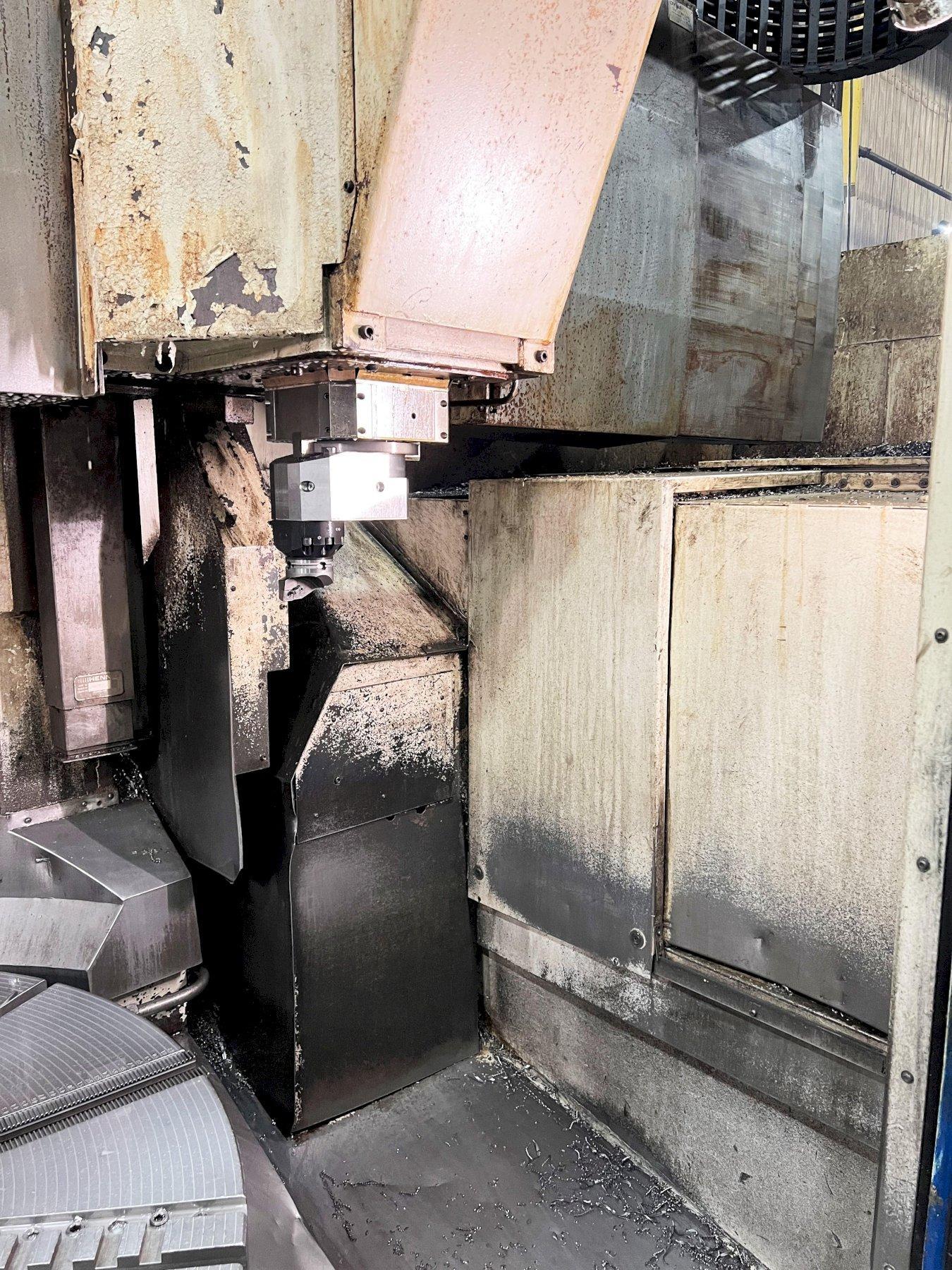

LIVE SPINDLE FOR MILLING & DRILLING
C-AXIS TABLE FOR MILLING & DRILLING
COOLANT THRU SPINDLE
FULL CHIP AND COOLANT ENCLOSURE WITH ROOF
CHIP CONVEYOR 100 HP TABLE MOTOR
RIGHT ANGLE HEAD
PROBE
