Specifications
Equipped With
GENERAL SPECIFICATIONS:
MANUFACTURER................................ PACIFIC
MODEL....................................... J75-8
SERIAL #.................................... 9996
NEW......................................... 1986
CAPACITY.................................... 75 TON
OVERALL LENGTH.............................. 8'
DISTANCE BETWEEN HOUSINGS................... 6'6"
MAIN MOTOR.................................. 15 HP
RAM STROKE.................................. 0-7" VARIABLE
OPEN HEIGHT................................. "
CLOSED HEIGHT............................... "
DIMENSIONS (APPROX.) 146" x 53" x 120"H
WEIGHT (APPROX.) 14,000 LBS.
EQUIPPED WITH:

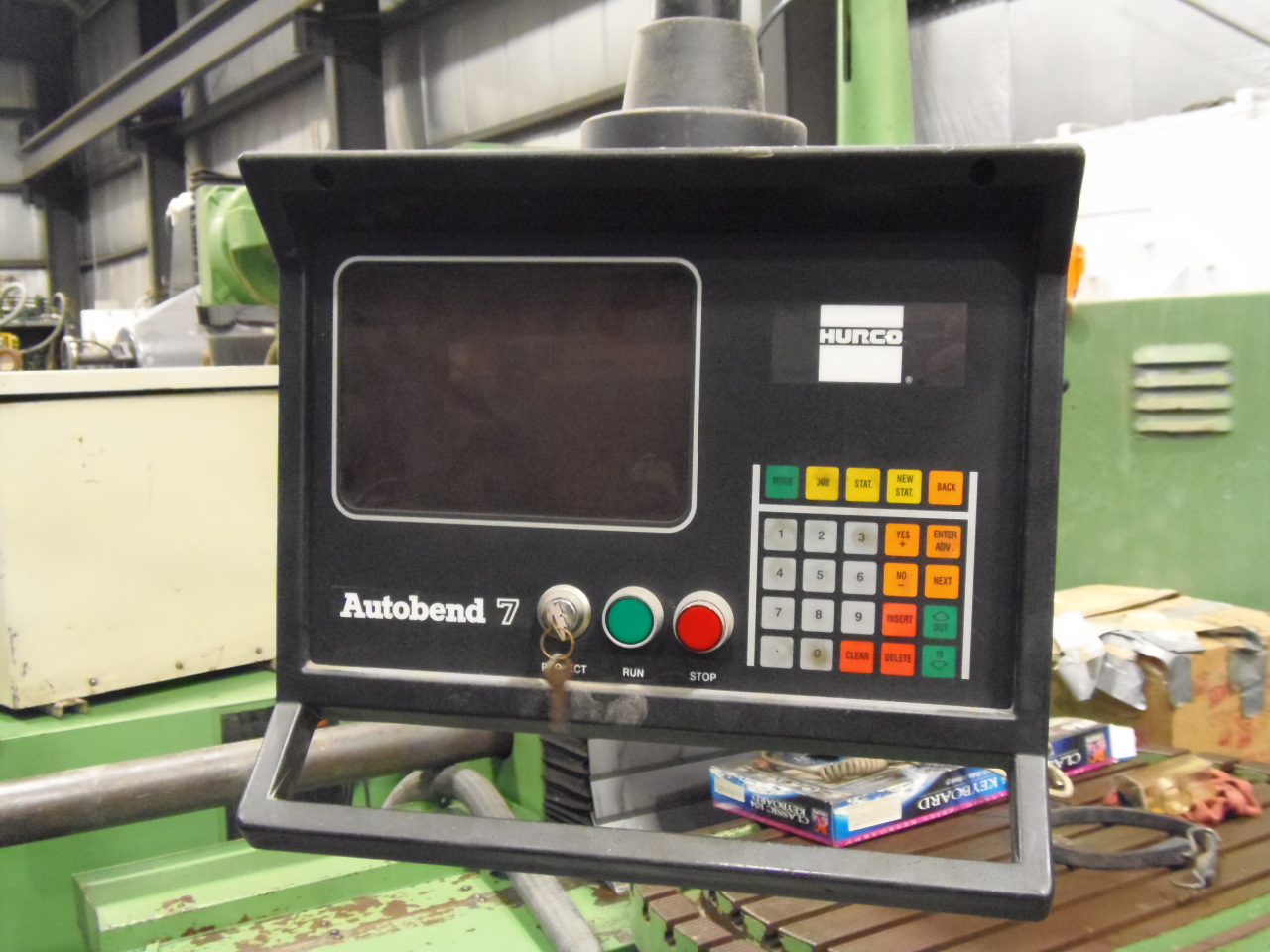

HURCO AUTOBEND 7 2-AXIS CNC BACKGAUGE WITH MANUAL HEIGHT ADJUSTMENT

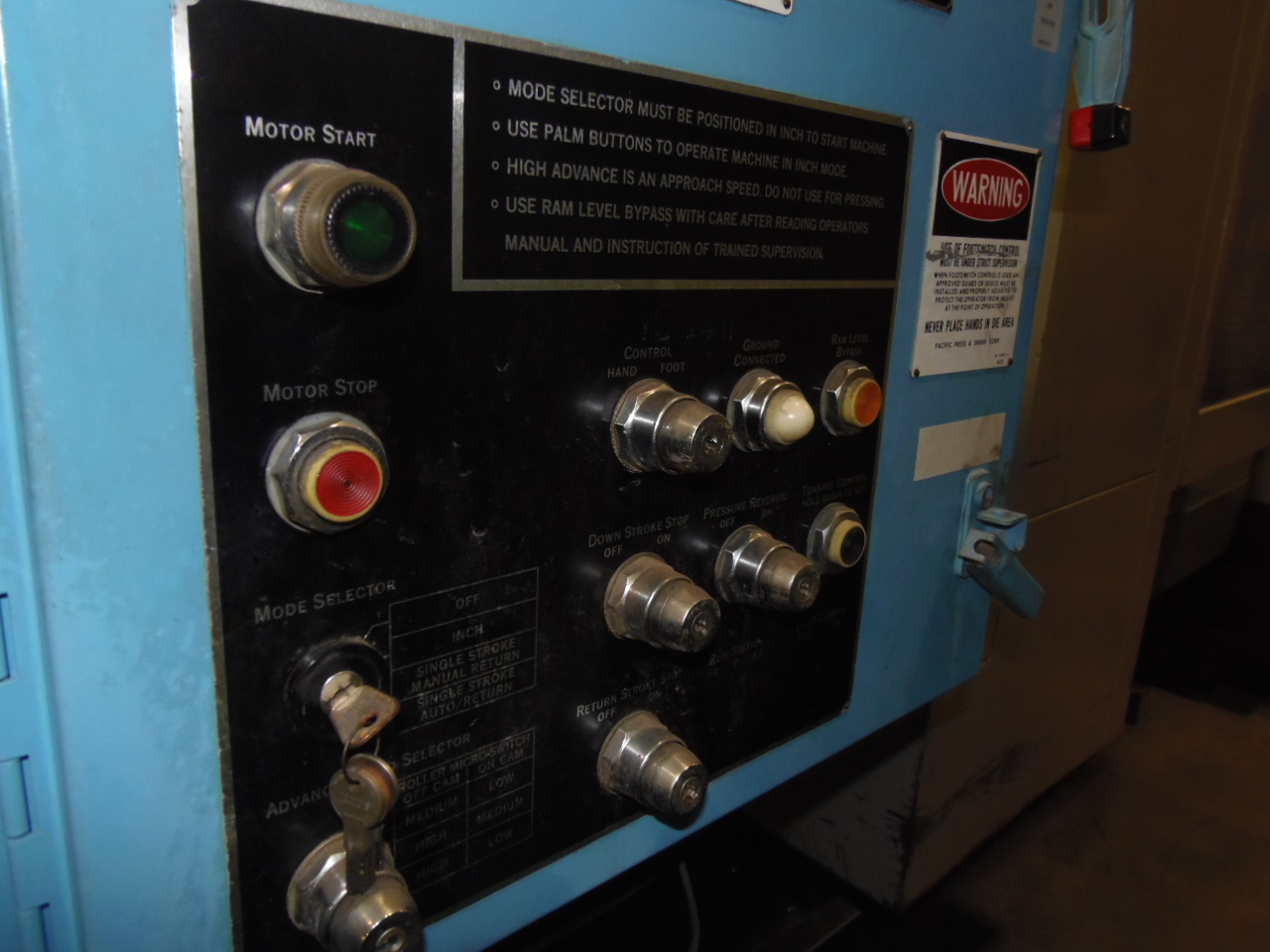

OFF, INCH, SINGLE STROKE/MANUAL RETURN, SINGLE STROKE/AUTO RETURN
ADVANCED SPEED SELECTION-MED/LOW, HIGH/MED, HIGH/LOW
HAND/FOOT CONTROL
TONNAGE CONTROL

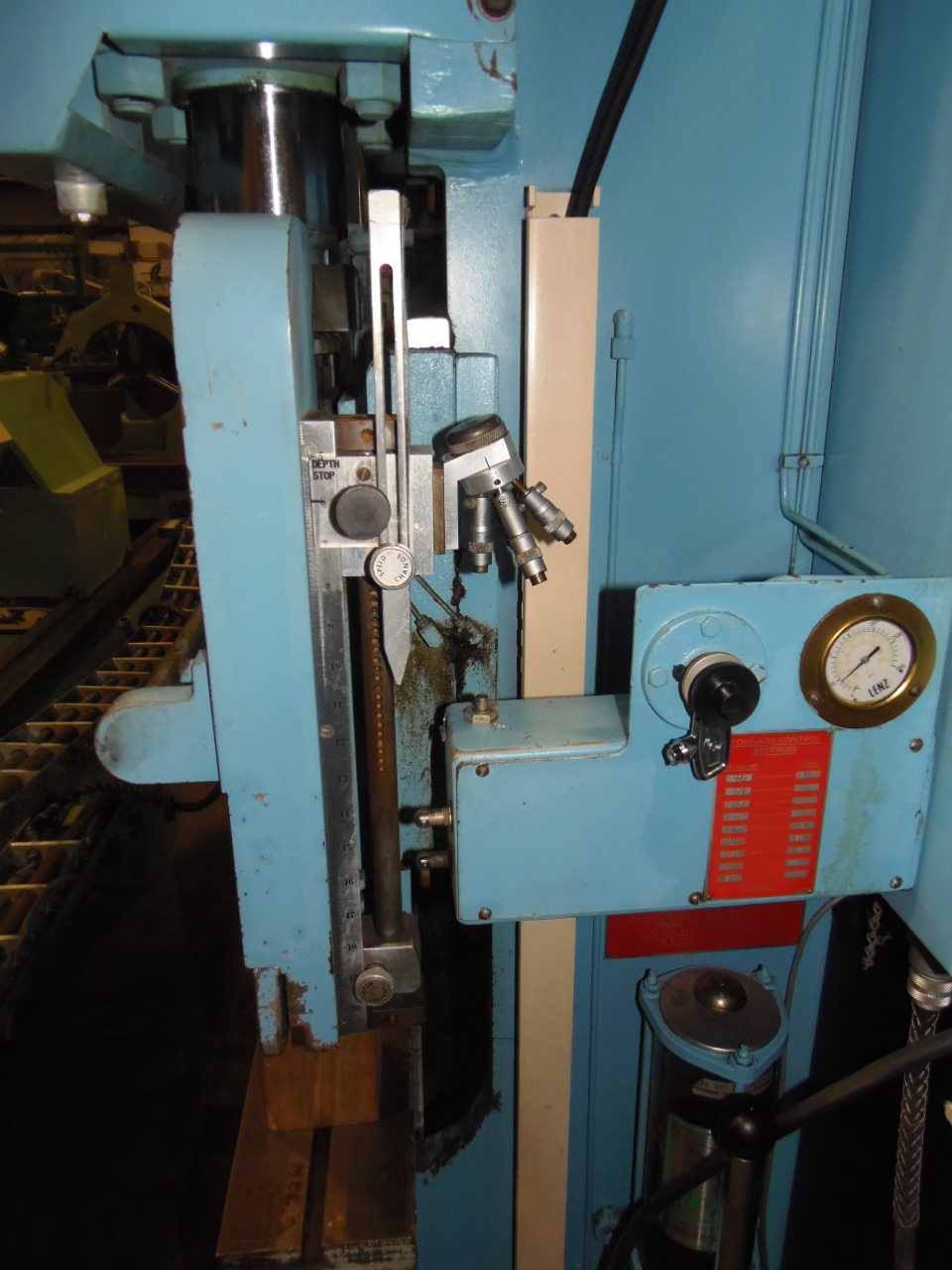

MICROMETER DEPTH STOP
FINE TILT ADJUSTMENT

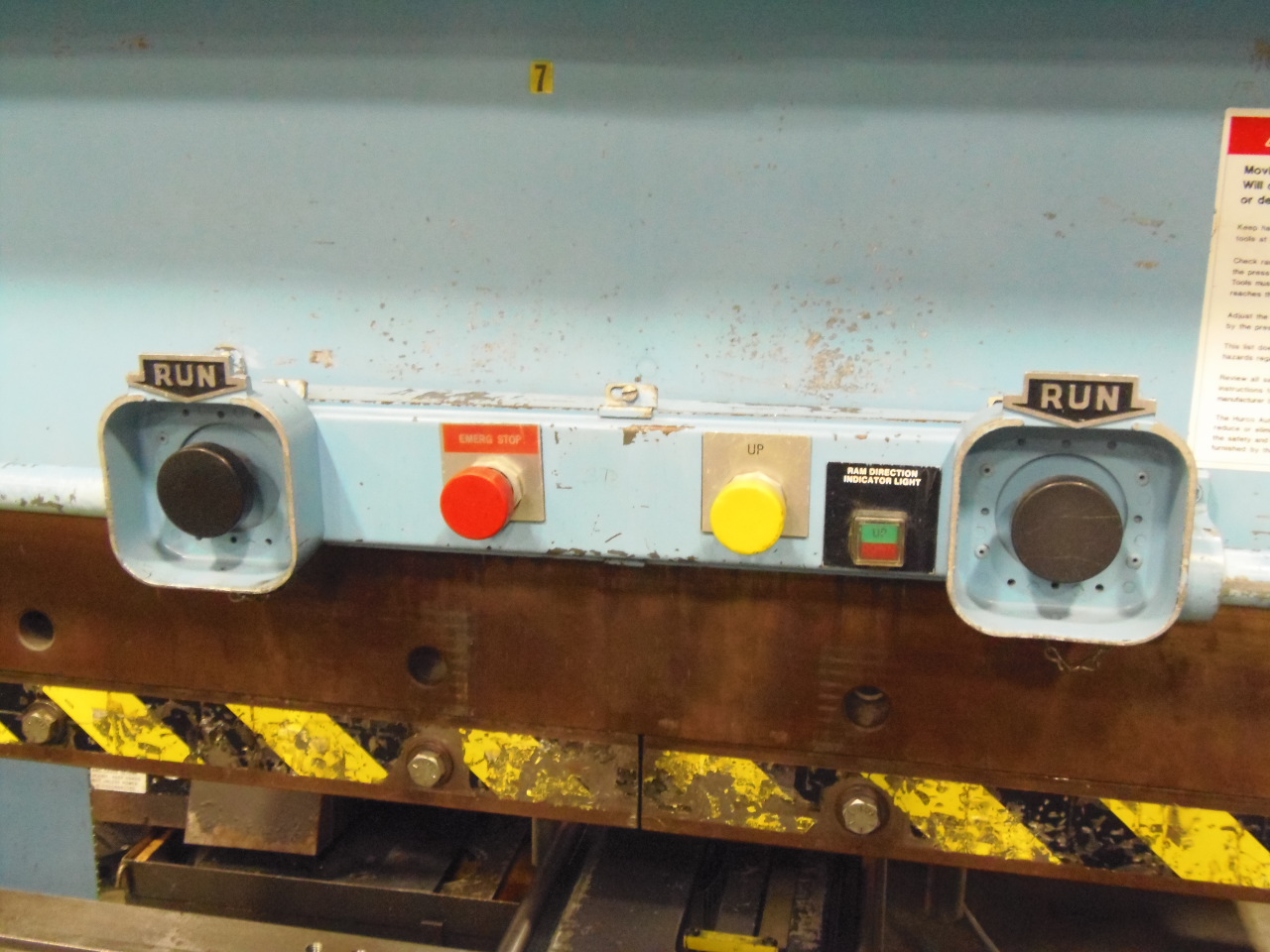

DUAL PALM BUTTONS
DUAL PALM BUTTONS
FOOT CONTROLS
2 SPEED
SPECIFICATIONS SUBJECT TO VERIFICATION
