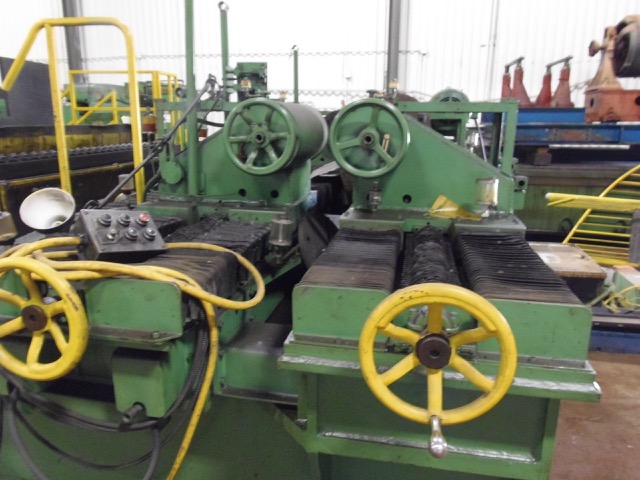

Specifications

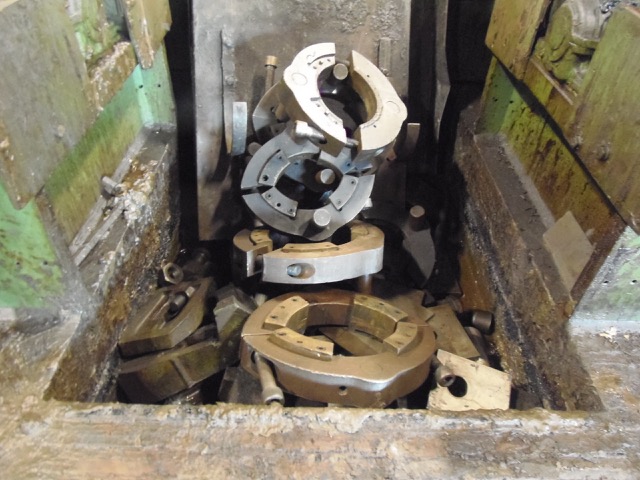

Equipped With
GENERAL SPECIFICATIONS:

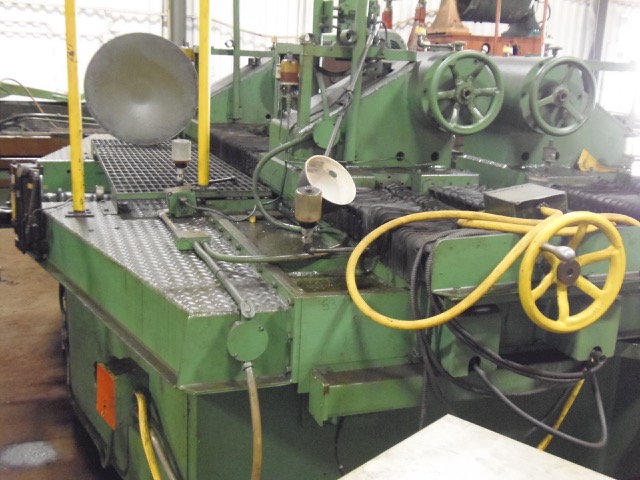

HEAD STOCK (DRIVE GEAR UNIT)
MAX. DISTANCE TO CENTERLINE OF MACHINE... 48"
MIN. DISTANCE TO CENTERLINE OF MACHINE... 12.125"
MAX. THRUST LOAD......................... 3,000 LBS

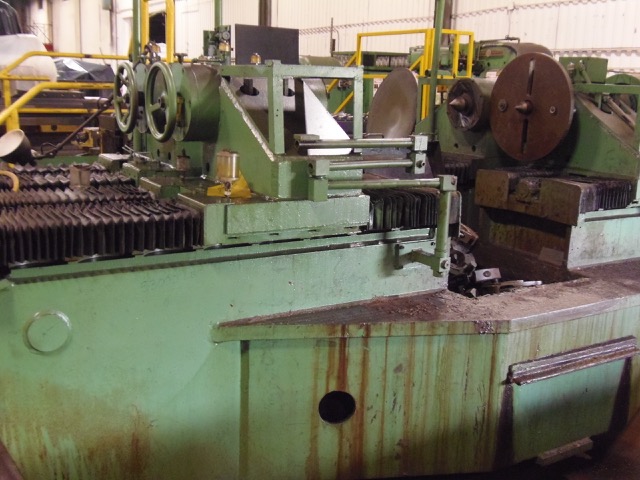

TAIL STOCK (GEAR UNIT)
MAX. DISTANCE TO CENTERLINE OF MACHINE... 50.25"
MIN. DISTANCE TO CENTERLINE OF MACHINE... 12.125"
MAX. THRUST LOAD......................... 3,000LBS
QUILL TRAVEL............................. 2" MAX.

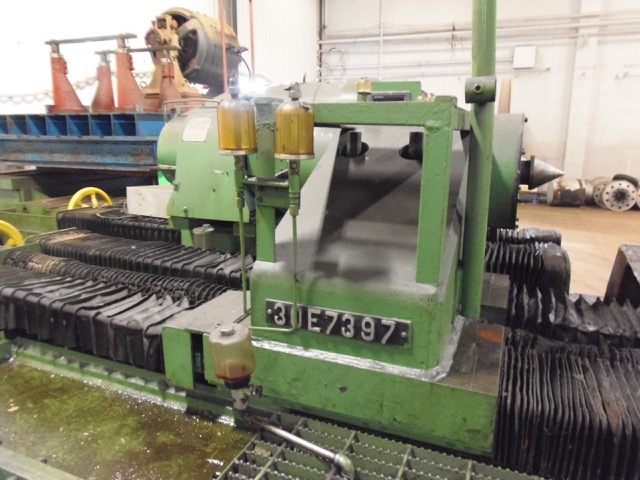

PINION CENTERS
MAX. DISTANCE TO CENTERLINE OF MACHINE... 45"
MIN. DISTANCE TO CENTERLINE OF MACHINE... 36"
MAX. THRUST LOAD......................... 2,000 LBS
QUILL TRAVEL............................. 2" MAX
GEAR
MAX. FACE WIDTH.......................... 26"
MAX. OUTSIDE DIAMETER.................... 72"
MIN. OUTSIDE DIAMETER.................... 26"
MAX. WEIGHT OF GEAR ASSEMBLY............. 8,000 LBS
PINION
MAX. OUTSIDE DIAMETER.................... 21"
MAX. WEIGHT OF PINION ASSEMBLY........... 3,000 LBS
ALL SPINDLE TAPERS.......................... 6 MT

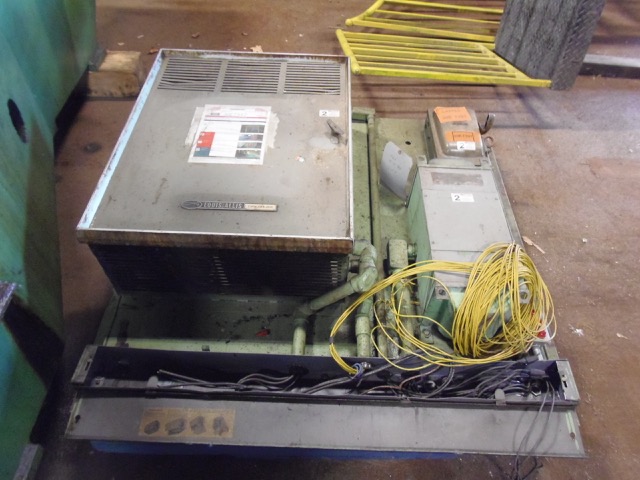

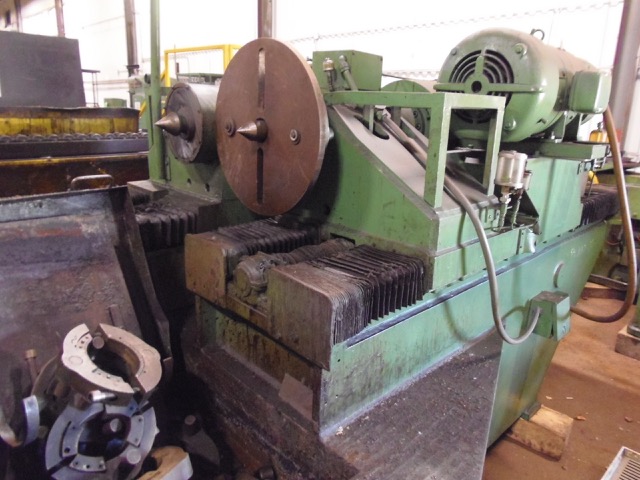

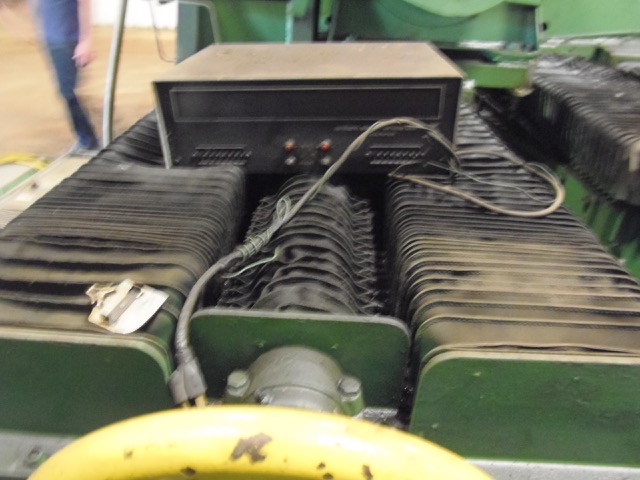

DRIVE UNIT
SIZE 515 NZ 3 RATIO 106.8:1 EXACT, INCLUDING LOUIS ALLIS ALLISPIDE, TYPE AX, SIZE 3-254U, 5HP, 3 PHASE 60 CYCLE, 220/440 VOLTS, DRIP PROOF, "Z" FLOW, 1200 RPM MOTOR, MOTOREDUCER INPUT 2630/328 RPM, RATION 802:1 GIVING FINAL MOTOREDUCER OUPUT 24.7/3.08 RPM
NOTE: THIS MACHINE IS USED TO RUN A GEAR AND PINION TOGETHER WHILE USING LAPPING COMPOUND TO PROVIDE FOR A BETTER FINISH.
