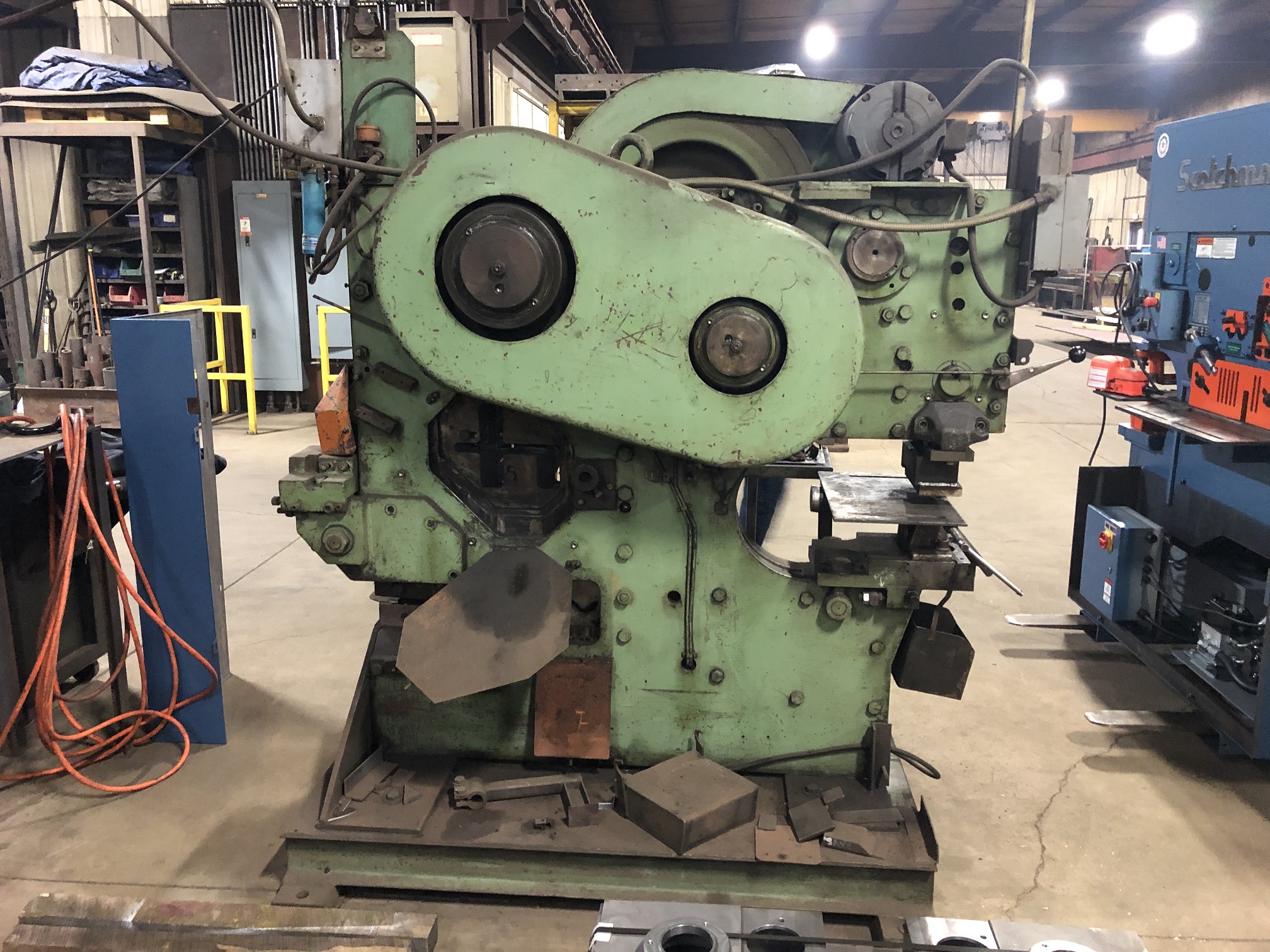

GENERAL SPECIFICATIONS:

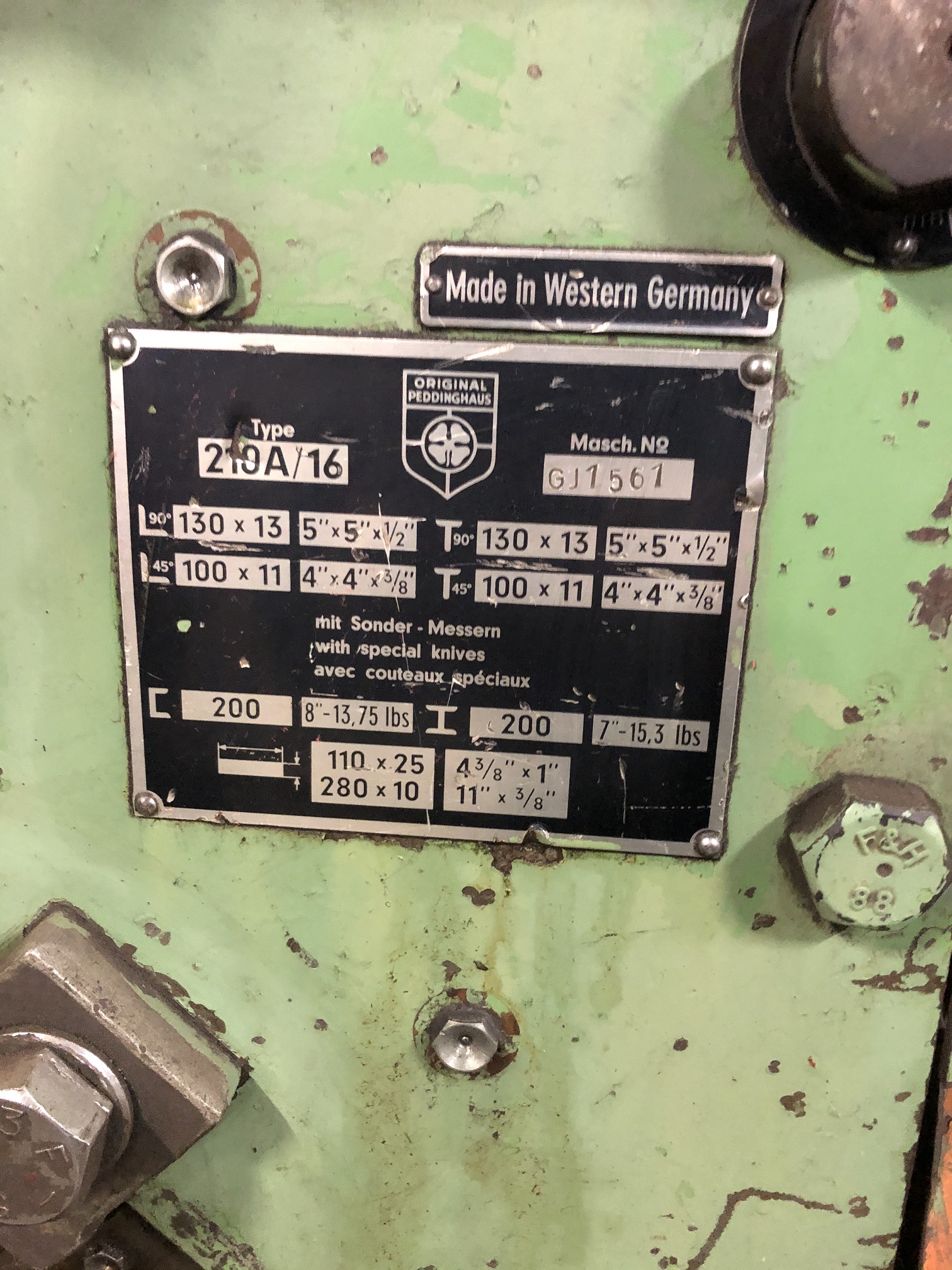

MANUFACTURER..................... PEDDINGHAUS
MODEL............................ 210A/16
SERIAL NUMBER.................... GJ1561
SHEARING
FLAT SHEAR....................... 11" X 3/8"
4 3/8" X 1"
CHANNELS......................... 8" - 13.75 LBS
ANGLES 90 DEGREE................. 5" X 5" X 1/2"
45 DEGREE................. 4" X 4" X 3/8"
T SHAPE 90 DEGREE................ 5" X 5" X 1/2"
45 DEGREE................ 4" X 4" X 3/8"
I BEAMS.......................... 7" - 15.3 LBS
SQUARE BARS...................... 1.75"
ROUND BARS....................... 1 7/8"
NOTCHING
PLATE............................ 9/16"
L OR T STEEL..................... 3" X 1/2"
COR I STEEL FLANGE............... 3 TO 7
NOTCHING WIDTH................... 2"
NOTCHING DEPTH................... 3 5/16"

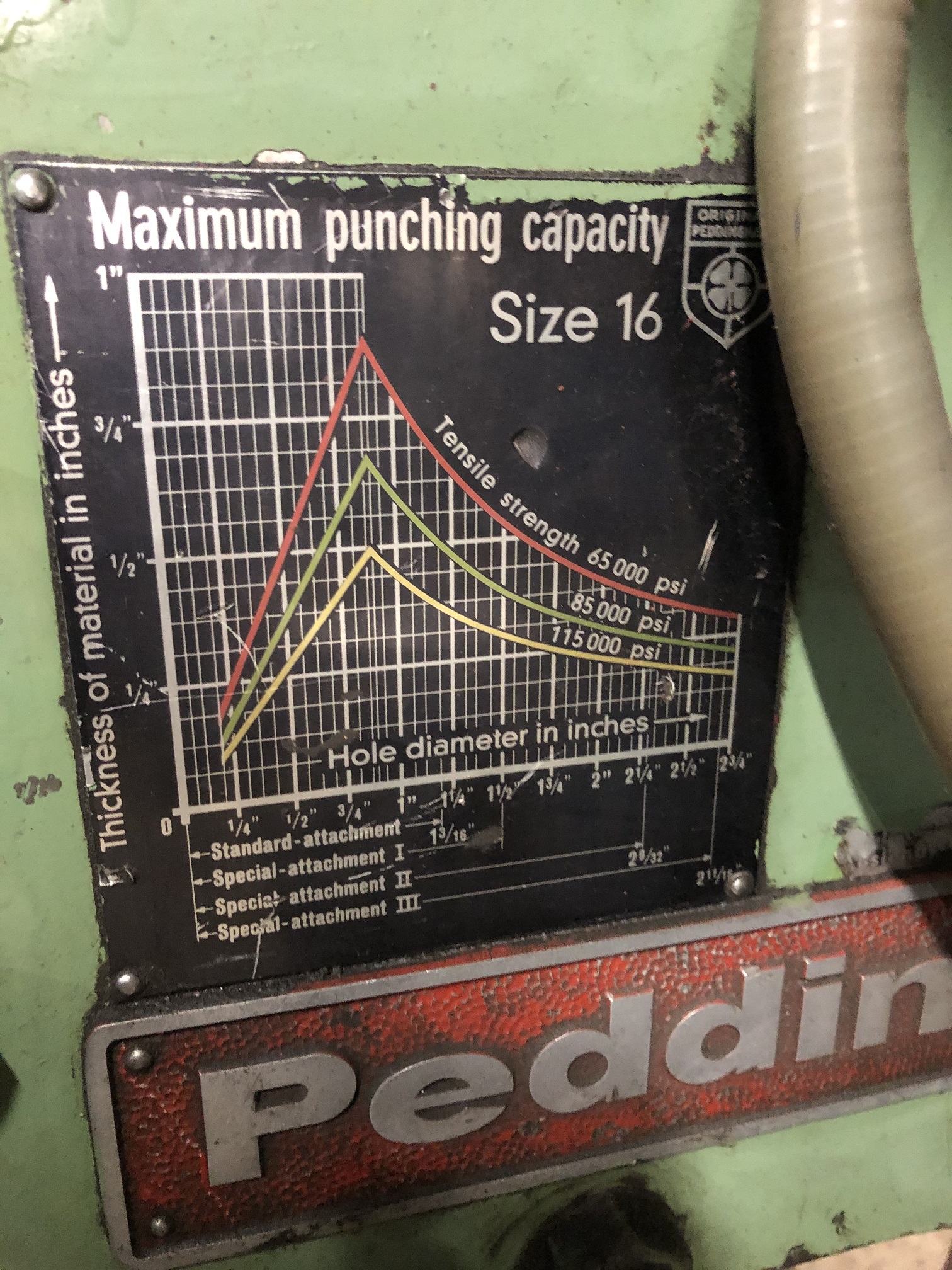

PUNCHING
PUNCH UNIT....................... 71 TONS
LENGTH OF STROKE................. 1 1/8"
HOLE CAPACITY.................... 1 1/16" THICKNESS X 3/4" HOLE
7/8" THICKNESS X 7/8" HOLE
C STEEL FLANGE................... 4 TO 18
I STEEL FLANGE................... 4 TO 24
C STEEL WEB...................... 4 TO 18
I STEEL WEB...................... 4 TO 20
STROKE RATE
SHEAR............................ 40
PUNCH............................ 42
HORSE POWER...................... 5
THROAT DEPTH..................... 14"
APPROXIMATE WEIGHT............... 9000 LBS
