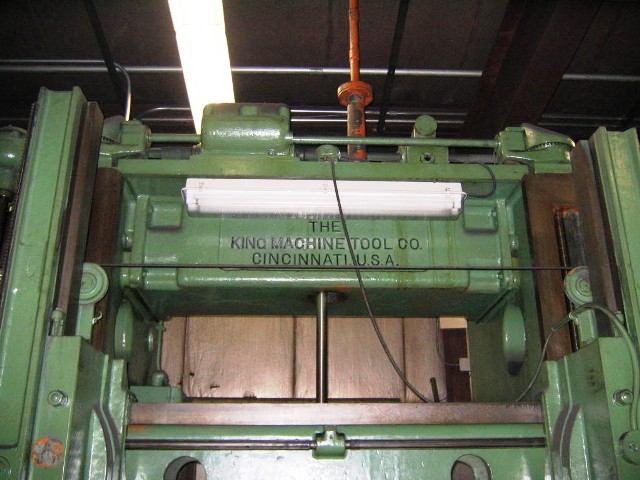

72" KING, DUAL RAM HEADS, 58" UNDER RAIL, 30 HP, 50 RPM

Specifications:

Maximum Swing With Head Down: .......78"
Maximum Swing With Head Up: .........76"
Under Rail: .........................58"
Table Speed: ....................... 1.4 to 45.1 RPM Feed Range: ............................. 010" to .500 Per/Rev, in 12 Steps
Rapid Traverse Rate: ................10 FPM
Ram Travel: .........................36"
Ram Head Travel: ...................42-1/2" Horizontal,
58" Vertical
Side Head Travel: ....................... 29" Horizontal,58" Vertical
Vertical Rail Adjustment: ........................ 50"
Overall height.......................150"


Equipped With:

4-Jaw Chuck
30 HP Motor- DC Drive

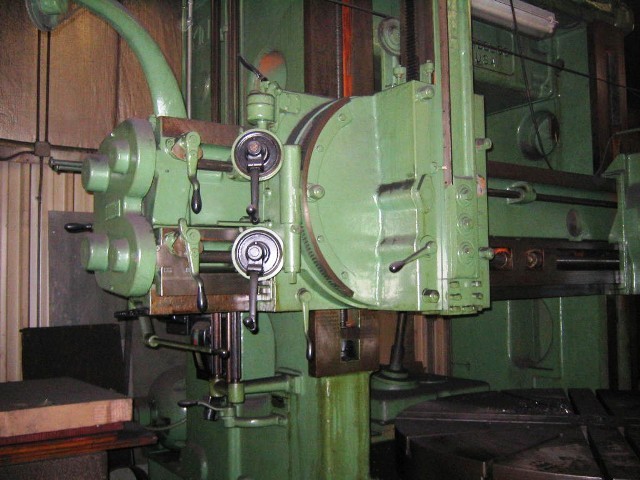

2 Swiveling Ram Heads

TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
