Specifications
Equipped With
GENERAL SPECIFICATIONS:

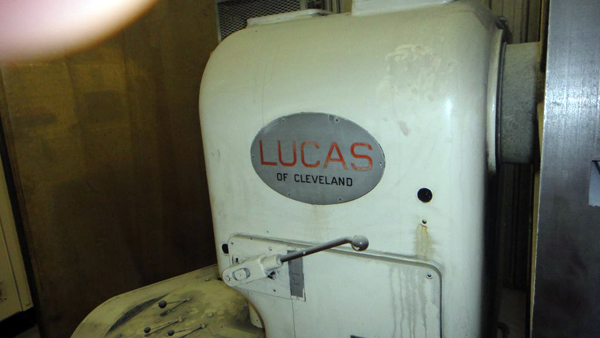

MANUFACTURER............................... LUCAS
MODEL...................................... 524
SERIAL NUMBER.............................. 5240102
SWING OVER WAYS............................ 70"
SWING OVER CROSS SLIDE..................... 50"
MAX. DISTANCE SPINDLE NOSE TO TAIL STOCK... 84"
CENTER DISTANCE............................ 70"
SPINDLE NOSE............................... A1-11 STANDARD
CENTER-SPINDLE NOSE........................ #6 MT WITH DRAW BAR
TAIL STOCK................................. LEBLOND 20" HEAVY DUTY, WORM OPERATED, #4 MT
RPM RANGE-LOW ...................... 4,5,6,7.5,9,11,13.5,16.5,20
HIGH ..................... 24,29,36,44,54,65,80,98,118
SADDLE AND TABLE FEED RANGE IN IPM
LOW RPM .................. .0014 TO .426 IN 18 STEPS
HIGH RPM.................. .0002 TO .071 IN 18 STEPS
EQUIPPED WITH:
20 HP MAIN MOTOR
RAPID TRAVERSE

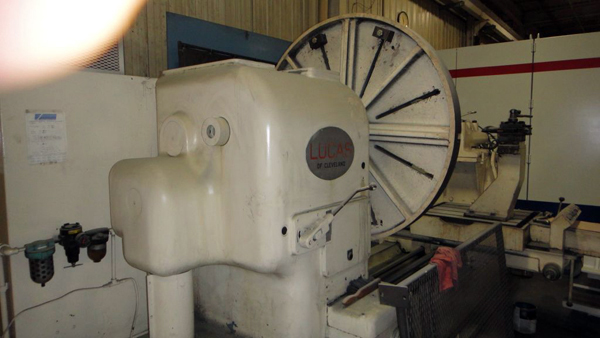

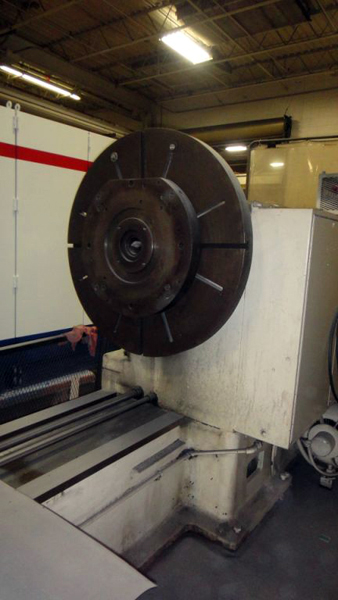

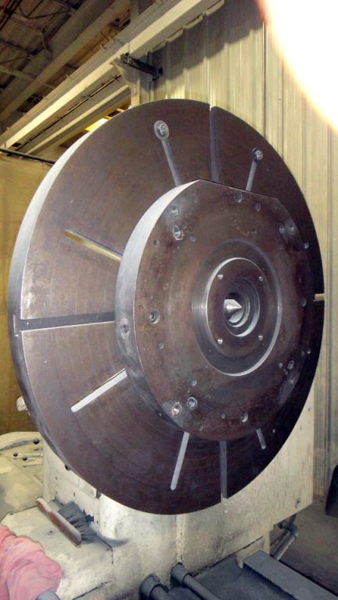

FACE PLATE

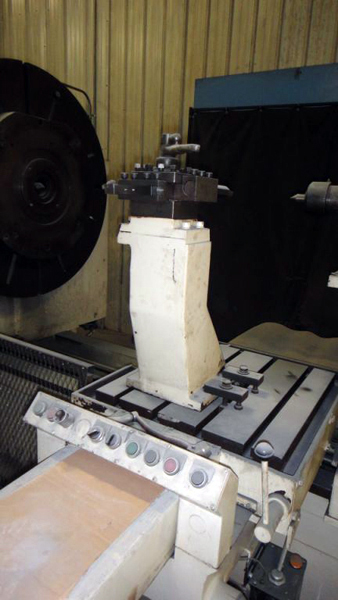

5 1/2" W&S TOOL POST

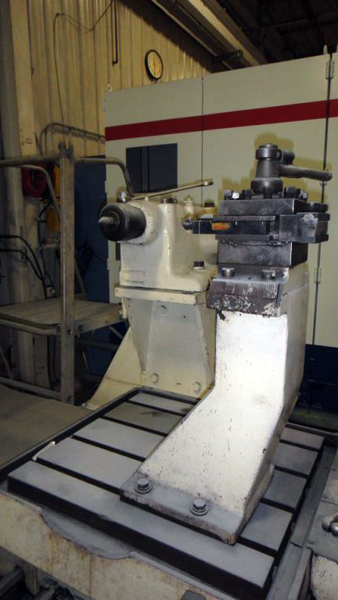

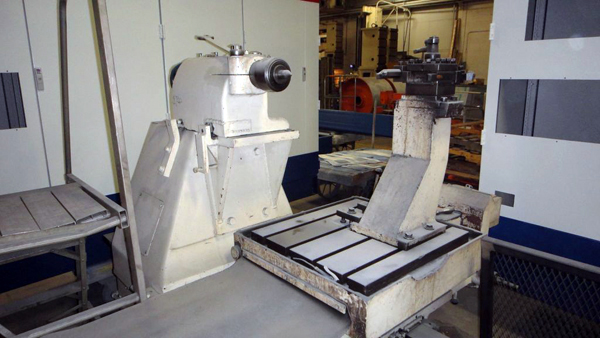

TAIL STOCK
FLUSH FLOOR MOUNT
