Specifications
Equipped With
GENERAL SPECIFICATIONS:

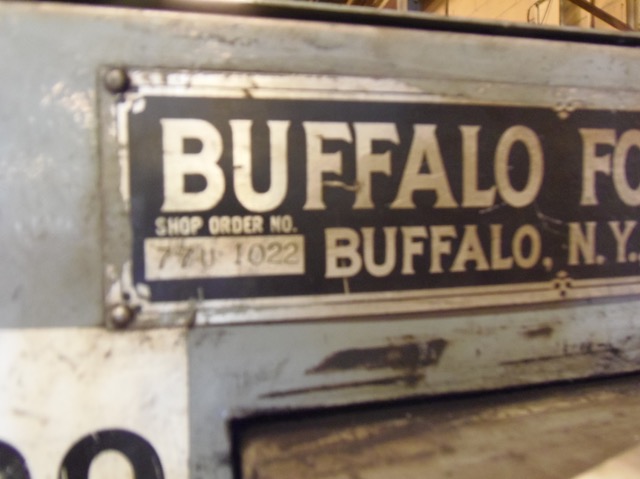

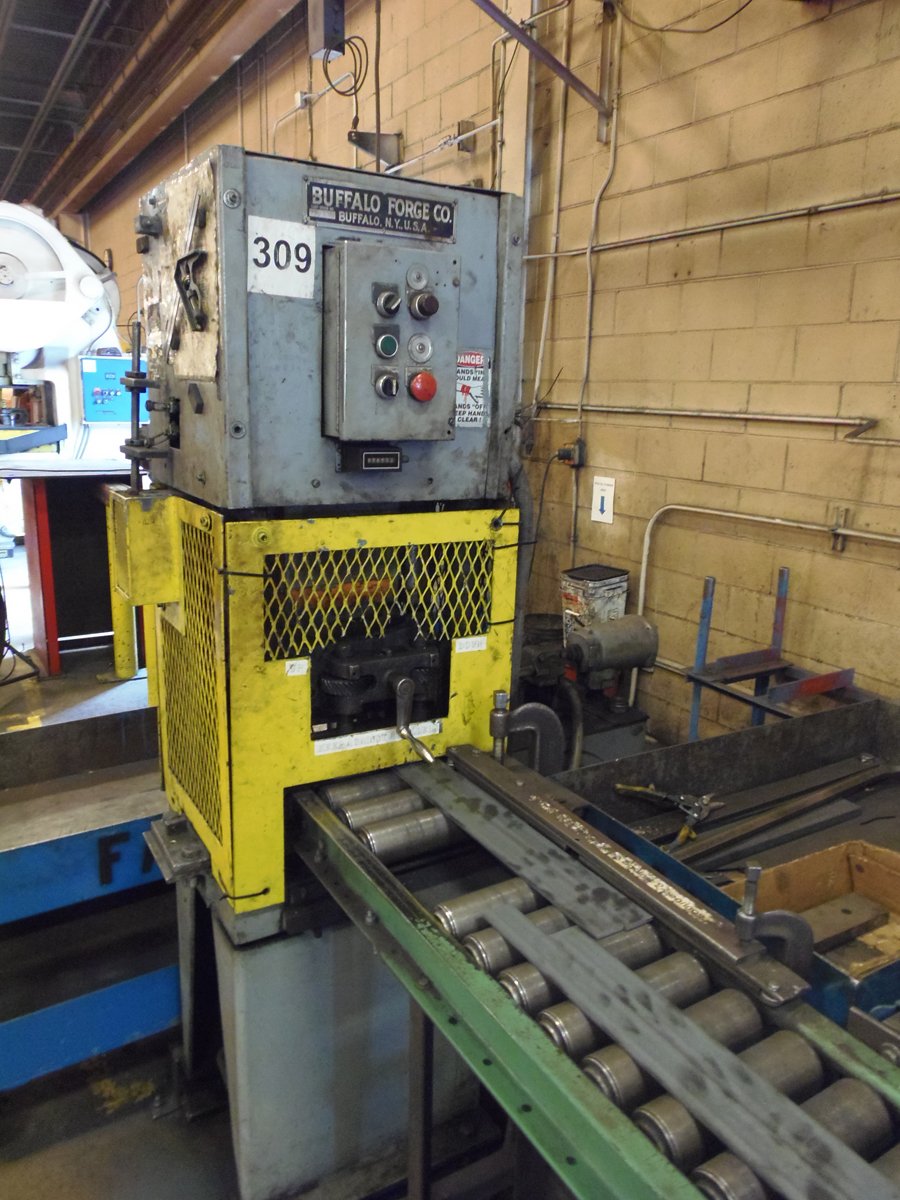

MANUFACTURER................... BUFFALO
MODEL.......................... 70
TONNAGE........................ 70
RATE CAPACITY
ANGLES...................... 6" X 6" X 1/2"
FLATS....................... 1/2" X 6"
ROUNDS...................... 1 3/4"
SQUARES..................... 1 1/2"
CHANNELS.................... 6"@13#
I BEAM...................... 5"@10#
CYLINDER
DIAMETER OF PISTON.......... 8"
STROKE...................... 4"
DIAMETER OF ROD............. 4.5"
COLUMN DIAMETER................ 2.5"
DISTANCE BETWEEN COLUMNS
L/R......................... 12.5"
F/B......................... 9.5"
DISTANCE BETWEEN RAM AND PLATEN
MINIMUM..................... 11.5"
MAXIMUM..................... 15.5"

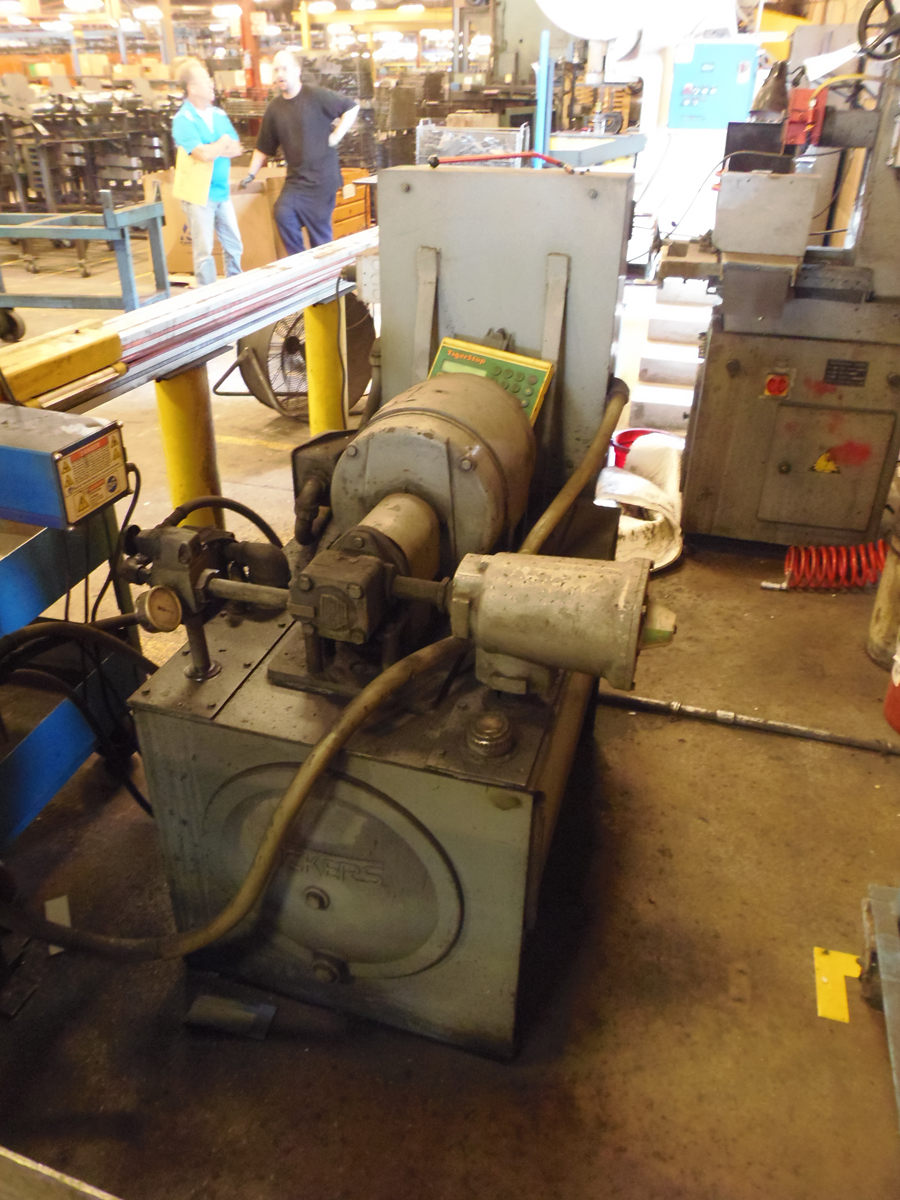

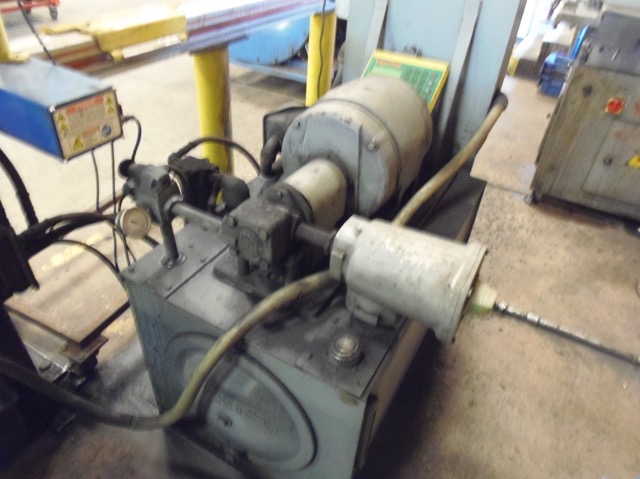

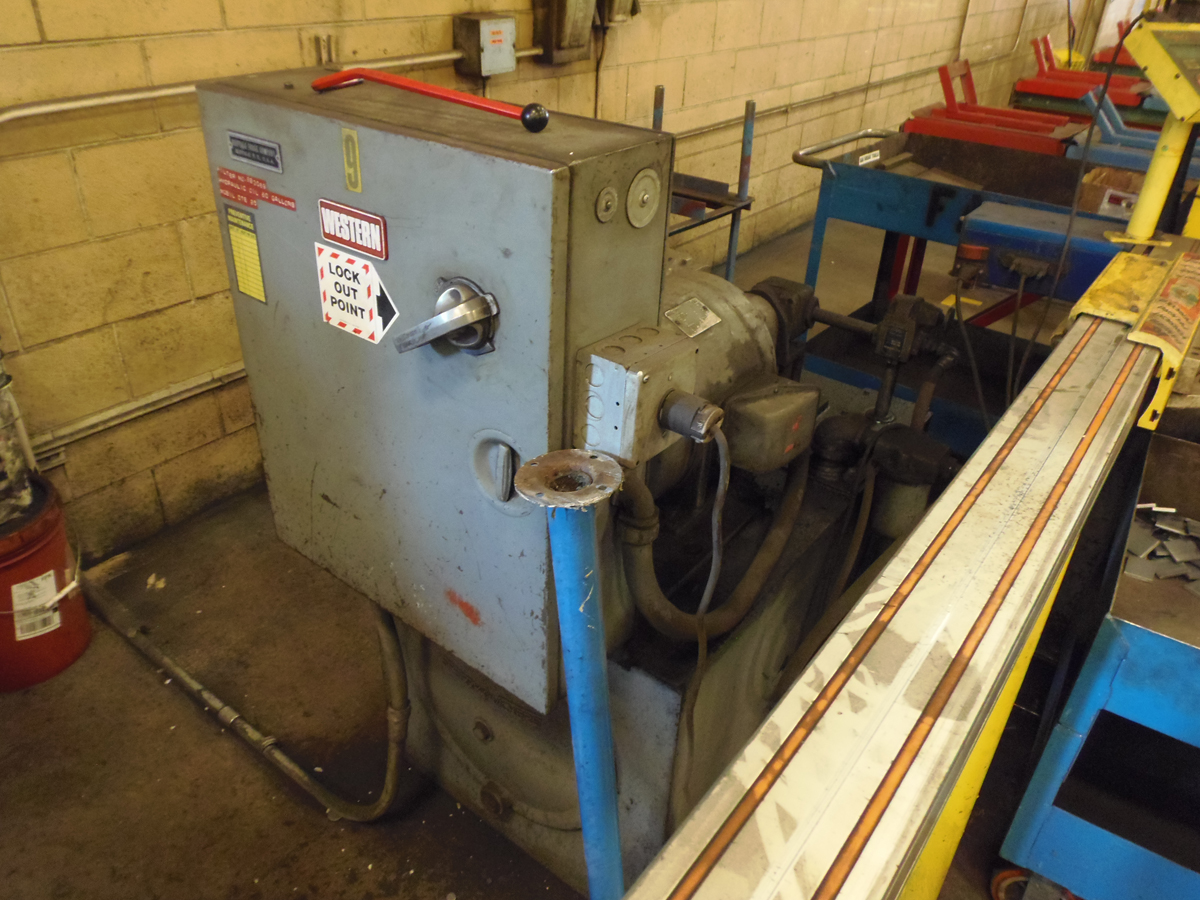

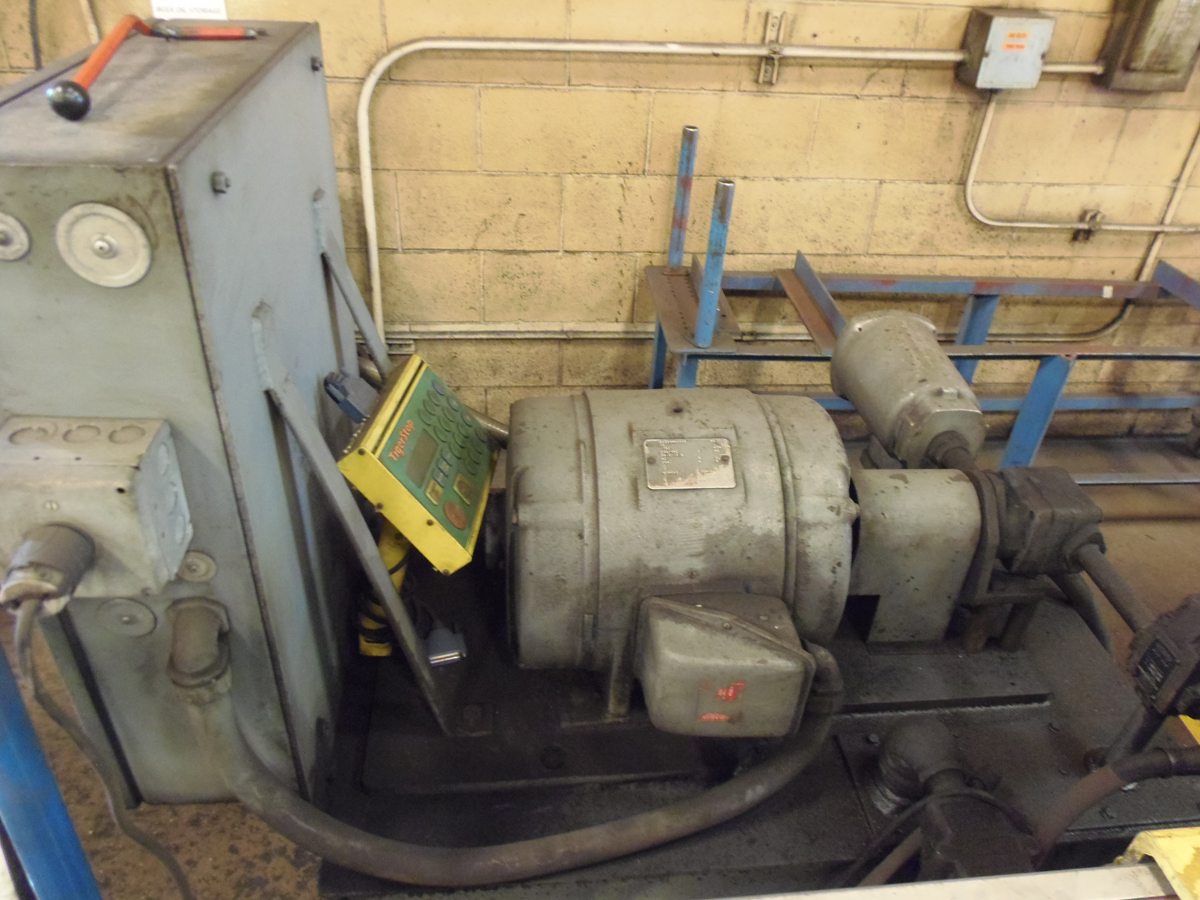

HYDRAULIC UNIT
GPM......................... 16
MAX. PRESSURE............... 2800 PSI

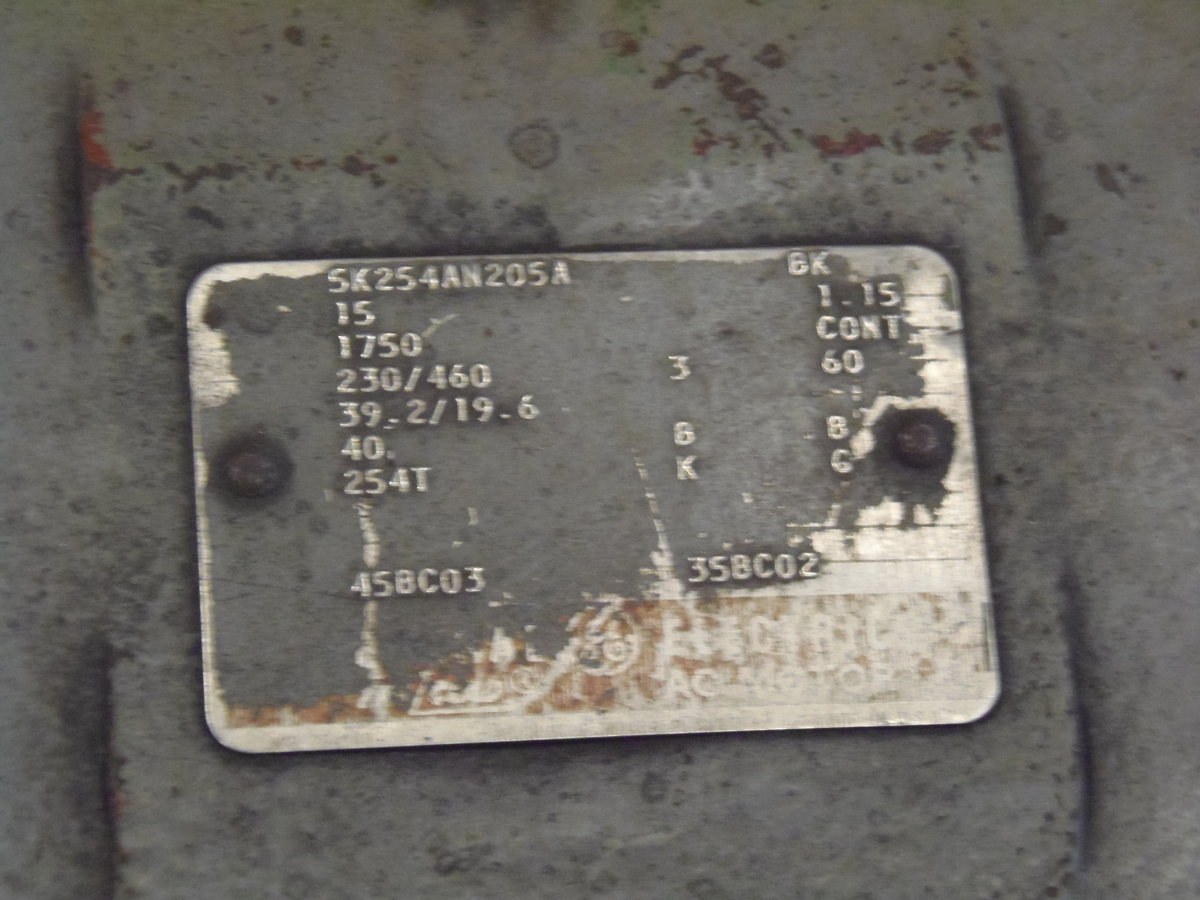

MOTOR HP.................... 20
RPM......................... 1800
RESERVOIR CAPACITY.......... 60 GALLON
DIMENSIONS

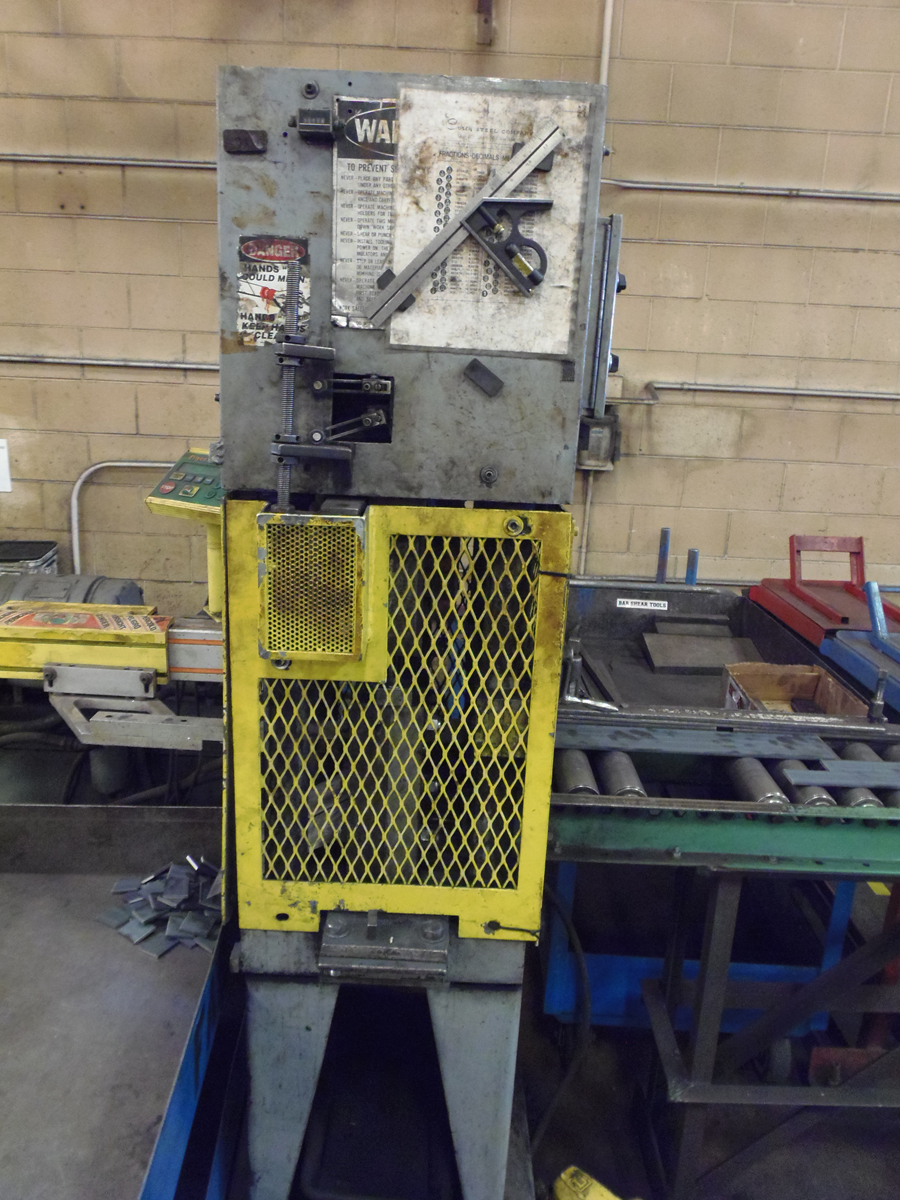

SHEAR UNIT.................. 20" X 20" X 70" TALL
HYDRAULIC UNIT.............. 24" X 34" X 38" TALL
EQUIPPED WITH:

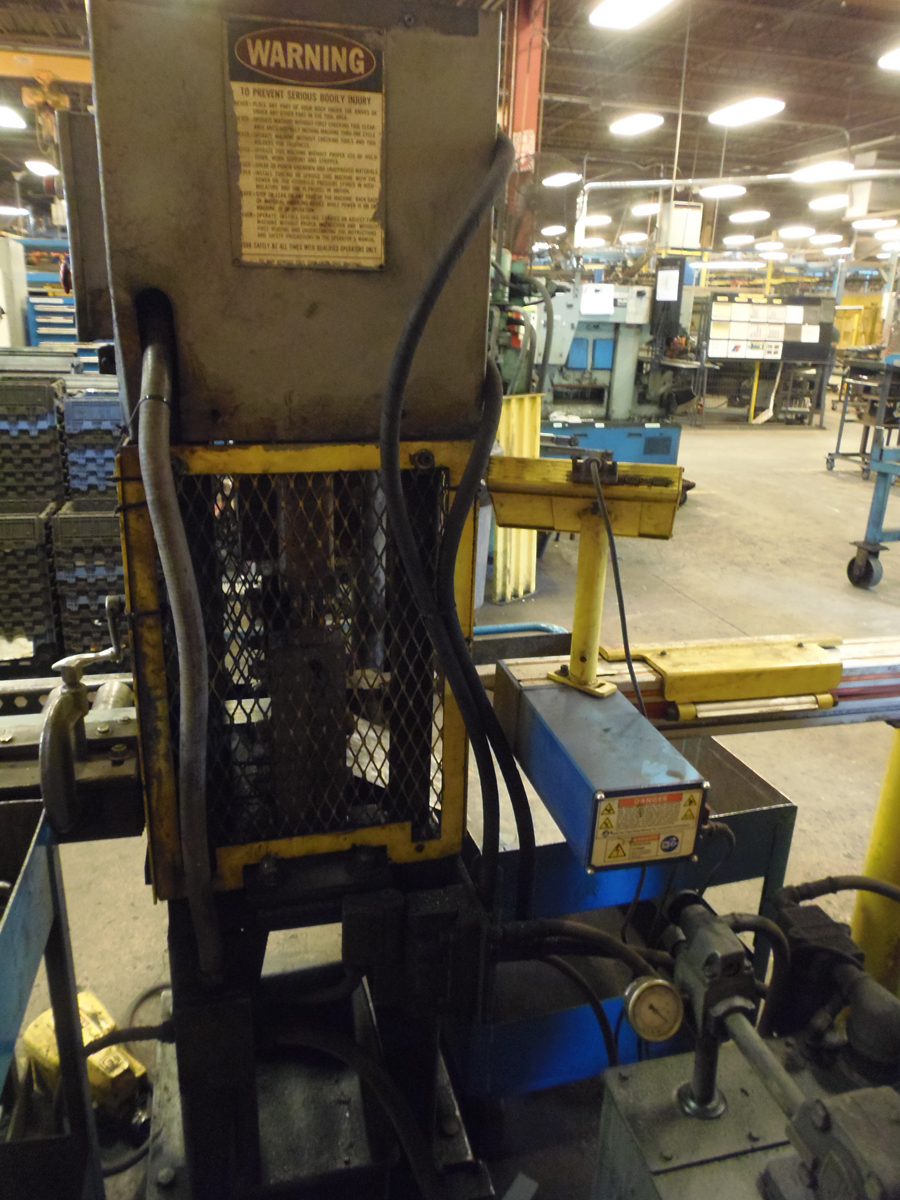

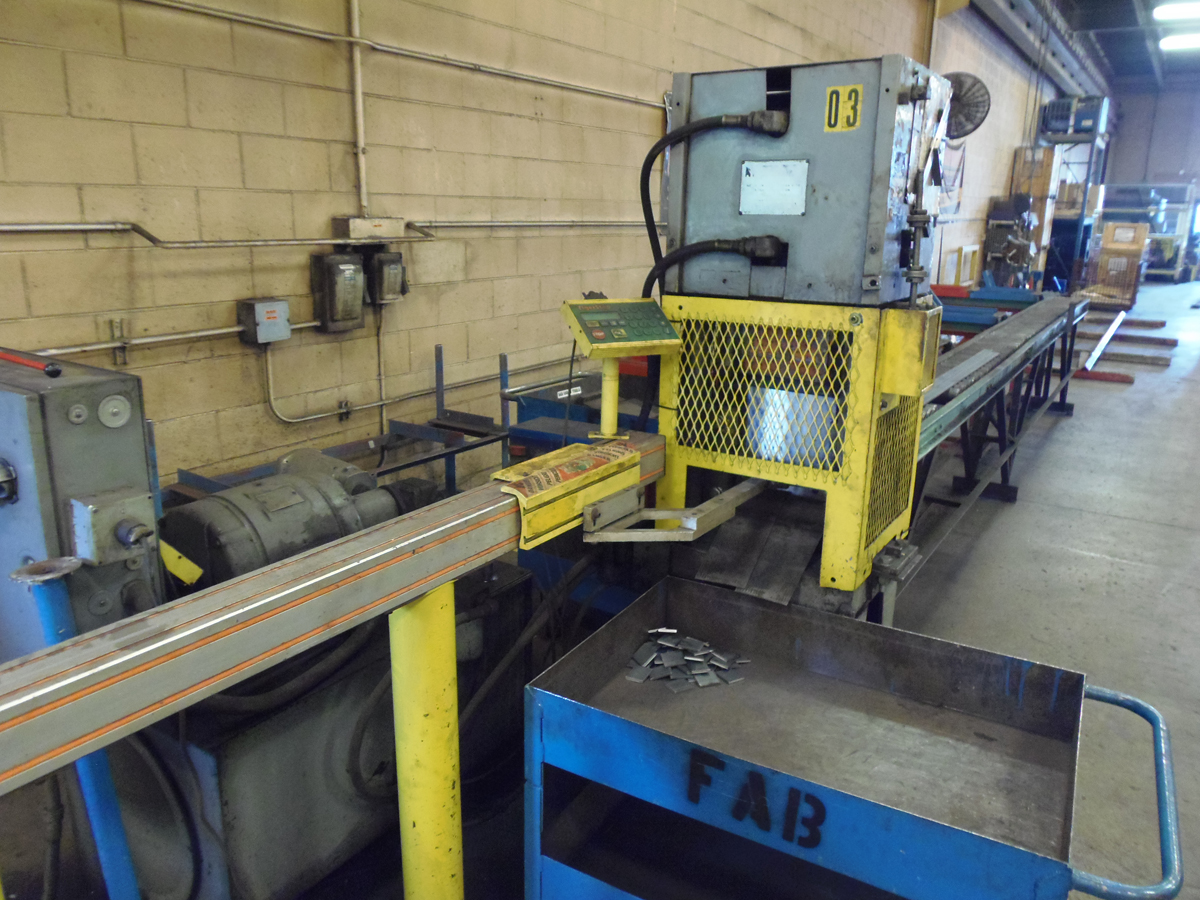

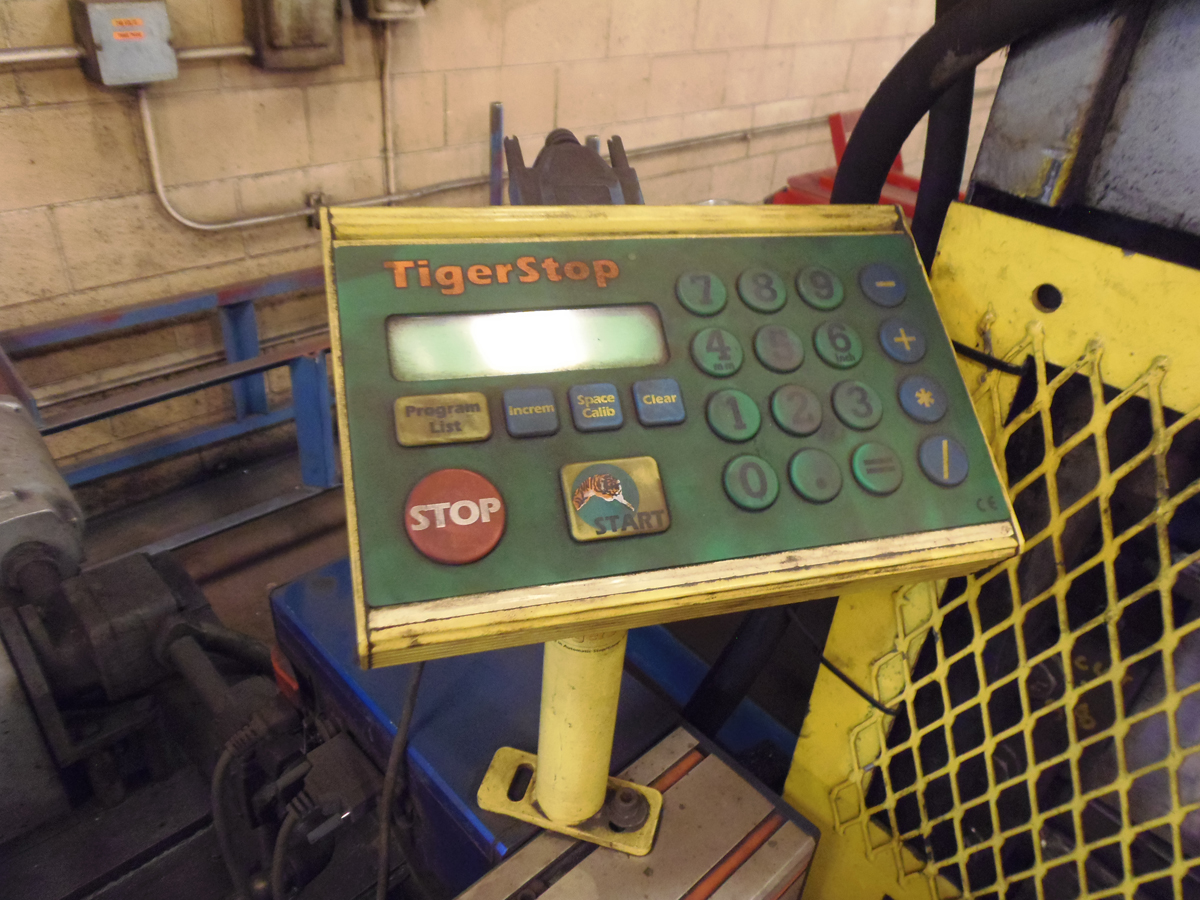

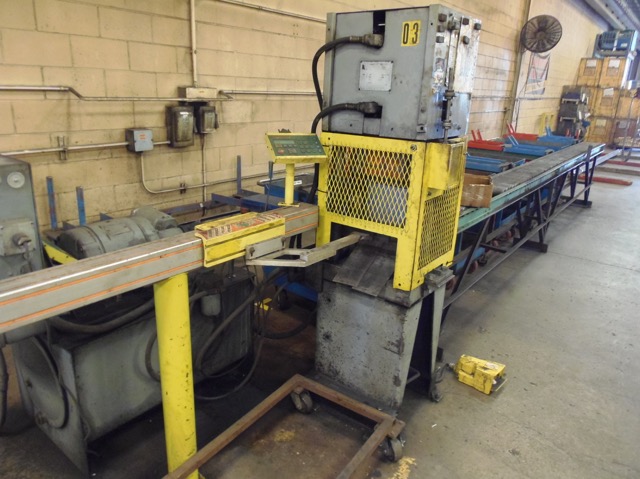

TIGER STOP MODEL TS10, 10' POSITIONING SYSTEM
SERIAL NUMBER 059876 (2005)

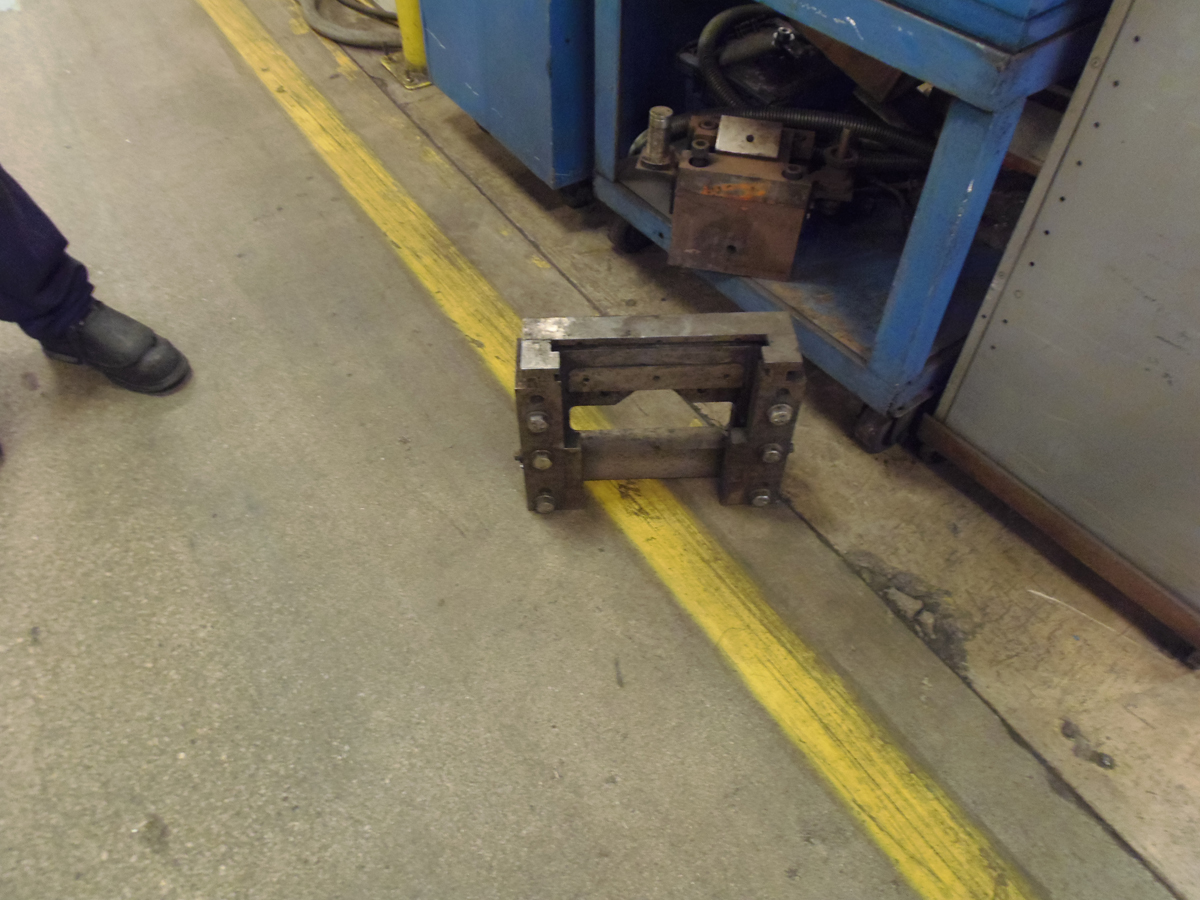

FLAT BAR ATTACHMENT
ANGLE ATTACHMENT
