GENERAL SPECIFICATIONS:

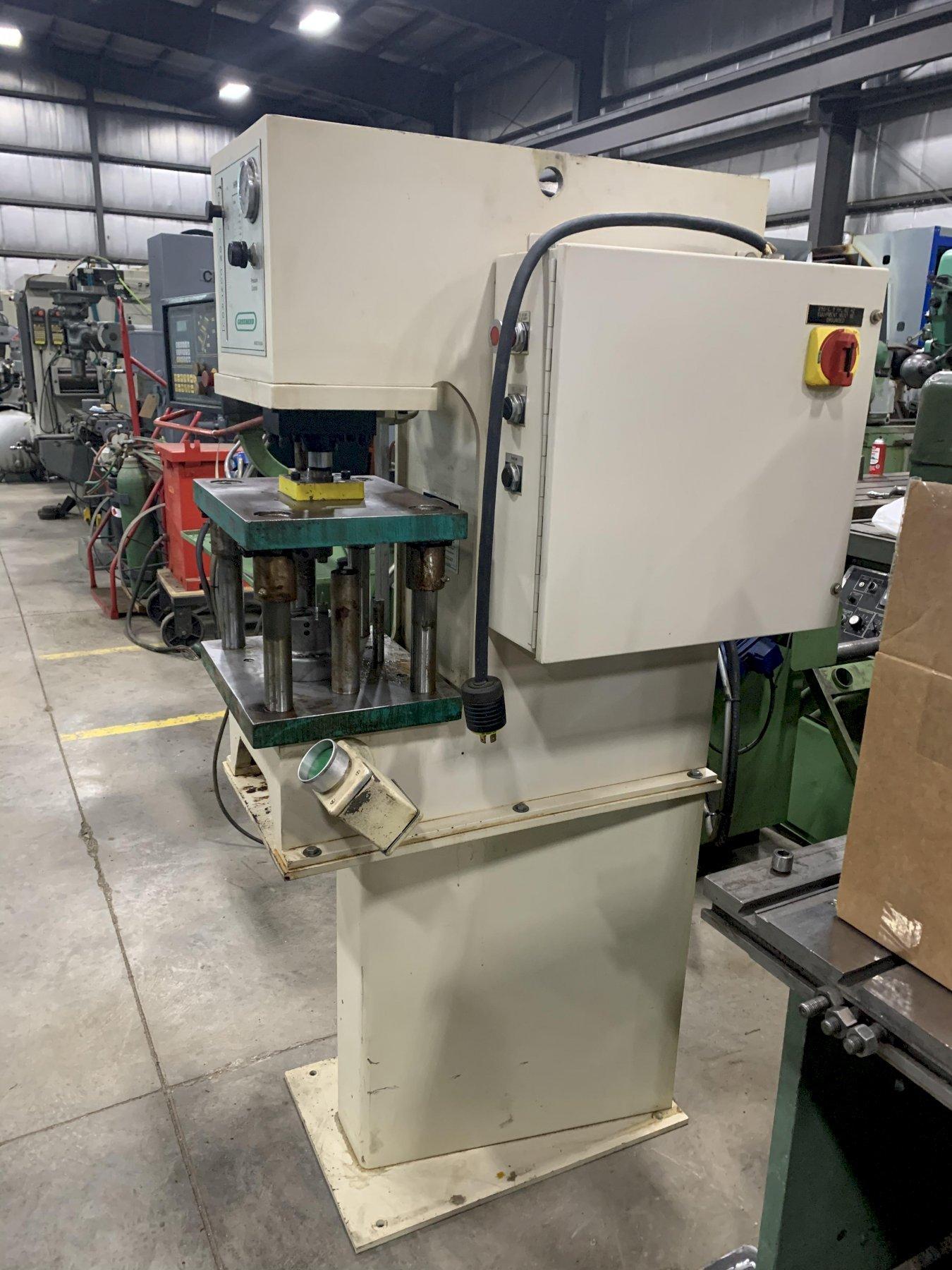

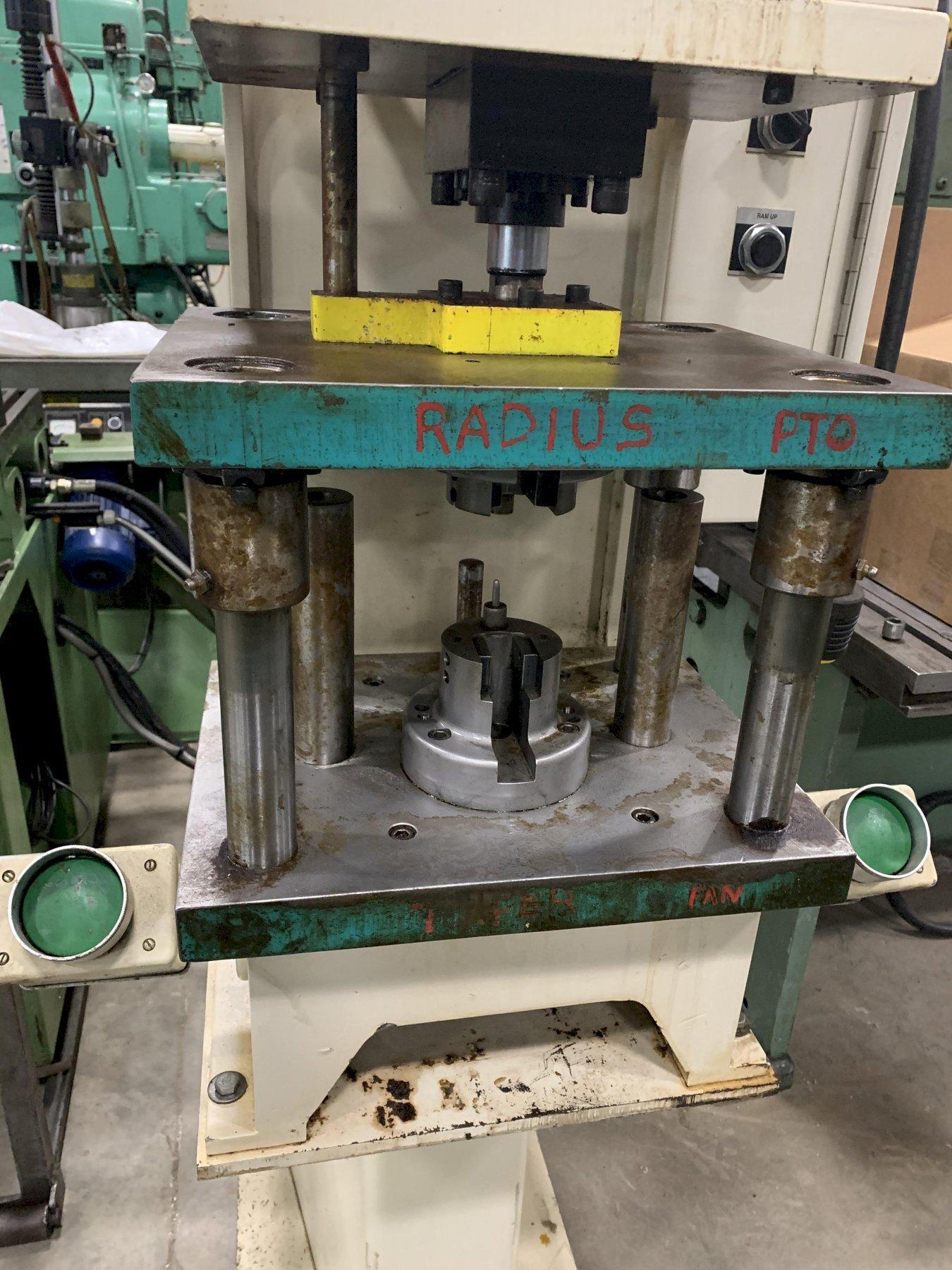

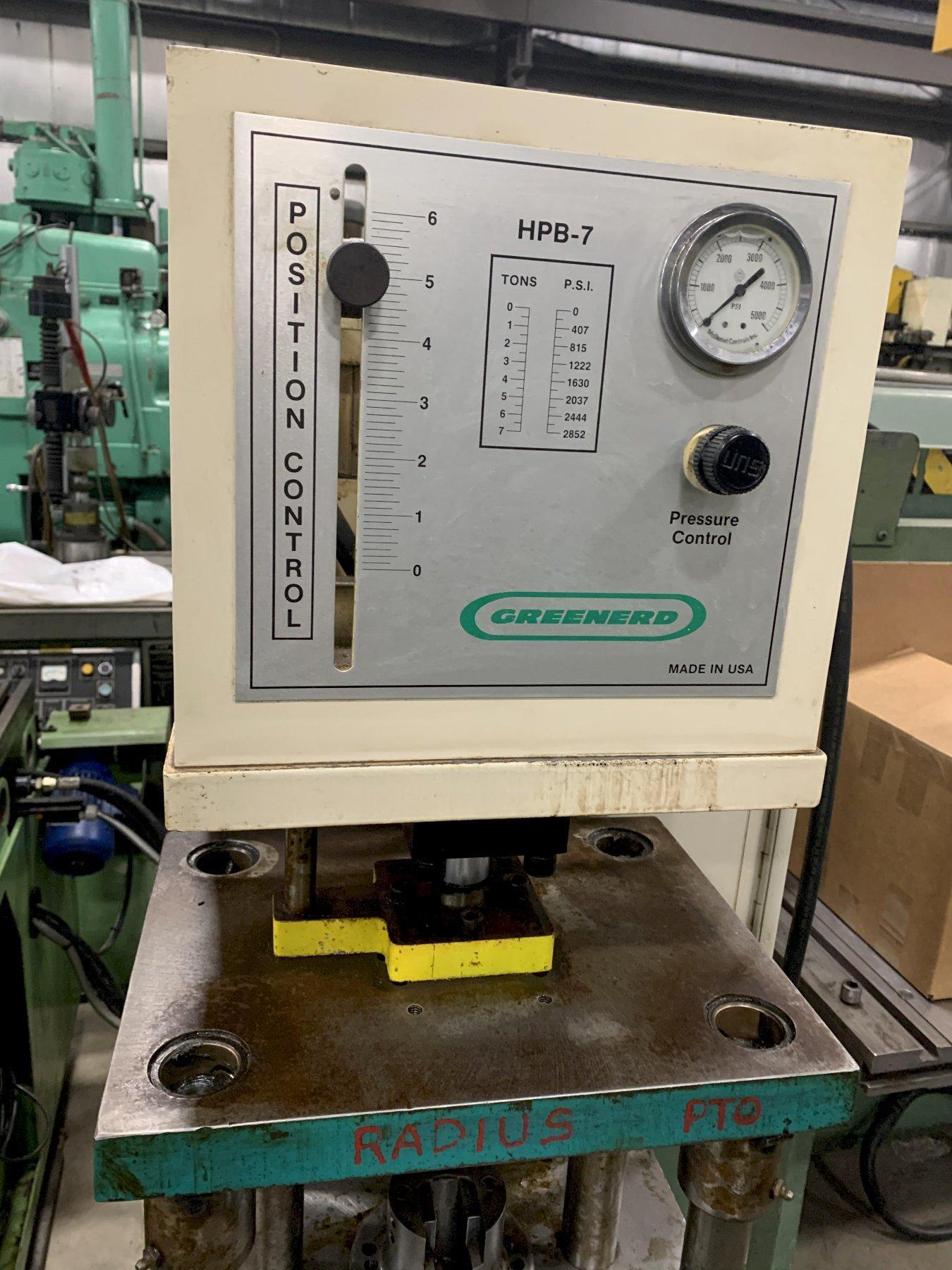

MANUFACTURER................... GREENERD
MODEL.......................... HPB-7
SERIAL NUMBER.................. 98T5570
AGE............................ 1998
TONNAGE........................ 1.4 - 7 TONS
STROKE (ADJ.).................. 6"
DAYLIGHT (MAX OPENING)......... 11.5"
TABLE.......................... 14' X 10" X 1.5"
RAM LINK....................... 4' X 4" X 1"
THROAT......................... 7"
RAM SPEEDS: ADVANCE............ 306 IPM
PRESS.............. 71 IPM
RETURN............. 439 IPM
GAP BEHIND TABLE............... 12"L-R X 2.5"F-B
PUMPS.......................... 5 GPM AND 1.5 GPM
MOTOR.......................... 3HP@1800RPM
TANK CAPACITY.................. 12 GALLONS
HEIGHT WITHOUT TABLE........... 38"
HEIGHT WITH TABLE..............
APPROXIMATE WEIGHT............. 1,000 LBS
