GENERAL SPECIFICATIONS:

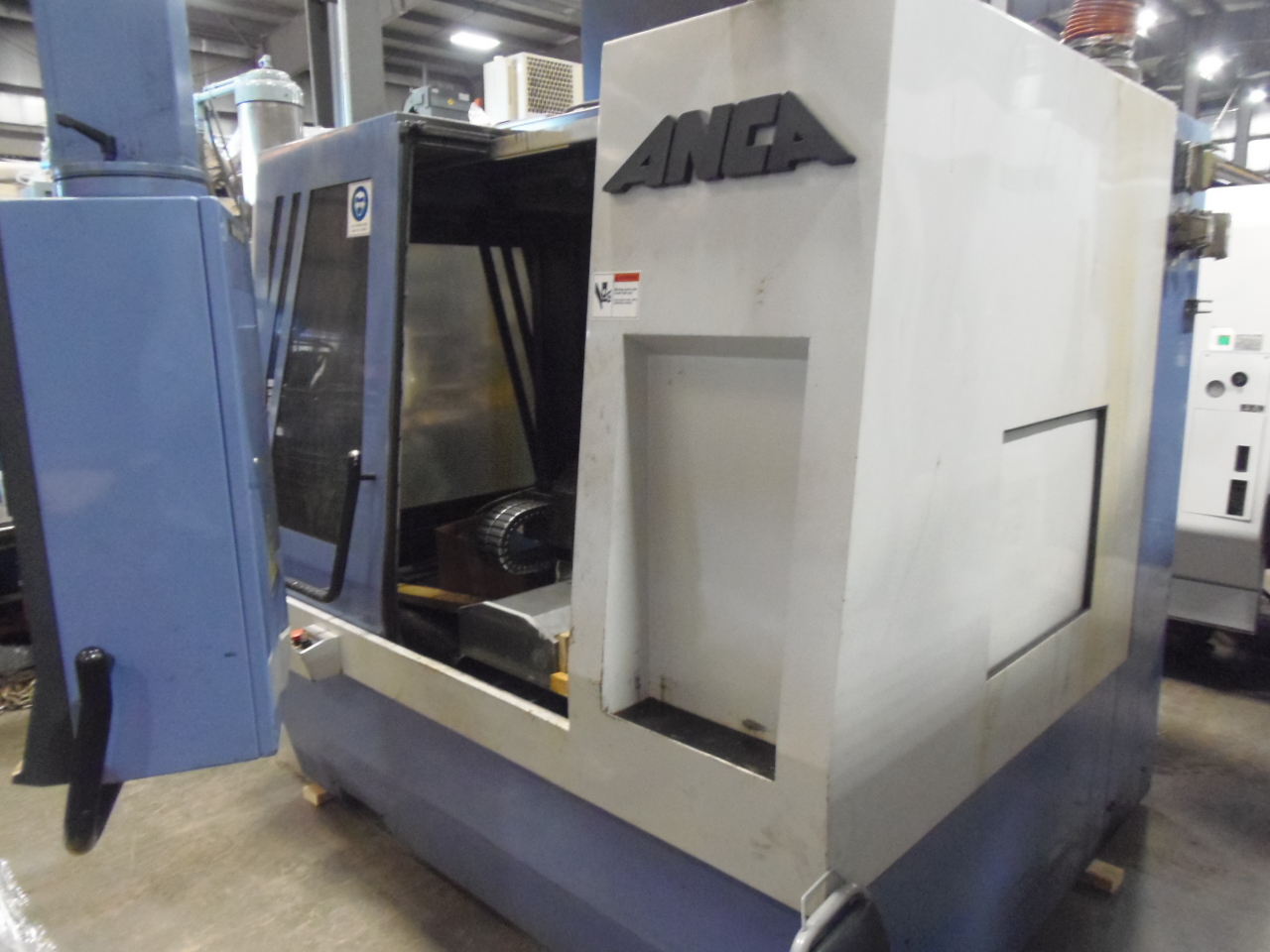

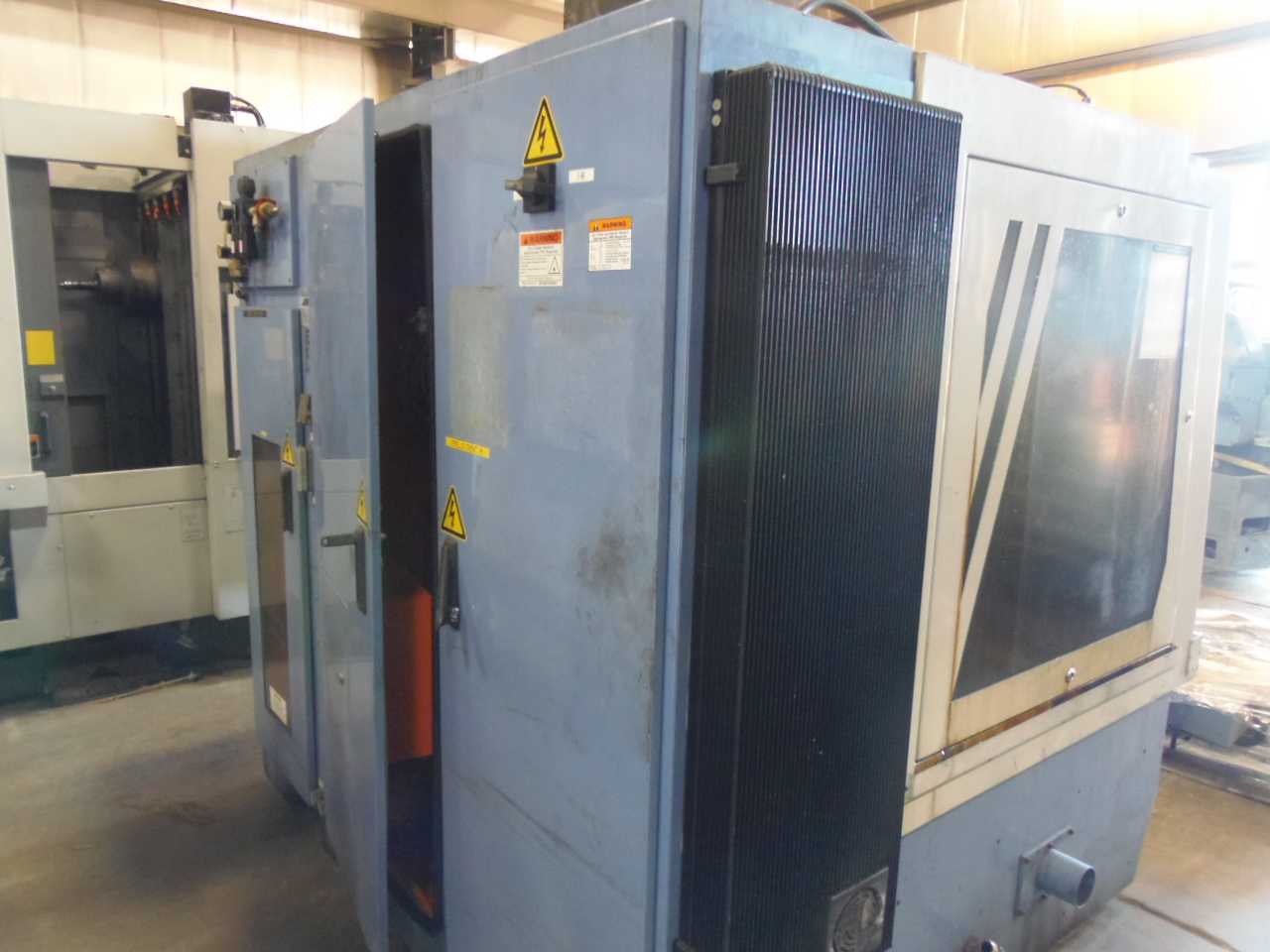

MAKE......................... ANCA
MODEL........................ TGX

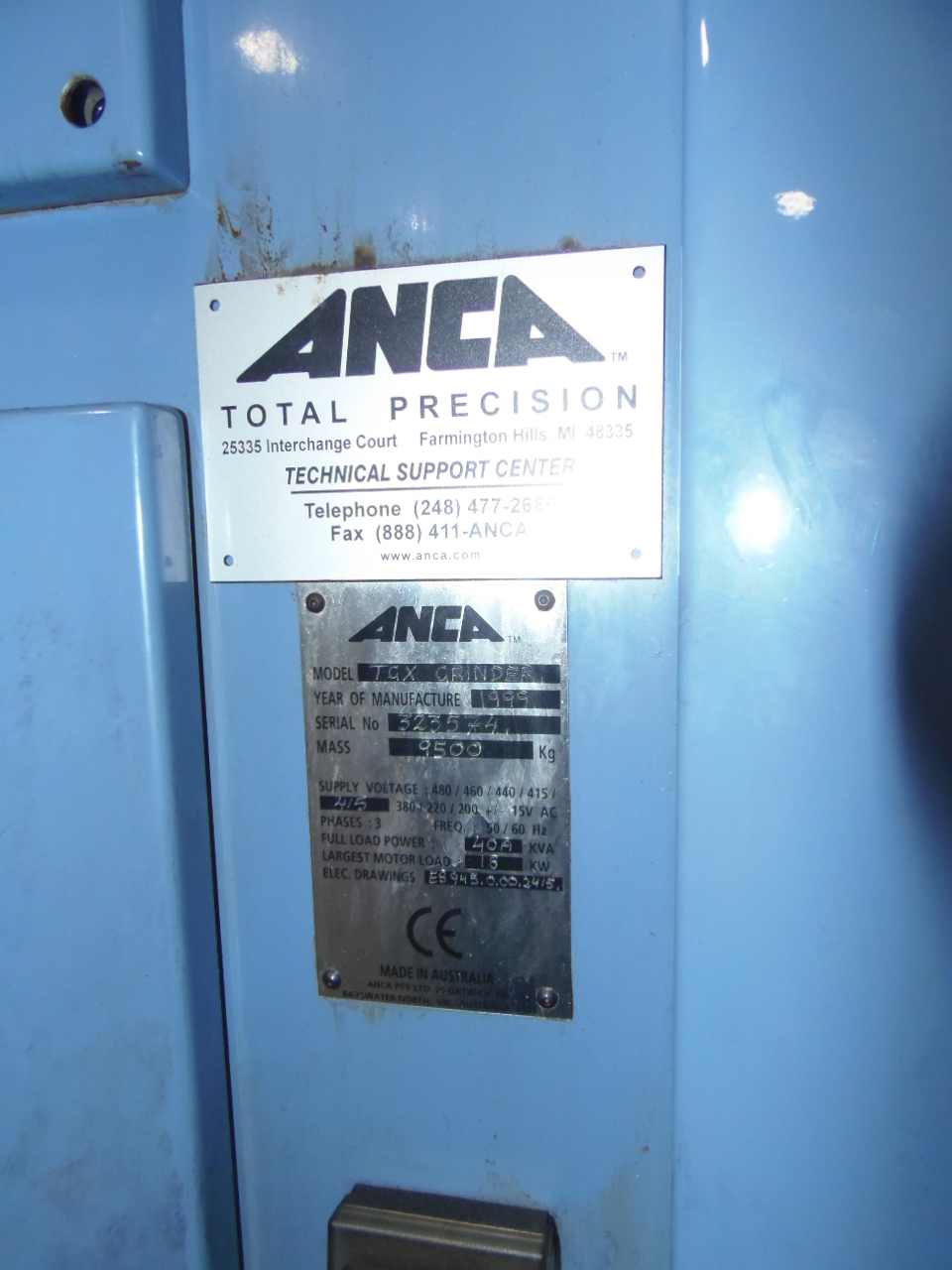

SERIAL NUMBER................ 323574
AGE (YEAR)................... 1999
GRINDING LENGTH.............. 30"
MAX GRINDING DIAMETER........ 13.78"
NO. OF HARD AXIS............. 5
NO. OF SOFT AXIS............. 2
X AXIS:
PITCH........................ 10 MM
TRAVEL....................... 760 MM (30")
Y AXIS:
PITCH........................ 10 MM
TRAVEL....................... 460 MM (18")
Z AXIS:
PITCH........................ 5 MM
TRAVEL....................... 350 MM (14")
A AXIS:
PITCH........................ 360 DEG
C AXIS:
PITCH........................ 360 DEG
TRAVEL....................... 270 DEG
RAPIDS (X,Y)................. 709 IPM
RAPIDS (Z)................... 209 IPM

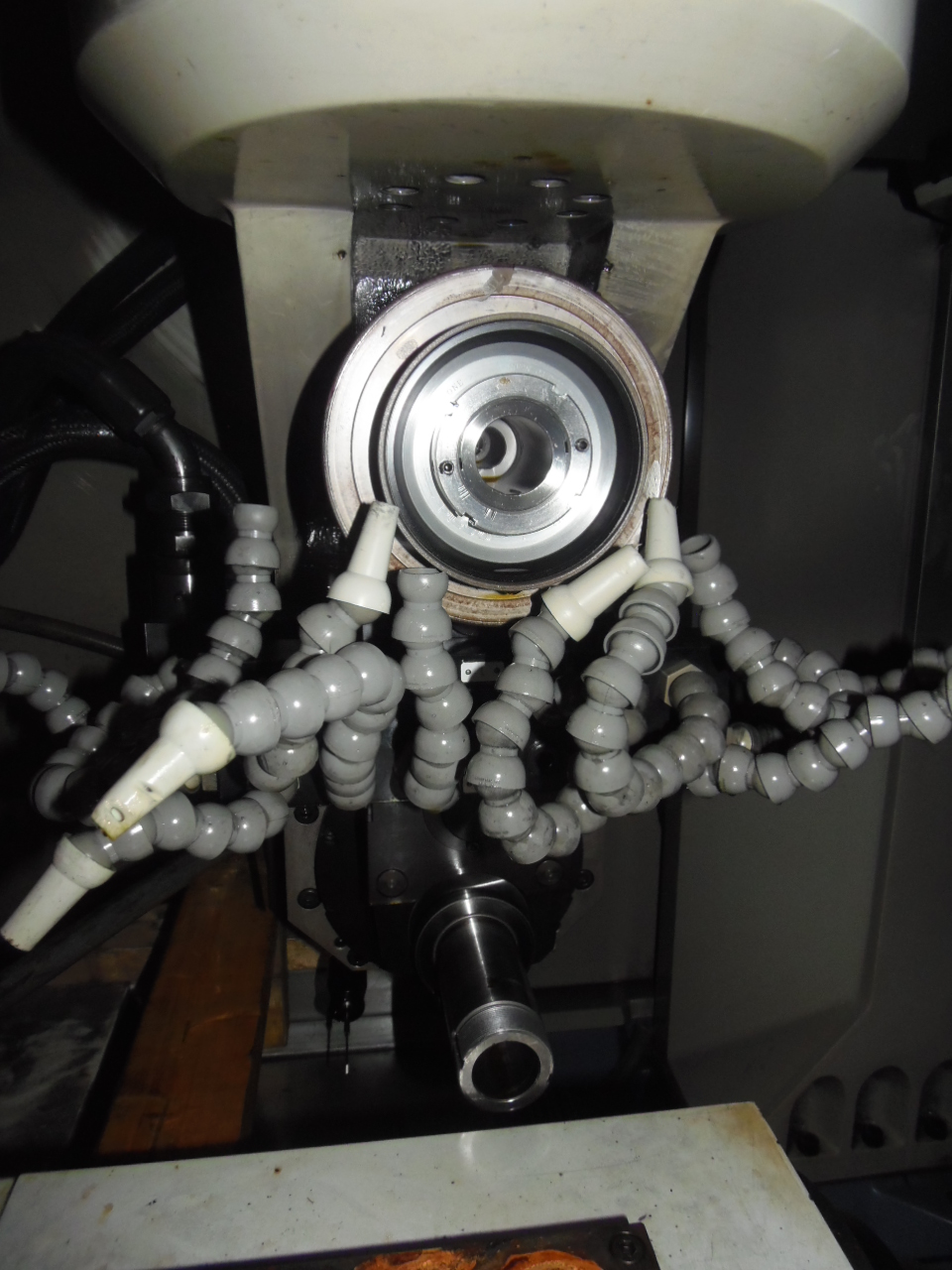

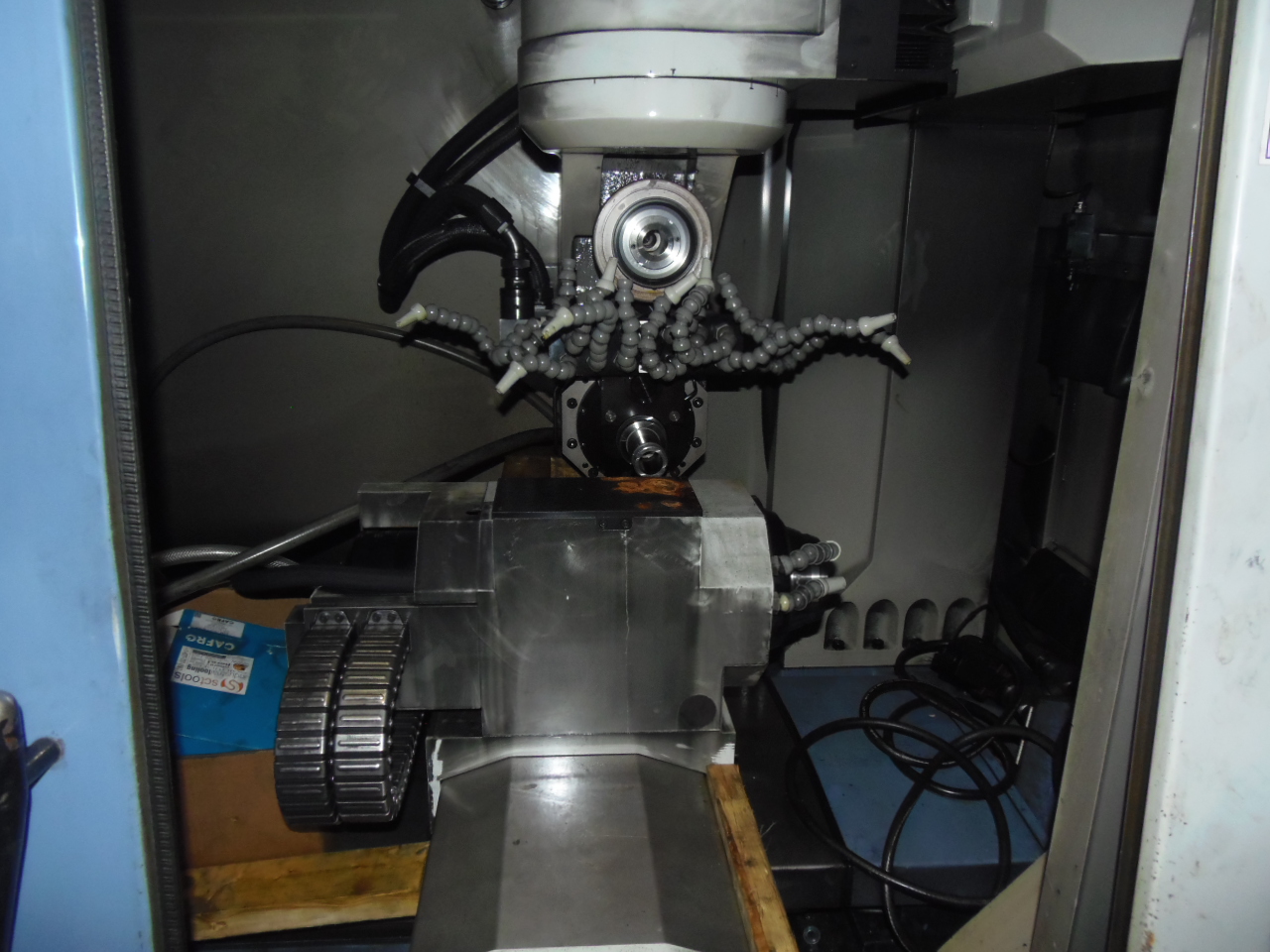

SPINDLE SPEED................ 1800-8000 RPM
TAPER........................ HSK50 TYPE E
WHEEL BORE................... 50.8 MM
WHEEL OD MAX................. 200 MM

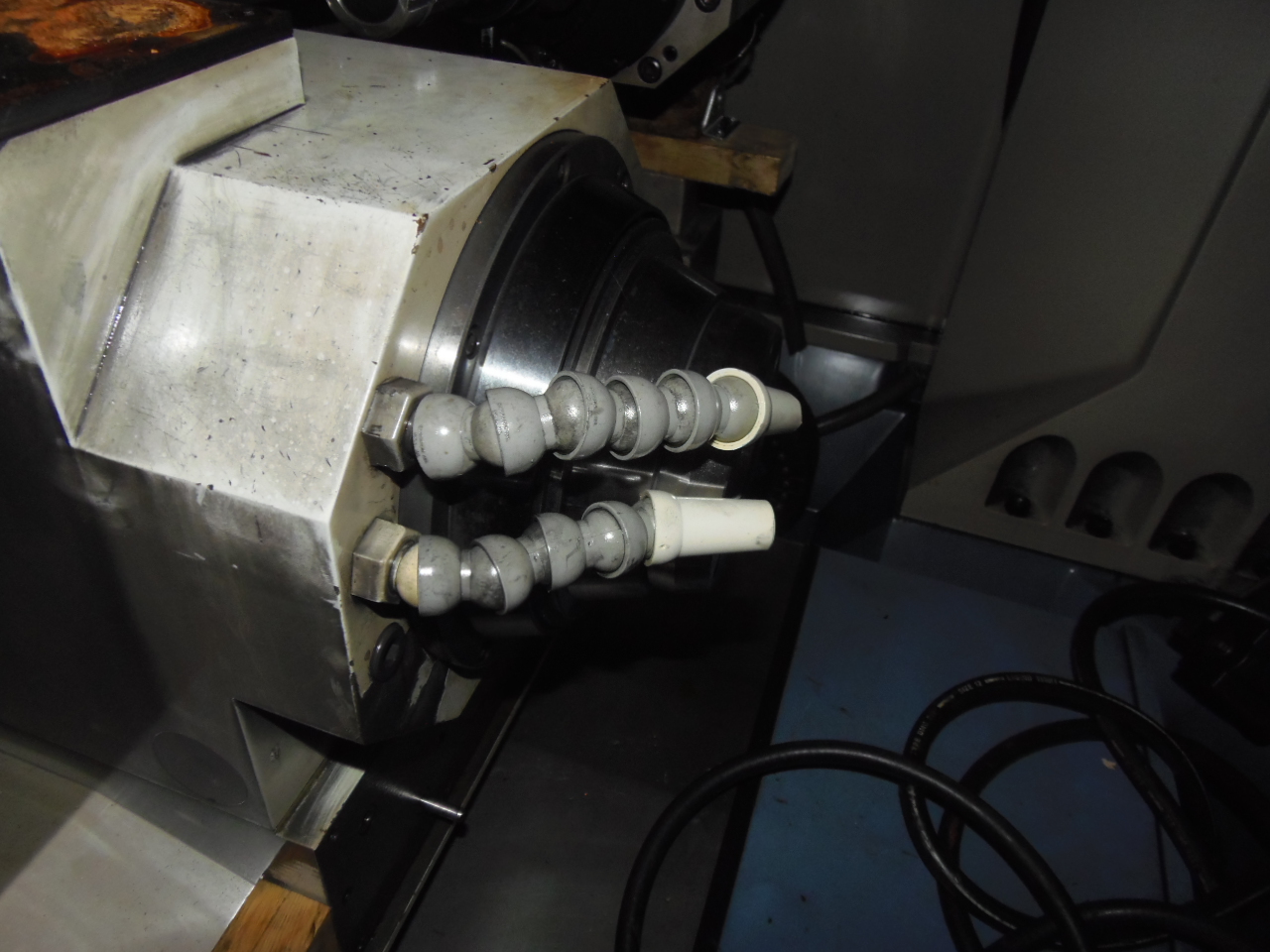

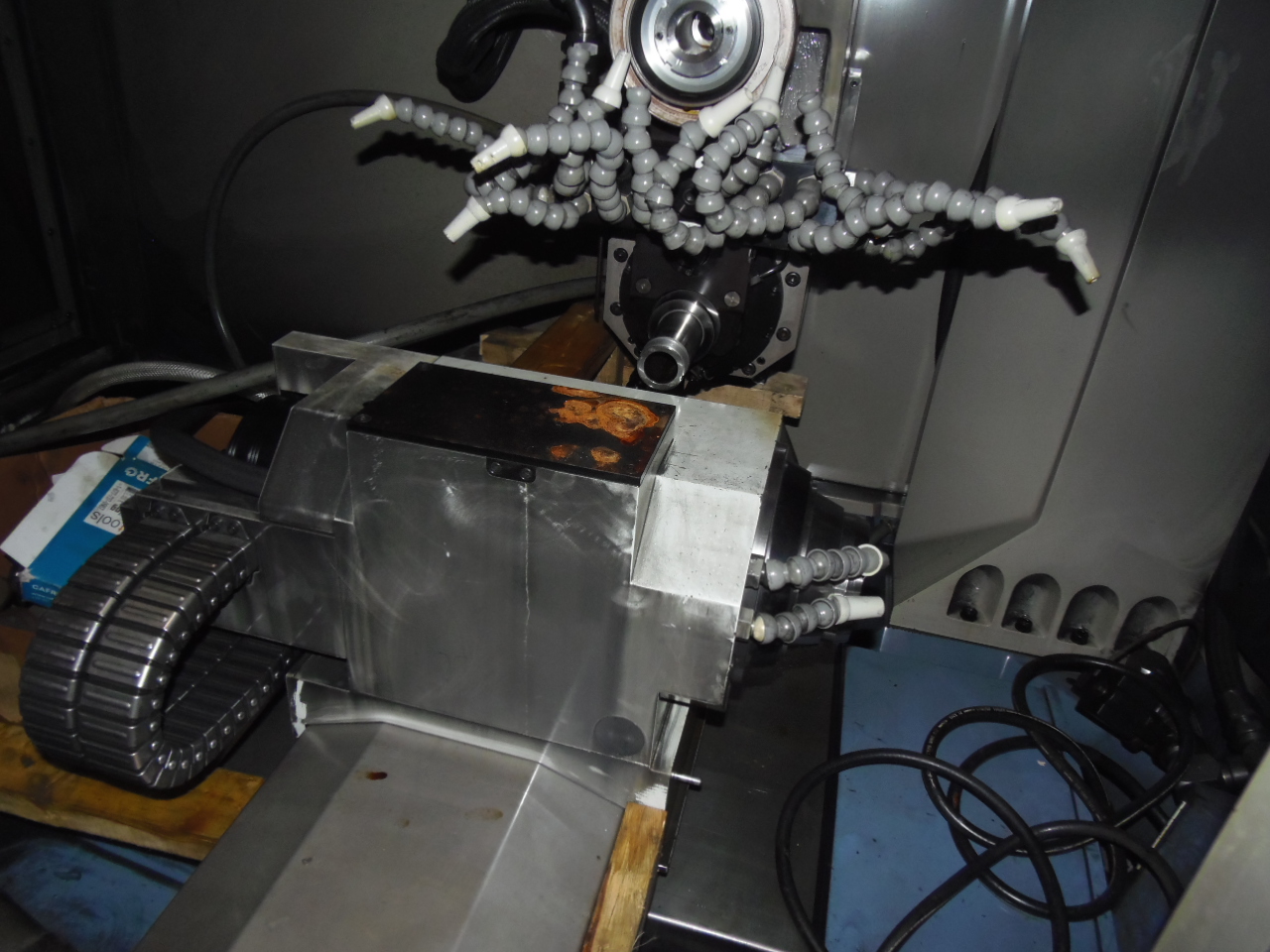

WORK HEAD TAPER.............. ISO 50
WORK HEAD SPEED.............. 0-300 RPM
MAX SWING.................... 350 MM (13.8")
MAX PART WEIGHT.............. 250KG (550 LBS)
FLOOR SPACE.................. 86" X 83" X 106" H
WEIGHT....................... 21000 LBS.
EQUIPPED WITH

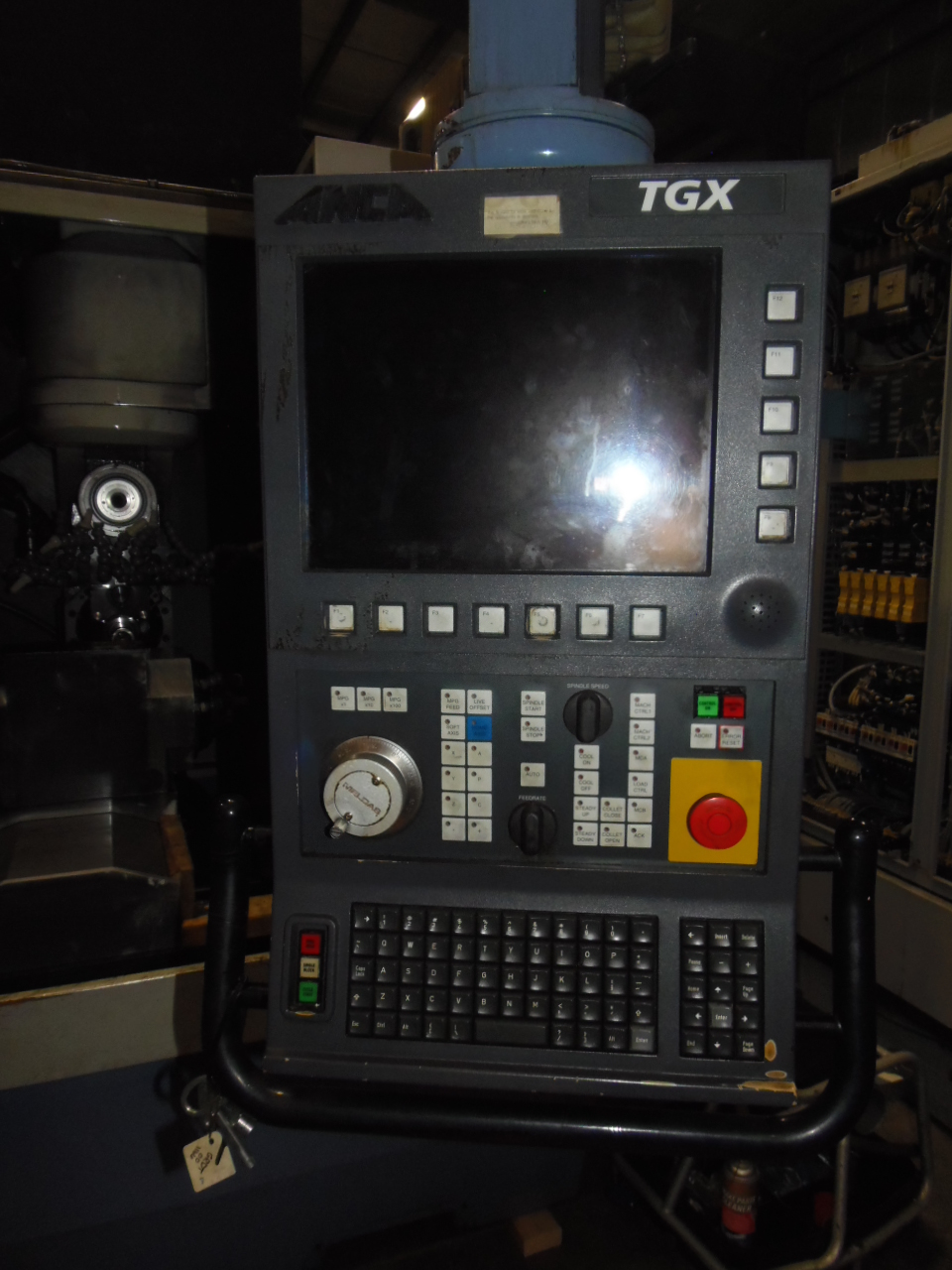

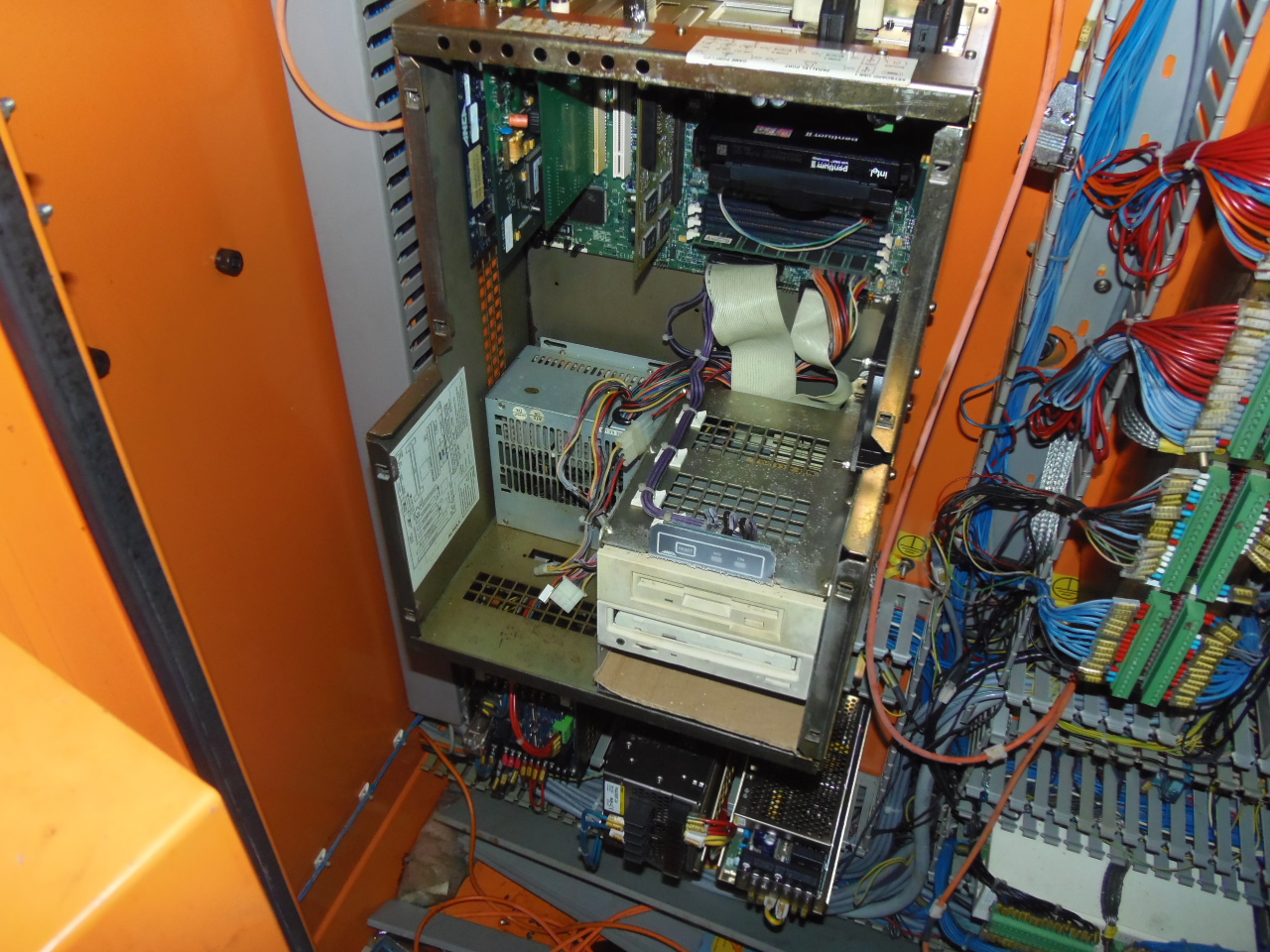

ANCA 3DX CNC SYSTEM
SPECIFICATIONS SUBJECT TO VERIFICATION
